2008.5 Citroen C8 Owner's Manual

225
9
Dimensions
TECHNICAL DATA

ROOF CONSOLE DISPLAY

ROOF CONSOLE DISPLAY
The roof console display is installed in such a way that it
will only operate in your vehicle. If it is to be i nstalled in
another vehicle, consult your Dealer for conigurati on of
the system.
For safety reasons, it is imperative that the drive r carries
out operations which require prolonged attention wh ile
the vehicle is stationary.
When the engine is off and to prevent discharging o f the
battery, the roof console display may switch off af ter a
few minutes. CONTENTS

2
POWERSTOP
AUTOON
OFF
MODE
PLAYDOWN UPEJECT
DVD
SMART
MODE DISC IN
AV1 AV2
01
Additional lighting switch. RESET button.
Passenger compartment
lighting.
A/V source selection
(DVD/DIVX, AV1, AV2).
A disc is
inserted.
SMART mode
activation.
Av1: AV1 input selected.
Av2: AV2 input selected.
DVD player video signal.
CONTROLS
FIRST STEPS
On/Off.
Stop play.
A/V source selection (DVD/DIVX, AV1, AV2).
VCD/CD/MP3: next title.
Cursor up.
DVD/DIVX: previous chapter.
VCD/CD/MP3: previous title.
Cursor down.
Disc eject.
Play/pause.
DVD/DIVX: next chapter.

3
AV2 IN12
3
7
5
4
6
01
8
30 %30 %

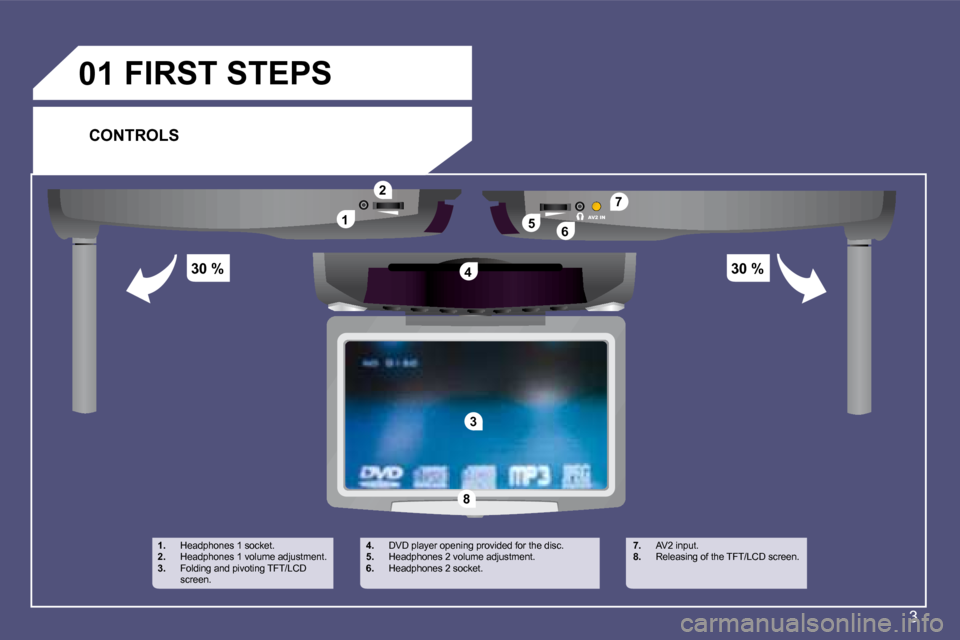

1.
Headphones 1 socket.
2. Headphones 1 volume adjustment.
3. Folding and pivoting TFT/LCD
screen. 4.
DVD player opening provided for the disc.
5. Headphones 2 volume adjustment.
6. Headphones 2 socket. 7.
AV2 input.
8. Releasing of the TFT/LCD screen.
CONTROLS
FIRST STEPS

4
SUB-T
SMARTPOWER
DISP
REPEAT
ANGLE
SETUP
MODE
VOL+
SEL
VOL-
AUDIOENTER
TITLE
MENU
123
456
789
0
ZOOM
01
SUB-T
SMART
DISP
REPEATSETUP
MODE
VOL+
SEL
VOL-
AUDIO
ENTER
TITLE
MENU
ZOOM
On/Off.
SMART mode on/off.
Play/Pause.
Stop play.
DVD: next chapter/previous chapter.
VCD/CD/MP3: next/previous title.
On the menus: cursor up/down.
Subtitle language selection.
Audio language selection.
Displaying of player setup menu.
Selection of TFT screen AV source (DVD, AV1 or AV2)

or of AV output AV1/AV2 in SMART mode. Displaying of DVD/DIVX main menu.
Volume decrease.
Displaying of DVD/DIVX title menu.
DVD screen settings (brightness, contrast, …).
Volume increase.
Selection conirmation.
Fast forward/backward play. On the menus:
cursor left/right.
ZOOM: Zoom mode setting.
ANGLE: Viewing angle selection.
REPEAT mode activation and selection.
Displaying of the duration (during play).
Numeric Block
CONTROLS FIRST STEPS

5
02
DVD/DIVX play menuVCD/CD play
menuMP3 CD play
menu JPEG images CD
play menuThis is not a touch screen. Never press
the surface of the screen directly as this
may damage the liquid crystal display.
GENERAL MENU
The use of a non-abrasive cloth
(spectacles cloth), without any additional
products, is recommended for maintenance
of the TFT/LCD screen.

6
1
2 1
2 1
2
03
12
UP EJECT
SMART
MODE DISC IN
ARTDEDISC IN
POWER
STOP
DVDAV1
MULTIMEDIA SYSTEM ON/OFF BASIC FUNCTIONS
To switch on the multimedia system, switch on
the vehicle's ignition.
Press the POWER button on the roof console
display or on the remote control. Play begins automatically.
To load a disc, insert it gently, printed
face uppermost, until it is fully
inserted.
Press the EJECT button on the roof
console display.
Remove the disc gently.
LOADING/EJECTING A CD
