the spark plug cap.
6. Lubricate all control cables and the pivoting
points of all levers and pedals.
7. Check and, if necessary, correct the tire air
pressure, and then block up the ATV so that
all of its wheels are off the ground. Alternative-
ly, turn the wheels a little every month in order
to prevent the tires from becoming degraded
in one spot.
8. Cover the muffler outlet with a plastic bag to
prevent moisture from entering it.
9. Remove the battery and fully charge it. Store
it in a cool, dry place and charge it once a
month. Do not store the battery in an exces-
sively cold or warm place [less than 0 °C (30
°F) or more than 30 °C (90 °F)]. For more in-
formation on storing the battery, see page 8-
28.
NOTE:
Make any necessary repairs before storing the
ATV.
Page 106 of 114
10-1
1
2
3
4
5
6
7
8
910
11
EBU25960
SPECIFICATIONS
EBU25975
Dimensions:
Overall length:
1537 mm (60.5 in)
Overall width:
841 mm (33.1 in)
Overall height:
940 mm (37.0 in)
Seat height:
669 mm (26.3 in)
Wheelbase:
1030 mm (40.6 in)
Ground clearance:
100 mm (3.9 in)
Minimum turning radius:
2400 mm (94 in)
Weight:
With oil and fuel:
116.0 kg (256 lb)
Engine:
Engine type:
Air cooled 4-stroke, SOHC
Cylinder arrangement:
Forward-inclined single cylinder
Displacement:
79.0 cm
3
(4.82 cu.in)
Bore
×
stroke:
47.0
×
45.6 mm (1.85
×
1.80 in)Compression ratio:
9.60 :1
Starting system:
Electric starter
Lubrication system:
Wet sump
Engine oil:
Type:
SAE5W30 or SAE10W30 or SAE10W40 or SAE15W40
or SAE20W40 or SAE20W50
Recommended engine oil grade:
API service SE, SF, SG type or higher
-20˚-10˚0˚
10˚20˚30˚40˚50˚C
10W/30
15W/4020W/4020W/50
10W/40
5W/30
Page 107 of 114
10-2
1
2
3
4
5
6
7
8
910
11
Engine oil quantity:
Periodic oil change:
0.80 L (0.85 US qt) (0.70 Imp.qt)
Final gear oil:
Type:
SAE80 API GL-4 Hypoid gear oil
Quantity:
0.12 L (0.13 US qt) (0.11 Imp.qt)
Air filter:
Air filter element:
Wet element
Fuel:
Recommended fuel:
Regular unleaded gasoline only (EUR)
Unleaded gasoline only (AUS)(NZL)
Fuel tank capacity:
6.8 L (1.80 US gal) (1.50 Imp.gal)
Fuel reserve amount:
0.9 L (0.24 US gal) (0.20 Imp.gal)
Carburetor:
Manufacturer:
MIKUNI
Type x quantity:
VM16SH x 1
Spark plug (s):
Manufacturer/model:
NGK/CR7HSA
Spark plug gap:
0.6–0.7 mm (0.024–0.028 in)
Clutch:
Clutch type:
Wet, multiple-disc automatic
Transmission:
Primary reduction system:
Spur gear
Primary reduction ratio:
65/20 (3.250)
Secondary reduction system:
Shaft drive
Secondary reduction ratio:
19/18
×
34/10 (3.588)
Transmission type:
Constant mesh 3-speed
Operation:
Left foot operation
1st:
39/11 (3.545)
2nd:
35/17 (2.059)
3rd:
31/22 (1.409)
Chassis:
Frame type:
Steel tube frame
Caster angle:
1.0 °
Trail:
3.8 mm (0.15 in)
Page 108 of 114
10-3
1
2
3
4
5
6
7
8
910
11
Front tire:
Type:
Tubeless
Size:
AT18 x 7-7
Manufacturer/model:
DUNLOP/KT586
Rear tire:
Type:
Tubeless
Size:
AT18 x 8-7
Manufacturer/model:
DUNLOP/KT587
Loading:
Maximum loading limit:
95.0 kg (209 lb)
(Total weight of rider, cargo, accessories, and tongue)
Tire air pressure (measured on cold tires):
Recommended:
Front:
20 kPa (2.9 psi) (0.20 kgf/cm
2
)
Rear:
20 kPa (2.9 psi) (0.20 kgf/cm
2
)
Minimum:
Front:
17 kPa (2.5 psi) (0.17 kgf/cm
2
)
Rear:
17 kPa (2.5 psi) (0.17 kgf/cm
2
)Maximum:
Front:
23 kPa (3.3 psi) (0.23 kgf/cm
2
)
Rear:
23 kPa (3.3 psi) (0.23 kgf/cm
2
)
Front wheel:
Wheel type:
Panel wheel
Rim size:
7 x 5.5AT
Rear wheel:
Wheel type:
Panel wheel
Rim size:
7 x 6.5AT
Front brake:
Type:
Drum brake
Operation:
Right hand operation
Rear brake:
Type:
Drum brake
Operation:
Left hand and right foot operation
Front suspension:
Type:
Leading arm
Spring/shock absorber type:
Coil spring/oil damper
Page 109 of 114
10-4
1
2
3
4
5
6
7
8
910
11
Wheel travel:
57 mm (2.3 in)
Rear suspension:
Type:
Swingarm
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
56 mm (2.2 in)
Electrical system:
Ignition system:
CDI
Charging system:
AC magneto
Battery:
Model:
12N7D-3B
Voltage, capacity:
12 V, 7.0 Ah
Bulb voltage, wattage x quantity:
Neutral indicator light:
12 V, 1.7 W
×
1
Fuses:
Main fuse:
5.0 A
Page 110 of 114
11-1
1
2
3
4
5
6
7
8
9
1011
EBU26000
CONSUMER INFORMATION
EBU26011
Identification numbers
Record the key identification number, vehicle iden-
tification number and model label information in
the spaces provided below for assistance when or-
dering spare parts from a Yamaha dealer or for ref-
erence in case the ATV is stolen.
KEY IDENTIFICATION NUMBER:
VEHICLE IDENTIFICATION NUMBER:
MODEL LABEL INFORMATION:
EBU26020
Key identification number
The key identification number is stamped into the
key. Record this number in the space provided and
use it for reference when ordering a new key.
EBU26030
Vehicle identification number
The vehicle identification number is stamped into
the frame.
1. Key identification number1
Page 111 of 114
11-2
1
2
3
4
5
6
7
8
9
1011
NOTE:
The vehicle identification number is used to identi-
fy your ATV.
EBU26050
Model label
The model label is affixed at the location in the il-
lustration. Record the information on this label in
the space provided. This information will be need-
ed when ordering spare parts from a Yamaha deal-
er.

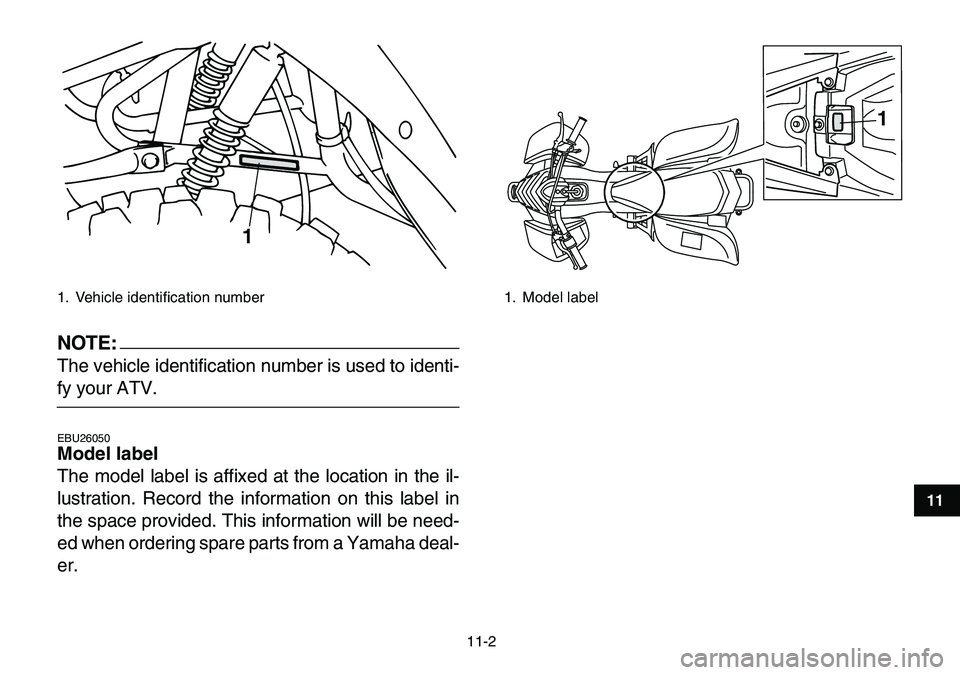

1. Vehicle identification number
1
1. Model label
1
