1. Check for any missing item(s), scratches in painted/plated part(s), saddle or other external
visual damages and take corrective action.
Check each of the following items individually and mention the corrective action (as per the
recommended specifications) in the boxes provided.2. Check for missing part(s), if any.A. FRAME
a. Brakes
Front :Free Play at Lever End (10 ~ 15 mm)
Rear :Free Play at Rear Brake (20 ~ 30 mm)
b. Clutch :Free Play at Lever End (10 ~ 15 mm)c. Throttle :Free Play at Throttle Grip (3 ~7 mm)d. Steering :Check for Free Movemente. Suspension
Front Fork : Check for any sticky movement
Rear Shock Abs : For Free Stroking
(To be filled in by the Dealer on receipt of the Motorcycle from YMI)
Odo-Meter
ReadingDate of
Inspection
Frame
No.Engine
No.Date of
SaleFound OK
Set RightReplaced
Cleaned
Lubricated
RCL
S
PRE-DELIVERY INSPECTION REPORT
No.
SERVICE2.pmd10/15/2006, 8:54 AM 1

PRE-DELIVERY INSPECTION REPORT

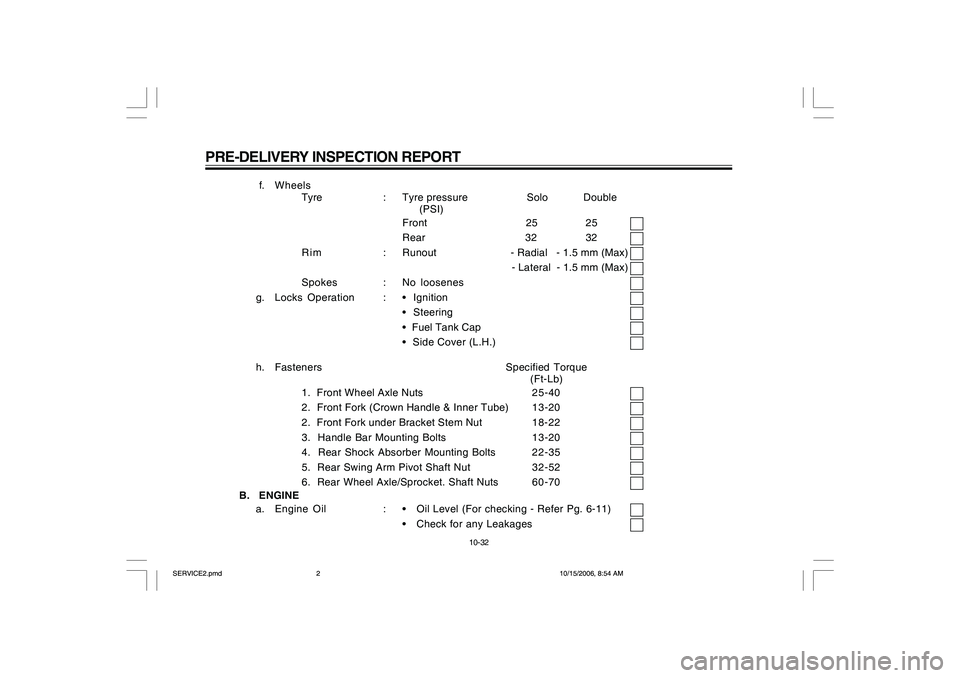

f. Wheels
Tyre :Tyre pressure Solo Double
(PSI)
Front 25 25
Rear 32 32
R i m : Runout - Radial - 1.5 mm (Max)
- Lateral - 1.5 mm (Max)
Spokes : No loosenes
g. Locks Operation : • Ignition
• Steering• Fuel Tank Cap• Side Cover (L.H.)
h. Fasteners Specified Torque
(Ft-Lb)
1. Front Wheel Axle Nuts25-40
2. Front Fork (Crown Handle & Inner Tube)13-202. Front Fork under Bracket Stem Nut 18-223. Handle Bar Mounting Bolts13-204. Rear Shock Absorber Mounting Bolts22-355. Rear Swing Arm Pivot Shaft Nut32-526. Rear Wheel Axle/Sprocket. Shaft Nuts60-70
B. ENGINE
a. Engine Oil : • Oil Level (For checking - Refer Pg. 6-11)
• Check for any Leakages
10-32
SERVICE2.pmd10/15/2006, 8:54 AM 2

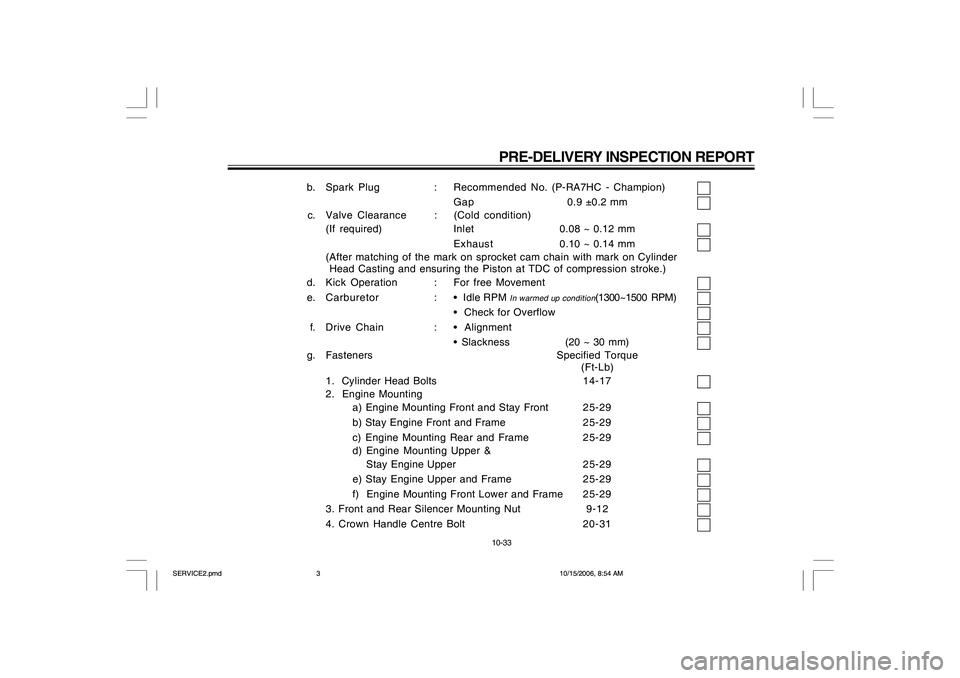

b. Spark Plug :Recommended No. (P-RA7HC - Champion)
Gap 0.9 ±0.2 mm
c. Valve Clearance : (Cold condition)
(If required) Inlet0.08 ~ 0.12 mm
Exhaust0.10 ~ 0.14 mm
(After matching of the mark on sprocket cam chain with mark on Cylinder
Head Casting and ensuring the Piston at TDC of compression stroke.)
d. Kick Operation: For free Movement
e. Carburetor : • Idle RPM
In warmed up condition
(1300~1500 RPM)
• Check for Overflow
f. Drive Chain : • Alignment
• Slackness (20 ~ 30 mm)
g. Fasteners Specified Torque
(Ft-Lb)
1. Cylinder Head Bolts14-17
2. Engine Mounting
a) Engine Mounting Front and Stay Front25-29
b) Stay Engine Front and Frame25-29c) Engine Mounting Rear and Frame25-29d) Engine Mounting Upper &
Stay Engine Upper25-29e) Stay Engine Upper and Frame25-29f) Engine Mounting Front Lower and Frame25-29
3. Front and Rear Silencer Mounting Nut9-124. Crown Handle Centre Bolt20-31
PRE-DELIVERY INSPECTION REPORT10-33
SERVICE2.pmd10/15/2006, 8:54 AM 3

PRE-DELIVERY INSPECTION REPORT
10-34

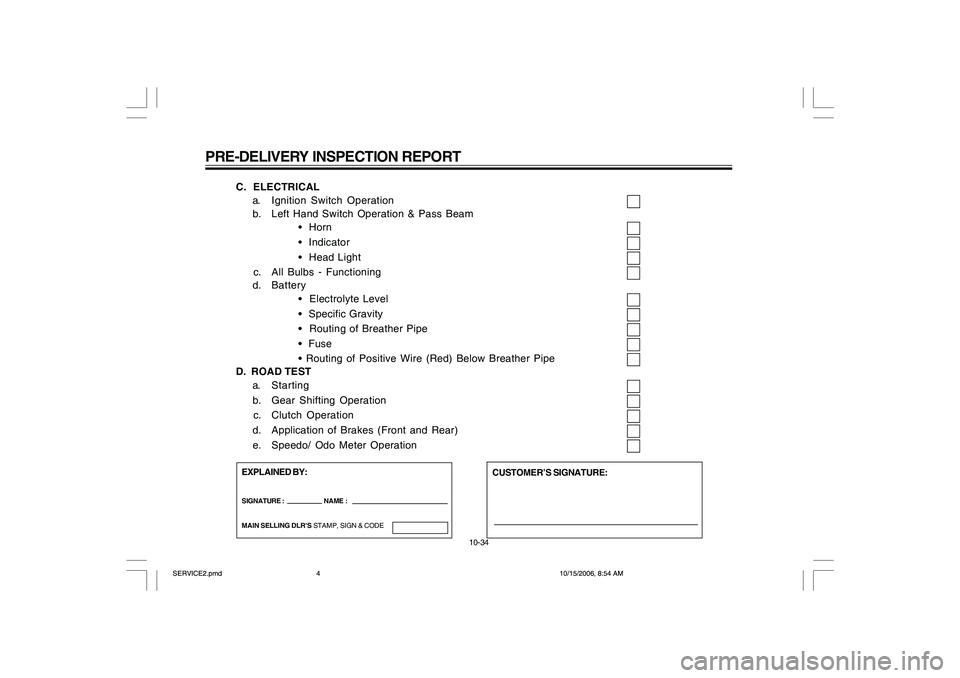

C. ELECTRICAL
a. Ignition Switch Operation
b. Left Hand Switch Operation & Pass Beam
• Horn
• Indicator• Head Light
c. All Bulbs - Functioningd. Battery
• Electrolyte Level
• Specific Gravity• Routing of Breather Pipe• Fuse• Routing of Positive Wire (Red) Below Breather Pipe
D. ROAD TEST
a. Starting
b. Gear Shifting Operationc. Clutch Operationd. Application of Brakes (Front and Rear)e. Speedo/ Odo Meter OperationEXPLAINED BY:SIGNATURE :NAME :
MAIN SELLING DLR'S STAMP, SIGN & CODE
CUSTOMER’S SIGNATURE:
SERVICE2.pmd10/15/2006, 8:54 AM 4

10-35
1. Operation of all the locks (Ignition, Steering, Fuel Tank Cap, Side Cover L.H.).
2. Fuel Cock Lever Operation and its reserve position; Fuel Tank Capacity including reserve.
3. Operation and function of Choke Lever.
4. Operation of Kick Lever.
5. Operation of Throttle.
6. Operation of Handle Bar Switches, their Functions and Pass Beam.
7. Disadvantages of riding on half Clutch (Never ride with clutch pressed).
8. Gear shifting pattern.
9. Tyre inflation pressure :Front - 25 Psi Rear - 32 Psi (Solo), 32 Psi (Double)
10. Never give sudden acceleration; always accelerate gradually
11. Simultaneous use of Front and Rear Brakes.
12. Never ride with your foot on Rear brake Pedal.
13. Whenever parking the Motorcycle on the Main Stand, ensure that the Fuel Cock Lever is in closed
position.
INSTALLATION
Procedures to be explained to the customer on delivery of the Motorcycle by the Dealer's
Representative.
SERVICE2.pmd10/15/2006, 8:54 AM 5

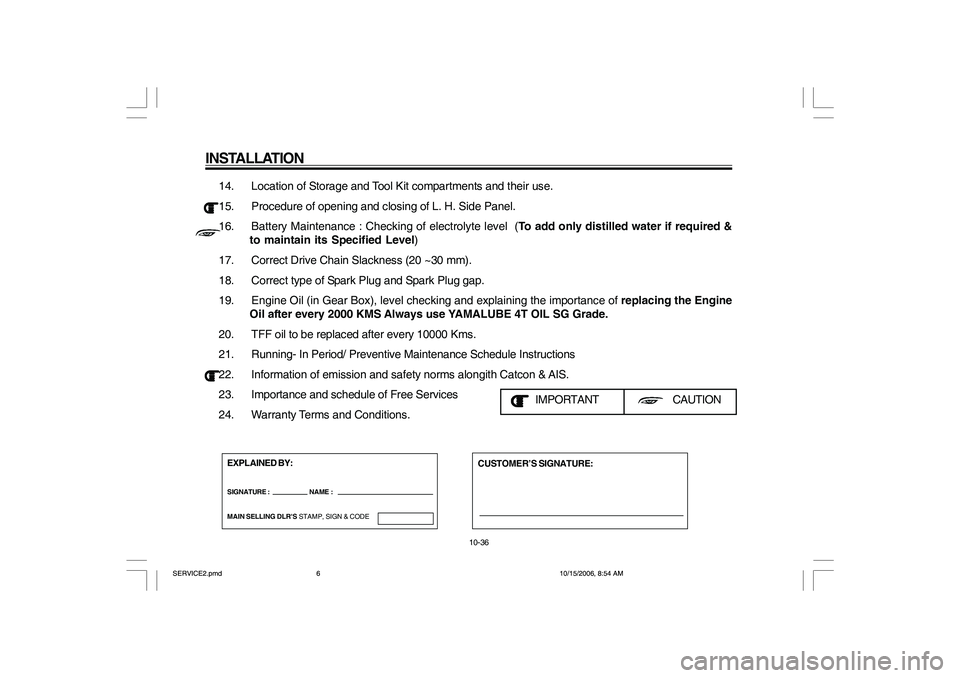

14. Location of Storage and Tool Kit compartments and their use.
15. Procedure of opening and closing of L. H. Side Panel.
16. Battery Maintenance : Checking of electrolyte level (To add only distilled water if required &
to maintain its Specified Level)
17. Correct Drive Chain Slackness (20 ~30 mm).
18. Correct type of Spark Plug and Spark Plug gap.
19. Engine Oil (in Gear Box), level checking and explaining the importance of replacing the Engine
Oil after every 2000 KMS Always use YAMALUBE 4T OIL SG Grade.
20. TFF oil to be replaced after every 10000 Kms.
21. Running- In Period/ Preventive Maintenance Schedule Instructions
22. Information of emission and safety norms alongith Catcon & AIS.
23. Importance and schedule of Free Services
24. Warranty Terms and Conditions.
INSTALLATION
IMPORTANT CAUTION
EXPLAINED BY:SIGNATURE :NAME :
MAIN SELLING DLR'S STAMP, SIGN & CODE
CUSTOMER’S SIGNATURE:10-36
