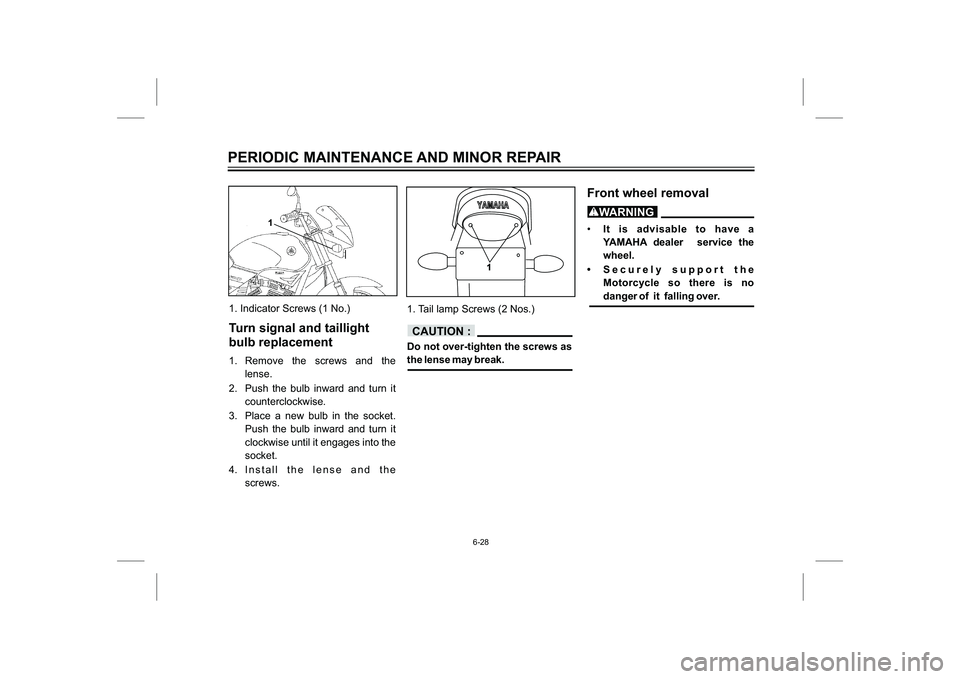

1. Indicator Screws (1 No.)Turn signal and taillight
bulb replacement1. Remove the screws and the
lense.
2. Push the bulb inward and turn it
counterclockwise.
3. Place a new bulb in the socket.
Push the bulb inward and turn it
clockwise until it engages into the
socket.
4. Install the lense and the
screws.1. Tail lamp Screws (2 Nos.)
Do not over-tighten the screws as
the lense may break.
Front wheel removalIt is advisable to have a
YAMAHA dealer service the
wheel.
Securely support the
Motorcycle so there is no
danger of it falling over.
PERIODIC MAINTENANCE AND MINOR REPAIR
6-28
WARNING
CAUTION :
PRE-DELIVERY INSPECTION REPORT10-4
C. ELECTRICAL
a. Ignition Switch Operation
b. Left Hand Switch Operation & Pass Beam
• Horn
• Indicator• Head Light
c. All Bulbs - Functioningd. Battery
• Electrolyte Level
• Specific Gravity• Routing of Breather Pipe• Fuse• Routing of Positive Wire (Red) Below Breather Pipe
D. ROAD TEST
a. Starting
b. Gear Shifting Operationc. Clutch Operationd. Application of Brakes (Front and Rear)e. Speedo/ Odo Meter Operationf. Fuel gauge OperationEXPLAINED BYSIGNATURE: _____________ NAME:
CUSTOMER’S SIGN
MAIN SELLING DLR’S STAMP, SIGNATURE
