ROAD SAFETY TIPS....................................... 1-1
DESCRIPTION................................................ 2-1
Left view ........................................................ 2-1
Right view ...................................................... 2-2
Controls/Instruments................................... 2-3
INSTRUMENT AND CONTROL
FUNCTIONS.................................................... 3-1
Main switch cum steering lock ..................... 3-1
Speedometer................................................ 3-2
Fuel gauge .................................................... 3-2
Indicator lights .............................................. 3-2
Handlebar switches ..................................... 3-3
Clutch lever ................................................... 3-3
Shift pedal ..................................................... 3-4
Front brake lever ........................................... 3-4
Rear brake pedal .......................................... 3-4
Fuel tank cap ................................................ 3-5
Fuel............................................................... 3-5
Fuel cock ....................................................... 3-6
Starter Lever .................................................. 3-7
Kick starter .................................................... 3-7
Seat............................................................... 3-8Storage compartment .................................. 3-9
Rear shock absorber adjustment ............... 3-9
Handle Seat, Lifting Handle, stay Lock .......3-10
PRE-OPERATION CHECKS ........................... 4-1
Pre-operation check list ............................... 4-1
OPERATION AND IMPORTANT RIDING
POINTS............................................................ 5-1
Starting and warming up a
cold engine ................................................... 5-1
Starting a warm engine ................................ 5-2
Shifting.......................................................... 5-2
Tips for reducing fuel consumption ............. 5-3
Running-in.................................................... 5-3
Parking.......................................................... 5-4
PERIODIC MAINTENANCE AND MINOR
REPAIR ............................................................ 6-1
Tool kit ........................................................... 6-1
Preventive maintenance schedule .............. 6-3
Panel removal and installation .................... 6-5
Spark plug inspection .................................. 6-7
Engine OIl ..................................................... 6-8
1
4
23
65
TABLE OF CONTENTS
Libero5TS8.pmd11/3/2006, 8:50 PM 1

TABLE OF CONTENTSAir filter ...........................................................6-10
Carburetor adjustment ................................. 6-11
Idle speed adjustment .................................6-12
Throttle cable free play adjustment .............6-12
Valve clearance adjustment .........................6-13
Tyres ..............................................................6-13
Wheels ..........................................................6-15
Clutch lever free play adjustment ................6-16
Front brake adjustment ................................6-16
Rear brake adjustment ................................6-17
Brake light switch adjustment .....................6-17
Checking the brake shoes ...........................6-18
Drive chain slack check ................................6-18
Drive chain slack adjustment ......................6-19
Drive chain lubrication ..................................6-21
Cable inspection and lubrication .................6-21
Throttle cable and grip lubrication ...............6-21
Brake and shift pedal lubrication .................6-22
Brake and clutch lever lubrication ................6-22
Center and sidestand lubrication ................6-22
Front fork inspection .....................................6-23
Steering inspection ......................................6-23
Wheel bearings ............................................6-24
Battery ...........................................................6-24Fuse replacement ........................................6-26
Headlight bulb replacement ........................6-27
Turn signal and taillight bulb
replacement..................................................6-28
Front wheel removal .....................................6-28
Front wheel installation ................................6-30
Rear wheel removal .....................................6-30
Rear wheel installation ................................6-32
Troubleshooting...........................................6-32
Troubleshooting chart ..................................6-33
CLEANING & STORAGE
A. Cleaning .................................................... 7-1
B. Storage ...................................................... 7-2
SPECIFICATIONS ........................................... 8-1
CUSTOMER INFORMATION........................... 9-1
Key identification number ............................. 9-1
Frame serial number ................................... 9-1
Engine serial number .................................. 9-1
DETATCHMENTS
Pre-Delivery Inspection ................................10-1
Installation....................................................10-5
GREEN BOOK
78910
Libero5TS8.pmd11/3/2006, 8:50 PM 2

ROAD SAFETY TIPS
SAFE RIDING
1. Before riding, you should learn to ride your motorcycle properly and all the control functions should be known
to you.
2. Remember that there are no legal “rights” when it comes to survival as far as Motorcyclists are
concerned. The fact that you may be well within your rights is no guarantee that you will avoid a collision with
a bigger vehicle whose driver fails to see you. Always ride defensively and take nothing on road for granted.
3. Develop the ability to react swiftly to any unexpected road hazards or emergencies giving yourself time to
spare for appropriate response.
4. Develop the ability to get the most out of your Motorcycle, But at the same time get to know its capabili-
ties and limitations.
5. Ride thoughtfully, planning your route well in advance.
6.Give proper Signals and use Horn and Headlights judiciously.
7. Don’t ride in another motorist’s blind spot.
8. Always make pre-ride safety checks before you start the Engine.
SAFE BRAKING
Use the basic methods of braking effectively.
1. Engine Brake : When the Throttle is released, compression backs up and acts as the Engine Brake.
If the riding condition allows, reduce speed by shifting the Gear down.
2. Front and Rear Brakes : It is important to apply equal force to the Front and Rear Brakes simultaneously.
• Use Front and Rear Brakes simultaneously.
• Be sure not to disengage the clutch while braking.
• While riding downhill always use Engine as a Brake and never ride in Neutral Gear.
• While riding down hill do not switch off ignition while Engine is in gear. CAUTION :
1-1
Libero5TS8.pmd11/3/2006, 8:50 PM 3

PRE-OPERATION CHECKS
4-1
Owners are personally responsible for their vehicle's condition. Your Motorcycle's vital functions can start to
deteriorate quickly and unexpectedly- even if it remains unused (for instance, if it is exposed to the elements). Any
damage. fluid leak or loss of tyre pressure could have serious consequence Therefore' it is very important that, in
addition to a thorough visual inspection, you check the following points before each ride.
PRE - OPERATION CHECK LIST
Brake and shift pedal shafts Engine oil
Control and meter cable Wheels and tyres Drive chain Clutch
Throttle grip and housing Rear brake Front brake
Lubricate if necessary.Check tyre pressure, wear, damage and spoke tightness.
Lubricate if necessary. Check for smooth operation. Lubricate if necessary.
Check for smooth operation. Tighten spokes if necessary. Adjust if necessary.
6-21
6-22 6-13 ~ 6-15 6-18 ~ 6-21
Check oil level.
Fill with oil if necessary.
Check chain slack and condition. Check operation, condition and free play.
Adjust if necessary.
Lubricate if necessary. Check for smooth operation. Adjust if necessary.
Check operation, condition and free play.Adjust if necessary. Check operation, condition and free play.
ITEM
CHECKS
6-8 ~ 6-9 6-12, 6-213-3, 6-16
3-4, 6-17
3-4, 6-16PAGE

If any item in the Pre-Operation Check is not working properly, have it inspected and repaired before operating
the Motorcycle.WARNINGFuel gauge
Check for proper operation
/Function
3.2

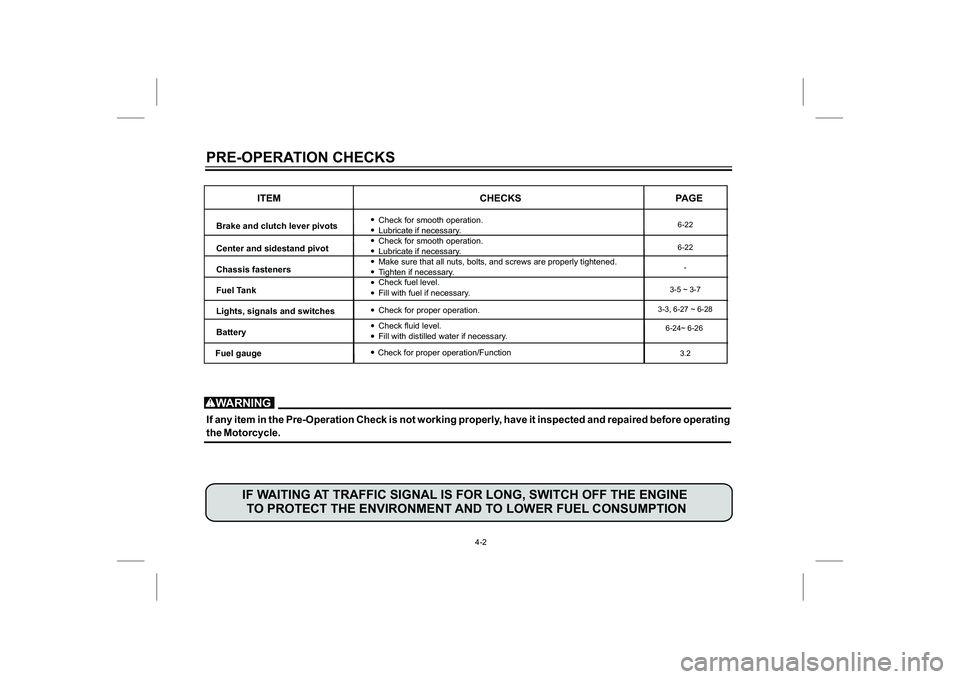

PRE-OPERATION CHECKS
4-2
Fuel Tank Brake and clutch lever pivots
Battery Lights, signals and switches Chassis fasteners Center and sidestand pivot
Make sure that all nuts, bolts, and screws are properly tightened.
Tighten if necessary.
Check fuel level.
Fill with fuel if necessary.
Fill with distilled water if necessary. Check fluid level. Check for proper operation.
6-24~ 6-26 3-3, 6-27 ~ 6-283-5 ~ 3-7
Lubricate if necessary. Check for smooth operation.
Lubricate if necessary. Check for smooth operation.
ITEM CHECKS
6-22PAGE6-22
-
IF WAITING AT TRAFFIC SIGNAL IS FOR LONG, SWITCH OFF THE ENGINE
TO PROTECT THE ENVIRONMENT AND TO LOWER FUEL CONSUMPTION

PERIODIC MAINTENANCE AND MINOR REPAIR
6-3
PREVENTIVE MAINTENANCE SCHEDULE
VA LV E S
SPARK PLUG
CARBURETOR
AIR FILTER
FUEL LINE
FUEL FILTER
ENGINE OIL
ENGINE OIL
FILTER SCREEN
BRAKE-FRONT &
REAR
Check valve clearances, adjust if necessary.
Check condition, gap;
Clean and reset if necessary.
Check idle speed, Choke lever operation.
Clean, inspect & lubricate. (replace if necessary)
Check fuel hose, for cracks or damage.
Replace if necessary.
Check for free flow of petrol, cleanliness of filter bowl,
replace if necessary.
Replace with recommended oil - Yamalube SG Grade
(Warm engine before draining)
Wash with petrol
Check operation./ Adjust if necessary.
Grease the brake cam.
ITEM OPERATION SNO
1
2
3
5 4
6
7
8
9
*
WHEELS 13FRONT & REAR
REAR ARM PIVOT CLUTCH
12 11BRAKE SHOES-
10
Check runout, spoke tightness, damage;
Correct it, if necessary. Check for wear, replace if necessary.
Check alignment marks on Push Lever and
Tighten with specified Torque if necessary Check Rear Arm assembly for looseness. Crankcase L.H. Adjust if necessary.
30 Days OR
500-700 KmAFTER EVERY DAYS OR KMS
REPLACE EVERY 10,000 km90 Days OR
2500-2700 Km180 Days OR
4500-5000 KmAFTER
EVERY
2000 KMS

NOTE :
ALWAYS CHANGE ENGINE OIL AT RECOMMENDED INTERVALS
FOR OPTIMUM ENGINE PERFORMANCE AND ENGINE LIFE
1. Engine oil filler capEngine oil1. Oil level measurement
a. Place the Motorcycle on the
centerstand. Warm up the engine
for several minutes.
Be sure the Motorcycle is positioned
straight up when checking the oil
level. A slight tilt toward the side can
result in false readings.
1. Maximum level
2. Minimum levelWait a few minutes until the oil level
settles before checking.
b. Unscrew the dipstick and rest it
on the threads of the oil filler hole.
The oil level should be between
the minimum and maximum mark
on the dip- stick. If the level is low,
add oil to raise it to the specified
level.
PERIODIC MAINTENANCE AND MINOR REPAIR
6-8
NOTE :
1. Dipstick2. Engine oil replacement
a. Warm up the engine for a few
minutes.
b. Stop the engine. Place an oil pan
under the engine and remove the
dipstick.
1
1

ALWAYS USE ONLY THE RECOMMENDED GRADE OF ENGINE OIL
1 . Engine oil drain plugc. Remove the drain plug and drain
the oil.
d. Reinstall the drain plug and
tighten it to the specified
torque.Tightening torque:
Drain plug:
14.5 It-lb (2.0 m-kg)
e. Fill engine with oil and install
the dipstick.
Recommended oil:
YAMALUBE 4-stroke motor oil
(20W40 type SG).
Oil quantity:
Total amount:
1.2 L
Periodic oil change:
1.0 L
PERIODIC MAINTENANCE AND MINOR REPAIR
6-9
f. Start the engine and warm up
for a few minutes. While
warming up, check for oil leak-
age. If oil leakage is found, stop
the engine immediately and
check for the cause.
