2007 YAMAHA YBR125 headlight bulb

TABLE OF CONTENTSAir filter ...........................................................6-10
Carburetor adjustment ................................. 6-11
Idle speed adjustment .................................6-12
Throttle cable free play adjustment .............6-12
Valve clearance adjustment .........................6-13
Tyres ..............................................................6-13
Wheels ..........................................................6-15
Clutch lever free play adjustment ................6-16
Front brake adjustment ................................6-16
Rear brake adjustment ................................6-17
Brake light switch adjustment .....................6-17
Checking the brake shoes ...........................6-18
Drive chain slack check ................................6-18
Drive chain slack adjustment ......................6-19
Drive chain lubrication ..................................6-21
Cable inspection and lubrication .................6-21
Throttle cable and grip lubrication ...............6-21
Brake and shift pedal lubrication .................6-22
Brake and clutch lever lubrication ................6-22
Center and sidestand lubrication ................6-22
Front fork inspection .....................................6-23
Steering inspection ......................................6-23
Wheel bearings ............................................6-24
Battery ...........................................................6-24Fuse replacement ........................................6-26
Headlight bulb replacement ........................6-27
Turn signal and taillight bulb
replacement..................................................6-28
Front wheel removal .....................................6-28
Front wheel installation ................................6-30
Rear wheel removal .....................................6-30
Rear wheel installation ................................6-32
Troubleshooting...........................................6-32
Troubleshooting chart ..................................6-33
CLEANING & STORAGE
A. Cleaning .................................................... 7-1
B. Storage ...................................................... 7-2
SPECIFICATIONS ........................................... 8-1
CUSTOMER INFORMATION........................... 9-1
Key identification number ............................. 9-1
Frame serial number ................................... 9-1
Engine serial number .................................. 9-1
DETATCHMENTS
Pre-Delivery Inspection ................................10-1
Installation....................................................10-5
GREEN BOOK
78910
Libero5TS8.pmd11/3/2006, 8:50 PM 2

1. Screw (2 Nos.)
2. Bolt (1Headlight bulb replacementIf the headlight bulb burns out,
replace the bulb as follows:
1. Remove the two screws from the
Head Light.
2. Loosen bolt.
3. Remove head light bezel assy.
Forward.
No.)1. Bulb holder
3. Remove headlight bulb holder
from bezel
1. Bulb (Halogen)Keep flammable products and
your hands away from the bulb
while it is on, as it is hot. Do not
touch the bulb until it cools down.
4. Remove the defective bulb.
5. Put a new bulb into position and
secure it in place with the bulb
holder.
6. Install the Head Light Assy.
7. If the headlight beam adjustment
is necessary, ask a YAMAHA
dealer to make adjustment.
PERIODIC MAINTENANCE AND MINOR REPAIR
6-27
WARNING
1

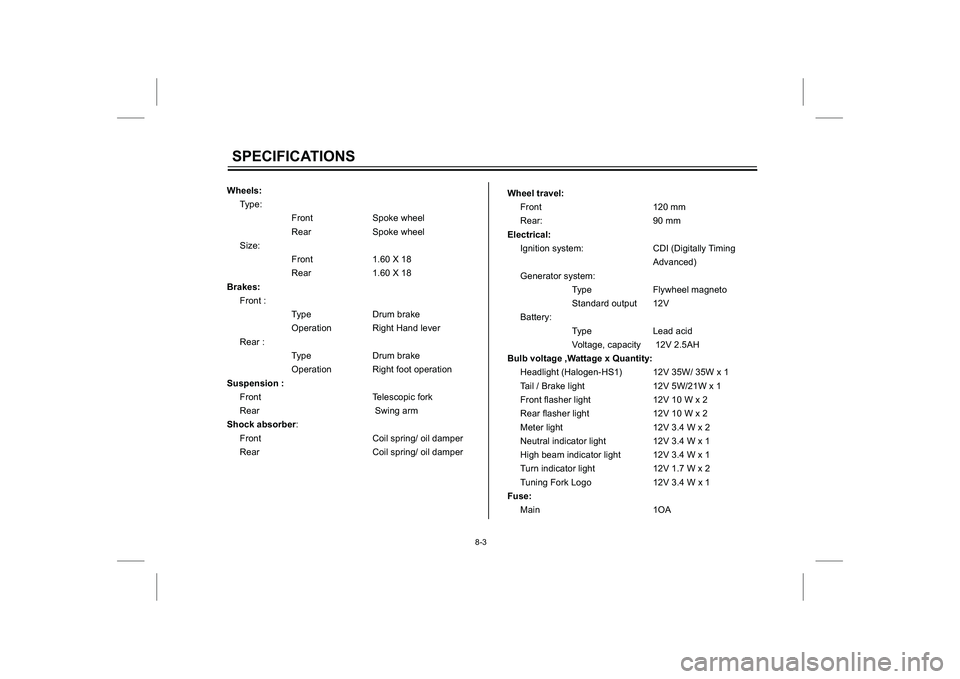

SPECIFICATIONS
8-3
Wheels:
Brakes:
Suspension :
Shock absorberType:
Size:
Front :
Type Drum brake
Operation Right Hand lever
Front Telescopic fork
Rear
:
Front Coil spring/ oil damper
RearFront Spoke wheel
Rear Spoke wheel
Front 1.60 X 18
Rear 1.60 X 18
Rear :
Type Drum brake
Operation Right foot operation
Swing arm
Coil spring/ oil damperWheel travel:
Electrical:
Bulb voltage ,Wattage x Quantity:
Fuse:Front 120 mm
Rear: 90 mm
Ignition system: CDI (Digitally Timing
Generator system:
Type
Standard output 12V
Battery:
Type
Voltage, capacity
Headlight
Tail / Brake light
Front flasher light
Rear flasher light
Meter light
Neutral indicator light
High beam indicator light
Turn indicator light
Tuning Fork Logo 12V 3.4Wx1
MainAdvanced)
Flywheel magneto
Lead acid
12V 2.5AH
(Halogen-HS1) 12V 35W/ 35W x 1
12V 5W/21W x 1
12V10Wx2
12V10Wx2
12V3.4Wx2
12V3.4Wx1
12V3.4Wx1
12V1.7Wx2
1OA
