2007 YAMAHA YBR125 check engine

NOTE :
NOTE :
NOTE :
Idle speed adjustmentA diagnostic tachometer must be
used for this procedure.
1. Attach the tachometer. Start the
engine and warm it up for a few
minutes at approximately 1,300
to 1,500 r/min. Occasionally rev
the engine to 4,000 to 5,000
r/min. The engine is warm when it
quickly responds to the throttle.
1. Throttle stop screw2. Set the idle to the specified
engine speed by adjusting the
throttle stop screw. Turn the
screw in direction a to increase
engine speed and in direction b
to decrease engine speed.
Standard idle speed:
1,300 ~ 1,500 r/min
If the specified idle speed cannot be
obtained by performing the above
adjustment, consult a
dealer.YAMAHA
Throttle cable free play
adjustmentBefore checking the throttle cable
free play, the engine idling speed
should be adjusted.
Adjust the throttle cable by turning
the adjusting nut so that specified
free play at the throttle grip is
obtained.
Free play:
3 ~ 7mm
PERIODIC MAINTENANCE AND MINOR REPAIR
6-12

KEEP RECOMMENDED TYRE PRESSURE IN BOTH THE TYRES
2. Locknut
3. Adjusting nut
1. Loosen the locknut.
2. Turn the adjusting nut in direction
a to increase free play and in
direction b to decrease free
play.
3. Tighten the locknut.Valve clearance adjustmentThe correct valve clearance
changes with use, resulting in
improper fuel/air supply or engine
noise. To prevent this, the valve
clearance must be adjusted
regularly. This adjustment however,
should be left to a YAMAHA dealer.
1. Tread depth
2. Side wallTyresTo ensure maximum performance,
long service and safe operation,
note the following:
1. Tyre air pressure
Always check and correct the
tyre pressure before operating
the Motorcycle.
PERIODIC MAINTENANCE AND MINOR REPAIR
6-13
1. Free play

CAUTION :

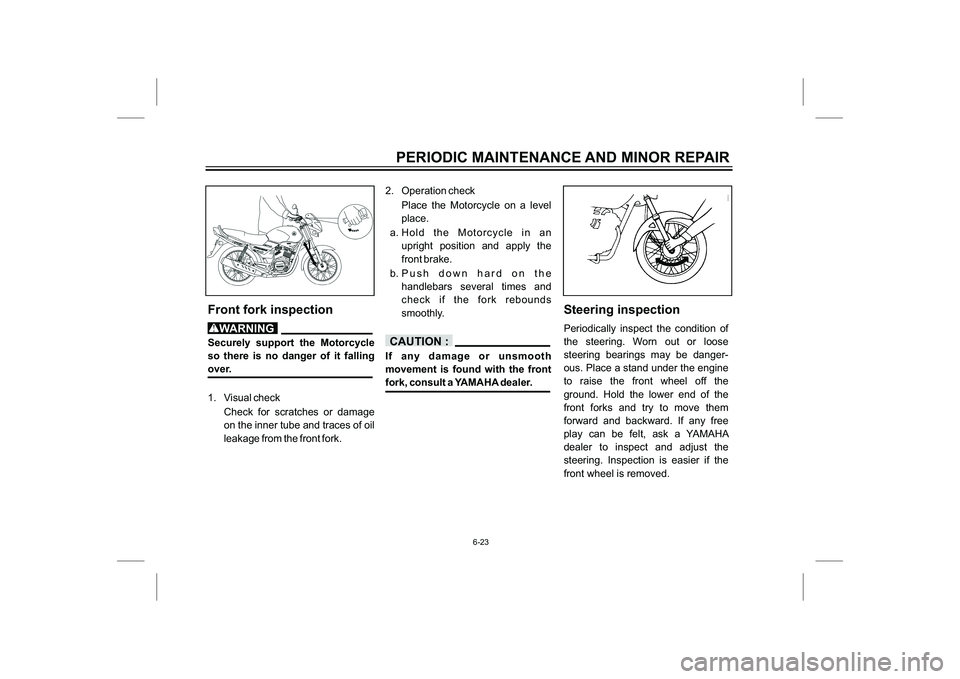

Front fork inspectionSecurely support the Motorcycle
so there is no danger of it falling
over.
1. Visual check
Check for scratches or damage
on the inner tube and traces of oil
leakage from the front fork.2. Operation check
Place the Motorcycle on a level
place.
a. Hold the Motorcycle in an
upright position and apply the
front brake.
b. Push down hard on the
handlebars several times and
check if the fork rebounds
smoothly.
If any damage or unsmooth
movement is found with the front
fork, consult a YAMAHA dealer.
Steering inspectionPeriodically inspect the condition of
the steering. Worn out or loose
steering bearings may be danger-
ous. Place a stand under the engine
to raise the front wheel off the
ground. Hold the lower end of the
front forks and try to move them
forward and backward. If any free
play can be felt, ask a YAMAHA
dealer to inspect and adjust the
steering. Inspection is easier if the
front wheel is removed.
PERIODIC MAINTENANCE AND MINOR REPAIR
6-23
WARNING

Ask YAMAHA dealer to inspect.compression check. Engine doesn't start, go to
Dry with
Black SootWet No compression.
There is compression
electrode. plug and check Remove spark Use kick starter.
Wipe clean with dry cloth
and correct spark plugGo to Ignition check. Enough fuel
No fuelGO TO compression check
in the fuel tank Check if there is fuel
Supply fuel.
Open the throttle half-way
and start the engine.
or replace spark plug.
WARNING
Never Check the fuel system while smoking or in the vicinity of an open flame.
PERIODIC MAINTENANCE AND MINOR REPAIR
6-33Ask YAMAHA
dealer to inspect.

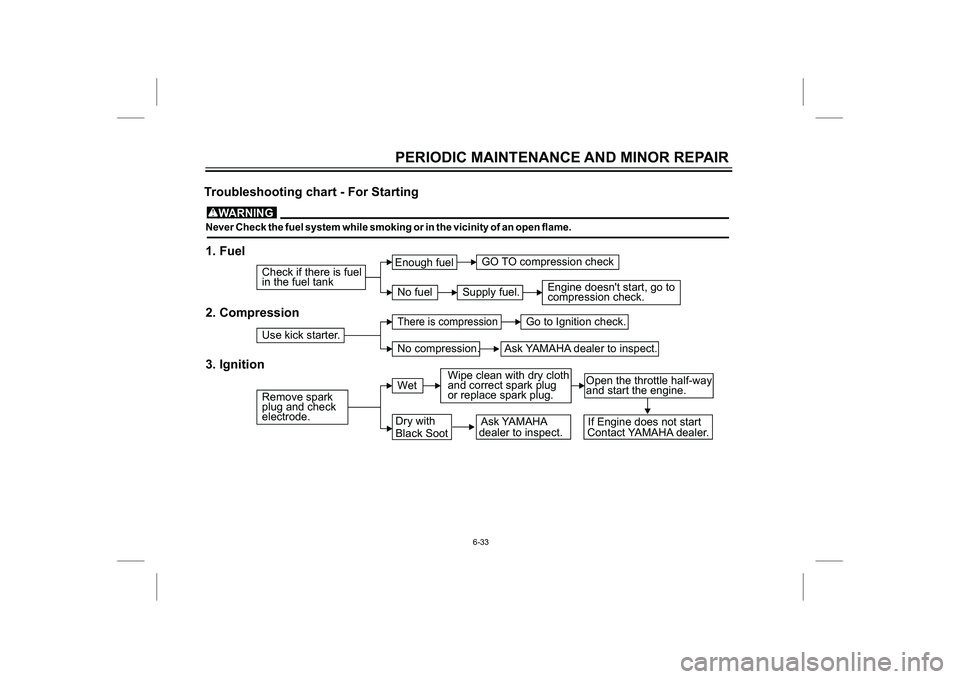

Troubleshooting chart - For Starting
1. Fuel
2. Compression
3. Ignition
If Engine does not start
Contact YAMAHA dealer.

10-1
1. Check for any missing item(s), scratches in painted/plated part(s), saddle or other external
visual damages and take corrective action.
Check each of the following items individually and mention the corrective action (as per the
recommended specifications) in the boxes provided.2. Check for missing part(s), if any.A. FRAME
a. Brakes
Front : Free Play at Lever End (10 ~ 15 mm)
Rear :Free Play at Rear Brake (20 ~ 30 mm)
b. Clutch :Free Play at Lever End (10 ~ 15 mm)c. Throttle :Free Play at Throttle Grip (3 ~7 mm)d. Steering :Check for Free Movemente. Suspension
Front Fork : Check for any sticky movement
Rear Shock Abs : For Free Stroking & Setting on both
(To be filled in by the Dealer on receipt of the Motorcycle from YMIS)
Odo-Meter
ReadingDate of
Inspection
Frame
No.Engine
No.Date of
SaleFound OK
Set RightReplaced
Cleaned
Lubricated
RCL
S
PRE-DELIVERY INSPECTION REPORT
No.
service2.pmd11/3/2006, 8:50 PM 1

PRE-DELIVERY INSPECTION REPORT
f. Wheels
Tyre :Tyre pressure Solo Double
(PSI)
Front 25 25
Rear 33 36
R i m : Runout - Radial - 1.5 mm (Max)
- Lateral - 1.5 mm (Max)
Spokes : No loosenes
g. Locks Operation : • Ignition
• Steering• Fuel Tank Cap• Side Cover (L.H.)
h. FastenersSpecified Torque
(Ft-Lb)
1. Front Wheel Axle Nuts 25-40
2. Front Fork (Crown Handle & Inner Tube)13-202. Front Fork under Bracket Stem Nut18-223. Handle Bar Mounting Bolts 13-204. Rear Shock Absorber Mounting Bolts22-355. Rear Swing Arm Pivot Shaft Nut32-526. Rear Wheel Axle/Sprocket. Shaft Nuts60-70
B. ENGINE
a. Engine Oil : • Oil Level (For checking - Refer Pg. 6-9)
• Check for any Leakages
10-2
service2.pmd11/3/2006, 8:50 PM 2

b. Spark Plug :Recommended No. P-RA7HC(Champion)
Gap 0.8 ±0.1 mm
c. Valve Clearance :(Cold condition)
(If required) Inlet0.08 ~ 0.12 mm
Exhaust0.10 ~ 0.14 mm
(After matching of the mark on sprocket cam chain with mark on Cylinder
Head Casting and ensuring the Piston at TDC of compression stroke.)
d. Kick Operation: For free Movement
e. Carburetor : • Idle RPM
In warmed up condition
(1300~1500 RPM)
• Check for Overflow
f. Drive Chain : • Alignment
• Slackness(20 ~ 30 mm)
g. FastenersSpecified Torque
(Ft-Lb)
1. Cylinder Head Bolts14-17
2. Engine Mounting
a) Engine Mounting Front and Stay Front25-29
b) Stay Engine Front and Frame25-29c) Engine Mounting Rear and Frame25-29d) Engine Mounting Upper &
Stay Engine Upper25-29e) Stay Engine Upper and Frame25-29f) Engine Mounting Front Lower and Frame25-29
3. Front and Rear Silencer Mounting Nut9-124. Crown Handle Centre Bolt8-14
PRE-DELIVERY INSPECTION REPORT
10-3
service2.pmd11/3/2006, 8:50 PM 3

15. Location of Storage and Tool Kit compartments and their use.
16. Procedure of opening and closing of L. H. Side Panel.
17. Battery Maintenance : Checking of electrolyte level (To add only distilled water if required &
to maintain its Specified Level)
18. Correct Drive Chain Slackness (20 ~30 mm).
19. Correct type of Spark Plug and Spark Plug gap.
20. Engine Oil (in Gear Box), level checking and explaining the importance of replacing the Engine
Oil after every 2000 KMS Always use YAMALUBE 4T OIL SG Grade.
21. TFF oil to be replaced after every 10000 Kms.
22. Running- In Period/ Preventive Maintenance Schedule Instructions
23. Information of emission and safety norms (AIS + CATCON).
24. Importance and schedule of Free Services
25. Warranty Terms and Conditions.
INSTALLATION
IMPORTANT CAUTION
10-6
EXPLAINED BYSIGNATURE: _____________ NAME:
CUSTOMER’S SIGN
MAIN SELLING DLR’S STAMP, SIGNATURE
