optional electrical accessories.
To store the battery1. If the vehicle will not be used for more than one month, remove
the battery, fully charge it, and
then place it in a cool, dry place.
2. If the battery will be stored for more than two months, check it
at least once a month and fully
charge it if necessary.
To remove the battery 1. Remove panel A (See page 6-6).
1. Battery support
2. Battery
3. Screw
2. Remove the battery holder brac- ket by removing the bolt. 3. Pull the battery out from the bat-
tery box, and then disconnect the
battery couplers.
To install the battery 1. Connect the battery couplers, and then place the battery in the
original position.
2. Install the battery holder bracket by installing the bolt.
3. Install the panel by installing the screw.
4. Fully charge the battery before installation.
EAU23524
Replacing the fuses
1. Fuse box
The main fuse and the fuse box,
which contains the fuses for the indi-
vidual circuits, are located behind
cowling B. (See page 6-6.)
1
1 2
3
PERIODIC MAINTENANCE AND MINOR REPAIR
6-24
6
1C0-F8199-E3.qxd 4/11/06 09:44 Página 31

If a fuse is blown, replace it as
follows.1. Turn the key to “OFF” and turn off the electrical circuit in question.
2. Remove the blown fuse, and then install a new fuse of the specified
amperage.ECA10640
CAUTION:
Do not use a fuse of a higher ampe-
rage rating than recommended to
avoid causing extensive damage to
the electrical system and possibly a
fire.
3. Turn the key to “ON” and turn on the electrical circuit in question
to check if the device operates.
4. If the fuse immediately blows again, have a Yamaha dealer
check the electrical system.
EAU23730
Replacing a headlight bulb
This model is equipped with two
quartz bulb headlights. If a headlight
bulb burns out, replace it as follows.1. Remove cowling B. (See page 6-6.)
2. Disconnect the headlight coupler, and then remove the bulb cover.
1. Headlight coupler
2. Headlight bulb cover
3. Unhook the headlight bulb hol-der, and then remove the defecti-
ve bulb.
1
2
Specified fuses:Main fuse:30 A
Headlight fuse: 15 A
Signaling system fuse: 15 A
Ignition fuse: 5 A
Ecu fuse (backup): 5 A
Radiator fan fuse: 10 A
Backup fuse (backup): 5 A
Reserve fuse: 30 A
15 A
10 A
5 A
PERIODIC MAINTENANCE AND MINOR REPAIR
6-25
6
1C0-F8199-E3.qxd 4/11/06 09:44 Página 32

1. Headlight bulb cover
2. Headlight bulb holder
EWA10790
s sWARNING
Headlight bulbs get very hot. The-
refore, keep flammable products
away from a lit headlight bulb, and
do not touch the bulb until it has
cooled down.
4. Place a new headlight bulb into position, and then secure it with
the bulb holder.
1. Do not touch the glass part of the bulb.
ECA10650
CAUTION:
Take care not to damage the follo-
wing parts:
Headlight bulb
Do not touch the glass part of
the headlight bulb to keep it
free from oil, otherwise the
transparency of the glass, the
luminosity of the bulb, and the
bulb life will be adversely affec-
ted. Thoroughly clean off any
dirt and fingerprints on the
headlight bulb using a cloth
moistened with alcohol or thin-
ner.
Headlight lens
• Do not affix any type of tinted film or stickers to the head-
light lens.
• Do not use a headlight bulb of a wattage higher than spe-
cified.
5. Install the headlight bulb cover, and then connect the coupler.
6. Install the cowling.
7. Have a Yamaha dealer adjust the headlight beam if necessary.
1
2
PERIODIC MAINTENANCE AND MINOR REPAIR
6-26
6
1C0-F8199-E3.qxd 4/11/06 09:44 Página 33

EAU24240
Replacing a front turn signal
light bulb
1. Place the scooter on the centers-tand.
2. Remove cowling A. (See page 6-6.)
3. Remove the socket (together with the turn signal light bulb) by
turning it counterclockwise.
1. Turn signal light bulb socket
4. Remove the defective bulb bypushing it in and turning it coun-
terclockwise.
5. Insert a new bulb into the socket, push it in, and then turn it clock-
wise until it stops.
6. Install the socket (together with the bulb) by turning it clockwise.
7. Install the cowling.
EAUS1250
Replacing the tail/brake light
bulb or a rear turn signal
light bulb
Tail/brake light bulb
1. Remove the tail/brake light bulb lens by removing the screw.
2. Remove the defective bulb by pushing it in and turning it coun-
terclockwise.
3. Insert a new bulb into the socket, push it in, and then turn it clock-
wise until it stops.
4. Install the lens by installing the screw. Rear turn signal light bulb
1. Remove the tail/brake light lens by removing the screw.
2. Remove the turn signal light bulb lens by removing the screw.
3. Remove the defective bulb by pushing it in and turning it coun-
terclockwise.
4. Insert a new bulb into the socket, push it in, and then turn it clock-
wise until it stops.
5. Install the turn signal light bulb lens by installing the screw.
6. Install the tail/brake light bulb lens by installing the screw.
1
PERIODIC MAINTENANCE AND MINOR REPAIR
6-27
6
1C0-F8199-E3.qxd 4/11/06 09:44 Página 34

ECA10680
CAUTION:
Do not overtighten the screws,
otherwise the lens may break.

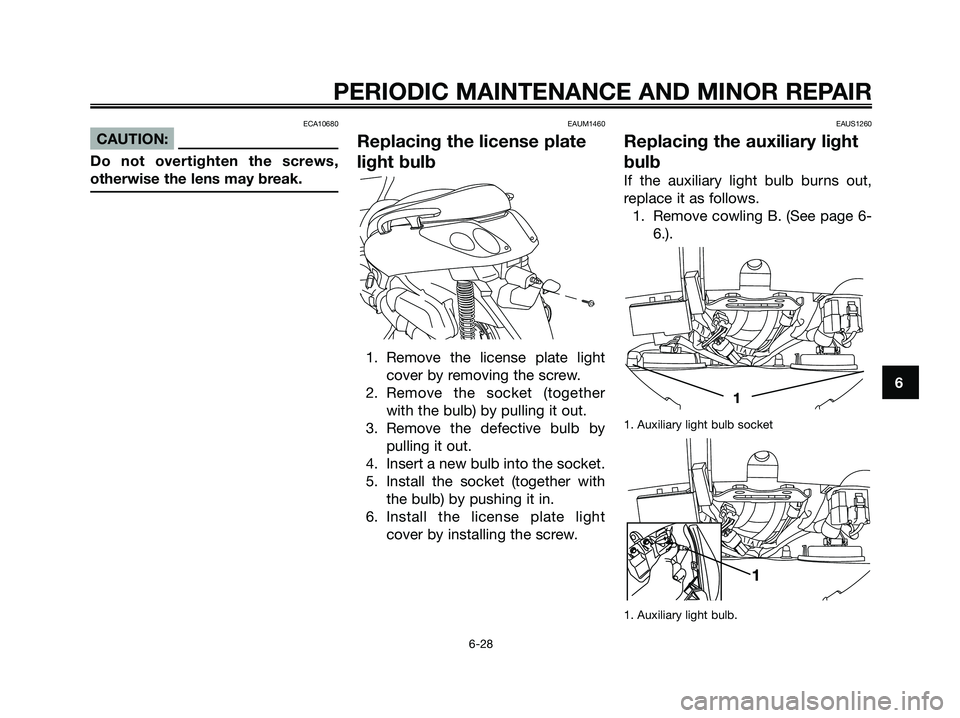

EAUM1460
Replacing the license plate
light bulb
1. Remove the license plate light cover by removing the screw.
2. Remove the socket (together with the bulb) by pulling it out.
3. Remove the defective bulb by pulling it out.
4. Insert a new bulb into the socket.
5. Install the socket (together with the bulb) by pushing it in.
6. Install the license plate light cover by installing the screw.
EAUS1260
Replacing the auxiliary light
bulb
If the auxiliary light bulb burns out,
replace it as follows.1. Remove cowling B. (See page 6- 6.).
1. Auxiliary light bulb socket
1. Auxiliary light bulb.
1
1
PERIODIC MAINTENANCE AND MINOR REPAIR
6-28
6
1C0-F8199-E3.qxd 4/11/06 09:44 Página 35

2. Remove the socket (together
with the bulb) by pulling it out.
3. Remove the defective bulb by
pulling it out.
4. Insert a new bulb into the socket.
5. Install the socket (together with
the bulb) by pushing it in.
6. Install the cowling B.EAU25880
Troubleshooting
Although Yamaha scooters receive a
thorough inspection before shipment
from the factory, trouble may occur
during operation. Any problem in the
fuel, compression, or ignition sys-
tems, for example, can cause poor
starting and loss of power.
The following troubleshooting charts
represent quick and easy procedures
for checking these vital systems your-
self. However, should your scooter
require any repair, take it to a Yamaha
dealer, whose skilled technicians
have the necessary tools, experience,
and know-how to service the scooter
properly.
Use only genuine Yamaha replace-
ment parts. Imitation parts may look
like Yamaha parts, but they are often
inferior, have a shorter service life and
can lead to expensive repair bills.
PERIODIC MAINTENANCE AND MINOR REPAIR
6-29
6
1C0-F8199-E3.qxd 2/11/06 20:46 Página 36

EAU42130
Troubleshooting charts
Starting problems or poor engine performanceEWA10840
s s
WARNING
Keep away open flames and do not smoke while checking or working on the fuel system.
PERIODIC MAINTENANCE AND MINOR REPAIR
6-30
6
Check the fuel level in
the fuel tank.
1. FuelThere is enough fuel.
There is no fuel.Check the compression.
Supply fuel.
The engine does not start.
Check the compression.
Operate the electric starter.
2. CompressionThere is compression.
There is no compression.Check the ignition.
Have a Yamaha dealer
check the vehicle.
Remove the spark plug
and check the electrodes.
3. IgnitionWipe off with a dry cloth and correct the
spark plug gap, or replace the spark plug.
Have a Yamaha dealer check the vehicle.
The engine does not start.
Have a Yamaha dealer
check the vehicle.
The engine does not start.
Check the battery.
Operate the electric starter.
4. BatteryThe engine turns over
quickly.
The engine turns over
slowly.The battery is good.
Check the battery lead connections,
and charge the battery if necessary.
Dry
We tOperate the electric starter.
1C0-F8199-E3.qxd 2/11/06 20:46 Página 37

Engine overheatingEWA10400
s s
WARNING
Do not remove the radiator cap when the engine and radiator are hot. Scalding hot fluid and steam may be
blown out under pressure, which could cause serious injury. Be sure to wait until the engine has cooled.
After removing the radiator cap retaining bolt, place a thick rag, like a towel, over the radiator cap, and then
slowly rotate the cap counterclockwise to the detent to allow any residual pressure to escape. When the his-
sing sound has stopped, press down on the cap while turning it counterclockwise, and then remove the cap.
PERIODIC MAINTENANCE AND MINOR REPAIR
6-31
6
Wait until the
engine has cooled.Check the coolant level in the
reservoir and radiator.
The coolant level
is OK.
The coolant level is low.
Check the cooling system
for leakage.
Have a Yamaha dealer checkand repair the cooling system.
Add coolant. (See NOTE.)
Start the engine. If the engine overheats again, have a
Yamaha dealer check and repair the cooling system.
There is
leakage.
There is
no leakage.
NOTE:
If coolant is not available, tap water can be temporarily used instead, provided that it is changed to the recommended
coolant as soon as possible.
