2007 YAMAHA TTR90 Owners Manual

PERIODIC MAINTENANCE AND MINOR REPAIR
6-27
6 a jack either under each side of the
frame in front of the rear wheel or under
each side of the swingarm.
EAU24360

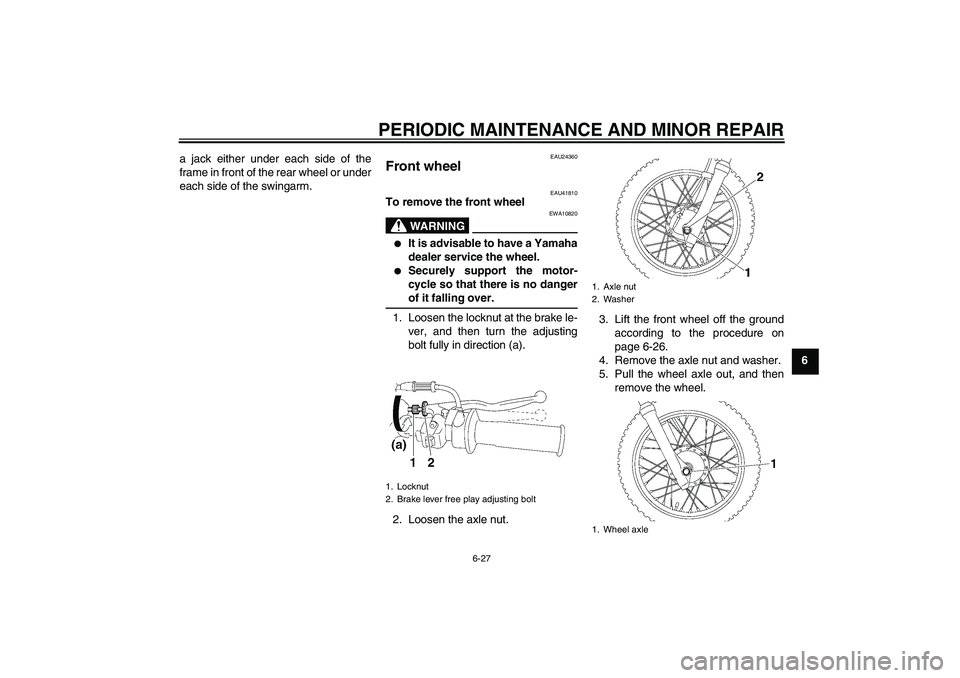

Front wheel
EAU41810
To remove the front wheel
WARNING
EWA10820


It is advisable to have a Yamaha
dealer service the wheel.


Securely support the motor-
cycle so that there is no dangerof it falling over.
1. Loosen the locknut at the brake le-
ver, and then turn the adjusting
bolt fully in direction (a).
2. Loosen the axle nut.3. Lift the front wheel off the ground
according to the procedure on
page 6-26.
4. Remove the axle nut and washer.
5. Pull the wheel axle out, and then
remove the wheel.
1. Locknut
2. Brake lever free play adjusting bolt
1. Axle nut
2. Washer
1. Wheel axle
U3P281E0.book Page 27 Monday, April 17, 2006 11:26 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-28
6
EAU41691
To install the front wheel
1. Lift the wheel up between the fork
legs.
2. Insert the wheel axle from the
right-hand side.NOTE:Make sure that the slot in the brake
shoe plate fits over the retainer on thefork leg.
3. Lower the front wheel so that it is
on the ground.
4. Install the washer and axle nut,
and then tighten the axle nut to the
specified torque.5. Adjust the brake lever free play.
(See page 6-17.)
6. While applying the front brake,
push down hard on the handlebar
several times to check for proper
fork operation.
EAU25080
Rear wheel
EAU41641
To remove the rear wheel
WARNING
EWA10820


It is advisable to have a Yamaha
dealer service the wheel.


Securely support the motor-
cycle so that there is no dangerof it falling over.
1. Disconnect the brake torque rod
from the brake shoe plate by re-
moving the cotter pin, the nut and
the bolt.
1. Slot
2. Retainer
Tightening torque:
Axle nut:
35 Nm (3.5 m·kgf, 25 ft·lbf)
1. Brake torque rod
2. Cotter pin
3. Brake torque rod bolt and nut
4. Brake shoe plate
U3P281E0.book Page 28 Monday, April 17, 2006 11:26 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-29
6 2. Remove the brake pedal free play
adjusting nut, and then disconnect
the brake rod at the brake cam-
shaft lever.
3. Loosen the locknut and the drive
chain slack adjusting nut on both
ends of the swingarm.4. Loosen the axle nut.
5. Lift the rear wheel off the ground
according to the procedure on
page 6-26.
6. Remove the axle nut and washer,
and then pull the wheel axle out.
7. Push the wheel forward, and then
remove the drive chain from the
rear sprocket.
NOTE:The drive chain does not need to be
disassembled in order to remove andinstall the wheel.
8. Remove the wheel.
EAU41651
To install the rear wheel
1. Install the drive chain onto the rear
sprocket.
2. Insert the wheel axle from the
right-hand side.
3. Adjust the drive chain slack. (See
page 6-18.)
4. Lower the rear wheel so that it is
on the ground.
5. Install the brake rod onto the brake
camshaft lever, and then install the
brake pedal free play adjusting nut
onto the brake rod.
6. Connect the brake torque rod to
the brake shoe plate by installing
the bolt and nut, and then tighten
the bolt to the specified torque.
7. Insert a new cotter pin.
8. Tighten the axle nut to the speci-
fied torque.
9. Adjust the brake pedal position
and free play. (See page 6-17.)
1. Brake rod
2. Brake pedal free play adjusting nut
3. Brake camshaft lever
4. Wheel axle
1. Axle nut
2. Washer
3. Drive chain slack adjusting nut
4. Locknut
Tightening torques:
Brake torque rod bolt:
26 Nm (2.6 m·kgf, 19 ft·lbf)
Axle nut:
60 Nm (6.0 m·kgf, 43 ft·lbf)
U3P281E0.book Page 29 Monday, April 17, 2006 11:26 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-30
6
WARNING
EWA10660
After adjusting the brake pedal free
play, check the operation of thebrake light.
EAU25850
Troubleshooting Although Yamaha motorcycles receive
a thorough inspection before shipment
from the factory, trouble may occur dur-
ing operation. Any problem in the fuel,
compression, or ignition systems, for
example, can cause poor starting and
loss of power.
The following troubleshooting chart
represents a quick and easy procedure
for checking these vital systems your-
self. However, should your motorcycle
require any repair, take it to a Yamaha
dealer, whose skilled technicians have
the necessary tools, experience, and
know-how to service the motorcycle
properly.
Use only genuine Yamaha replace-
ment parts. Imitation parts may look like
Yamaha parts, but they are often inferi-
or, have a shorter service life and can
lead to expensive repair bills.
U3P281E0.book Page 30 Monday, April 17, 2006 11:26 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-31
6
EAU25971
Troubleshooting chart [TT-R90(W)]
WARNING
EWA10840
Keep away open flames and do not smoke while checking or working on the fuel system.
Check the fuel level in
the fuel tank.1. Fuel
There is
enough fuel.
There is
no fuel.
Supply fuel.
Operate the kickstarter.2. Compression
There is compression.
There is
no compression.Check the ignition.
Have a Yamaha dealer
check the vehicle.
Remove the spark plug
and check the electrodes.3. Ignition
Wet
DryWipe off with a dry cloth and correct the
spark plug gap, or replace the spark plug.
Have a Yamaha dealer check the vehicle.The engine does not start.
Have a Yamaha dealer check the vehicle.
Open the throttle halfway and operate
the kickstarter.
Check the compression.
The engine does not start.
Check the compression.
U3P281E0.book Page 31 Monday, April 17, 2006 11:26 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-32
6
EAU25901
Troubleshooting chart [TT-R90E(W)]
WARNING
EWA10840
Keep away open flames and do not smoke while checking or working on the fuel system.
Check the fuel level in
the fuel tank.1. Fuel
There is enough fuel.
There is no fuel.
Check the compression.
Supply fuel.
The engine does not start.
Check the compression.
Operate the electric starter.2. Compression
There is compression.
There is no compression.
Check the ignition.
Have a Yamaha dealer
check the vehicle.
Remove the spark plug
and check the electrodes.3. Ignition
Wipe off with a dry cloth and correct the
spark plug gap, or replace the spark plug.
Have a Yamaha dealer check the vehicle.
The engine does not start.
Have a Yamaha dealer
check the vehicle.
The engine does not start.
Check the battery.
Operate the electric starter.4. Battery
The engine turns over
quickly.
The engine turns over
slowly.
The battery is good.Check the battery lead connections,
and charge the battery if necessary.
DryWet
Open the throttle halfway and operate
the electric starter.
U3P281E0.book Page 32 Monday, April 17, 2006 11:26 AM

MOTORCYCLE CARE AND STORAGE
7-1
7
EAU40461
Care While the open design of a motorcycle
reveals the attractiveness of the tech-
nology, it also makes it more vulnera-
ble. Rust and corrosion can develop
even if high-quality components are
used. A rusty exhaust pipe may go un-
noticed on a car, however, it detracts
from the overall appearance of a motor-
cycle. Frequent and proper care does
not only comply with the terms of the
warranty, but it will also keep your
motorcycle looking good, extend its life
and optimize its performance.
Before cleaning
1. Cover the muffler outlet with a
plastic bag after the engine has
cooled down.
2. Make sure that all caps and covers
as well as all electrical couplers
and connectors, including the
spark plug cap, are tightly in-
stalled.
3. Remove extremely stubborn dirt,
like oil burnt onto the crankcase,
with a degreasing agent and a
brush, but never apply such prod-ucts onto seals, gaskets, sprock-
ets, the drive chain and wheel
axles. Always rinse the dirt and de-
greaser off with water.
Cleaning
CAUTION:
ECA10770


Avoid using strong acidic wheel
cleaners, especially on spoked
wheels. If such products are
used on hard-to-remove dirt, do
not leave the cleaner on the af-
fected area any longer than in-
structed. Also, thoroughly rinse
the area off with water, immedi-
ately dry it, and then apply a cor-
rosion protection spray.


Improper cleaning can damage
windshields, cowlings, panels
and other plastic parts. Use only
a soft, clean cloth or sponge
with mild detergent and water to
clean plastic.


Do not use any harsh chemical
products on plastic parts. Be
sure to avoid using cloths or
sponges which have been in
contact with strong or abrasivecleaning products, solvent or
thinner, fuel (gasoline), rust re-
movers or inhibitors, brake flu-
id, antifreeze or electrolyte.


Do not use high-pressure wash-
ers or steam-jet cleaners since
they cause water seepage and
deterioration in the following ar-
eas: seals (of wheel and swing-
arm bearings, fork and brakes),
electric components (couplers,
connectors, instruments,
switches and lights), breather
hoses and vents.


For motorcycles equipped with
a windshield: Do not use strong
cleaners or hard sponges as
they will cause dulling or
scratching. Some cleaning com-
pounds for plastic may leave
scratches on the windshield.
Test the product on a small hid-
den part of the windshield to
make sure that it does not leave
any marks. If the windshield is
scratched, use a quality plastic
polishing compound afterwashing.
U3P281E0.book Page 1 Monday, April 17, 2006 11:26 AM

MOTORCYCLE CARE AND STORAGE
7-2
7After normal use
Remove dirt with warm water, a mild
detergent, and a soft, clean sponge,
and then rinse thoroughly with clean
water. Use a toothbrush or bottlebrush
for hard-to-reach areas. Stubborn dirt
and insects will come off more easily if
the area is covered with a wet cloth for
a few minutes before cleaning.
After riding in the rain or near the seaSince sea salt is extremely corrosive,
carry out the following steps after each
ride in the rain or near the sea.
1. Clean the motorcycle with cold wa-
ter and a mild detergent, after the
engine has cooled down.CAUTION:
ECA10790
Do not use warm water since it in-
creases the corrosive action of thesalt.
2. Apply a corrosion protection spray
on all metal, including chrome- and
nickel-plated, surfaces to prevent
corrosion.After cleaning
1. Dry the motorcycle with a chamois
or an absorbing cloth.
2. Immediately dry the drive chain
and lubricate it to prevent it from
rusting.
3. Use a chrome polish to shine
chrome, aluminum and stainless-
steel parts, including the exhaust
system. (Even the thermally in-
duced discoloring of stainless-
steel exhaust systems can be re-
moved through polishing.)
4. To prevent corrosion, it is recom-
mended to apply a corrosion pro-
tection spray on all metal,
including chrome- and nickel-plat-
ed, surfaces.
5. Use spray oil as a universal clean-
er to remove any remaining dirt.
6. Touch up minor paint damage
caused by stones, etc.
7. Wax all painted surfaces.
8. Let the motorcycle dry completely
before storing or covering it.
WARNING
EWA14500


Make sure that there is no oil or
wax on the tires.


If necessary, wash the tires with
warm water and a mild deter-
gent. Before riding at higher
speeds, test the motorcycle’s
braking performance and cor-nering behavior.
CAUTION:
ECA10800


Apply spray oil and wax spar-
ingly and make sure to wipe off
any excess.


Never apply oil or wax to any
rubber and plastic parts, but
treat them with a suitable care
product.


Avoid using abrasive polishing
compounds as they will wearaway the paint.
NOTE:Consult a Yamaha dealer for advice onwhat products to use.
U3P281E0.book Page 2 Monday, April 17, 2006 11:26 AM
