2007 YAMAHA TTR90 Owners Manual

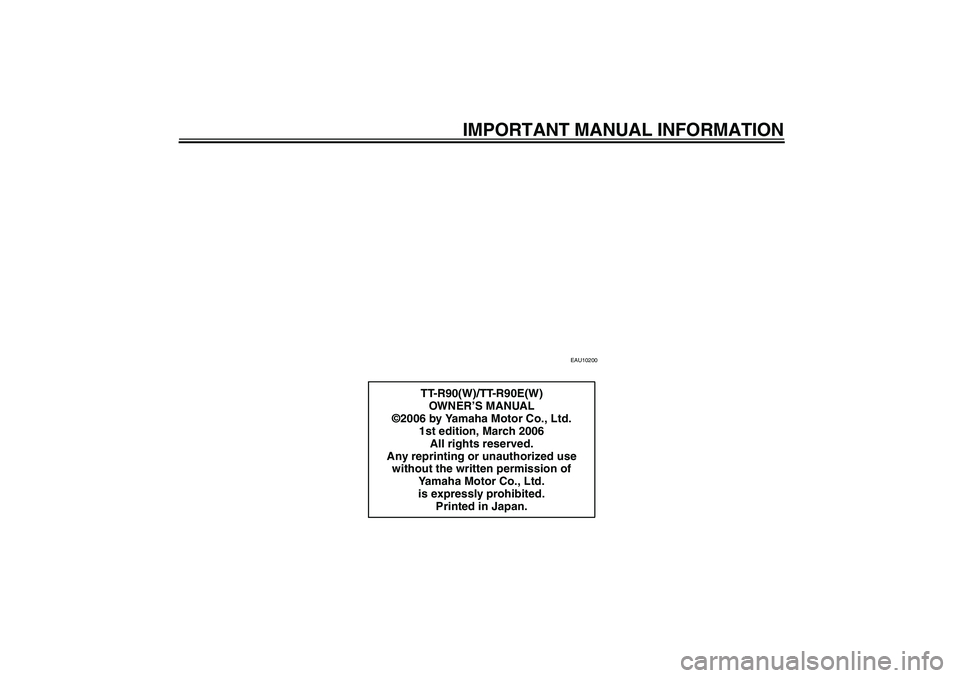

IMPORTANT MANUAL INFORMATION
EAU10200
TT-R90(W)/TT-R90E(W)
OWN ER’S MANUAL
©2006 by Yamaha Motor Co., Ltd.
1st edition, March 2006
All rights reserved.
Any reprinting or unauthorized use
without the written permission of
Yamaha Motor Co., Ltd.
is expressly prohibited.
Printed in Japan.
U3P281E0.book Page 3 Monday, April 17, 2006 11:26 AM

TABLE OF CONTENTSSAFETY INFORMATION ..................1-1

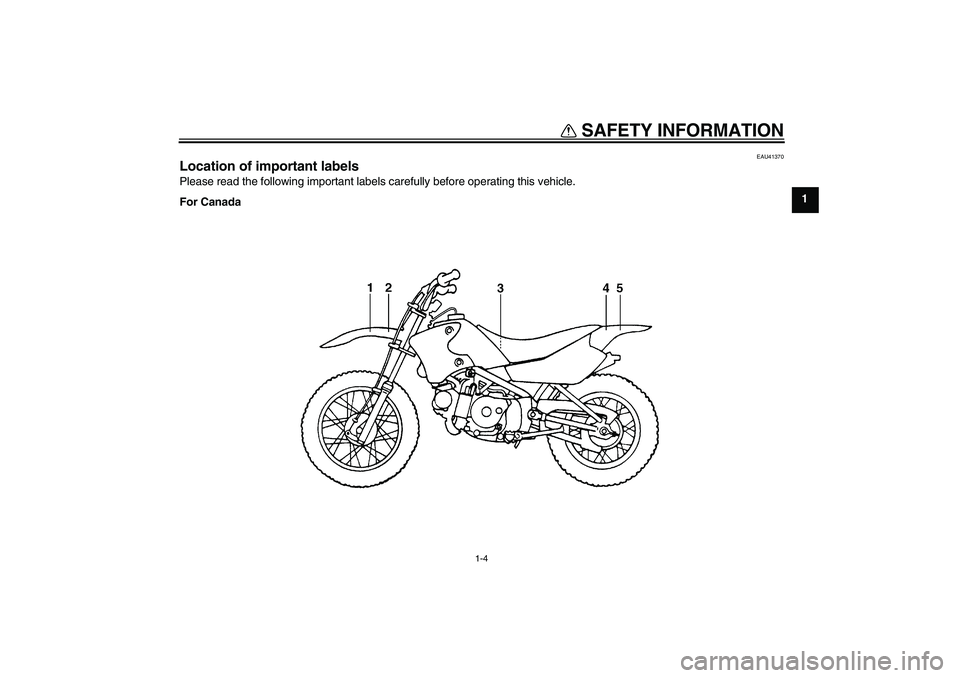

Location of important labels ............1-4
DESCRIPTION ..................................2-1
Left view ..........................................2-1
Right view ........................................2-2
Controls and instruments.................2-3
INSTRUMENT AND CONTROL
FUNCTIONS.......................................3-1
Main switch [TT-R90E(W)] ..............3-1
Handlebar switches ........................3-1
Shift pedal .......................................3-2
Brake lever .....................................3-2
Brake pedal ....................................3-2
Fuel tank cap ..................................3-3
Fuel .................................................3-3
Fuel tank breather hose ..................3-4
Fuel cock ........................................3-5
Starter (choke) lever .......................3-6
Kickstarter .......................................3-6
Seat ................................................3-7
Sidestand ........................................3-7
Starting circuit cut-off system
[TT-R90E(W)] ...............................3-8
PRE-OPERATION CHECKS..............4-1
Pre-operation check list ..................4-2OPERATION AND IMPORTANT
RIDING POINTS................................. 5-1
Starting and warming up a
cold engine [TT-R90(W)] ............. 5-1
Starting and warming up a
cold engine [TT-R90E(W)] ........... 5-2
Starting a warm engine .................. 5-2
Shifting ........................................... 5-3
Engine break-in .............................. 5-4
Parking [TT-R90(W)] ....................... 5-4
Parking [TT-R90E(W)]..................... 5-5
PERIODIC MAINTENANCE AND
MINOR REPAIR................................. 6-1
PERIODIC MAINTENANCE ........... 6-1
Owner’s tool kit ............................... 6-2
Periodic maintenance chart for
the emission control system ....... 6-3
General maintenance and
lubrication chart .......................... 6-4
Removing and installing the
cowling and panel ....................... 6-6
Checking the spark plug ................. 6-7
Engine oil ....................................... 6-8
Cleaning the air filter element ...... 6-10
Cleaning the spark arrester .......... 6-12
Adjusting the carburetor ............... 6-13
Adjusting the engine idling
speed ........................................ 6-13
Adjusting the throttle cable
free play .................................... 6-14Valve clearance ........................... 6-14
Tires ............................................. 6-15
Spoke wheels .............................. 6-16
Accessories and replacement
parts ......................................... 6-16
Adjusting the brake lever
free play .................................... 6-17
Adjusting the brake pedal
free play .................................... 6-17
Checking the front and rear
brake shoes .............................. 6-18
Drive chain slack .......................... 6-18
Cleaning and lubricating the
drive chain ................................ 6-20
Checking and lubricating the
cables ....................................... 6-21
Checking and lubricating the
throttle grip and cable ............... 6-21
Checking and lubricating the
brake and shift pedals .............. 6-21
Checking and lubricating the
brake lever ................................ 6-22
Checking and lubricating the
sidestand .................................. 6-22
Lubricating the swingarm
pivots ........................................ 6-22
Checking the front fork ................. 6-23
Checking the steering .................. 6-23
Checking the wheel bearings ....... 6-24
Battery [TT-R90E(W)] ................... 6-24U3P281E0.book Page 1 Monday, April 17, 2006 11:26 AM

TABLE OF CONTENTS
Replacing the fuse
[TT-R90E(W)] ............................. 6-26
Supporting the motorcycle ............ 6-26
Front wheel ................................... 6-27
Rear wheel ................................... 6-28
Troubleshooting ............................ 6-30
Troubleshooting chart
[TT-R90(W)] ............................... 6-31
Troubleshooting chart
[TT-R90E(W)] ............................. 6-32
MOTORCYCLE CARE AND
STORAGE.......................................... 7-1
Care ................................................ 7-1
Storage [TT-R90(W)] ....................... 7-3
Storage [TT-R90E(W)].....................7-4
SPECIFICATIONS ............................. 8-1
CONSUMER INFORMATION............. 9-1
Identification numbers .................... 9-1
U3P281E0.book Page 2 Monday, April 17, 2006 11:26 AM

1-1
1
SAFETY INFORMATION
EAU41860
Safe riding

Always make pre-operation
checks. Careful checks may help
prevent an accident.


This motorcycle is designed for off-
road use only, therefore, it is illegal
to operate it on public streets,
roads, or highways, even a dirt or
gravel one. Off-road use on public
lands may be illegal. Please check
local regulations before riding.


This motorcycle is designed to car-
ry the operator only. No passen-
gers.


Many accidents involve inexperi-
enced operators.
Make sure that the operator is
qualified and that you only lend
your motorcycle to other quali-
fied operators.
Know your skills and limits.
Staying within your limits may
help you to avoid an accident.


Many accidents have been caused
by error of the motorcycle opera-
tor. A typical error made by the op-
erator is veering wide on a turn
due to EXCESSIVE SPEED or un-dercornering (insufficient lean an-
gle for the speed). Never travel
faster than warranted by condi-
tions.


Ride cautiously in unfamiliar ar-
eas. You may encounter hidden
obstacles that could cause an ac-
cident.


The posture of the operator is im-
portant for proper control. The op-
erator should keep both hands on
the handlebar and both feet on the
operator footrests during operation
to maintain control of the motor-
cycle.


Never ride under the influence of
alcohol or other drugs.


Be sure the transmission is in neu-
tral before starting the engine.
Protective apparel
The majority of fatalities from motor-
cycle accidents are the result of head
injuries. The use of a safety helmet is
the single most critical factor in the pre-
vention or reduction of head injuries.


Always wear an approved helmet.


Wear a face shield or goggles.
Wind in your unprotected eyes
could contribute to an impairment
of vision that could delay seeing a
hazard.


The use of a jacket, heavy boots,
trousers, gloves, etc., is effective in
preventing or reducing abrasions
or lacerations.


Never wear loose-fitting clothes,
otherwise they could catch on the
control levers, footrests, or wheels
and cause injury or an accident.


Never touch the engine or exhaust
system during or after operation.
They become very hot and can
cause burns. Always wear protec-
tive clothing that covers your legs,
ankles, and feet.
Modifications
Modifications made to this motorcycle
not approved by Yamaha, or the re-
moval of original equipment, may ren-
der the motorcycle unsafe for use and
may cause severe personal injury.
Modifications may also make your
motorcycle illegal to use.
U3P281E0.book Page 1 Monday, April 17, 2006 11:26 AM

SAFETY INFORMATION
1-2
1 Loading and accessories
Adding accessories to your motorcycle
can adversely affect stability and han-
dling if the weight distribution of the
motorcycle is changed. To avoid the
possibility of an accident, use extreme
caution when adding accessories to
your motorcycle. Use extra care when
riding a motorcycle that has added ac-
cessories. Here are some general
guidelines to follow if adding accesso-
ries to your motorcycle:
Loading


The weight of the operator must
not exceed 40 kg (88 lb).


Accessory weight should be kept
as low and close to the motorcycle
as possible. Make sure to distrib-
ute the weight as evenly as possi-
ble on both sides of the motorcycle
to minimize imbalance or instabili-
ty.


Shifting weights can create a sud-
den imbalance. Make sure that ac-
cessories are securely attached to
the motorcycle before riding.
Check accessory mounts fre-
quently.


Never attach any large or heavy
items to the handlebar, front fork,
or front fender.
Accessories
Genuine Yamaha accessories have
been specifically designed for use on
this motorcycle. Since Yamaha cannot
test all other accessories that may be
available, you must personally be re-
sponsible for the proper selection, in-
stallation and use of non-Yamaha
accessories. Use extreme caution
when selecting and installing any ac-
cessories.
Keep these guidelines in mind for
mounting accessories in addition to
those provided under “Loading”.

Never install accessories or that
would impair the performance of
your motorcycle. Carefully inspect
the accessory before using it to
make sure that it does not in any
way reduce ground clearance or
cornering clearance, limit suspen-
sion travel, steering travel or con-
trol operation.
Accessories fitted to the handle-
bar or the front fork area can
create instability due to improperweight distribution or aerody-
namic changes. If accessories
are added to the handlebar or
front fork area, they must be as
lightweight as possible and
should be kept to a minimum.
Bulky or large accessories may
seriously affect the stability of
the motorcycle due to aerody-
namic effects. Wind may at-
tempt to lift the motorcycle, or
the motorcycle may become un-
stable in cross winds.
Certain accessories can dis-
place the operator from his or
her normal riding position. This
improper position limits the free-
dom of movement of the opera-
tor and may limit control ability,
therefore, such accessories are
not recommended.


Use caution when adding electri-
cal accessories. If electrical acces-
sories exceed the capacity of the
motorcycle’s electrical system, an
electric failure could result, which
could cause a dangerous loss of
engine power.
U3P281E0.book Page 2 Monday, April 17, 2006 11:26 AM

SAFETY INFORMATION
1-3
1Gasoline and exhaust gas


GASOLINE IS HIGHLY FLAMMA-
BLE:
Always turn the engine off when
refueling.
Take care not to spill any gaso-
line on the engine or exhaust
pipe(s)/muffler(s) when refuel-
ing.
Never refuel while smoking or in
the vicinity of an open flame.


Never start the engine or let it run
for any length of time in a closed
area. The exhaust fumes are poi-
sonous and may cause loss of
consciousness and death within a
short time. Always operate your
motorcycle in an area that has ad-
equate ventilation.


Always turn the engine off before
leaving the motorcycle unattend-
ed. For models equipped with a
main switch: Remove the key from
the main switch. When parking the
motorcycle, note the following:
The engine and exhaust pipe(s)/
muffler(s) may be hot, therefore,
park the motorcycle in a placewhere pedestrians or children
are not likely to touch these hot
areas.
Do not park the motorcycle on a
slope or soft ground, otherwise it
may fall over.
Do not park the motorcycle near
a flammable source (e.g., a ker-
osene heater, or near an open
flame), otherwise it could catch
fire.


When transporting the motorcycle
in another vehicle, make sure that
it is kept upright and that the fuel
cock(s) are turned to “ON” or
“RES” (for vacuum type)/“OFF”
(for manual type). If the motorcycle
should lean over, gasoline may
leak out of the carburetor or fuel
tank.


If you should swallow any gaso-
line, inhale a lot of gasoline vapor,
or allow gasoline to get into your
eyes, see your doctor immediately.
If any gasoline spills on your skin
or clothing, immediately wash the
affected area with soap and water
and change your clothes.
U3P281E0.book Page 3 Monday, April 17, 2006 11:26 AM

SAFETY INFORMATION
1-4
1
EAU41370
Location of important labels Please read the following important labels carefully before operating this vehicle.
For Canada
U3P281E0.book Page 4 Monday, April 17, 2006 11:26 AM

SAFETY INFORMATION
1-5
1For Canada
2
4 1
3
5
Cold tire normal pressure should be set as
follows.FRONT : 100kPa, {1.00kgf/cm
2}, 15psi
REAR : 100kPa, {1.00kgf/cm2}, 15psi
3RV-21668-A0
TIRE INFOMATION
La pression des pneus à froid doit normalement
être réglée comme suit.
AVANT : 100kPa, {1.00kgf/cm
2}, 15psi
ARRIERE
: 100kPa, {1.00kgf/cm
2}, 15psi
3RV-21668-B0
INFORMATION SUR LES PNEUS
WARNING
3PT-2118K-A0
BEFORE YOU OPERATE THIS VEHICLE, READ THE OWNER’S
MANUAL AND ALL LABELS.
NEVER CARRY A PASSENGER. You increase your risk of losing
control if you carry a passenger.NEVER OPERATE THIS VEHICLE ON PUBLIC ROADS. You can collide with another vehicle if you operate this vehicle on a public road.ALWAYS WEAR AN APPROVED MOTORCYCLE HELMET,
eye protection, and protective clothing.
AVERTISSEMENT
3PT-2118K-B0
LIRE LE MANUEL DU PROPRIETAIRE ANSI QUE TOUTES LES
ETIQUETTES AVANT D’UTILISER CE VEHICULE.
NE JAMAIS TRANSPORTER DE PASSAGER. La conduite avec
passager augmente les risques de perte de contrôle.
NE JAMAIS ROULER SUR DES CHEMINS PUBLICS.
Vous pourriez entrer en collision avec un aulre véhicule.
TOUJOURS PORTER UN CASQUE DE MOTOCYCLISTE
APPROUVE, des lunettes et des vêlements de protection.
U3P281E0.book Page 5 Monday, April 17, 2006 11:26 AM
