Maintenance and care
50
wrench may also be necessary to tighten nuts
and bolts.
1Tool bag
2Screwdriver
314/21 mm box wrench
4Pliers
5Open-end wrench
610/12 mm box wrench
7Garden hose adapter
8Spark plug (one included for each cylinder)
UF1N75E0.book Page 50 Tuesday, May 16, 2006 9:53 AM
Page 58 of 78
Maintenance and care
51
EJU33820Periodic maintenance chart
The following chart gives general guidelines for periodic maintenance. However, maintenance
may need to be performed more frequently depending on your operating conditions.
This “” mark indicates maintenance that you may do yourself.
This “” mark indicates work to be done by a Yamaha dealer.
* This operation should be performed after every use.
Item OperationInitial Thereafter every
Page 10
hours50
hours100
hours100
hours200
hours
6
months12
months12
months24
months
Spark plugsCheck, clean, adjust 56
Lubrication pointsLubricate 57
Intermediate hous-
ingLubricate 57
Fuel systemCheck 52
Fuel filterCheck, clean, replace 52
Fuel tankCheck, clean 52
CarburetorCheck, adjust 60
Trolling speedCheck, adjust 60
Carburetor throt-
tle shaftCheck—
Cooling water pas-
sagesFlush
*46
Bilge strainerClean—
ImpellerCheck—
Jet thrust nozzle
angleCheck, adjust 52
Handlebar pivot
shaftCheck—
Steering frictionCheck, adjust 53
Throttle cableCheck, adjust 55
Choke cableCheck, adjust 58
BatteryCheck, charge 59
Rubber couplingCheck—
Engine mountCheck—
Nuts and boltsCheck—
UF1N75E0.book Page 51 Tuesday, May 16, 2006 9:53 AM
Page 59 of 78
Maintenance and care
52
EJU34200Checking the fuel system
WARNING
EWJ00370
Gasoline is highly flammable and explo-
sive. Failure to check for and repair any
fuel leakage could result in a fire or explo-
sion. A fire or explosion can cause severe
injury or death. Shut the engine off. Do not
smoke. Avoid spilling gasoline.
Check the fuel system for leaks, cracks, and
malfunctions. If any problem is found, do the
necessary repair or replacement as required.
If repair is necessary, consult a Yamaha deal-
er.
Check:
Carburetor for leakage.
Fuel pump for malfunction and leakage.
Fuel tank filler cap and seal for damage.
Fuel in fuel tank for water and dirt.
Fuel tank for damage, cracks, and leakage.
Fuel hoses and joints for damage, cracks,
and leakage.
Fuel filter for leakage.
Fuel cock for leakage.
Air vent check valve for leakage.EJU34220Fuel filter
This watercraft is equipped with a one-piece,
disposable fuel filter. The fuel filter should be
replaced after the initial 10 hours or first
month of operation and every 200 hours or 24
months thereafter, or if water is found in the fil-ter. Have a Yamaha dealer replace the fuel fil-
ter if necessary.
WARNING
EWJ00360
Do not try to replace the fuel filter yourself.
An incorrectly installed filter can leak gas-
oline, which could result in a fire or explo-
sion. If necessary, have a Yamaha dealer
replace the fuel filter.
EJU34230Fuel tank
Check the fuel tank for leakage and for water
in the tank. If water is found in the fuel system,
or if the fuel tank needs to be cleaned, have a
Yamaha dealer service the watercraft.
EJU34320Checking the jet thrust nozzle angle
Check the handlebars and jet thrust nozzle for
smooth operation.
1Fuel filter
1Fuel tank
UF1N75E0.book Page 52 Tuesday, May 16, 2006 9:53 AM

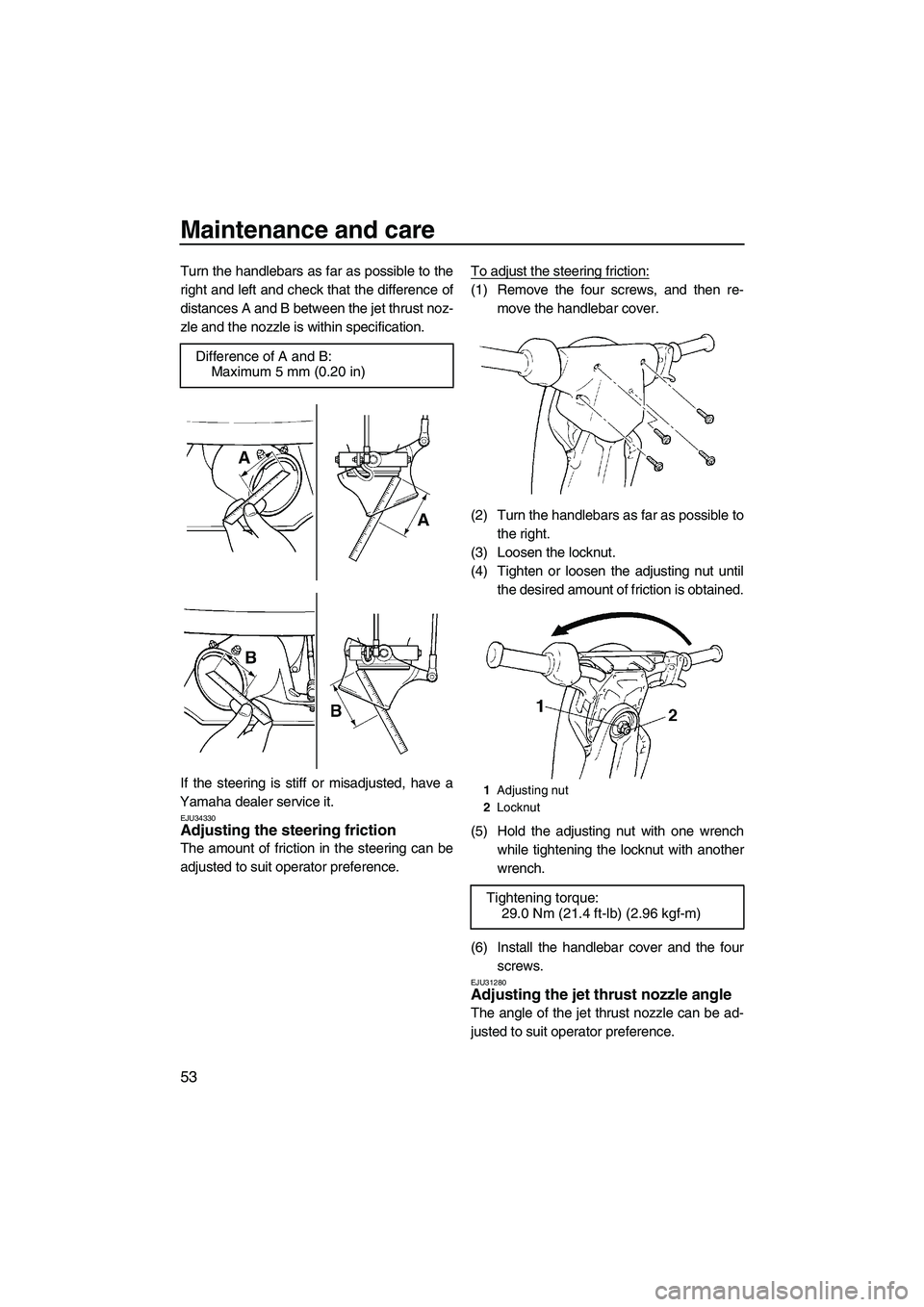

Page 60 of 78
Maintenance and care
53
Turn the handlebars as far as possible to the
right and left and check that the difference of
distances A and B between the jet thrust noz-
zle and the nozzle is within specification.
If the steering is stiff or misadjusted, have a
Yamaha dealer service it.
EJU34330Adjusting the steering friction
The amount of friction in the steering can be
adjusted to suit operator preference.To adjust the steering friction:
(1) Remove the four screws, and then re-
move the handlebar cover.
(2) Turn the handlebars as far as possible to
the right.
(3) Loosen the locknut.
(4) Tighten or loosen the adjusting nut until
the desired amount of friction is obtained.
(5) Hold the adjusting nut with one wrench
while tightening the locknut with another
wrench.
(6) Install the handlebar cover and the four
screws.
EJU31280Adjusting the jet thrust nozzle angle
The angle of the jet thrust nozzle can be ad-
justed to suit operator preference. Difference of A and B:
Maximum 5 mm (0.20 in)
1Adjusting nut
2Locknut
Tightening torque:
29.0 Nm (21.4 ft-lb) (2.96 kgf-m)
UF1N75E0.book Page 53 Tuesday, May 16, 2006 9:53 AM
Page 61 of 78
Maintenance and care
54
(1) Loosen the two screws, and then remove
the steering pole cover.
(2) Select the desired nozzle angle. Chang-
ing the positions of the handlebar stopper
and/or steering cable pivot bolt changesthe nozzle angle as shown in the follow-
ing chart.
1Steering pole cover1Nozzle angles
1Nozzle angles
2Handlebar stopper and steering cable pivot
bolt positions
UF1N75E0.book Page 54 Tuesday, May 16, 2006 9:53 AM
Page 62 of 78
Maintenance and care
55
To change the steering cable pivot bolt posi-
tion:
(1) Pull back the outer sleeve, and then dis-
connect the steering cable.
(2) Remove the steering cable joint from the
steering cable pivot bolt.
(3) Loosen the pivot bolt, install it with the
lock washer in the desired position (P1 or
P2), and then tighten it to the specified
torque.
(4) Install the steering cable joint on the
steering cable pivot bolt.
To change the handlebar stopper position:
(1) Loosen the handlebar stopper nut on the
operator’s side of the steering pole.(2) Lift and turn the handlebar stopper to the
desired position (S1 or S2), and then
tighten the handlebar stopper nut to the
specified torque.
(3) Install the steering pole cover securely.
EJU34360Checking and adjusting the throttle
cable
Check that the throttle cable moves back to
the set position smoothly and that the throttle
lever free play is within specification.
(1) Squeeze and release the throttle lever. If
the throttle lever does not return smooth-
ly, have a Yamaha dealer service it.
1Steering cable pivot bolt
Tightening torque:
Steering cable pivot bolt:
5.4 Nm (4.0 ft-lb) (0.55 kgf-m)
1Handlebar stopper nut
Tightening torque:
Handlebar stopper nut:
31.0 Nm (22.9 ft-lb) (3.16 kgf-m)
UF1N75E0.book Page 55 Tuesday, May 16, 2006 9:53 AM
Page 63 of 78
Maintenance and care
56
(2) Adjust the free play by loosening the lock-
nut and turning the adjuster.
EJU34370Cleaning and adjusting the spark
plugs
The spark plug is an important engine compo-
nent and is easy to inspect. The condition of
the spark plug can indicate something about
the condition of the engine. For example, if the
center electrode porcelain is very white, this
could indicate an intake air leak or carburetion
problem in that cylinder. Do not attempt to di-
agnose any problems yourself. Have a
Yamaha dealer service the watercraft.
Remove and inspect the spark plugs periodi-
cally; heat and deposits will cause the spark
plugs to slowly break down and erode. If elec-
trode erosion becomes excessive, or if carbon
and other deposits are excessive, replace the
spark plug with the specified plug.Measure the spark plug gap with a wire thick-
ness gauge. Replace the spark plugs or ad-
just the gap to specification if necessary.
To install a spark plug:
(1) Clean the gasket surface.
(2) Wipe any dirt from the threads of the
spark plug.
(3) Install the spark plug, and then tighten it
to the specified torque.
(4) Install the spark plug cap.
NOTE:
Wipe off any water on the spark plug or in-
side the spark plug cap before installing the
cap. Push the spark plug cap down until it is
securely installed.
If a torque wrench is not available when you
are installing a spark plug, a good estimate
of the correct torque is 1/4 turn to 1/2 turn
past finger tight using the spark plug
wrench included in the tool kit. Have the
spark plug adjusted to the correct torque
with a torque wrench as soon as possible.
1Locknut
2Adjuster
3Throttle lever free play
Throttle lever free play:
7.0–10.0 mm (0.28–0.39 in)
Specified spark plug:
BR7HS
1Spark plug gap
Spark plug gap:
0.6–0.7 mm (0.024–0.028 in)
Spark plug tightening torque:
25.0 Nm (18.4 ft-lb) (2.55 kgf-m)
UF1N75E0.book Page 56 Tuesday, May 16, 2006 9:53 AM
Page 64 of 78
Maintenance and care
57
WARNING
EWJ00350
Be careful not to damage the insulator
when removing or installing a spark plug.
A damaged insulator could allow sparks to
escape, which could result in a fire or ex-
plosion.
EJU34400Lubrication points
To keep moving parts sliding or rotating
smoothly, coat them with water-resistant
grease.
Throttle cable (carburetor end)
Choke cable (carburetor end)
Throttle cable (handlebar end)
Squeeze the throttle lever and remove the
seal. Spray a rust inhibitor into the outer ca-
ble. Refit the seal securely.
Steering cable ball joint (handlebar end)
Steering cable inner wire (handlebar end)
(1) To access the steering cable and ball
joint, remove the steering pad by re-
moving the two bolts.
(2) Grease the steering cable ball joints,
both at the handlebar end of the cable
and at the jet thrust nozzle end.
(3) Extend the steering cable inner wire,
and then apply a thin coat of grease to
the inner wire, both at the handlebar
end of the cable and at the jet thrust
nozzle end.
Steering cable ball joint (jet thrust nozzle
end) Recommended water-resistant grease:
Yamaha Marine Grease/Yamaha
Grease A
1Seal
