2007 YAMAHA GP1300R Owners Manual

OWNER’S/OPERATOR’S MANUAL
2007 WaveRunner
GP1300R
F1G-F8199-74-E0
UF1G74E0.book Page 1 Monday, July 31, 2006 10:10 AM

READ THIS OWNER’S/OPERATOR’S MANUAL CAREFULLY BEFORE OPER-
ATING YOUR WATERCRAFT.
UF1G74E0.book Page 1 Monday, July 31, 2006 10:10 AM

Important manual information
EJU30091
Name of Notified Body for exhaust emission assessment: Luxcontrol SA
Address: 1, avenue des Terres Rouges BP 349
Town: Esch-sur-Alzette Post Code:L-4004
Country: Luxembourg ID Number:0882
ECtype-examination Certificate number (if applicable):LC*2003/44*10011
Revision No:
Name of PWC manufacturer:
YAMAHA MOTOR MANUFACTURING CORPORATION OF AMERICA
Address: 1000 GA Highway 34 East
Town:Post Code:30265-1320 Newnan Georgia
Country:USA
Name of Authorized Representative ( if applicable):
YAMAHA MOTOR EUROPE N.V.
Address: Koolhovenlaan 101
Town:Schiphol-Rijk Post Code:1119 NC
Country:The Netherlands
Name of Notified Body for noise emission assessment: Luxcontrol SA
Address:1, avenue des Terres Rouges BP 349
Town:Esch-sur-Alzette Post Code: L-4004
Country:Luxembourg ID Number:0882

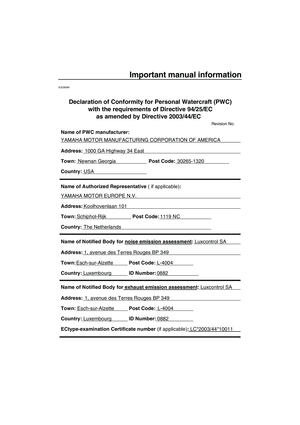

Declaration of Conformity for Personal Watercraft (PWC)
with the requirements of Directive 94/25/EC
as amended by Directive 2003/44/EC
UF1G74E0.book Page 1 Monday, July 31, 2006 10:10 AM

Important manual information
This declaration of conformity is issued under the sole responsibility of the PWC
manufacturer. I declare on behalf of the PWC manufacturer that the craft model and
engine(s) mentioned above comply with all applicable essential requirements in the way
specified and are in conformity with the type for which above mentioned EC type-
examination certificate(s) has(have) been issued.
Name / title:T. Tsuchiya / President of YAMAHA MOTOR EUROPE N.V.
(identification of the person empowered to sign on behalf
of the PWC manufacturer or his authorized representative)
Signature: (or an equivalent marking)
Date and place of issue: 1st / September / 2006, Schiphol-Rijk, The Netherlands
IDENTIFICATION OF ENGINE(S) COVERED
BY THIS DECLARATION OF CONFORMITY
Combustion cycle: 2 stroke 4 stroke
Unique engine identification number(s)
or engine family code(s) EC Type–examination certificate
(for exhaust)
60T LC*2003/44*10011
ESSENTIAL
REQUIREMENTSstandards other
normative
document/
methodtechnical
filePlease specify in more detail
(* = mandatory standard)
I.A design and constructionEN ISO 13590
I.B exhaust emissions **EN ISO 8178-1:1996
I.C noise emissions **EN ISO 14509
Conformity assessment modules used:
for construction: A
Aa B+C B+D B+E B+F G H
for noise emissions: Aa G H
for exhaust emissions: B+E B+D B+C B+F G H
Other Community Directives applied:
Directive 89/336/EEC relating to electromagnetic compatibility (EMC),
using the following standards, for emission CISPR12, for generic
immunity EN61000-6-2
DESCRIPTION OF CRAFT Craft model Identification Number, starting from
Model name / Commercial name :
GP1300-F / GP1300R Design Category: C D
U S Y A M 01I6A12 7–0-
UF1G74E0.book Page 2 Monday, July 31, 2006 10:10 AM

Important manual information
EJU30170
To the owner/operator
Thank you for choosing a Yamaha watercraft.
This owner’s/operator’s manual contains in-
formation you will need for proper operation,
maintenance, and care. If you have any ques-
tions about the operation or maintenance of
your watercraft, please consult a Yamaha
dealer.
This manual is not a course on boating safety
or seamanship. If this is your first watercraft,
or if you are changing to a type of watercraft
you are not familiar with, for your own comfort
and safety, please ensure that you obtain
proper training or practice before operating
the watercraft by yourself. In addition, a
Yamaha dealer or boating organization will be
pleased to recommend local sea schools, or
competent instructors.
Because Yamaha has a policy of continuing
product improvement, this product may not be
exactly as described in this owner’s/opera-
tor’s manual. Specifications are subject to
change without notice.
This manual should be considered a perma-
nent part of this watercraft and should remain
with it even if the watercraft is subsequently
sold.
In this manual, information of particular impor-
tance is distinguished in the following ways:
The Safety Alert Symbol means ATTEN-
TION! BECOME ALERT! YOUR SAFETY IS
INVOLVED!
WARNING
EWJ00060
Failure to follow WARNING instructions
could result in severe injury or death
to the
machine operator, the passenger, a by-
stander, or a person inspecting or repair-
ing the watercraft.
CAUTION:
ECJ00090
A CAUTION indicates special precautions
that must be taken to avoid damage to the
watercraft.
NOTE:
A NOTE provides key information to make
procedures easier or clearer.
EJU30230
WaveRunner GP1300R
OW N E R’S/OPERATOR’S MANUAL
©2006 by Yamaha Motor Co., Ltd.
1st Edition, June 2006
All rights reserved.
Any reprinting or unauthorized use
without the written permission of
Yamaha Motor Co., Ltd.
is expressly prohibited.
Printed in USA
UF1G74E0.book Page 3 Monday, July 31, 2006 10:10 AM

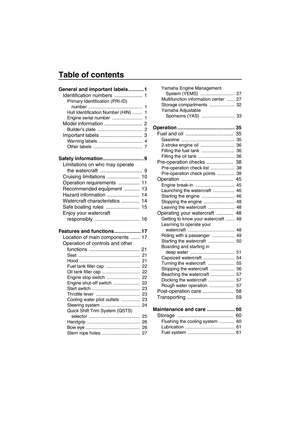

Table of contents
General and important labels ........... 1
Identification numbers .................... 1
Primary Identification (PRI-ID)
number ........................................... 1
Hull Identification Number (HIN) ........ 1
Engine serial number ........................ 1
Model information ........................... 2
Builder’s plate .................................... 2
Important labels .............................. 3
Warning labels ................................... 4
Other labels ....................................... 7
Safety information ............................. 9
Limitations on who may operate
the watercraft .............................. 9
Cruising limitations ....................... 10
Operation requirements ............... 11
Recommended equipment ........... 13
Hazard information ....................... 14
Watercraft characteristics ............. 14
Safe boating rules ........................ 15
Enjoy your watercraft
responsibly ................................ 16
Features and functions ................... 17
Location of main components ...... 17
Operation of controls and other
functions .................................... 21
Seat ................................................. 21
Hood ................................................ 21
Fuel tank filler cap ........................... 22
Oil tank filler cap .............................. 22
Engine stop switch .......................... 22
Engine shut-off switch ..................... 22
Start switch ...................................... 23
Throttle lever ................................... 23
Cooling water pilot outlets ............... 23
Steering system ............................... 24
Quick Shift Trim System (QSTS)
selector ........................................ 25
Handgrip .......................................... 26
Bow eye ........................................... 26
Stern rope holes .............................. 27Yamaha Engine Management
System (YEMS) ........................... 27
Multifunction information center ...... 27
Storage compartments .................... 32
Yamaha Adjustable
Sponsons (YAS) .......................... 33
Operation ......................................... 35
Fuel and oil .................................. 35
Gasoline .......................................... 35
2-stroke engine oil ........................... 36
Filling the fuel tank .......................... 36
Filling the oil tank ............................. 36
Pre-operation checks ................... 38
Pre-operation check list ................... 38
Pre-operation check points .............. 39
Operation ..................................... 45
Engine break-in ............................... 45
Launching the watercraft ................. 46
Starting the engine .......................... 46
Stopping the engine ........................ 48
Leaving the watercraft ..................... 48
Operating your watercraft ............ 48
Getting to know your watercraft ....... 48
Learning to operate your
watercraft ..................................... 48
Riding with a passenger .................. 49
Starting the watercraft ..................... 50
Boarding and starting in
deep water ................................... 51
Capsized watercraft ......................... 54
Turning the watercraft ..................... 55
Stopping the watercraft ................... 56
Beaching the watercraft ................... 57
Docking the watercraft ..................... 57
Rough water operation .................... 57
Post-operation care ...................... 58
Transporting ................................. 59
Maintenance and care .................... 60
Storage ........................................ 60
Flushing the cooling system ............ 60
Lubrication ....................................... 61
Fuel system ..................................... 61
UF1G74E0.book Page 1 Monday, July 31, 2006 10:10 AM

Table of contents
Battery ............................................. 61
Cleaning the watercraft ................... 62
Maintenance and adjustments ..... 63
Owner’s/operator’s manual and
tool kit ........................................... 63
Periodic maintenance chart ............. 65
Checking the fuel system ................ 66
Checking the oil injection system .... 66
Checking the jet thrust
nozzle angle ................................. 66
Checking and adjusting the throttle
cable ............................................ 67
Cleaning and adjusting the
spark plugs ................................... 67
Lubrication points ............................ 68
Checking the battery ....................... 69
Fuel injection system ....................... 71
Bleeding the oil pump ...................... 71
Adjusting the Yamaha Adjustable
Sponsons (YAS) .......................... 71
Specifications .................................. 72
Specifications ................................ 72
Trouble recovery ............................. 73
Troubleshooting ........................... 73
Troubleshooting chart ...................... 73
Emergency procedures ................ 76
Cleaning the jet intake and
impeller ........................................ 76
Jumping the battery ......................... 77
Replacing the fuses ......................... 78
Towing the watercraft ...................... 78
Submerged watercraft ..................... 79
UF1G74E0.book Page 2 Monday, July 31, 2006 10:10 AM

General and important labels
1
EJU30260
Identification numbers
Record the Primary Identification (PRI-ID)
number, Hull Identification Number (HIN), and
engine serial number in the spaces provided
for assistance when ordering spare parts from
a Yamaha dealer. Also record and keep these
ID numbers in a separate place in case your
watercraft is stolen.
EJU30281Primary Identification (PRI-ID) number
The PRI-ID number is stamped on a plate at-
tached inside the engine compartment.
MODEL:
GP1300-F (GP1300R)
EJU30290Hull Identification Number (HIN)
The HIN is stamped on a plate attached to the
hull on the aft, starboard (right) side.
EJU30310Engine serial number
The engine serial number is stamped on a
plate attached to the engine unit.
1Primary Identification (PRI-ID) number loca-
tion
1Hull Identification Number (HIN) location
1Engine serial number location
UF1G74E0.book Page 1 Monday, July 31, 2006 10:10 AM
