OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys20
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . .
Hybrid vehicle immobilizer system 21
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Smart entry and start system 24
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wireless remote control 35
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Side doors 40
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Back door 42
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
Power windows 43
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Hood 45
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Theft deterrent system 46
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Fuel tank cap 48
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
SECTION 2– 1

25
INFORMATION
Be sure to take the smart key with
you.
In the following cases, the smart
function or wireless remote control
feature may not operate properly. (If
this happens, use a mechanical key
to lock or unlock the driver’s door
and a smart key to start the hybrid
system.) When facilities issuing strong
electromagnetic waves such as
TV towers, electric power sta-
tions, broadcasting stations are
nearby.
 When you are carrying a smart
key together with a mobile com-
munications system such as a
twoway radio or cellular phone.
 When the smart key is in contact
with or covered by a metallic ob-
ject.
 When another person is operating
a wireless remote control func-
tion on another vehicle near your
vehicle.
If you do not drive your vehicle,
store the smart key, keeping it at
least 5 m (16 ft.) away from the ve-
hicle.CAUTION
People with implanted pacemakers
or cardiac defibrillators s hould keep
away from the smart entry and start
system antennas, because the radio
waves may affect the operation of
such devices. For the antenna loca-
tions, see “ANTENNA LOCATIONS”
on page 26.
Users of any electrical medical de-
vice other than implanted pacemak-
ers and implanted cardiac defibrilla-
tors should consult the manufactur-
er of the device for information
about its operation under the influ-
ence of radio waves. Radio waves
could have unexpected effects on
the operation of such medical de-
vices.
If necessary, the smart function can
be disabled. See “DEACTIVATING
THE SMART FUNCTION” on page
34.

30

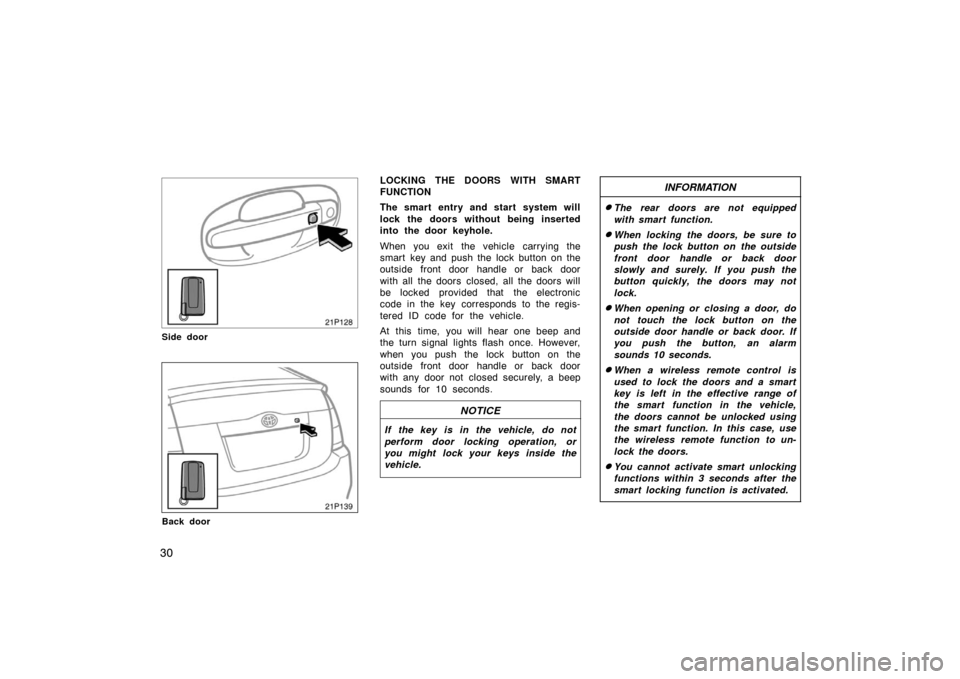

21p128
Side door
21p139
Back door
LOCKING THE DOORS WITH SMART
FUNCTION
The smart entry and start system will
lock the doors without being inserted
into the door keyhole.
When you exit the vehicle carrying the
smart key and push the lock button on the
outside front door handle or back door
with all the doors closed, all the doors will
be locked provided that the electronic
code in the key corresponds to the regis-
tered ID code for the vehicle.
At this time, you will hear one beep and
the turn signal lights flash once. However,
when you push the lock button on the
outside front door handle or back door
with any door not closed securely, a beep
sounds for 10 seconds.
NOTICE
If the key is in the vehicle, do not
perform door locking operation, or
you might lock your keys inside the
vehicle.
INFORMATION
The rear doors are not equipped
with smart function.
When locking the doors, be sure to
push the lock button on the outside
front door handle or back door
slowly and surely. If you push the
button quickly, the doors may not
lock.
When opening or closing a door, do
not touch the lock button on the
outside door handle or back door. If
you push the button, an alarm
sounds 10 seconds.
When a wireless remote control is
used to lock the doors and a smart
key is left in the effective range of
the smart function in the vehicle,
the doors cannot be unlocked using
the smart function. In this case, use
the wireless remote function to un-
lock the doors.
You cannot activate smart unlocking
functions within 3 seconds after the
smart locking function is activated.

33
INFORMATION
When changing the mode, be sure
to push both lock and panic but-
tons firmly, or panic alarm may be
activated.
 This operation will not change the
wireless remote control unlocking
function.
 In the single or driver’s door un-
locking mode, if you get into the
vehicle from the driver’s door carry-
ing the smart key, all the smart un-
locking controls activated by the
smart key will be stopped for secu-
rity. If you get out of the vehicle
from the driver’s door carrying the
smart key and get out of the effec-
tive range of the smart function,
unlocking control by the smart key
will be possible. However, unlocking
control may not be carried out for
5 seconds after you get out from
the vehicle. In this case, operate
unlock control again after 5 sec-
onds.
BATTERY POWER SAVING
When doors are locked, the smart entry
and start system transmits electromagnetic
waves to the outside of the vehicle at
regular intervals. For this reason, the ve-
hicle battery will be discharged if the ve-
hicle is left for a long time. If the key is
left within the effective range of the smart
function outside of the vehicle, the key
and the vehicle transmit electromagnetic
waves periodically. If these conditions con-
tinue for a long time, the battery in the
key and vehicle will be discharged.
To prevent the batteries from being dis-
charged, the smart function is automatical-
ly deactivated in the following conditions:
If there is no response from the key
for more than 14 days
If the key is left within the effective
range of the smart function outside of
the vehicle for more than 10 minutes To reactivate the smart function, perform
any of the following:
(a) Press the lock button on the outside front door handle or back door while
carrying the smart key.
(b) Perform a wireless remote control op- eration.
(c) Insert and turn the mechanical key in the keyhole of the driver’s door.

34
INFORMATION
To maintain communication with the
vehicle, smart keys use builtin bat-
tery power. The battery service life
is about 1 to 3 years on average. If
battery power becomes insufficient,
replace the battery with a new one.
The smart key continually receives
electromagnetic waves, and if it re-
ceives strong electromagnetic waves
over a period of time, the battery
can be drastically run down. There-
fore, avoid storing smart keys near
any electrical appliances.Here is a list of electrical ap-
pliances which may have adverse
effects on the smart key perfor-
mance: TVs, personal computers,
cellular phone or cordless phone
recharger units, electric light stands
and fluorescent desk lights
Note that you should always keep
such electrical appliances at least 1
m (3 ft.) away from the smart key.

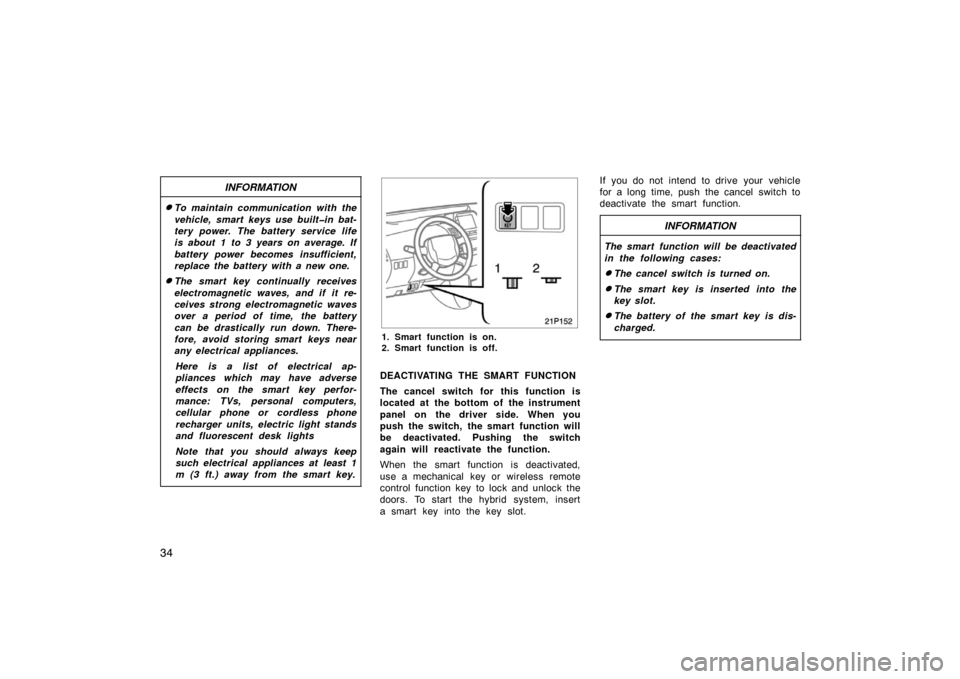

21p152
1. Smart function is on.
2. Smart function is off.
DEACTIVATING THE SMART FUNCTION
The cancel switch for this function is
located at the bottom of the instrument
panel on the driver side. When you
push the switch, the smart function will
be deactivated. Pushing the switch
again will reactivate the function.
When the smart function is deactivated,
use a mechanical key or wireless remote
control function key to lock and unlock the
doors. To start the hybrid system, insert
a smart key into the key slot. If you do not intend to drive your vehicle
for a long time, push the cancel switch to
deactivate the smart function.
INFORMATION
The smart function will be deactivated
in the following cases:
The cancel switch is turned on.
The smart key is inserted into the
key slot.
The battery of the smart key is dis-
charged.

35
For vehicles sold in U.S.A.
FCC ID: MOZB31EG
MADE IN JAPAN
FCC ID: MOZB31UG
MADE IN JAPAN
FCC ID: MOZRO2TY1
MADE IN JAPAN
FCC ID: PENASAT2
MADE IN JAPAN
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
CAUTION
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
For vehicles sold in Canada
This device complies with RSS −210 of
industry Canada. Operation is subject to
the following two conditions:
(1) This device may not cause interfer-
ence, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.
21p147
1. Lock switch
2. Indicator light
3. Unlock switch
4. Panic switch
The wireless remote control system is
designed to lock or unlock all the side
doors and back door, or activate the
theft deterrent system from a distance
within approximately 1 m (3 ft.) of the
vehicle.
When you operate any switch, push it
slowly and securely. At this time, the indi-
cator light flashes once.
Wireless remote control—

36
The wireless remote control key is an
electronic component. Observe the follow-
ing instructions in order not to cause dam-
age to the key.
Do not leave the key in places where
the temperature becomes high such as
on the dashboard.
Do not disassemble it.
Avoid knocking it hard against other
objects or dropping it.
Avoid putting it in water.
If your vehicle is equipped with smart
entry and start system, you can use up
to 5 master keys for the same vehicle. In
case of the vehicle not equipped with
smart entry and start system, up to 4
master keys are available. Contact your
Toyota dealer for detailed information.
If the wireless remote control key does
not actuate the doors or alarm or operate
from a normal distance, or indicator light
on the key is dimmed or does not come
on:
Check for closeness to a radio trans-
mitter such as a radio station or an
airport which can interfere with normal
operation of the key.
The battery may have been consumed.
Check the battery in the key. To re-
place the battery, see “—Replacing bat-
tery” on page 38.
If you lose your key, contact your Toyota
dealer as soon as possible to avoid the
possibility of theft, or an accident. (See “If
you lose your keys” on page 379.)

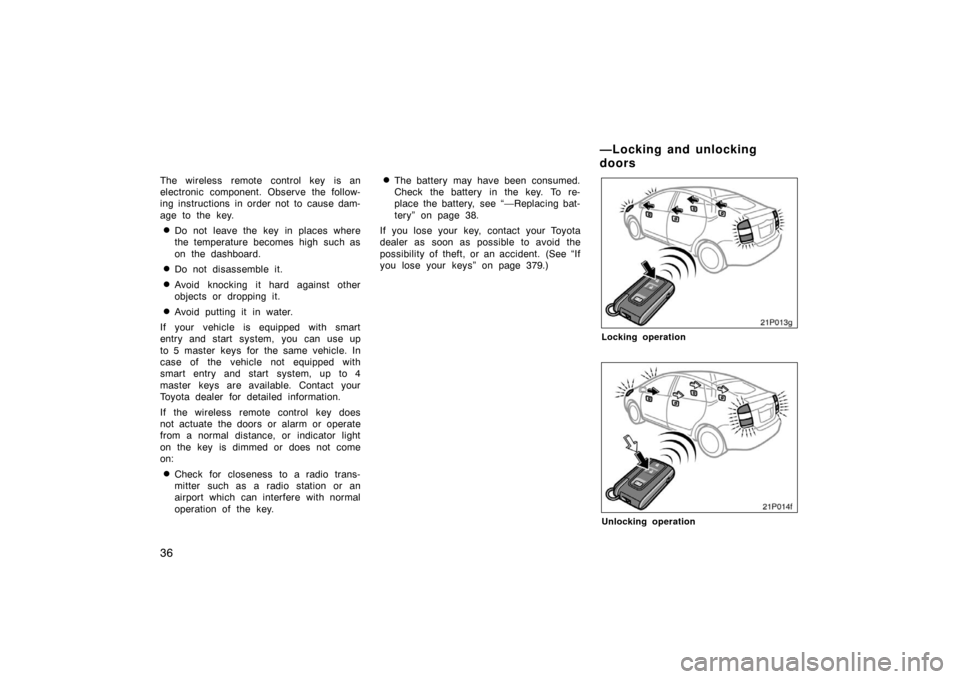

21p013f
Locking operation
21p014f
Unlocking operation
—Locking and unlocking
doors
