2007 TOYOTA CAMRY display

’07Camry_U (L/O 0608)
267
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
The vehicle is magnetized. (There is a
magnet or a metal object on or near
the inside rear view mirror.)
The battery has been disconnected.
If your vehicle is out of the set zone,
refer to “CALIBRATING THE COMPASS”
below to set the zone number.
If the deviation is small, the compass
works to calibrate the direction automati-
cally while the vehicle is in motion.
For additional precision or for complete
calibrating, see “CALIBRATING THE
COMPASS” below.
The compass sensor is in the inside
rear view mirror.
NOTICE
Do not put magnets or a metal object
on or near the inside rear view mirror
of the vehicle. Doing this may cause
malfunction of the compass sensor.
CALIBRATING THE COMPASS (deviation
calibration)
The direction display on the compass
deviates from the true direction deter-
mined by the earth’s magnetic field. The
angle of deviation varies according to the
geographic position of the vehicle.
To adjust this deviation, stop the vehicle,
then push and hold the switch until the
zone number appears on the display.
Then push the switch, referring to the fol-
lowing map to select the number of the
zone where the vehicle is.

’07Camry_U (L/O 0608)
268
2007MY CAMRY from Oct. ’06 Prod. (OM33748U) Zone number
After calibration, leaving the system for
several seconds returns it to the compass
mode.
CAUTION
Do not adjust the display while the
vehicle is moving. Be sure to adjust
the display only when the vehicle is
stopped.
Samoa: 5 Guam: 8 Saipan: 8

’07Camry_U (L/O 0608)
269
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)

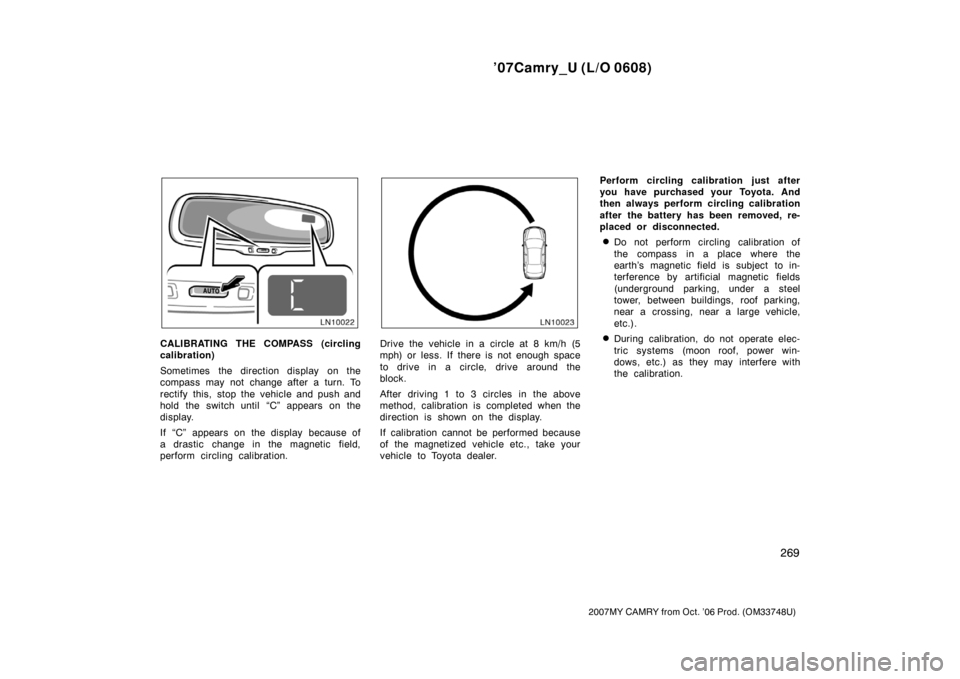

CALIBRATING THE COMPASS (circling
calibration)
Sometimes the direction display on the
compass may not change after a turn. To
rectify this, stop the vehicle and push and
hold the switch until “C” appears on the
display.
If “C” appears on the display because of
a drastic change in the magnetic field,
perform circling calibration.Drive the vehicle in a circle at 8 km/h (5
mph) or less. If there is not enough space
to drive in a circle, drive around the
block.
After driving 1 to 3 circles in the above
method, calibration is completed when the
direction is shown on the display.
If calibration cannot be performed because
of the magnetized vehicle etc., take your
vehicle to Toyota dealer.Perform circling calibration just after
you have purchased your Toyota. And
then always perform circling calibration
after the battery has been removed, re-
placed or disconnected.
Do not perform circling calibration of
the compass in a place where the
earth’s magnetic field is subject to in-
terference by artificial magnetic fields
(underground parking, under a steel
tower, between buildings, roof parking,
near a crossing, near a large vehicle,
etc.).
During calibration, do not operate elec-
tric systems (moon roof, power win-
dows, etc.) as they may interfere with
the calibration.

’07Camry_U (L/O 0608)
270
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)

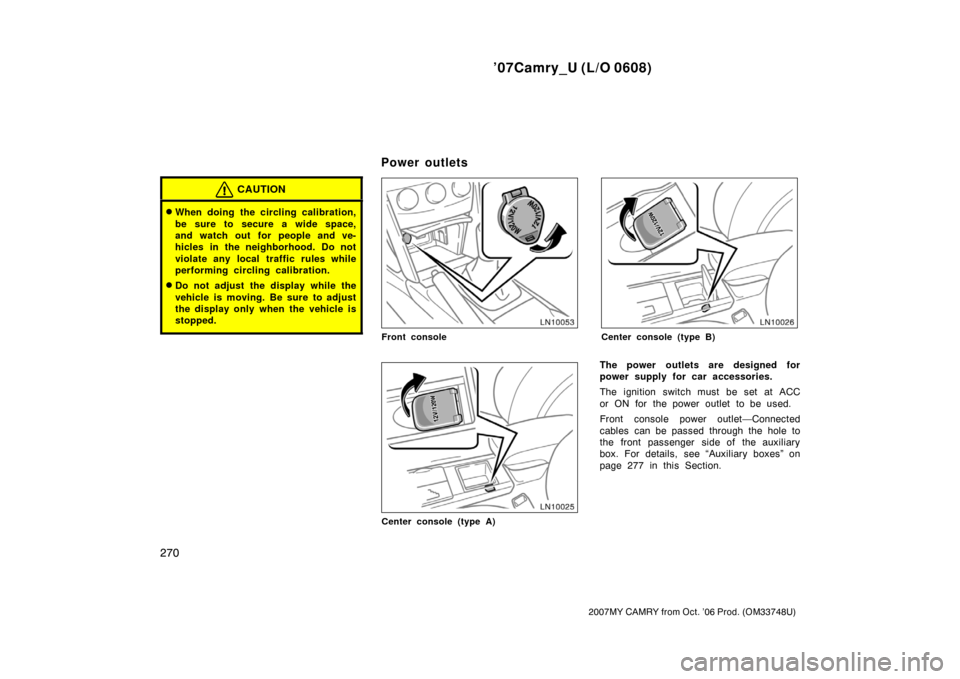

CAUTION
When doing the circling calibration,
be sure to secure a wide space,
and watch out for people and ve-
hicles in the neighborhood. Do not
violate any local traffic rules while
performing circling calibration.
Do not adjust the display while the
vehicle is moving. Be sure to adjust
the display only when the vehicle is
stopped.
Front console
Center console (type A)
Center console (type B)
The power outlets are designed for
power supply for car accessories.
The ignition switch must be set at ACC
or ON for the power outlet to be used.
Front console power outlet—Connected
cables can be passed through the hole to
the front passenger side of the auxiliary
box. For details, see “Auxiliary boxes” on
page 277 in this Section.
Po wer ou t let s

’07Camry_U (L/O 0608)
318
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
With the brake pedal firmly depressed, the
indicator light on the “ENGINE START
STOP” switch will turn green. Check that
the automatic transmission selector lever
is in the “P” position. Pressing the
“ENGINE START STOP” switch once
starts the engine.
Press the “ENGINE START STOP” switch
slowly and firmly.
Engine should be warmed up by driving,
not in idle. For warming up, drive with
smoothly turning engine until engine cool-
ant temperature is within normal range.
If the engine stalls...
Simply restart it, using the correct proce-
dure given in normal starting.
If the engine will not start...
In the following cases, the engine will not
start.
If a buzzer sounds from the vehicle,
and the “KEY IS NOT DETECTED”
message appears on the multi−informa-
tion display and the master warning
light comes on when pressing the
“ENGINE START STOP” switch, this
indicates that the key is not in the
vehicle.
If the key is placed in the trunk, the
engine cannot be started.
There are instances in which the en-
gine will not start, even if the key is
in the vehicle (e.g. on the floor, in the
cup holder or glove box).
When the push button start function
does not operate properly, the following
may be causes:
The key battery may be discharged if
the electronic key does not work.
You can start the engine by touching
the Toyota logo side of the electronic
key to the “ENGINE START STOP”
switch. For details, see “Smart key
system” on page 30 in Section 1−2.
Replace the key battery as soon as
possible. (See “—Replacing battery” on
page 28 in Section 1−2.)
The engine was repeatedly turned on
and off over a short period.
Wait 10 seconds and then start the
engine.

’07Camry_U (L/O 0608)
319
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
If the green indicator light on the
“ENGINE START STOP” switch flashes,
and the “S/T IS NOT UNLOCKED”
message appears on the multi−informa-
tion display and the master warning
light comes on, the steering wheel is
locked.
To free it, rotate the steering wheel
slightly while pressing the “ENGINE
START STOP” switch.
If the amber indicator light on the
“ENGINE START STOP” switch flashes,
and the “CHECK S/T LOCK” message
appears on the multi−information dis-
play and the master warning light
comes on, there is a problem in the
steering lock function.
Contact your Toyota dealer, and have
your vehicle and all keys inspected.
If the amber indicator light on the
“ENGINE START STOP” switch flashes,
and no message appears on the multi−
information display, there is a problem
in the push button start function.
Contact your Toyota dealer, and have
your vehicle and all keys inspected.
In addition to the above, there are
instances in which the smart key sys-
tem does not operate properly because
of the circumstances of use. For de-
tails, see “Smart key system” on page
30 in Section 1−2.
In cases other than those described
above, it is possible that a problem has
occurred in an area other than the start
system. See “If your vehicle will not start”
on page 336 in Section 4.When the battery is disconnected or
run down, the push button start function
memorizes the current mode. After you
reconnect, replace, or recharge the bat-
tery, the memorized mode is selected au-
tomatically. In any of these cases, turn off
the engine if the engine comes on.
Wait 10 seconds to start the engine after
the battery has been reconnected. The
engine may not start on the first try. This
does not indicate a malfunction.
NOTICE
Do not race a cold engine.
If the engine becomes difficult to
start or stalls frequently, have the
engine checked immediately.

’07Camry_U (L/O 0608)
320
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
TIPS FOR USING SMART KEY SYSTEM
When using the smart key system, it is
possible to start or stop the engine as
long as the key is on your person.
For this reason, it is possible that a pas-
senger may remove the key from the ve-
hicle without the driver being aware of the
fact. In such a case, it is not possible to
restart the engine after having turned it
off. In addition, it is possible that one may
get out of the vehicle without being aware
that the ignition switch has not been
turned off completely.
When driving or getting in or out of the
vehicle, drivers should make sure that
they are carrying the key.
CAUTION
Do not touch the “ENGINE START
STOP” switch (engine switch) while
driving.
If you have to make an emergency stop,
press and hold the “ENGINE START
STOP” switch for more than 3 seconds.
Master warning light and multiinforma-
tion display
SYSTEM FUNCTION REMINDERS
Follow the instructions described below if
any of the following warnings occur:
(A) A warning buzzer sounds once from
the instrument cluster when the igni-
tion switch is turned on
This indicates that the driver has gotten
into the vehicle without the key. The “KEY
IS NOT DETECTED” message will also
appear on the multi−information display
and the master warning light will come on.
Operate the ignition switch only after tak-
ing care that the key is in the vehicle.If the warning light is still lit when the key
is in the vehicle, the key battery is dis-
charged. Check that the indicator light on
the key comes on by pushing the lock
button on the key. When the indicator light
does not come on, change the key battery
so that smart key system works properly.
(B) A warning buzzer sounds once from
the instrument cluster, accompanied
by three warning sounds from the
vehicle when the driver gets out of
the vehicle and closes the door
This indicates that the driver is attempting
to leave the vehicle carrying the key with
ignition switch not set at OFF although the
transmission selector lever has been set
in the “P” position. The “KEY IS NOT
DETECTED” message will also appears on
the multi−information display and the mas-
ter warning light will come on.
Get out of the vehicle only after turning
off the engine by pressing the “ENGINE
START STOP” switch and checking that
the ignition switch indicator light has gone
off. If the driver returns to the vehicle
without carrying the key and begins driv-
ing, a warning buzzer will sound once
more.
Driving and parking using
smart key system

’07Camry_U (L/O 0608)
321
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
(C) A warning buzzer sounds from the
vehicle for two seconds after locking
the door with the door handle switch
This indicates that the driver is attempting
to lock the doors while carrying the key,
neglecting to follow the instructions for
case (B) above.
Lock the doors only after turning off the
engine by pressing the “ENGINE START
STOP” switch and checking that the igni-
tion switch indicator light has gone off.
A warning buzzer that sounds even though
the engine has been turned off indicates
that driver is attempting to lock the ve-
hicle with the keys still in the vehicle.
Leave the vehicle only after making sure
that you are carrying the key.(D) A warning buzzer sounds continu-
ously from the instrument cluster
when opening the driver ’s door
This indicates that the transmission selec-
tor lever is in a position other than “P”
and that the ignition switch is not set at
OFF. The “SHIFT TO P RANGE” message
will also appears on the multi−information
display.
Get out of the vehicle only after setting
the transmission selector lever in the “P”
position, turning off the engine by pressing
the “ENGINE START STOP” switch and
checking that the ignition switch indicator
light has gone off.(E) A warning buzzer sounds continu-
ously from the instrument cluster
and from the vehicle when closing
the door after getting out of the ve-
hicle
This indicates that the driver is attempting
to leave the vehicle carrying the key, ne-
glecting to follow the instructions for case
(D) above. The messages, “SHIFT TO P
RANGE” and “KEY IS NOT DETECTED”,
will also appear alternately on the multi−
information display and the master warn-
ing light will come on.
Get out of the vehicle only after setting
the transmission selector lever in the “P”
position, turning off the engine by pressing
the “ENGINE START STOP” switch and
checking that the ignition switch indicator
light has gone off.
