2007 TOYOTA CAMRY display

’07Camry_U (L/O 0608)
202
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
RPT (Repeat)
Compact disc player
There are two repeat features—you can
either replay a disc track or a whole com-
pact disc.
Repeating a track:
Quickly push and release “RPT” (preset
button 2) while the track is playing.
“
” will appear on the display. When
the track ends, it will automatically replay.
To turn off the repeat feature, push this
button again.
Repeating a disc:
Push and hold “RPT” (preset button 2)
until you hear a beep. “
” will ap-
pear on the display. The player will repeat
all the tracks on the disc you are listening
to. When the disc ends, the player will
automatically go back to the first track on
the disc and replay. To turn off the repeat
feature, push this button again.MP3/WMA player
There are two repeat features—you can
repeat a signal file or an entire folder.
Repeating a file:
Quickly push and release “RPT” (preset
button 2) while the file is playing.
“
” will appear on the display. When
the file ends, it will repeat automatically.
This process will be continued until you
push the button again to turn off the re-
peat feature.
Repeating a folder:
Push and hold “RPT” (preset button 2)
until you hear a beep. “
” will ap-
pear on the display. The player will repeat
all of the files in the folder. When the last
file in the folder ends, the folder will re-
peat from the beginning. To turn off the
repeat feature, push this button again.SCAN
Radio
You can either scan all the frequencies on
a band or scan only the preset stations
for that band.
To scan the preset stations:
Push and hold the “SCAN” button until
you hear a beep. The radio will tune in
the next preset station up the band, stay
there for 5 seconds, and then move to the
next preset station. To stop scanning,
push this button again.
To scan all the frequencies:
Quickly push and release the “SCAN” but-
ton. The radio will find the next station up
the station band, stay there for 5 seconds,
and then scan again to the next station.
To stop scanning, push this button again.
XM satellite radio
∗—
You can either scan the currently selected
channel category or scan only the preset
channels for that band.

’07Camry_U (L/O 0608)
203
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
To scan the preset channels:
Push and hold the “SCAN” button until
you hear a beep. “SCAN” appears on the
display. The radio will tune in the next
preset channel up the band, stay there for
5 seconds, and then move to the next
preset channel. To stop scanning, push
this button again.
To scan the currently selected channel
category:
Quickly push and release the “SCAN” but-
ton. “SCAN” appears on the display. The
radio will find the next channel in the
same channel category up the band, stay
there for 5 seconds, and then scan again.
To stop scanning, push this button again.
∗: Use of satellite radio requires XM tuner
and service. Contact your Toyota deal-
er for details.Compact disc player
There are two scan features—you can ei-
ther scan the tracks on a specific disc or
scan the first tracks of all the discs in the
magazine.
Scanning the tracks on a disc:
Quickly push and release the “SCAN” but-
ton. “SCAN” will appear on the display
and the player will scan all the tracks on
the disc you are listening to. To stop
scanning, push this button again. If the
player scanned all the tracks on the disc,
it will stop scanning.
Scanning the first tracks of all the discs
in the magazine:
Push the “SCAN” button until you hear a
beep. “SCAN” will appear on the dis-
play and the player will scan the first
track on the next disc. To stop scanning,
push this button again. If the player has
scanned all the discs, it will stop scan-
ning.MP3/WMA player
There are two scan features—you can ei-
ther scan the files in a folder on a specif-
ic disc or scan the first file of all the
folder.
Scanning the files on a folder:
Quickly push and release “SCAN”. “SCAN”
will appear on the display and the player
will scan all the files in the folder you are
listening to. To select a file, push the
“SCAN” again. After all the tracks on the
disc have been scanned in one pass, nor-
mal play resumes.
Scanning the first file of all the folders:
Push “SCAN” until you hear a beep.
“” will appear on the display and
the player will scan the first file of the
next folder. To select a folder, push the
“SCAN” again. After all the folders have
been scanned in one pass, normal play
resumes.

’07Camry_U (L/O 0608)
204
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
SEEK·TRACK (Seeking/Tracking up/
down)
Radio
In the seek mode, the radio finds and
plays the next station up or down the
station band.
To seek the next station, quickly push and
release “” or “” side of the
“SEEK·TRACK” button. Do this again to
find the station after that.
XM satellite radio
∗—
To select the next channel within the cur-
rent channel category, push the “” or
“” side of the “SEEK·TRACK” button.
Repeat until a desired channel is found.
∗: Use of satellite radio requires XM tuner
and service. Contact your Toyota deal-
er for details.Compact disc player
Use this button to skip up or down to a
different track.
Push “” or “” side of the
“SEEK·TRACK” button until the number of
the track you want to listen to appears on
the display. If you want to return to the
beginning of the current track, quickly
pus h the “” side of the button one time.
MP3/WMA player
Use this button to file up or down to a
different file.
Push “” or “” side of the
“SEEK·TRACK” several times until the file
you want to listen to appears on the dis-
play. If you want to return to the begin-
ning of the current file, push the “” side

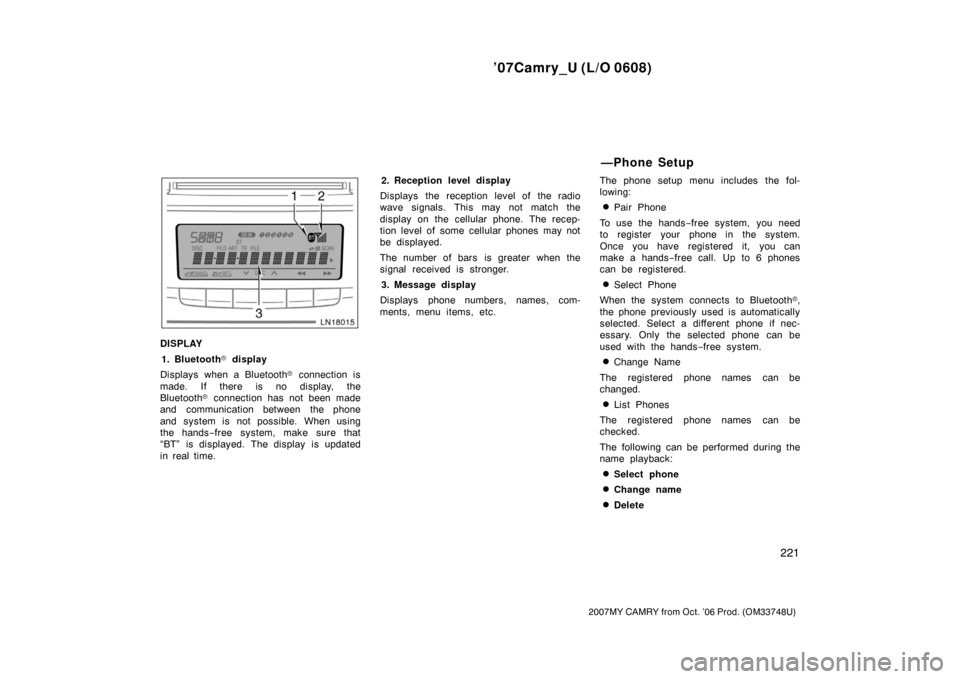

of the button one time.ST (Stereo reception) display
Your radio automatically changes to stereo
reception when a stereo broadcast is re-
ceived. “ST” appears on the display. If the
signal becomes weak, the radio reduces
the amount of channel separation to prev-
ent the weak signal from creating noise.
If the signal becomes extremely weak, the
radio switches from stereo to mono recep-
tion.
TEXT
XM satellite radio
∗
1—
When you push the “TEXT” button, the
display changes as follows:
CH NAME → TITLE (SONG/PROGRAM
TITLE) → NAME (ARTIST NAME/FEA-
TURE) → CH NUMBER → CH NAME
Up to 10 alphanumeric characters can be
displayed. (Some information will not be
fully displayed.)
The message display will be canceled if
any button that affects the display is
pushed.
If there is no song/program title or artist
name/feature associated with the channel
at that time, “−−−−−” will appear on the
display.

’07Camry_U (L/O 0608)
205
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
This XM tuner supports “Audio Services”
(Music and Talk) of only XM satellite radio
and “Text Information”
∗
2 linked to the re-
spective audio services.
∗
1: Use of satellite radio requires XM tuner
and service. Contact your Toyota deal-
er for details.
∗
2: Text Information includes, Channel
Name, (Artist) Name, (Song) Title and
Category Name.
Compact disc player
This button is used to change the display
for the compact disc that contains text
data.
To change the display, quickly push and
release the “TEXT” button while the com-
pact disc is playing. The display changes
in the order from the elapsed time to disc
title to track title, then back to the
elapsed time.
If this button is pushed while a compact
disc that does not contain text data is
playing, “NO TITLE” will appear on the
display.
If the entire disc or track title does not
appear on the display, push and hold the
button until you hear a beep. The rest of
the title will appear.MP3/WMA player
This button is used to change the display
for the MP3/WMA file that contains text
data.
To change the display, quickly push and
release the “TEXT” button while the
MP3/WMA file is playing. The display
changes in the order from the elapsed
time to folder name to file name to album
title to track title to artist name, then back
to the elapsed time.
If this button is pushed while an
MP3/WMA file that does not contain text
data is playing, “NO TITLE” will appear on
the display.
If the entire text data is not displayed,
push and hold it until you hear a beep.
The rest of the text data will appear.TUNE·FILE (Tuning and File up/down)
Radio
Turn the “TUNE·FILE” knob clockwise to
step up the frequency. Turn the knob
counterclockwise to step down the fre-
quency.
XM satellite radio∗—
Turn the “TUNE·FILE” knob clockwise to
step up the channel. Turn the knob coun-
terclockwise to step down the channel.
∗: Use of satellite radio requires XM tuner
and service. Contact your Toyota deal-
er for details.
MP3/WMA player
Turn the “TUNE·FILE” knob clockwise to
file up. Turn the knob counterclockwise to
file down.

’07Camry_U (L/O 0608)
207
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
MP3/WMA player
This switch has the following features—
To select a desired file:
Quickly push and release the “” or “”
side of the switch until the file you want
to listen to is set. If you want to return
to the beginning of the current file, push
the “” side of the switch once, quickly.
Without compact disc changer—
To select a desired folder:
Push and hold the “” or “” side of the
switch until you hear a beep. Repeat this
until the folder you want to listen to is
set.
With compact disc changer—
To select a desired disc:
Push and hold the “” or “” side of the
switch until the disc you want to listen to
is set.3. “MODE” switch
Push the “MODE” switch to select an au-
dio mode. Each push changes the mode
sequentially if the desired mode is ready
to use.
To turn the audio system on, push the
“MODE” switch.
To turn the audio system off, push and
hold the “MODE” switch until the system
turns off.
An AUX adapter is installed inside the
auxiliary box.
By inserting a mini plug into the AUX
adapter, you can listen to music from a
portable audio device through the vehicle’s
speaker system.
To use the AUX adapter, switch to the
AUX mode (external device mode) by
pressing the “DISC·AUX” button. When the
AUX adapter is in use, “AUX” will appear
on the display. To adjust the volume, turn
the “POWER·VOLUME” knob.
When using a portable audio device con-
nected to the power outlet, noise may
occur during playback. If this happens,
use the power source of the portable au-
dio device.
AUX adapter

’07Camry_U (L/O 0608)
213
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
The MP3/WMA player does not play
back MP3/WMA files from discs record-
er using packet write data transfer
(UDF format). Discs should be re-
corded using “pre−mastering” software
rather than packet−write software.
M3u playlists are not compatible with
the audio player.
MP3i (MP3 interactive) and MP3PRO
formats are not compatible with the au-
dio player.
The MP3 player is compatible with
VBR (Variable Bit Rate).
When playing back files recorded as
VBR (Variable Bit Rate) files, the play
time will not be correctly displayed if
fast forward or reverse operations are
used.
It is not possible to check folders that
do not include MP3/WMA files.
MP3/WMA files in folders up to 8 lev-
els deep can be played. However, the
start of playback may be delayed when
using discs containing numerous levels
of folders. For this reason, we recom-
mend creating discs with no more than
two levels of folders.
It is possible to play up to 192 folders
or 255 files on one disc.

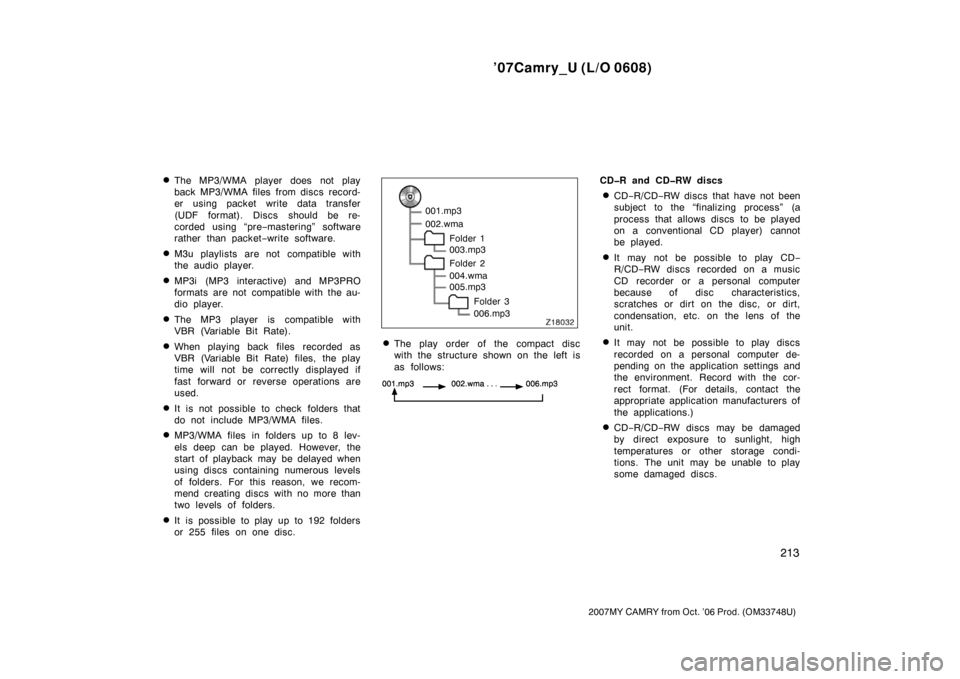

001.mp3
002.wma
Folder 1
003.mp3
Folder 2
004.wma
005.mp3
Folder 3
006.mp3
The play order of the compact disc
with the structure shown on the left is
as follows:
CDR and CDRW discs
CD−R/CD−RW discs that have not been
subject to the “finalizing process” (a
process that allows discs to be played
on a conventional CD player) cannot
be played.
It may not be possible to play CD−
R/CD−RW discs recorded on a music
CD recorder or a personal computer
because of disc characteristics,
scratches or dirt on the disc, or dirt,
condensation, etc. on the lens of the
unit.
It may not be possible to play discs
recorded on a personal computer de-
pending on the application settings and
the environment. Record with the cor-
rect format. (For details, contact the
appropriate application manufacturers of
the applications.)
CD−R/CD−RW discs may be damaged
by direct exposure to sunlight, high
temperatures or other storage condi-
tions. The unit may be unable to play
some damaged discs.

’07Camry_U (L/O 0608)
220
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)

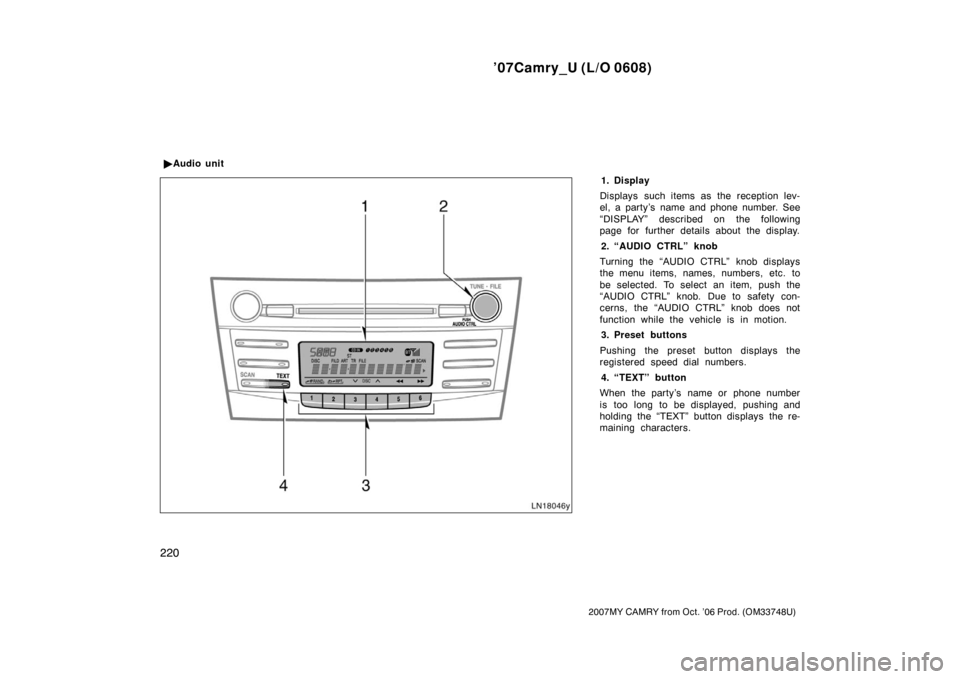

1. Display
Displays such items as the reception lev-
el, a party’s name and phone number. See
“DISPLAY” described on the following
page for further details about the display.
2. “AUDIO CTRL” knob
Turning the “AUDIO CTRL” knob displays
the menu items, names, numbers, etc. to
be selected. To select an item, push the
“AUDIO CTRL” knob. Due to safety con-
cerns, the “AUDIO CTRL” knob does not
function while the vehicle is in motion.
3. Preset buttons
Pushing the preset button displays the
registered speed dial numbers.
4. “TEXT” button
When the party’s name or phone number
is too long to be displayed, pushing and
holding the “TEXT” button displays the re-
maining characters. Audio unit

’07Camry_U (L/O 0608)
221
2007MY CAMRY from Oct. ’06 Prod. (OM33748U)
DISPLAY
1. Bluetooth display
Displays when a Bluetooth connection is
made. If there is no display, the
Bluetooth connection has not been made
and communication between the phone
and system is not possible. When using
the hands−free system, make sure that
“BT” is displayed. The display is updated
in real time.2. Reception level display
Displays the reception level of the radio
wave signals. This may not match the
display on the cellular phone. The recep-
tion level of some cellular phones may not
be displayed.
The number of bars is greater when the
signal received is stronger.
3. Message display
Displays phone numbers, names, com-
ments, menu items, etc.The phone setup menu includes the fol-
lowing:
Pair Phone
To use the hands−free system, you need
to register your phone in the system.
Once you have registered it, you can
make a hands−free call. Up to 6 phones
can be registered.
Select Phone
When the system connects to Bluetooth,
the phone previously used is automatically
selected. Select a different phone if nec-
essary. Only the selected phone can be
used with the hands−free system.
Change Name
The registered phone names can be
changed.
List Phones
The registered phone names can be
checked.
The following can be performed during the
name playback:
Select phone
Change name
Delete
—Phone Setup
