2007 TOYOTA AVALON Owners Manual

241
4. Pull the filter out of the filter outlet.CLEANING METHOD:
If the filter is dirty, clean by blowing
compressed air through the filter from
the downward side.
Hold the air gun 5 cm (2 in.) from the
filter and blow for approximately 2 minutes
at 500 kPa (5.0 kgf/cm
2 or bar, 72 psi).
If it is not available, have the filter
cleaned by your Toyota dealer.
NOTICE
When cleaning the filter, do not clean
the filter with water.
REPLACEMENT METHOD:
When inserting the filter in the filter
outlet, keep the “ ↑ UP” mark pointing
up.
INFORMATION
The air filter should be installed prop-
erly in position. The use of air condi-
tioning with the air filter removed
may cause deteriorated dustproof per-
formance and then affect air condi-
tioning performance.

242

243
OPERATION OF INSTRUMENTS AND
CONTROLS
Other equipment
Center display244
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
Clock 247
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Compass 247
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Cigarette lighter and ashtrays 252
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power outlets 253
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Garage door opener 254
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
Glove box 257
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Auxiliary boxes 258
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Rear console box 259
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Cup holders 260
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Rear electric sunshade 261
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Storage box 262
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Grocery bag hooks 262
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Cargo net 263
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Floor mat 263
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
SECTION 1 10

244

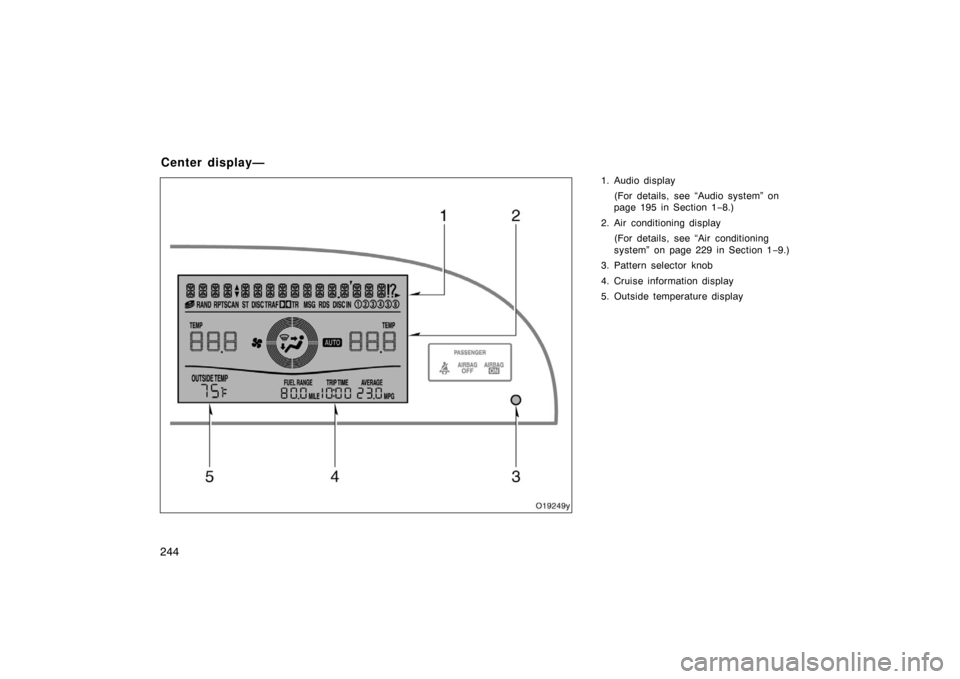

1. Audio display(For details, see “Audio system” on
page 195 in Section 1 −8.)
2. Air conditioning display (For details, see “Air conditioning
system” on page 229 in Section 1 −9.)
3. Pattern selector knob
4. Cruise information display
5. Outside temperature display
Center display—

245
Operate the center display with the
ignition switch on.
When the ignition switch is set at ON, the
last previously used mode displayed just
before the ignition switch is turned off will
appear.
If the electrical power source has been
disconnected from the center display, the
display will automatically be set to the
initial mode.
When the instrument panel lights are
turned on, the brightness of the display
may be reduced.Pattern selector knob
This knob is used to select the pattern
of the display.

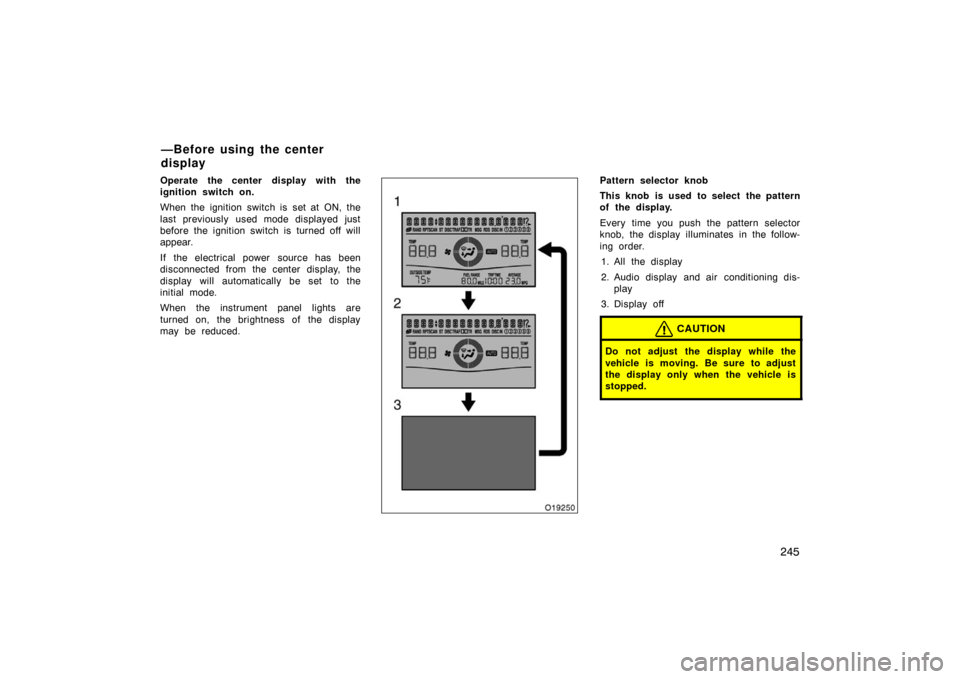

Every time you push the pattern selector
knob, the display illuminates in the follow-
ing order.1. All the display
2. Audio display and air conditioning dis- play
3. Display off
CAUTION
Do not adjust the display while the
vehicle is moving. Be sure to adjust
the display only when the vehicle is
stopped.
—Before using the center
display

246
The outside temperature value is updated
every 1 second.
The displayed temperature ranges from
−30 C ( −22 F) up to 50 C (122 F).
If an abnormality exists in the connection
of the outside air temperature sensor,
“ −−”, “F” or “E” will appear on the display.
If “ −−”, “F” or “E” appears on the display,
contact your Toyota dealer.
There may be a case that “−−”, “F” or “E”
appears momentarily when the ignition
switch is quickly set to ON. It is normal
if it goes out soon.1. Driving range (“FUEL RANGE”)
The distance the vehicle can travel with
the remaining fuel is calculated and
displayed based on the quantity of re-
maining fuel and past fuel consumption.
The displayed value is updated every 10
seconds.
Every time you refuel the vehicle, the
driving range calculation is automatically
reset. The actual driving range varies with driv-
ing habits and road conditions. If fuel con-
sumption is good, the driving range will be
longer than indicated. If fuel consumption
is poor, the driving range will be shorter
than indicated.
2. Elapsed time (“TRIP TIME”)
The elapsed time after the engine starts
is displayed.
When the engine is started, driving time
is counted from 0:00. Up to 99:59 (99
hours, 59 minutes) can be displayed.
When the driving time exceeds 99:59, the
counter returns to 0:00.
The calculation is reset when the ignition
switch is turned off. 3. Average fuel consumption after re- fueling
(“AVERAGE”)
Average fuel consumption after refuel-
ing is calculated and displayed based
on total driving distance and total fuel
consumption with the engine running.
The displayed value is updated every 10
seconds.
Every time you refuel the vehicle, the av-
erage fuel consumption after refueling cal-
culation is automatically reset.
—Outside temperature display —Cruise information display

247

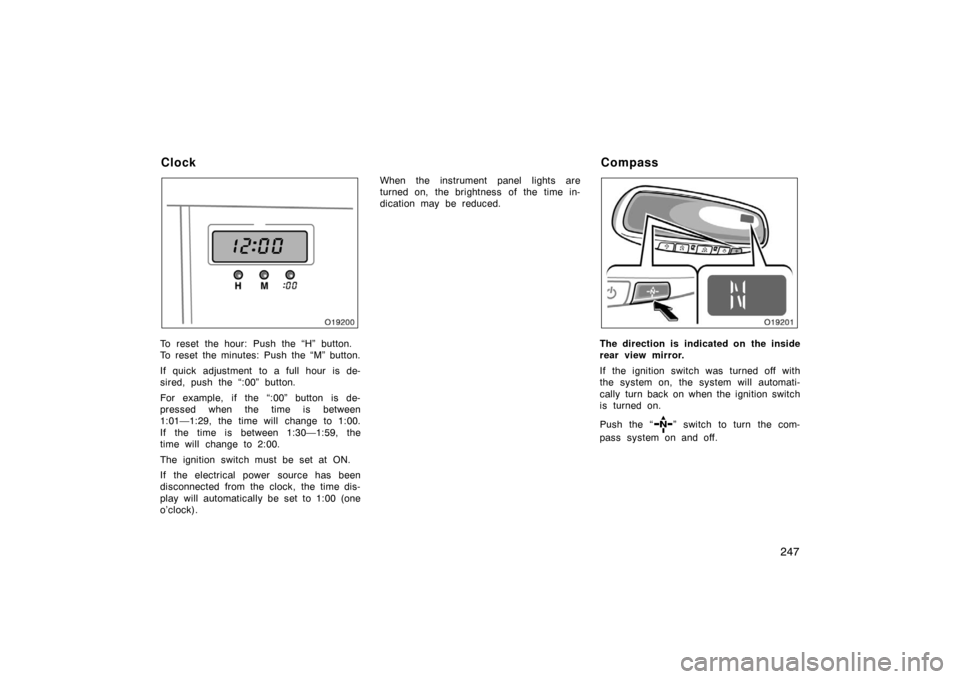

To reset the hour: Push the “H” button.
To reset the minutes: Push the “M” button.
If quick adjustment to a full hour is de-
sired, push the “:00” button.
For example, if the “:00” button is de-
pressed when the time is between
1:01—1:29, the time will change to 1:00.
If the time is between 1:30—1:59, the
time will change to 2:00.
The ignition switch must be set at ON.
If the electrical power source has been
disconnected from the clock, the time dis-
play will automatically be set to 1:00 (one
o’clock).When the instrument panel lights are
turned on, the brightness of the time in-
dication may be reduced.The direction is indicated on the inside
rear view mirror.
If the ignition switch was turned off with
the system on, the system will automati-
cally turn back on when the ignition switch
is turned on.
Push the “
” switch to turn the com-
pass system on and off.
Clock Compass

248
The compass indicates the direction
that the vehicle is heading. In the
above case, it shows that the vehicle is
heading north.Displays
Directions
N
NE E
SE
S
SW W
NWNorth
Northeast East
Southeast
South
Southwest West
Northwest
The compass may not show the correct
direction in the following conditions:
The vehicle is stopped immediately af-
ter turning.
The compass does not adjust while the
vehicle is stopped.
The ignition switch is turned off imme-
diately after turning.
The vehicle is on an inclined surface.
The vehicle is in a place where the
earth’s magnetic field is subject to in-
terference by artificial magnetic fields
(underground parking, under a steel
tower, between buildings, roof parking,
near a crossing, near a large vehicle,
etc.).
The vehicle is magnetized. (There is a
magnet or a metal object on or near
the inside rear view mirror.)
The battery has been disconnected.
If your vehicle is out of the set zone,
refer to “CALIBRATING THE COMPASS”
below to set the zone number.
If the deviation is small, the compass
works to calibrate the direction automati-
cally while the vehicle is in motion.
For additional precision or for complete
calibrating, see “CALIBRATING THE
COMPASS” below.
The compass sensor is in the inside
rear view mirror.
NOTICE
Do not put magnets or a metal object
on or near the inside rear view mirror
of the vehicle. Doing this may cause
malfunction of the compass sensor.
