2007 TOYOTA AVALON Owners Manual

225
CARING FOR YOUR COMPACT DISC
PLAYER AND DISCS
Your compact disc player is intended
for use with 12 cm (4.7 in.) discs only.
Extremely high temperatures can keep
your compact disc player from working.
On hot days, use the air conditioning
to cool the vehicle interior before you
listen to a disc.
Bumpy roads or other vibrations may
make your compact disc player skip.
If moisture gets into your compact disc
player, you may not hear any sound
even though your compact disc player
appears to be working. Remove the
disc from the player and wait until it
dries.

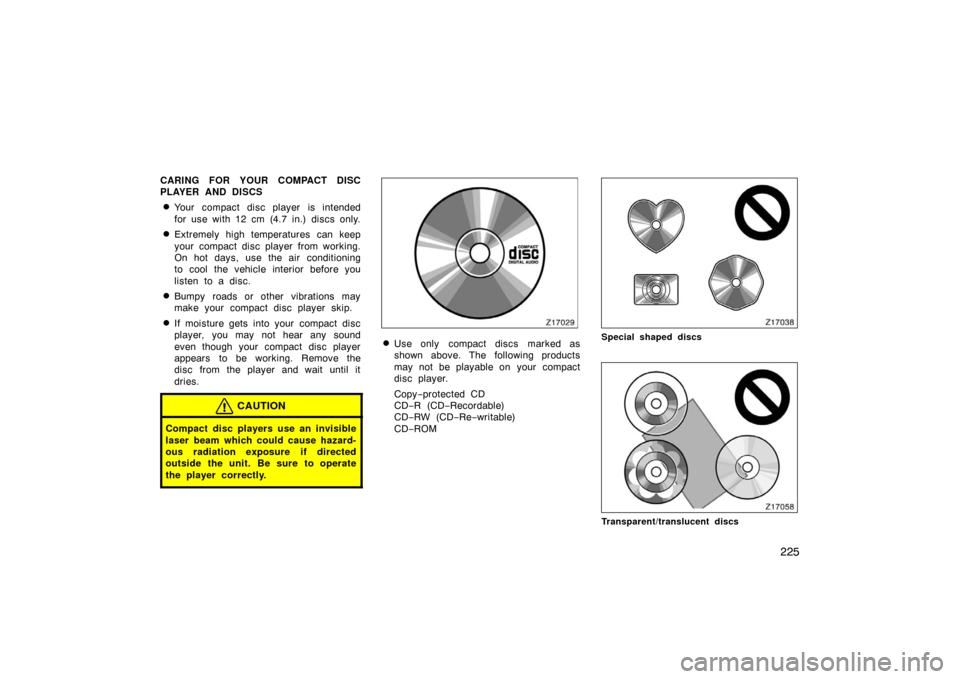

CAUTION
Compact disc players use an invisible
laser beam which could cause hazard-
ous radiation exposure if directed
outside the unit. Be sure to operate
the player correctly.
Use only compact discs marked as
shown above. The following products
may not be playable on your compact
disc player.
Copy−protected CD
CD− R (CD −Recordable)
CD− RW (CD −Re −writable)
CD− ROMSpecial shaped discs
Transparent/tr anslucent discs

226
Low quality discs
Labeled discs
NOTICE
Do not use special shaped, trans-
parent/translucent, low quality or la-
beled discs such as those shown in
the illustrations. The use of such
discs may damage the player or
changer, or it may be impossible to
eject the disc.
 This system is not designed for use
of Dual Disc. Do not use Dual Disc
because it may cause damage to
the player or changer.
Correct Wrong
Handle compact discs carefully, espe-
cially when you are inserting them.
Hold them on the edge and do not
bend them. Avoid getting fingerprints
on them, particularly on the shiny side.
Dirt, scratches, warping, pin holes, or
other disc damage could cause the
player to skip or to repeat a section of
a track. (To see a pin hole, hold the
disc up to the light.)
Remove discs from the compact disc
player when you are not listening to
them. Store them in their plastic cases
away from moisture, heat, and direct
sunlight.

227
To clean a compact disc: Wipe it with a
soft, lint−free cloth that has been damp-
ened with water. Wipe in a straight line
from the center to the edge of the disc
(not in circles). Dry it with another soft,
lint −free cloth. Do not use a conventional
record cleaner or anti −static device.

228

229
OPERATION OF INSTRUMENTS AND
CONTROLS
Air conditioning system
Controls230
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . .
Air flow selector settings 234
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
Operating tips 234
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Climate remote controls 237
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
Instrument panel and rear vents 238
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Air conditioning filter 239
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
SECTION 1 9

230
1. Air conditioning display (withoutnavigation system)
2. Air conditioning display (For the navigation system, see the separate
“Navigation System Owner ’s Manual.”)
3. Windshield air flow button
4. Temperature selector (“TEMP”) (with “DUAL” button indicator
on—individual setting on driver side
only)
(with “DUAL” button indicator
off—simultaneous setting on driver,
front passenger)
5. “AUTO” button
6. Temperature selector (“PASSENGER TEMP”)
(individual setting on front passenger
side only)
7. “OFF” button
8. “A/C” button
9. Air intake selector
10. “MODE” button (air flow selector)
11. Fan speed selector
12. “DUAL” button (temperature setting mode change)
Controls

231
“AUTO” button
For automatic operation of the air condi-
tioning, press the “AUTO” button. “AUTO”
will appear on the display to show that
the automatic operation mode has been
selected.
In the automatic operation mode, the air
conditioning selects the most suitable fan
speed, air flow, air intake and on−off of
the air conditioning according to the tem-
perature.
When you press the “AUTO” button with
the air intake mode at FRESH, internal
circulation may be applied for maximum
cooling.
You may use manual controls if you want
to select your own settings.
Fan speed selector
Push the “ ” (increase) or “ ” (decrease)
side of the button to adjust the fan speed.
In automatic operation, you do not have
to adjust the fan speed unless you desire
another fan speed mode. “DUAL” button
Push the button to change the mode of
the temperature setting.
With the indicator on—
Individual temper-
ature setting for driver and front passen-
ger
With the indicator off— Simultaneous
temperature setting for driver and front
passenger
Temperature selectors
To increase the temperature, press the
“  ” side. To decrease it, press the “ ”
side.
“LO” appears when you adjust to maxi-
mum cooling, and “HI” appears when you
adjust to maximum warming.
—“TEMP” button
With the “DUAL” button indicator on—This
button changes the temperature on the
driver side only.
With the “DUAL” button indicator off—This
button changes the temperature on the
driver side and front passenger side si-
multaneously.
This function will be cancelled when the
“PASSENGER TEMP” button is pushed. —“PASSENGER TEMP” button
This button changes the temperature on
the front passenger side only.
“OFF” button
Push the “OFF” button to turn off the air
conditioning system.

232
“MODE” button (air flow selector)
Push the “MODE” button to select the
vents used for air flow.
In automatic operation, you do not have
to select the air flow unless you desire
another air flow mode.1. Panel—
Air flows mainly from the
instrument panel vents and the rear
vents.
2. Bilevel— Air flows from the floor
vents, the instrument panel vents and
the rear vents.
When you set the temperature selector
setting at about the middle in automatic
operation, warm air flows out of the
floor vents and relatively low −tempera-
ture air flows out of the center and
side vents.
3. Floor— Air flows mainly from the floor
vents.
4. Floor/Windshield— Air flows mainly
from the floor vents and windshield
vents.
This position allows the air intake to
select FRESH automatically. This is to
clean up the front view more quickly.
If you want to return the setting to
RECIRCULATE mode, press the air in-
take selector button once again.
For details about air flow selector settings,
see “Air flow selector settings” described
below. Windshield air flow button
When this button is pressed, air flows
mainly from the windshield vents and
turns on the defogging function with the
purpose of clearing the front view.
Pressing this button once again returns
the air flow mode to the last one used.
In this position, the air intake selector
mode changes to FRESH automatically to
clean up the front view quickly. It is not
possible to return to RECIRCULATE in
this position.
For details about air flow selector settings,
see “Air flow selector settings” described
below.
