2007 TOYOTA 4RUNNER Owners Manual

3192007 4Runner from Aug. ’06 Prod. (OM35866U)
2. To use the rear cup holder, push andpull it out.
CY19101
3. To use the tray, pull it out.
CAUTION
Do not place anything else other
than cups or drinkcans in the cup
holder, as such items may be
thrown about in the compartment
and possibly injure people in the
vehicle during sudden braking or in
an accident.
To reduce the chance of injury in
case of an accident or sudden stop
while driving, keep the cup holder
closed when it is not in use.
To reduce the chance of injury in
case of an accident or a sudden
stop, always keep the tray closed
while driving.
NOTICE
To prevent damage to the tray, do not
place any object heavier than 2 kg
(4.40 lb.) on it, and do not leave any
object on the tray for a long time.

3202007 4Runner from Aug. ’06 Prod. (OM35866U)
CY19114
Type A (armrest)
CY19113
Type B (rear tire house)
The cup holders are designed for hold-
ing cups or drinkcans securely.
Type A—To use the holder, pull the arm-
rest out and push the lid.
CAUTION
Do not place anything else other
than cups or drinkcans in the cup
holder, as such items may be
thrown about in the compartment
and possibly injure people in the
vehicle during sudden braking or in
an accident.
Type A—To reduce the chance of
injury in case of an accident or
sudden stop while driving, keep the
cup holder closed when it is not in
use.
CY19015
Front doors
CY19016
Rear doors
Rear cup holders
(vehicles with third seats)Bottle holders

3212007 4Runner from Aug. ’06 Prod. (OM35866U)
The bottle holders are designed to hold
bottles securely.
CAUTION
Do not attempt to use the holder for
any other purpose for which it was
intended. Inappropriately sized or
shaped objects may be thrown about
in the compartment and possibly in-
jure people in the vehicle during a
sudden braking or an accident.
NOTICE
Do not put a cup or open bottle in
the bottle holder because the con-
tents may spill when the door opens
or closes.
CY19044
To secure your luggage, use the tie
down hooks as shown above.
See “—Stowage precautions” on page 351
in Section 2 for precautions when loading
luggage.
CAUTION
To avoid personal injury, keep the tie
down hooks folded in place on the
floor when not in use.
NOTICE
Do not use the seat anchors instead
of the tiedown hooks.
CY19076
These hooks are designed to hang
things like grocery bags.
NOTICE
To prevent damage to the hook, do
not hang any object heavier than 1 kg
(2.20 lb.) in it.
Tiedown hooksGrocery bag hooks

3222007 4Runner from Aug. ’06 Prod. (OM35866U)
CY19045
These hooks are designed to hang the
cargo net.
To hang the cargo net, use the cargo net
hooks and rear tie−down hooks.
Although the cargo net itself is not in-
cluded as an original equipment, these
hooks can be used to hang the cargo net.
NOTICE
To prevent damage to the hook, avoid
hanging things other than a cargo net
on it.
CY19103
USING LUGGAGE COVER
To use the luggage cover: 1. Attach the front hooks of the lug- gage cover to the head restraint.
2. Pull out the rear luggage cover and hook it on the anchors.
CAUTION
Do not place anything on the luggage
cover. Such items may be thrown
about and possibly injure people in
the vehicle during sudden braking or
a collision.
Cargo net hooks Luggage cover

3232007 4Runner from Aug. ’06 Prod. (OM35866U)
CY19067

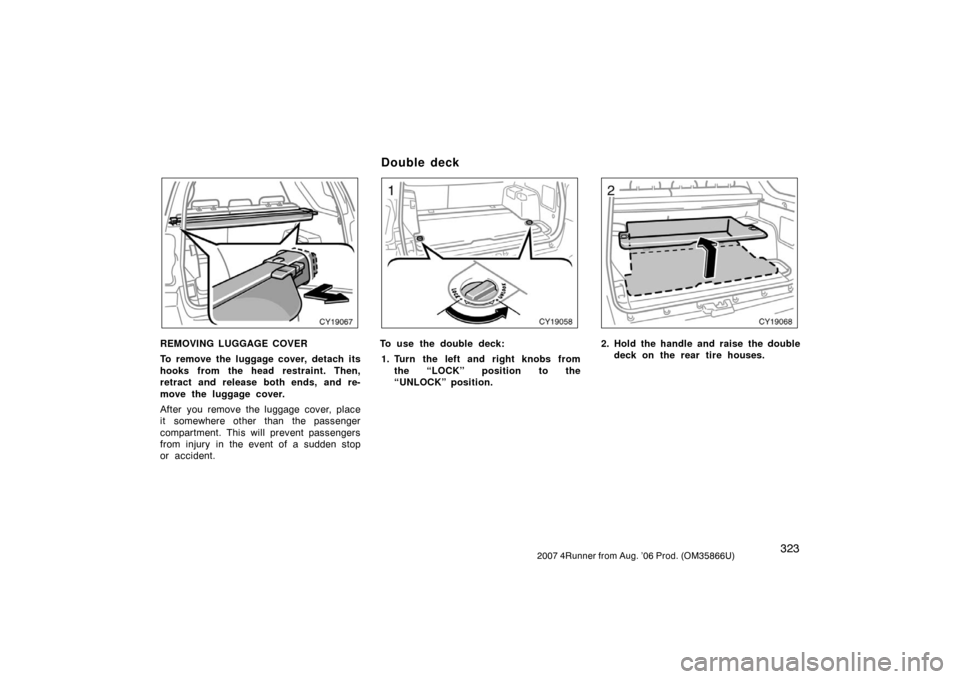

REMOVING LUGGAGE COVER
To remove the luggage cover, detach its
hooks from the head restraint. Then,
retract and release both ends, and re-
move the luggage cover.
After you remove the luggage cover, place
it somewhere other than the passenger
compartment. This will prevent passengers
from injury in the event of a sudden stop
or accident.
CY19058
To use the double deck:1. Turn the left and right knobs from the “LOCK” position to the
“UNLOCK” position.
CY19068
2. Hold the handle and raise the doubledeck on the rear tire houses.
Double deck

3242007 4Runner from Aug. ’06 Prod. (OM35866U)
CY19052

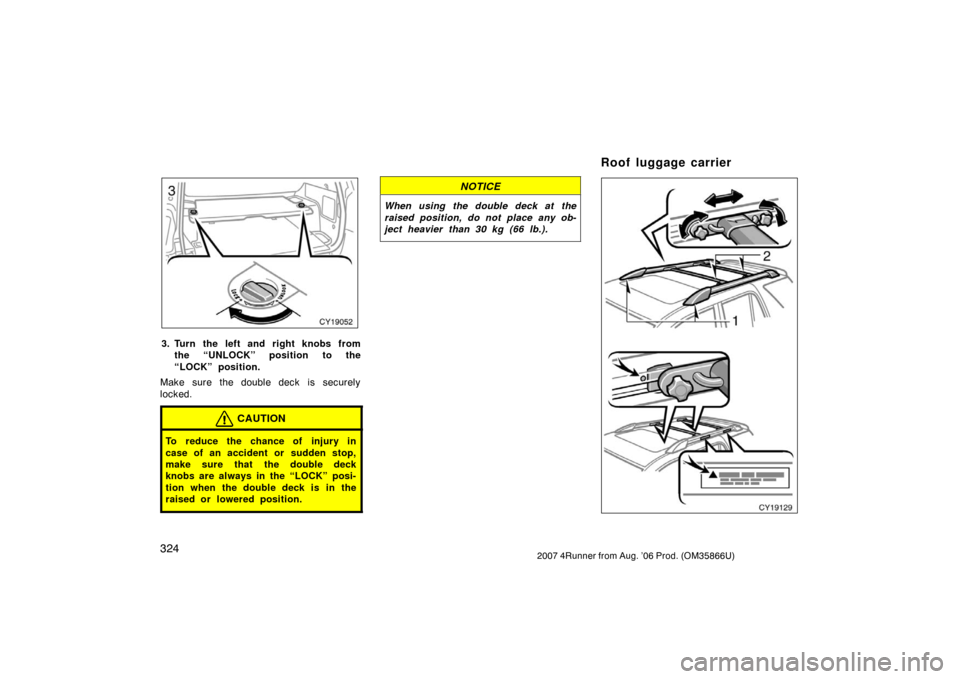

3. Turn the left and right knobs fromthe “UNLOCK” position to the
“LOCK” position.
Make sure the double deck is securely
locked.
CAUTION
To reduce the chance of injury in
case of an accident or sudden stop,
make sure that the double deck
knobs are always in the “LOCK” posi-
tion when the double deck is in the
raised or lowered position.
NOTICE
When using the double deck at the
raised position, do not place any ob-
ject heavier than 30 kg (66 lb.).
CY19129
Roof luggage carrier

3252007 4Runner from Aug. ’06 Prod. (OM35866U)
The roof luggage carrier consists of
roof rails (1) attached to the roof and
sliding cross rails (2).
To adjust the positions of cross rails, do
this.1. Turn the knobs counterclockwise to loosen the cross rails.
2. Slide the cross rails to the desired position for loading the luggages of
various sizes.
3. After adjusting, be sure to tighten the cross rails by turning knobs clockwise.
Follow the manufacturer ’s instructions and
precautions when installing the attach-
ments or their equivalent.
When there is no luggage on the roof
luggage carrier, Toyota recommends that
the front and rear cross rails be secured
in the positions indicated in the illustra-
tion, according to the following procedure.
This may diminish wind noise during driv-
ing.CAUTION
When you load cargo on the roof lug-
gage carrier, observe the following:
Place the cargo so that its weight
is distributed evenly between the
front and rear axles.
If loading long or wide cargo, never
exceed the vehicle overall length or
width. (See “Dimensions and
weights” on page 446 in Section 8
for information on your vehicle
overall length and width.)
Before driving, make sure the cargo
is securely fastened on the roof
luggage carrier.
Loading cargo on the roof luggage
carrier will make the center of the
vehicle gravity higher. Avoid high
speeds, sudden starts, sharp turns,
sudden braking or abrupt maneu-
vers, otherwise it may result in loss
of control or vehicle rollover due to
failure to operate this vehicle cor-
rectly.
If driving for a long distance, on
rough roads, or at high speeds,
stop the vehicle now and then dur-
ing the trip to make sure the cargo
remains in its place.
Do not exceed 54 kg (120 lb.) cargo
weight on the roof luggage carrier.
NOTICE
When loading the luggages, be careful
not to scratch the surface of the
moon roof.

3262007 4Runner from Aug. ’06 Prod. (OM35866U)
CY19047

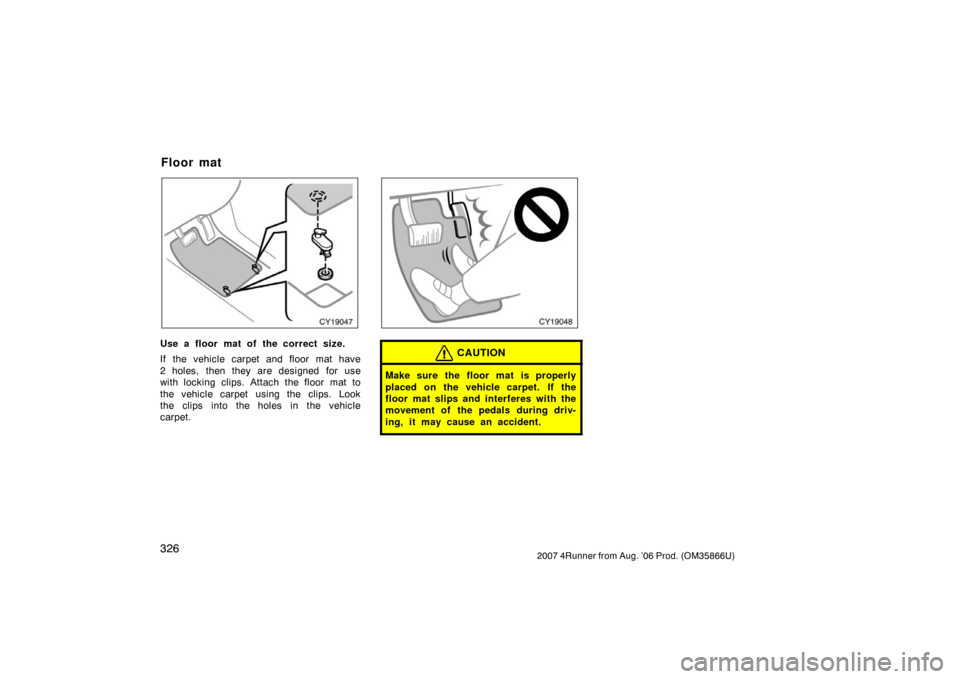

Use a floor mat of the correct size.
If the vehicle carpet and floor mat have
2 holes, then they are designed for use
with locking clips. Attach the floor mat to
the vehicle carpet using the clips. Look
the clips into the holes in the vehicle
carpet.
CY19048
CAUTION
Make sure the floor mat is properly
placed on the vehicle carpet. If the
floor mat slips and interferes with the
movement of the pedals during driv-
ing, it may cause an accident.
Floor mat
