2007 TOYOTA 4RUNNER Owners Manual

2632007 4Runner from Aug. ’06 Prod. (OM35866U)

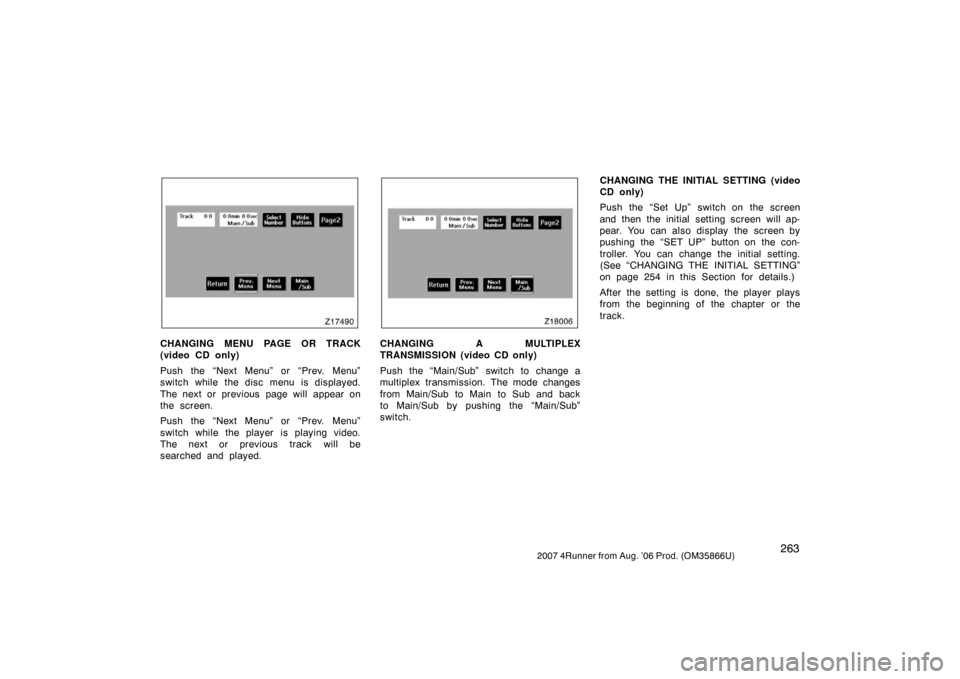

Z17490
CHANGING MENU PAGE OR TRACK
(video CD only)
Push the “Next Menu” or “Prev. Menu”
switch while the disc menu is displayed.
The next or previous page will appear on
the screen.
Push the “Next Menu” or “Prev. Menu”
switch while the player is playing video.
The next or previous track will be
searched and played.
Z18006
CHANGING A MULTIPLEX
TRANSMISSION (video CD only)
Push the “Main/Sub” switch to change a
multiplex transmission. The mode changes
from Main/Sub to Main to Sub and back
to Main/Sub by pushing the “Main/Sub”
switch.CHANGING THE INITIAL SETTING (video
CD only)
Push the “Set Up” switch on the screen
and then the initial setting screen will ap-
pear. You can also display the screen by
pushing the “SET UP” button on the con-
troller. You can change the initial setting.
(See “CHANGING THE INITIAL SETTING”
on page 254 in this Section for details.)
After the setting is done, the player plays
from the beginning of the chapter or the
track.

2642007 4Runner from Aug. ’06 Prod. (OM35866U)

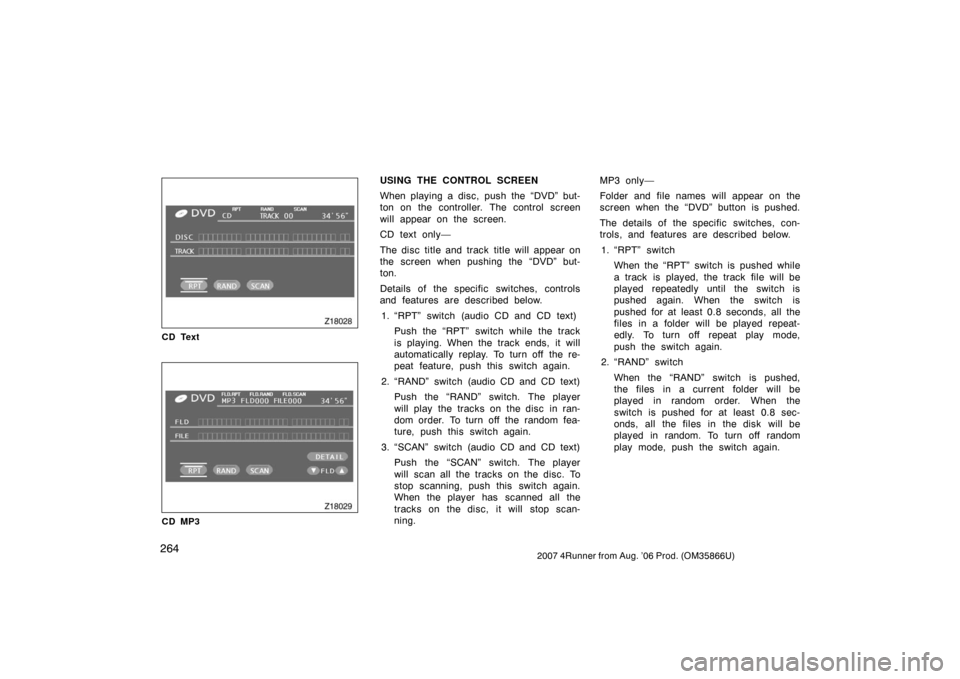

Z18028
CD Text
Z18029
CD MP3
USING THE CONTROL SCREEN
When playing a disc, push the “DVD” but-
ton on the controller. The control screen
will appear on the screen.
CD text only—
The disc title and track title will appear on
the screen when pushing the “DVD” but-
ton.
Details of the specific switches, controls
and features are described below.1. “RPT” switch (audio CD and CD text) Push the “RPT” switch while the track
is playing. When the track ends, it will
automatically replay. To turn off the re-
peat feature, push this switch again.
2. “RAND” switch (audio CD and CD text) Push the “RAND” switch. The player
will play the tracks on the disc in ran-
dom order. To turn off the random fea-
ture, push this switch again.
3. “SCAN” switch (audio CD and CD text) Push the “SCAN” switch. The player
will scan all the tracks on the disc. To
stop scanning, push this switch again.
When the player has scanned all the
tracks on the disc, it will stop scan-
ning. MP3 only—
Folder and file names will appear on the
screen when the “DVD” button is pushed.
The details of the specific switches, con-
trols, and features are described below.
1. “RPT” switch When the “RPT” switch is pushed while
a track is played, the track file will be
played repeatedly until the switch is
pushed again. When the switch is
pushed for at least 0.8 seconds, all the
files in a folder will be played repeat-
edly. To turn off repeat play mode,
push the switch again.
2. “RAND” switch
When the “RAND” switch is pushed,
the files in a current folder will be
played in random order. When the
switch is pushed for at least 0.8 sec-
onds, all the files in the disk will be
played in random. To turn off random
play mode, push the switch again.

2652007 4Runner from Aug. ’06 Prod. (OM35866U)
3. “SCAN” switchWhen the “SCAN” switch is pushed, all
the files in a current folder will be
scanned. Only the first 10 seconds of
each file are played sequentially until
all the files are scanned. When the
switch is pushed for at least 0.8 sec-
onds, the first 10 seconds of each ini-
tial file of all the folders in the disk will
be played sequentially until the entire
initial files are scanned. To stop scan-
ning, push the switch again.
4. “FLD
” switch
When the switch is pushed, the initial
file of the next folder will be played.
5. “
FLD” switch
When the switch is pushed, the initial
file of the previous folder will be
played.
6. “DETAIL” switch
When the switch is pushed while a
track is played, the detailed file infor-
mation of the track will be displayed. You can adjust the color, contrast, tone
and brightness of the screen.
Push the “DISPLAY” button on the control-
ler and the “Display” screen will appear.
The screen may turn purple to deflect the
sunlight. This is not a malfunction.
Z18030
Operate the joystick up and down to se-
lect Brightness, Contrast, Tone, or Color
and left and right to make adjustments.
−
or “Red”+ or
“Green”
BrightnessDarkensBrightens
Contrast
Weakens
the
contrastStrengthen
s the
contrast
ToneWeakens
the toneStrengthen
s the tone
Color
Strengthen
s the red
colorStrengthen
s the green
color
—Screen adjustment

2662007 4Runner from Aug. ’06 Prod. (OM35866U)
After adjusting the screen, push the “ENT”
button or “DISPLAY” button to return to
the previous screen.

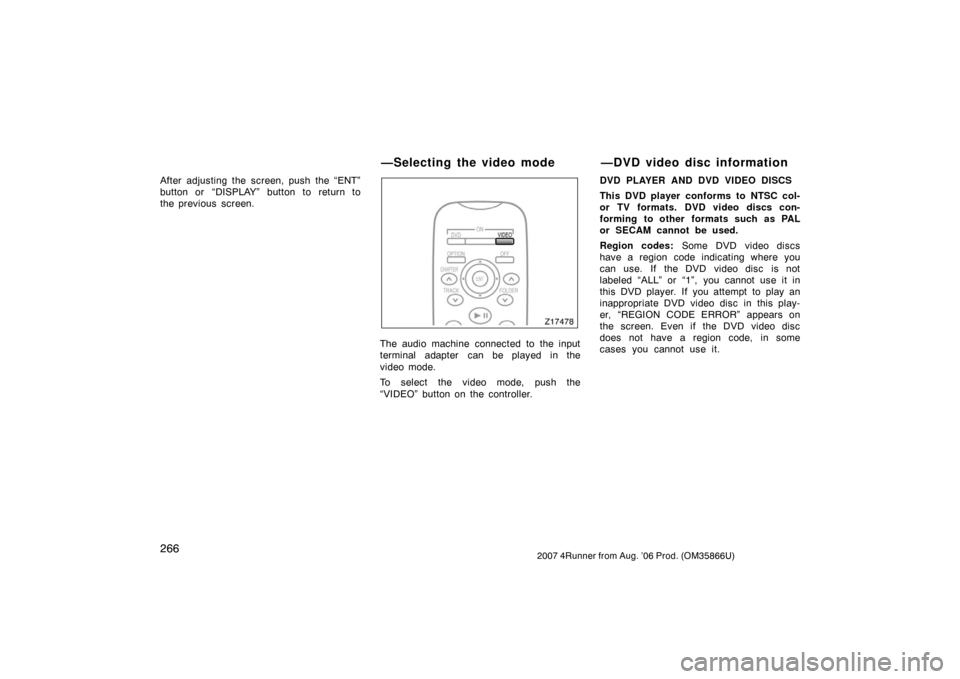

Z17478
The audio machine connected to the input
terminal adapter can be played in the
video mode.
To select the video mode, push the
“VIDEO” button on the controller.DVD PLAYER AND DVD VIDEO DISCS
This DVD player conforms to NTSC col-
or TV formats. DVD video discs con-
forming to other formats such as PAL
or SECAM cannot be used.
Region codes:
Some DVD video discs
have a region code indicating where you
can use. If the DVD video disc is not
labeled “ALL” or “1”, you cannot use it in
this DVD player. If you attempt to play an
inappropriate DVD video disc in this play-
er, “REGION CODE ERROR” appears on
the screen. Even if the DVD video disc
does not have a region code, in some
cases you cannot use it.
—Selecting the video mode —DVD video disc information

2672007 4Runner from Aug. ’06 Prod. (OM35866U)
Marks shown on DVD video discs:
Indicates NTSC format
of color TV.
Indicates the number
of audio tracks.
Indicates the number
of language subtitles.
Indicates the number
of angles.
Indicates the screen
to be selected.
Wide screen: 16:9
Standard: 4:3
Indicates regions in
which this video disc
can be played.
ALL: all countries
Number: region codeDVD VIDEO DISC GLOSSARY
DVD video discs:
Digital Versatile Disc
that holds video. DVD video discs have
adopted “MPEG2”, one of the world stan-
dards of digital compression technologies.
The picture data is compressed by 1/40
on average and stored. Variable rate en-
coded technology in which the volume of
data assigned to the picture is changed
depending on the picture format has also
been adopted. Audio data is stored using
PCM and Dolby digital, which enables
higher quality of sound. Furthermore, mul-
ti −angle and multi −language features will
also help you enjoy the more advanced
technology of DVD video.
Viewer restrictions: This feature limits
what can be viewed in conformity with the
level of restrictions of the country. The
level of restrictions varies depending on
the DVD video disc. Some DVD video
discs cannot be played at all, or violent
scenes are skipped or replaced with other
scenes.
Level 1: DVD video discs for children can
be played.
Level 2—7: DVD video discs for children
and G −rated movies can be played. Level 8: All types of DVD video discs can
be played.
Multiangle feature:
You can enjoy the
same scene at different angles.
Multilanguage feature: You can select
the language of the subtitles and audio.
Region codes: Region codes are provided
on DVD players and DVD discs. If the
DVD video disc does not have the same
region code as the DVD player, you can-
not play the disc on the DVD player. For
region codes, see page 266.
Audio: This DVD player can play liner
PCM, Dolby digital, dts and MPEG audio
format DVD. Other decoded type cannot
be played.
Title and chapter: Video and audio pro-
grams stored on DVD video discs are di-
vided in parts by title and chapter.
Title: The largest unit of the video and
audio programs stored on DVD video
discs. Usually, one piece of a movie, one
album, or one audio program is assigned
as a title.
Chapter: A unit smaller than a title. A title
comprises plural chapters.

2682007 4Runner from Aug. ’06 Prod. (OM35866U)
Manufactured under license from Dolby
Laboratories. “Dolby”, “Pro Logic”, and
the doubleD symbol are trademarks of
Dolby Laboratories. Confidential unpub-
lished works.
19921997 Dolby Laboratories. All
rights reserved.
This product incorporates copyright
protection technology that is protected
by method claims of certain U.S. pat-
ents and other intellectual property
rights owned by Macrovision Corpora-
tion and other rights owners. Use of
this copyright protection technology
must be authorized by Macrovision Cor-
poration, and is intended for home and
other limited viewing uses only unless
otherwise authorized by Macrovision
Corporation. Reverse engineering or
disassembly is prohibited.
“dts” is a trademark of Digital Theater
Systems, Inc. The rear entertainment system plays vid-
eos and sound when an audio
−video
equipment is connected to the A/V input
adapter. For details, refer to the manufac-
turer’s instructions.
CY17030
To use the adapter, open the cover.
The A/V input adapter is composed of 3
input adapters.
Yellow: Image input adapter
Red: Audio input adapter
White: Audio input adapter
NOTICE
Close the cover when the A/V input
adapter is not in use. Inserting a for-
eign object other than the appropriate
plug may cause electrical failure or
short circuit.
—A/V input adapter

2692007 4Runner from Aug. ’06 Prod. (OM35866U)

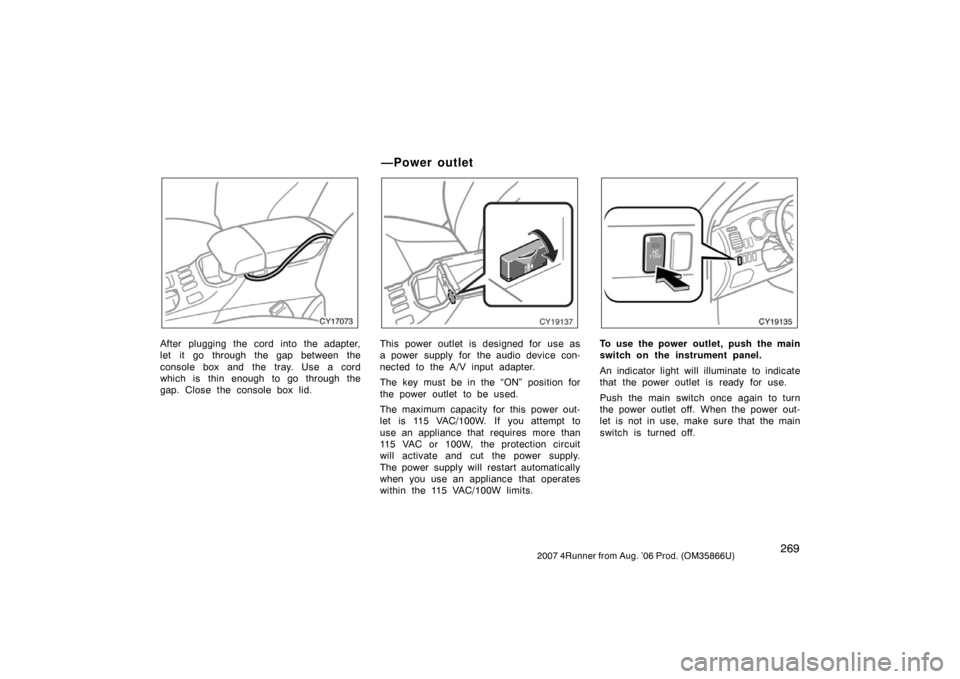

CY17073
After plugging the cord into the adapter,
let it go through the gap between the
console box and the tray. Use a cord
which is thin enough to go through the
gap. Close the console box lid.
CY19137
This power outlet is designed for use as
a power supply for the audio device con-
nected to the A/V input adapter.
The key must be in the “ON” position for
the power outlet to be used.
The maximum capacity for this power out-
let is 115 VAC/100W. If you attempt to
use an appliance that requires more than
115 VAC or 100W, the protection circuit
will activate and cut the power supply.
The power supply will restart automatically
when you use an appliance that operates
within the 115 VAC/100W limits.
CY19135
To use the power outlet, push the main
switch on the instrument panel.
An indicator light will illuminate to indicate
that the power outlet is ready for use.
Push the main switch once again to turn
the power outlet off. When the power out-
let is not in use, make sure that the main
switch is turned off.
—Power outlet

2702007 4Runner from Aug. ’06 Prod. (OM35866U)
NOTICE
To prevent the battery from being
discharged, do not use the power
outlet longer than necessary when
the engine is not running.
 Close the power outlet lid when the
power outlet is not in use. Inserting
a foreign object other than the ap-
propriate plug that fits the outlet
may cause electrical failure or short
circuit.
The power outlet is not designed for
the following electric appliances even if
their power consumption is under 115
VAC/100W. These appliances may not
operate properly.
Appliances with high initial peak watt-
age: cathode− ray tube type televisions,
compressor −driven refrigerators, electric
pumps, electric tools, etc.
Measuring devices which process pre-
cise data: medical equipment, measur-
ing instruments, etc.
Other appliances requiring an extremely
stable power supply: microcomputer −
controlled electric blankets, touch sen-
sor lamps, etc.
Certain electrical appliances may cause
radio noise.NOTICE
To ensure correct audio/video system
operation:
 Be careful not to spill beverages
over the system.
 Do not put anything other than a
compact disc into the slot.
 Do not put anything other than a
DVD video, video CD, dtsCD or au-
dio CD into the DVD player.
 The use of a cellular phone inside
or near the vehicle may cause a
noise from the speakers of the sys-
tem which you are listening to.
However, this does not indicate a
malfunction.
RADIO RECEPTION
Usually, a problem with radio reception
does not mean there is a problem with
your radio—it is just the normal result of
conditions outside the vehicle.
Audio/video system operating
hints
