2007 TOYOTA 4RUNNER Owners Manual

2952007 4Runner from Aug. ’06 Prod. (OM35866U)
Operate the multiinformation display
with the ignition switch on.
When the ignition switch is turned to
“ON”, the last previously used mode dis-
played just before the ignition switch is
turned off will appear.
If the electrical power source has been
disconnected from the multi−information
display, the display will automatically be
set to the initial mode.
CAUTION
Do not adjust the display while the
vehicle is moving. Be sure to adjust
the display only when the vehicle is
stopped.
CY19001
To reset the hour: Push the “H” button.
To reset the minutes: Push the “M” button.
If quick adjustment to a full hour is de-
sired, push the “:00” button.
For example, if the “:00” button is de-
pressed when the time is between
1:01—1:29, the time will change to 1:00.
If the time is between 1:30—1:59, the
time will change to 2:00.
The key must be in the “ACC” or “ON”
position.
If the electrical power source has been
disconnected from the clock, the time dis-
play will automatically be set to 1:00 (one
o’clock).
CY19082
The displayed temperature ranges from
− 30 C ( −22 F) up to 50 C (122 F).
The key must be in the “ON” position.
If an abnormality exists in the connection
of the outside air temperature sensor,
“ −− C” (“ −−F”) will appear on the display.
If “ −−C” (“ −−F”) appears on the display,
contact your Toyota dealer.
There may be a case that “−− C” (“ −−F”)
appears momentarily when the ignition is
quickly turned to “ON”. It is normal if it
goes out soon.
—Before using the
multiinformation display —Clock—Outside temperature display
(air conditioning system
without “DUAL” button)

2962007 4Runner from Aug. ’06 Prod. (OM35866U)
CY19121
Air conditioning system with
“DUAL” button only—
The outside temperature display (air
conditioning system with “DUAL” but-
ton) and cruise information display indi-
cates the following information.
Every time you push the “MODE” but-
ton, the display toggles through this
information.1. Outside temperature
2. Driving range
3. Average fuel consumption
4. Average vehicle speed
5. Display off
The displayed values in the cruise infor-
mation display indicate general driving
conditions. Accuracy varies with driving
habits and road conditions. 1. Outside temperature (“OUTSIDE
F”
or “OUTSIDE C”)
The displayed value is updated every 1
second.
The displayed temperature ranges from
− 30 C ( −22 F) up to 50 C (122 F).
If an abnormality exists in the connection
of the outside air temperature sensor,
“ −− C” (“ −−F”) will appear on the display.
If “ −−C” (“ −−F”) appears on the display,
contact your Toyota dealer.
There may be a case that “−− C” (“ −−F”)
appears momentarily when the ignition is
quickly turned to “ON”. It is normal if it
goes out soon.
—Cruise information display

2972007 4Runner from Aug. ’06 Prod. (OM35866U)
2. Driving range(“RANGE MI” or “RANGE km”)
The distance the vehicle can travel with
the remaining fuel is calculated and
displayed based on the quantity of re-
maining fuel and past fuel consumption.
The driving range display indicates the
approximate distance that you can drive
until the fuel gauge reaches “E”. It is
different from the actual distance traveled.
The displayed value is updated about ev-
ery 10 seconds.
Every time you refuel the vehicle, the cal-
culation is reset.
The actual driving range varies with driv-
ing habits and road conditions. If fuel con-
sumption is good, the driving range will be
longer than indicated. If fuel consumption
is poor, the driving range will be shorter
than indicated.
If the low fuel level warning light comes
on, refuel the vehicle even if the display
indicates that the vehicle can be driven
further. 3. Average fuel consumption
(“AVG. MPG” or “AVG. L/100 km”)
Average fuel consumption is calculated
and displayed based on total driving
distance and total fuel consumption
with the engine running.
The displayed value is updated about ev-
ery 10 seconds.
To reset the calculation, push the
“RESET” button about 1 second.
4. Average vehicle speed (“AVG. MPH” or “AVG. km/h”)
Average vehicle speed is calculated and
displayed based on total driving dis-
tance and total driving time with the
engine running.
The displayed value is updated about ev-
ery 10 seconds.
To reset the calculation, push the
“RESET” button about 1 second.
CY19138
The direction is indicated on the inside
rear view mirror.
If the ignition switch was turned off with
the system on, the system will automati-
cally turn back on when the ignition switch
is turned on.
Push the “
” switch for longer than 3
seconds turn the compass system on and
off.
Compass

2982007 4Runner from Aug. ’06 Prod. (OM35866U)
The compass indicates the direction
that the vehicle is heading. In the
above case, it shows that the vehicle is
heading north.Displays
Directions
N
NE E
SE
S
SW W
NWNorth
Northeast East
Southeast
South
Southwest West
Northwest
The compass may not show the correct
direction in the following conditions:
The vehicle is stopped immediately af-
ter turning.
The compass does not adjust while the
vehicle is stopped.
The ignition switch is turned off imme-
diately after turning.
The vehicle is on an inclined surface.
The vehicle is in a place where the
earth’s magnetic field is subject to in-
terference by artificial magnetic fields
(underground parking, under a steel
tower, between buildings, roof parking,
near a crossing, near a large vehicle,
etc.).
The vehicle is magnetized. (There is a
magnet or a metal object on or near
the inside rear view mirror.)
The battery has been disconnected.
If your vehicle is out of the set zone,
refer to “CALIBRATING THE COMPASS”
below to set the zone number.
If the deviation is small, the compass
works to calibrate the direction automati-
cally while the vehicle is in motion.
For additional precision or for complete
calibrating, see “CALIBRATING THE
COMPASS” below.
CY19139
Compass sensor
The compass sensor is in the inside
rear view mirror.
NOTICE
Do not put magnets or a metal object
on or near the inside rear view mirror
of the vehicle. Doing this may cause
malfunction of the compass sensor.

2992007 4Runner from Aug. ’06 Prod. (OM35866U)
CY19140
CALIBRATING THE COMPASS (deviation
calibration)
The direction display on the compass
deviates from the true direction deter-
mined by the earth’s magnetic field. The
angle of deviation varies according to the
geographic position of the vehicle.
To adjust this deviation, stop the vehicle,
then push and hold the “
” switch until
the zone number appears on the display.
Then push the “
” switch, referring to
the following map to select the number of
the zone where the vehicle is.

3002007 4Runner from Aug. ’06 Prod. (OM35866U)

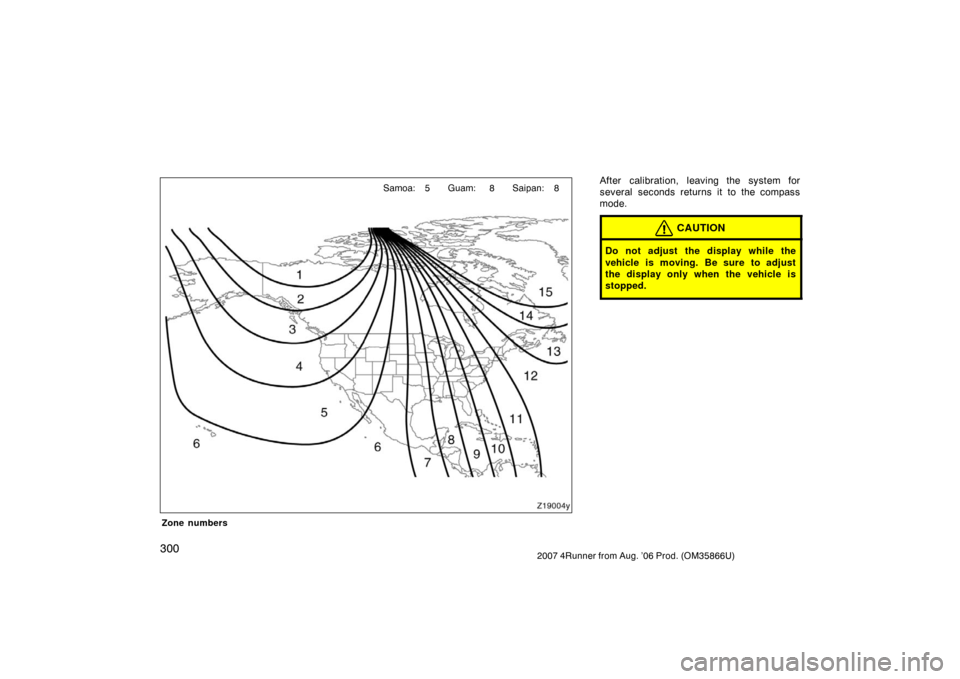

Zone numbers
After calibration, leaving the system for
several seconds returns it to the compass
mode.
CAUTION
Do not adjust the display while the
vehicle is moving. Be sure to adjust
the display only when the vehicle is
stopped.
Z19004y
Samoa: 5 Guam: 8 Saipan: 8

3012007 4Runner from Aug. ’06 Prod. (OM35866U)
CY19141
CALIBRATING THE COMPASS (circling
calibration)
Sometimes the direction display on the
compass may not change after a turn. To
rectify this, stop the vehicle and push and
hold the “
” switch until “C” appears on
the display.
If “C” appears on the display because of
a drastic change in the magnetic field,
perform circling calibration.
CY19033
Drive the vehicle in a circle at 8 km/h (5
mph) or less. If there is not enough space
to drive in a circle, drive around the
block.
After driving 1 to 3 circles in the above
method, calibration is completed when the
direction is shown on the display.
If calibration cannot be performed because
of the magnetized vehicle etc., take your
vehicle to Toyota dealer. Perform circling calibration just after
you have purchased your Toyota. And
then always perform circling calibration
after the battery has been removed, re-
placed or disconnected.
Do not perform circling calibration of
the compass in a place where the
earth’s magnetic field is subject to in-
terference by artificial magnetic fields
(underground parking, under a steel
tower, between buildings, roof parking,
near a crossing, near a large vehicle,
etc.).
During calibration, do not operate elec-
tric systems (moon roof, power win-
dows, etc.) as they may interfere with
the calibration.

3022007 4Runner from Aug. ’06 Prod. (OM35866U)
CAUTION
When doing the circling calibration,
be sure to secure a wide space,
and watch out for people and ve-
hicles in the neighborhood. Do not
violate any local traffic rules while
performing circling calibration.
Do not adjust the display while the
vehicle is moving. Be sure to adjust
the display only when the vehicle is
stopped.
The rear view monitor system assists
the driver by displaying an image of
the view behind the vehicle while back-
ing up. The image is displayed in re-
verse on the screen. This allows the
image to appear in the same manner as
that of the rear view mirror.
To display the rear view image on the
screen, place the selector lever in the
“R” position when the ignition switch is
in the “ON” position.
If you move the selector lever out of the
“R” position, the screen returns to the
previous screen. Operating another func-
tion of the navigation system will display
another screen.
The rear view monitor system is a supple-
ment device intended to assist back up.
When backing up, be sure to check be-
hind and all around the vehicle visually.CAUTION
Never depend on the rear view
monitor system entirely when back-
ing up. Always make sure your in-
tended path is clear.
Use caution, just as you would
when backing up any vehicle.
Never back up while looking only at
the screen. The image on the
screen is different from actual con-
ditions. Depicted distances between
objects and flat surfaces will differ
from actual distance. If you back up
while looking only at the screen,
you may hit a vehicle, a person or
an object. When backing up, be
sure to check behind and all around
the vehicle visually and with mir-
rors before proceeding.
Rear view monitor system
