2007 SUBARU OUTBACK Owners Manual

12-6Specifications

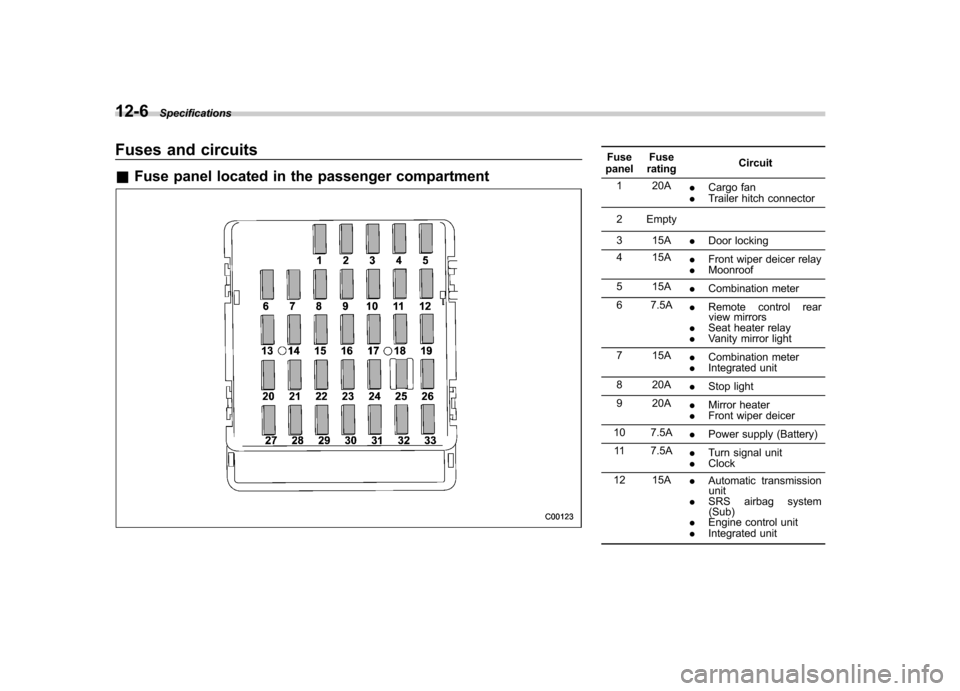

Fuses and circuits &Fuse panel located in the passenger compartmentFuse
panel Fuse
rating Circuit
1 20A .Cargo fan
. Trailer hitch connector
2 Empty
3 15A .Door locking
4 15A .Front wiper deicer relay
. Moonroof
5 15A .Combination meter
6 7.5A .Remote control rear
view mirrors
. Seat heater relay
. Vanity mirror light
7 15A .Combination meter
. Integrated unit
8 20A .Stop light
9 20A .Mirror heater
. Front wiper deicer
10 7.5A .Power supply (Battery)
11 7.5A .Turn signal unit
. Clock
12 15A .Automatic transmission
unit
. SRS airbag system
(Sub)
. Engine control unit
. Integrated unit

Fuse
panel Fuse
rating Circuit
13 20A .Cargo socket
14 15A .Position light
. Tail light
. Rear combination light
15 Empty
16 10A .Illumination
17 15A .Seat heaters
18 10A .Backup light
19 7.5A .Headlight right side re-
lay
20 10A .Cigarette lighter socket
21 7.5A .Starter relay
22 15A .Air conditioner
. Rear window defogger
relay coil
23 15A .Rear wiper
. Rear window washer
24 15A .Audio unit
. Clock
25 15A .SRS airbag system
(Main)
26 7.5A .Power window relay
27 15A .Blower fan Fuse
panel Fuse
rating Circuit
28 15A .Blower fan
29 15A .Fog light
30 30A .Front wiper
. Front wiper washer
31 7.5A .Auto air conditioner unit
. Integrated unit
32 7.5A .Headlight left side relay
33 7.5A .ABS/Vehicle dynamics
control unit Specifications
12-7
– CONTINUED –

12-8Specifications

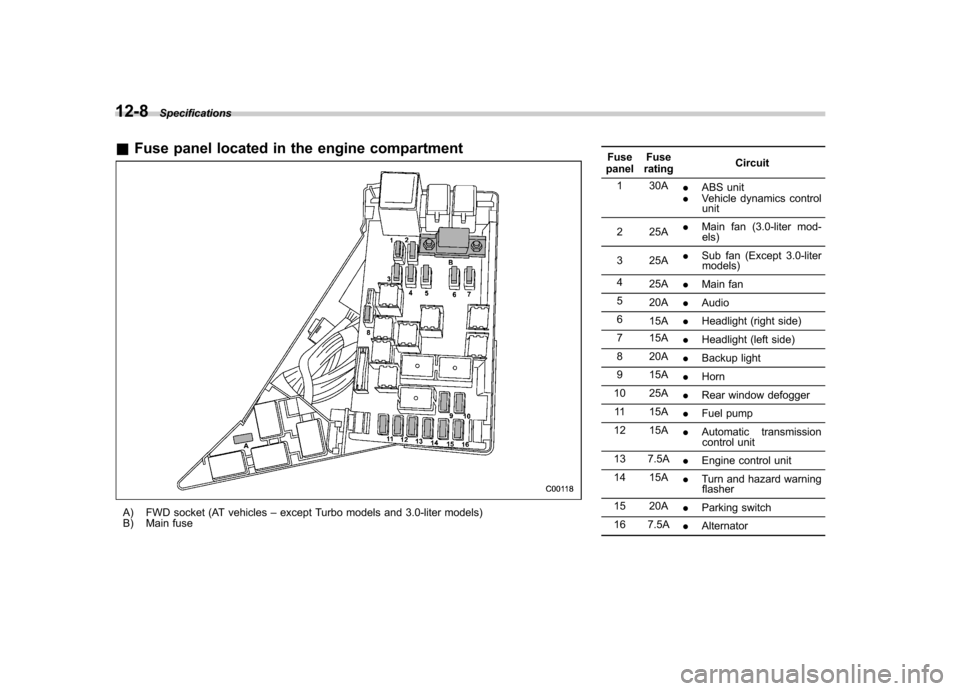

&Fuse panel located in the engine compartment
A) FWD socket (AT vehicles –except Turbo models and 3.0-liter models)
B) Main fuse Fuse
panel Fuse
rating Circuit
1 30A .ABS unit
. Vehicle dynamics control
unit
2 25A .
Main fan (3.0-liter mod-
els)
3 25A .
Sub fan (Except 3.0-liter
models)
4 25A .Main fan
5 20A .Audio
6 15A .Headlight (right side)
7 15A .Headlight (left side)
8 20A .Backup light
9 15A .Horn
10 25A .Rear window defogger
11 15A .Fuel pump
12 15A .Automatic transmission
control unit
13 7.5A .Engine control unit
14 15A .Turn and hazard warning
flasher
15 20A .Parking switch
16 7.5A .Alternator

Bulb chartDescription Wattage Bulb No. Headlight Low beam 12V-55W H7
High beam 12V-60W 9005 (HB3)
Front fog light Except OUTBACK 12V-55W H3
OUTBACK 12V-51W 9006 (HB4)
Front turn signal/parking and
front side marker 12V-27/8W 3157A
Rear combination light Rear turn signal light (Se- dan) 12V-21W (W21W)
Brake/tail and rear side
marker (Sedan) 12V-21/5W (W21/5W)
Brake/tail (Station wagon) 12V-21/5W (W21/5W)
Rear side marker (Station wagon) 12V-5W 168
Rear turn signal light (Stationwagon) 12V-21W (W21W)
Backup light 12V-16W 921
High mount stop light (Sedan) 12V-21W (W21W)
License plate light 12V-5W 168 Specifications
12-9
– CONTINUED –

12-10Specifications
Description Wattage Bulb No.
Trunk room light 12V-5W W5W
Cargo area light 12V-13W
–
Dome light 12V-8W
–
Map light 12V-8W
–
Door step light 12V-3.5W
–

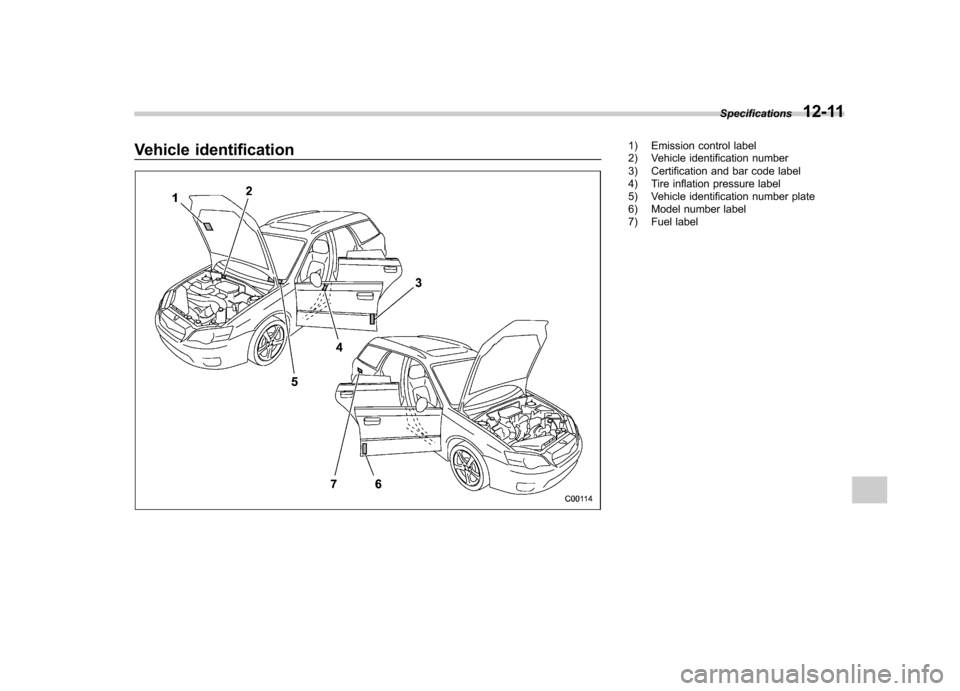

Vehicle identification1) Emission control label
2) Vehicle identification number
3) Certification and bar code label
4) Tire inflation pressure label
5) Vehicle identification number plate
6) Model number label
7) Fuel labelSpecifications
12-11

————————————————————————————————————————
————————————————————————————————————————
————————————————————————————————————————
————————————————————————————————————————
————————————————————————————————————————
————————————————————————————————————————
————————————————————————————————————————
————————————————————————————————————————
————————————————————————————————————————
————————————————————————————————————————
————————————————————————————————————————
————————————————————————————————————————
————————————————————————————————————————

For U.S.A............................................................ 13-2
Tire information .................................................. 13-2
Tire labeling ....................................................... 13-2
Recommended tire inflation pressure .................. 13-5
Glossary of tire terminology ............................... 13-6
Tire care –maintenance and safety
practices .......................................................... 13-7
Vehicle load limit –how to determine .................. 13-8 Determining compatibility of tire and vehicle load
capacities ...................................................... 13-10
Adverse safety consequences of overloading on handling and stopping and on tires ................ 13-11
Steps for Determining Correct Load Limit ......... 13-11
Uniform tire quality grading standards .......... 13-12
Treadwear ....................................................... 13-12
Traction AA, A, B, C ......................................... 13-12
Temperature A, B, C ......................................... 13-12
Reporting safety defects (USA) ...................... 13-13
Consumer information and Reporting safety defects
13
