2007 SUBARU OUTBACK Owners Manual

3-8Instruments and controls
&ECO gauge
The ECO gauge shows the difference
between the average rate of fuel con-
sumption and the current rate of fuel
consumption. Using the average rate of
fuel consumption since the trip meter was
last reset, if the current rate of fuel
consumption is higher than the average
rate of fuel consumption, the indicator
needle points to the “+ ” or right side, and if
the current rate of fuel consumption is
lower than the average rate of fuel
consumption, the indicator needle points
to the “ ” or left side. When the indicator
needle is pointing to the “+ ” or right side, it
indicates fuel-efficient driving. NOTE .
The ECO gauge shows only an
approximate indication. . After resetting the trip meter, the
average rate of fuel consumption is not
shown until driving 0.6 mile (1 km).
Until that time, the ECO gauge does notoperate. Multi-information display
(Turbo models)
CAUTION
To ensure safety, do not attempt to
change the function of the indicator
during driving, as an accident couldresult.
1) Multi-information display
2) Multi-information display toggle button

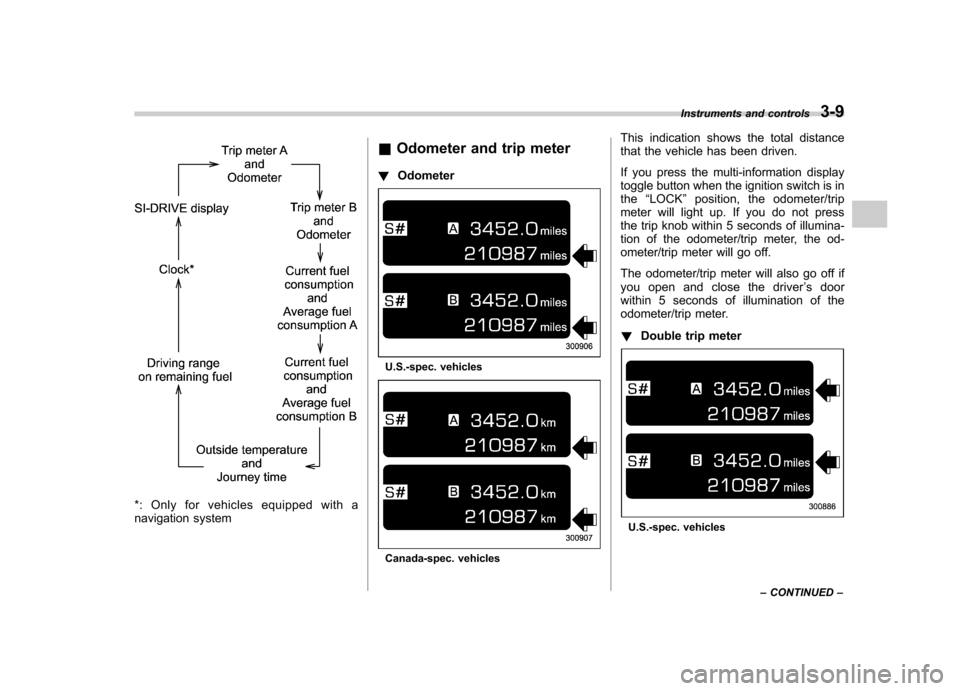

With the ignition switch in the “ON ”
position, each successive push of the
multi-information display toggle button
changes the display in the followingsequence:

*: Only for vehicles equipped with a
navigation system&
Odometer and trip meter
! Odometer
U.S.-spec. vehicles
Canada-spec. vehicles This indication shows the total distance
that the vehicle has been driven.
If you press the multi-information display
toggle button when the ignition switch is in
the
“LOCK ”position, the odometer/trip
meter will light up. If you do not press
the trip knob within 5 seconds of illumina-
tion of the odometer/trip meter, the od-
ometer/trip meter will go off.
The odometer/trip meter will also go off if
you open and close the driver ’s door
within 5 seconds of illumination of the
odometer/trip meter. ! Double trip meter
U.S.-spec. vehicles Instruments and controls
3-9
– CONTINUED –

3-10Instruments and controls
Canada-spec. vehicles
This indication shows the distance that the
vehicle has been driven since you last set
it to zero.
To set the trip meter to zero, select the A
trip or B trip meter by pushing the multi-
information display toggle button and keep
the knob pushed for more than 0.8second.
If you press the multi-information display
toggle button when the ignition switch is in
the “LOCK ”position, the odometer/trip
meter will light up. It is possible to set
the trip meter to zero while the odometer/
trip meter is lit up. If you do not press the
trip knob within 5 seconds of illumination
of the odometer/trip meter, the odometer/
trip meter will go off. Also, if you open and
close the driver ’s door within 5 seconds of illumination of the odometer/trip meter, the
odometer/trip meter will go off.
NOTE
If the connection between the combina-
tion meter and battery is broken for any
reason such as vehicle maintenance or
fuse replacement, the data recorded on
the trip meter will be lost. & Current and average fuel consumption
U.S.-spec. vehicles
Canada-spec. vehicles
1) Current fuel consumption
2) Average fuel consumption
Current fuel consumption shows the rate
of fuel consumption at the present mo-
ment. Average fuel consumption shows
the average rate of fuel consumption since
the trip meter was last reset.
When the vehicle speed is less than
approximately 6 mph (9.5 km/h), the
current fuel consumption is not displayed.
The displayed number with “A ” is the
average fuel consumption corresponding
to the A trip meter indication, and the
displayed number with “B ” is the average
fuel consumption corresponding to the B
trip meter indication.
When either of the trip meter indications is
reset, the corresponding average fuel

consumption value is also reset. NOTE .The indicated values vary in accor-
dance with changes in the vehicle ’s
running conditions. Also, the indicated
values may differ slightly from the
actual values and should thus be
treated only as a guide.. When either trip meter indication is
reset, the average fuel consumption
corresponding to that trip meter indica-
tion is not shown until the vehicle has
subsequently covered a distance of 1
mile (or 1 km). &
Outside temperature and
journey time
! Outside temperature
U.S.-spec. vehicles
Canada-spec. vehicles 1) Outside temperature
2) Journey time
The indicator shows the outside tempera-
ture in a range from 22 to 122 8F( 30 to
50 8C).
The indicator can give a false reading
under any of the following conditions: . When there is too much sun.
. During idling; while running at low
speeds in a traffic jam; when the engine
is restarted immediately following a shut-down. . When the actual outside temperature
falls outside the specified indicator range.
U.S.-spec. vehicles Instruments and controls
3-11
– CONTINUED –

3-12Instruments and controls
Canada-spec. vehicles
When the outside temperature is 37 8F
(3 8C) or lower, the display flashes “OUT
TEMP 37 8F(3 8C) ”for 3 seconds and
gives a notice to the driver that the road
surface may be frozen. After 3 seconds, it
returns to its original indication of the
outside temperature and journey time.
If the outside temperature drops to 37 8F
(3 8C) or lower while the display is giving
an indication other than the outside
temperature, the display shows “OUT
TEMP 37 8F(3 8C) ”for 3 seconds before
returning to its original indication.
If the display is already indicating an
outside temperature of 37 8F(3 8C) or lower
when the ignition switch is turned to the“ ON ”position, the display does not shows
“ OUT TEMP 37 8F(3 8C) ”. NOTE
The outside temperature indication
may differ from the actual outside
temperature. The indication
“OUT
TEMP 37 8F(3 8C) ” should be treated
only as a guide. Be sure to check the
condition of the road surface beforedriving. ! Journey time
U.S.-spec. vehicles
Canada-spec. vehicles
1) Outside temperature
2) Journey time
The journey time shows the time that has
elapsed since the ignition switch was
turned to the “START ”position.

After 2 hours have passed for the journey
time, the display indication flashes“E/T
2:00 ”at the center of the display for 3
seconds and gives a notice to the driver to
take a rest. After 3 seconds, it returns to its
original indication of the outside tempera-
ture and journey time.
If you continue to drive your vehicle
without stopping the engine, the display
flashes the journey time for 3 seconds at
the center of the display after each
additional hour has elapsed. If the display
shows an indication other than the journey
time, the display switches to the journey
time for 3 seconds for each additional hour
that has elapsed after the first 2 hours.
After 3 seconds, it returns to its original
indication. However, if the journey time
indication overlaps with another indication,
the journey time indication is shortened.
NOTE
The journey time is reset when the
ignition switch is turned to the “OFF ”
position. It is also reset if the ignition
switch is turned to the “LOCK ”or
“ ACC ”position prior to restarting of
the engine. &
Driving range on remaining fuel
U.S.-spec. vehicles
Canada-spec. vehicles
The driving range indicates the distance in units of 10 miles (10 km) that can be
driven by taking into consideration the fuel
remaining in the tank and the average rate
of fuel consumption over the last 30 miles
(30 km).
U.S.-spec. vehicles
Instruments and controls
3-13
– CONTINUED –

3-14Instruments and controls
Canada-spec. vehicles
If the driving range is shown as “
”,
there is only a tiny amount of fuel left in the
tank. You must refuel the vehicle immedi-
ately. NOTE
The driving range on remaining fuel is
only a guide. The indicated value may
differ from the actual driving range on
remaining fuel, so you must immedi-
ately fill the tank when the low fuel
warning light comes on. &
Clock (Vehicle with Naviga-
tion System)
NOTE
If your vehicle is a non-turbo model
equipped with a navigation system,
refer to the separate “Operating In-
structions for Monitor System ”.
For turbo models equipped with a naviga-
tion system, the clock can show the time.
The time shown by the clock receives the
time information from the navigation sys-
tem. To adjust the time shown by the
clock, refer to the separate “Operating
Instructions for Monitor System ”and
adjust the time of the navigation system.
CAUTION
To ensure safety, do not attempt to
set the time during driving, as an
accident could result.
& SI-DRIVE display
1) Sport Sharp (S#) mode*
2) Sport (S) mode
3) Intelligent (I) mode
4) Throttle angle
*: This display means that the Sport Sharp
(S#) mode is in the selected condition.
This indicates the current SI-DRIVE mode
with its throttle angle.
For details of SI-DRIVE mode, refer to the “ SI-DRIVE (Turbo models) ”section in
chapter 7.

&Warning messages and dri- ver ’s information
When the following safety warning or
information occurs, the interruptive mes-
sage will be indicated on the display.
The display shows the interruptive mes-
sage for 3 seconds and then returns to its
original display. However, if the interrup-
tive message overlaps with another in-
dication, the interruptive message isshortened. Instruments and controls
3-15
– CONTINUED –
