2007 SUBARU LEGACY Owners Manual

Black plate (212,1)
北米Model "A2420BE-B" EDITED: 2006/ 7/ 26
5-22
Audio
& Display selectionIf you press the “TEXT ”button for 0.5
second or longer during playback of an
MP3/WMA file, the indication will change
to the next one in the following sequence.
! Page (track/folder title) scrollIf, having pressed the “TEXT”button to
select FOLDER NAME or FILE NAME
display, you press the “TEXT ”button
again for at least 0.5 second, the title will
be scrolled so you can see all of it.NOTEThe display is designed to show titles
for up to three pages (64 characters in
total). However, it may in some cases
show titles for only up to two pages (32
characters in total).
& Folder selectionPress the “
”side of the SEEK/SCAN
button briefly to select the next folder.
Press the “”side of the button briefly to
go back to the previous folder. The folder
title will be shown each time you press
one of the buttons.
NOTE. Selecting folders in this way is
possible only within a single disc.
. Only MP3/WMA folders are recog-
nized when an attempt to select the
next or previous folder is made. If no
appropriate folder exists on the disc,
pressing the “
”or “
”side of the
SEEK/SCAN button starts playback
beginning with the first track/file
(track).
ProCarManuals.com

Black plate (213,1)
北米Model "A2420BE-B" EDITED: 2006/ 7/ 26
& How to eject a CD from the
player (type A)When a disc is being played back or when
a disc is in the player, press the eject
button “
”. The disc will be ejected.
NOTE.Avoid driving the vehicle with a CD
sticking out, because vibration might
make it fall out.
. If the disc is left ejected for more
than approximately 15 seconds after
the ignition switch is turned to the
“ OFF ”position, a disc protection func-
tion will operate, automatically reload-
ing the disc. In this case, the disc is not
played.
& How to eject CDs from the
player (type B)! Ejecting a CD from the player
Of the discs loaded, you can select and
remove only one disc.1. Use the disc select button to select the
disc to be ejected.
2. Briefly press the “
”button. The
selected disc will be ejected. The disc
number indicator will flash at this time.
When you remove the ejected disc, the
disc number indicator will go off.
To remove more discs in succession,
repeat Steps 1 and 2.Audio
5-23
– CONTINUED –
5
ProCarManuals.com

Black plate (214,1)
北米Model "A2420BE-B" EDITED: 2006/ 7/ 26
5-24
Audio
! Ejecting all discs from the player
(All disc ejection mode)1. If you continue to press the “
”
button, the player will produce beep sound
and will enter the all disc ejection mode. At
this time, the disc number indicator and
“ALL EJECT ”indicator will flash.
2. Remove the disc that has been
ejected. The other discs loaded will then
be ejected one after another. If you do not
remove the disc that has been ejected, the
“All disc ejection mode ”will be canceled.
NOTE. Avoid driving the vehicle with a CD
sticking out, because vibration might
make it fall out.
. If you press the “
”button while the player is in all disc ejection mode,
the mode will be cancelled following
ejection of the disc that is currently
being ejected.
.
If you press the “CD ”button or
“ LOAD ”button while the player is in
all disc ejection mode, the player will
draw in the discs that have been
ejected and play them.
& When the following mes-
sages are displayedIf one of the following messages is
displayed while operating the CD player,
determine the cause based on the follow-
ing information. If you cannot clear those
messages, please contact your SUBARU
dealer.
! When “PUSH EJECT ”is displayed
This message means that there is a
mechanical error. Depress the eject button
to unload the disc. Check the disc for
damage or deformation, and also check
that the correct disc is inserted. Do not try
to unload the disc forcibly. Single CDs
(i.e., 8 cm/3 inch CDs) are not supported,
and if inserted, they will be immediately
ejected and this error message will be
displayed. If the disc cannot be unloaded
or the error message remains displayed,
please contact your SUBARU dealer. !
When “CHECK DISC ”is displayed
Press the eject button to unload the discs.
Check that the disc is not damaged or
scratched, and also check that the disc is
inserted correctly. Some CD-RW discs
may be causing this error message to
appear. Check that the disc type (i.e., 8
cm/3 inch CDs are not supported) and
data format are correct. This player can
only play MP3 and WMA data formats. If
the disc cannot be unloaded or the error
message remains displayed, please con-
tact your SUBARU dealer.
ProCarManuals.com

Black plate (215,1)
北米Model "A2420BE-B" EDITED: 2006/ 7/ 26
AUX unit operation& AUX jackBy connecting a commercial audio pro-
duct to the vehicle, such as portable audio
player, you can hear its sound via the
vehicle’ s speaker.
Connect the portable audio player and
push the “AUX”button.
For the audio input jack, a stereo mini pin
plug (3.5ø) can be connected. For detailed
information, see the owner ’s manual of the
portable audio player.
& AUX inputs selection buttonPress the “AUX”button when the auxiliary
audio input is off to turn on the auxiliary
audio input.NOTE. The output sound of the portable
audio player is not loud, and the sound
via the vehicle ’s speakers that are
connected to the vehicle audio set is
very small. If you turn up the volume of
the audio set, the volume becomes
louder. However, when you change
the player to the other portable audio
player, the sound may become a lot
louder. Turn down the volume when
you change between them.
. In some cases, when the sound
volume of the portable audio player is low, the sound becomes bad when you
turn up the volume of the vehicle audio
system. In this case, adjust the sound
volume of the portable audio player.
.
In some cases, noise occurs be-
cause of a bad connection between the
portable player of the vehicle audio
system or for the player.
Audio
5-25
5
ProCarManuals.com

Black plate (216,1)
北米Model "A2420BE-B" EDITED: 2006/ 7/ 26
5-26
Audio
Audio control buttons (if
equipped)These buttons are located on the spokes
of the steering wheel. They allow the
driver to control audio functions without
taking his/her hands off the steering
wheel.& MODE buttonThis button is used to select the desired
audio mode. Each time it is pressed, the
mode changes to the next one in the
following sequence:
*1: The frequency last received in the selected
waveband will be displayed.
*2: Only when a CD is in the player.
*3: Only when with an auxiliary audio product is
connected.! “
”and “
”buttons
! With radio mode selected
Press the “
”button or “
”button. The
radio will seek the next receivable station
and stop on it.
That station ’s frequency will be shown on
the audio display.
! With CD mode selected
Press the “
”button to skip forward in the
track/file (track) order. Press the “
”
button to skip backward in the track/file (track) order.
The track/file (track) number will be shown
on the audio display.
!
With SAT mode selected
Press the “
”button to skip forward in the
channel order. Press the “
”button to
skip backward in the channel order. The
channel will be shown on the audio
display.
! Volume control buttons
Press the “+ ” button to increase the
volume. Press the “”button to reduce
the volume.
A number indicating the volume will be
shown on the audio display.
ProCarManuals.com

Black plate (217,1)
北米Model "A2420BE-B" EDITED: 2006/ 7/ 26
! MUTE buttonPress this button if you wish to immedi-
ately cut the volume to zero.
The audio display will show “MUTE”.
If you press the button again, the original
sound volume will return and “MUTE ”
goes off.
Precautions to observe when
handling a compact discUse only compact discs (CDs, CD-Rs and
CD-RWs) that have the mark shown in the
following. Also, some compact discs
cannot be played.
Audio
5-27
– CONTINUED –
5
ProCarManuals.com

Black plate (218,1)
北米Model "A2420BE-B" EDITED: 2006/ 7/ 26
5-28
Audio

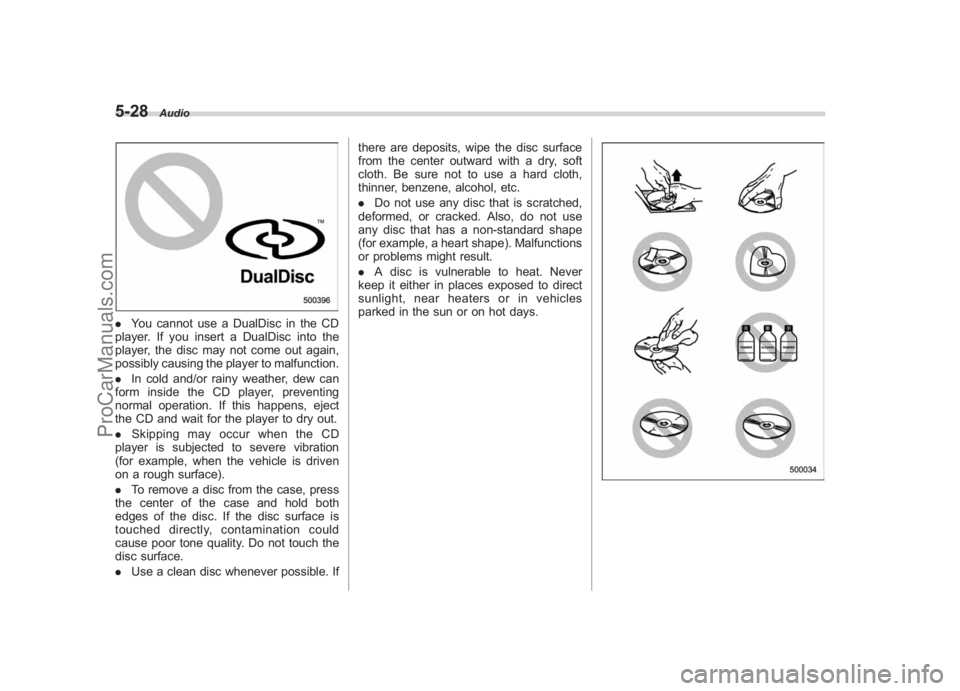

. You cannot use a DualDisc in the CD
player. If you insert a DualDisc into the
player, the disc may not come out again,
possibly causing the player to malfunction.
. In cold and/or rainy weather, dew can
form inside the CD player, preventing
normal operation. If this happens, eject
the CD and wait for the player to dry out.
. Skipping may occur when the CD
player is subjected to severe vibration
(for example, when the vehicle is driven
on a rough surface).
. To remove a disc from the case, press
the center of the case and hold both
edges of the disc. If the disc surface is
touched directly, contamination could
cause poor tone quality. Do not touch the
disc surface.
. Use a clean disc whenever possible. If there are deposits, wipe the disc surface
from the center outward with a dry, soft
cloth. Be sure not to use a hard cloth,
thinner, benzene, alcohol, etc.
.
Do not use any disc that is scratched,
deformed, or cracked. Also, do not use
any disc that has a non-standard shape
(for example, a heart shape). Malfunctions
or problems might result.
. A disc is vulnerable to heat. Never
keep it either in places exposed to direct
sunlight, near heaters or in vehicles
parked in the sun or on hot days.
ProCarManuals.com

Black plate (11,1)
北米Model "A2420BE-B" EDITED: 2006/ 7/ 31
Interior light ......................................................... 6-2
Dome light.......................................................... 6-2
Cargo area light (Station wagon) .......................... 6-2
Map light.............................................................. 6-2
Sun visors ........................................................... 6-3
Sun visor extension plate .................................... 6-3
Vanity mirror with light ........................................ 6-4
Storage compartment......................................... 6-4
Glove box........................................................... 6-5
Center console box ............................................. 6-5
Center panel compartment (if equipped)... ............ 6-6
Overhead console (if equipped) ........................... 6-7
Pocket ................................................................ 6-7
Cup holder ........................................................... 6-7
Front passenger ’s cup holder .............................. 6-8
Rear passenger ’s cup holder ............................... 6-8
Accessory power outlets .................................... 6-8
Coat hook ........................................................... 6-10
Rear passenger area .......................................... 6-10
Shopping bag hook............................................ 6-11
For Sedan models.............................................. 6-11
For Station wagon models .................................. 6-11
Floor mat............................................................ 6-12
Cargo area cover (Station wagon) .................... 6-12
Using the cover.................................................. 6-12 To remove the cover housing ...
.......................... 6-13
To remove the rear gate board . .......................... 6-13
Stowage of the cargo area cover and rear gate board .............................................................. 6-13
To install the cover housing ............................... 6-14
To install the rear gate board ... .......................... 6-15
Stowage boxes (Station wagon) ....................... 6-15
Convenient tie-down hooks (if equipped) ........ 6-16
Under-floor storage compartment .................... 6-16
Sedan................................................................ 6-17
Station wagon ................................................... 6-17
HomeLink®Wireless Control System
(if equipped) .................................................... 6-17
Garage door opener programming in the
U.S.A. .............................................................. 6-18
Programming rolling-code-protected garage door openers in the U.S.A. ....................................... 6-19
Programming for entrance gates and garage door openers in Canada ........................................... 6-20
Programming other devices ............................... 6-21
Operating the HomeLink ®Wireless Control
System ............................................................ 6-21
Reprogramming a single HomeLink ®
button ............................................................. 6-21
Erasing HomeLink ®button memory ................... 6-21
In case a problem occurs ................................... 6-21
Interior equipment
6
ProCarManuals.com
