Fuses layout, engine compartment, left partFuses
Number Electrical equipment Amperes
1 Windscreen wipers 30
2 Steering column 5
3 Cable control unit 5
4A BS 30
5 AQ gearbox 15
6 Instrument panel 5
7 Vacant
8R ad io 15
9 Telephone 5
10 Main relay in the FSI / diesel engine
compartment / injection module supply 5
Main relay in the engine compartment D2L (2.0 FSI 147 kW) 10
11 Vacant
12 Gateway 5
13 Petrol injection module supply
25
Diesel injection module supply 30
14 Coil 20
15 Engine T71 / 20 FSI
5
Pump relay 10
16 ADS pump 30
17 Horn 15
18 Vacant
AlteaXL_DEF_ingles Seite 247 Freitag, 25. August 2006 2:19 14
Page 250 of 298
If and when
248
19 Clean 30
20 Vacant
21 Lambda probe 15
22 Brake pedal, speed sensor 5
23 Engine 1.6, main relay (relay n° 100)
5
T 71 diesel EGR 10
2.0 D2L High-pressure fuel pump 15
24 ARF, change valve 10
25 Right lighting 40
26 Left lighting 40
1.6 SLP engine 40
1.9 TDI Glow plug relay 50
28 KL15 40
29 Electric windows (front and back)
50
Electric windows (front) 30
30 X - relief relay 40
Number
Electrical equipment Amperes
AlteaXL_DEF_ingles Seite 248 Freitag, 25. August 2006 2:19 14
Page 251 of 298

If and when249
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Position in engine compartment: side boxFuses
Some of the electrical items listed in the table are only fitted on certain
models or are optional extras.
Please note that the above list, while correct at the time of printing, is subject
to alterations.Bulb changeGeneral notesBefore changing any bulb first turn off the equipment concerned.
Do not touch the bulb glass. Fingerprints vaporise in the heat, causing a
reduction in the bulb life and condensation on the mirror surface, thus
reducing efficiency. A bulb should only be replaced by one of the same type. The type is inscribed
on the bulb, either on the glass part or on the base.
It is highly recommended to keep a box of spare bulbs in the vehicle. At the
very least, the bulbs that most affect road safety should have spares in the
vehicle.
Main headlights
Dipped beam - H7
Main beam - H1
Position - W5W
Turn signals - PY21W
Number
Electrical equipment Amperes
B1 Alternator < 140 W
150
Alternator > 140 W 200
C1 Power steering 80
D1 Multi-terminal voltage supply “30”. Internal fuse box 100
E1 Ventilator > 500 W / Ventilator < 500 W 80/50
F1 PTCs (Supplementary electrical heating using air) 100
G1 Trailer fuse voltage supply in internal fuse box 50
H1 Central locking control unit (4F8 with autolock)
AlteaXL_DEF_ingles Seite 249 Freitag, 25. August 2006 2:19 14
Page 252 of 298

If and when
250Xenon headlights
22) /directional
Dipped and full beam - D1S
23)
Flashing and extra full beam - H1
Position W5W
Turn signals PY21W
Fog lights
Fog lights - H3
Fixed rear light
Stop/Position - P21W
24)
Turn signals - P21W
Rear tailgate light unit
Anti fog (driver side) - P21W
Reverse (passenger side) - P21W
Position - W5W
Indicator
Indicator - W5W
Registration plate light
Registration plate light - C5W
Note
•
Due to the difficulty in accessing the lamps, any replacement work should
be done by a SEAT dealer. However, the following is a description of how to
change the bulbs except for the fog lights and interior bulbs.
Main headlight lamps
Turn signals
Dipped headlights
Main beam headlights
Side lights
22)On this type of headlight, the bulb changes must be made by the SEAT dealer, given
that complex elements must be removed from the vehicle and a reset must be made
on the automatic control system incorporated.23)The Xenon bulbs discharge 2.5 times the light flux and have an average lifespan of 5
times more than that of halo gen bulbs, this means that, except due to unusual circum-
stances, there is no need to change the bulbs for the whole life of the vehicle.24)Electronically controlled single filament bulb for Stop/side bulbs. If the bulb blows it
will not work in either position or Stop position
Fig. 179 Main headlight
lamps
AAABACAD
AlteaXL_DEF_ingles Seite 250 Freitag, 25. August 2006 2:19 14
Page 253 of 298
If and when251
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Turn signal lamps–Raise the bonnet.
– Rotate the lamp holder ⇒fig. 180 to the left and pull.
– Remove the bulb by pressing on the lamp holder and rotating at the same time to the left.
– Installation is done in the reverse order.
Dipped beam lights– Raise the bonnet.
Fig. 180 Turn signal
lamps
AA
Fig. 181 Dipped head-
lightsFig. 182 Dipped head-
lights
AlteaXL_DEF_ingles Seite 251 Freitag, 25. August 2006 2:19 14
Page 254 of 298
If and when
252
– Remove the loops ⇒page 251, fig. 181 in the direction of
the arrow and remove the cover.
– Remove the connector ⇒page 251, fig. 182 from the bulb.
– Disengage the retainer spring ⇒ page 251, fig. 182 pressing
inwards and to the right.

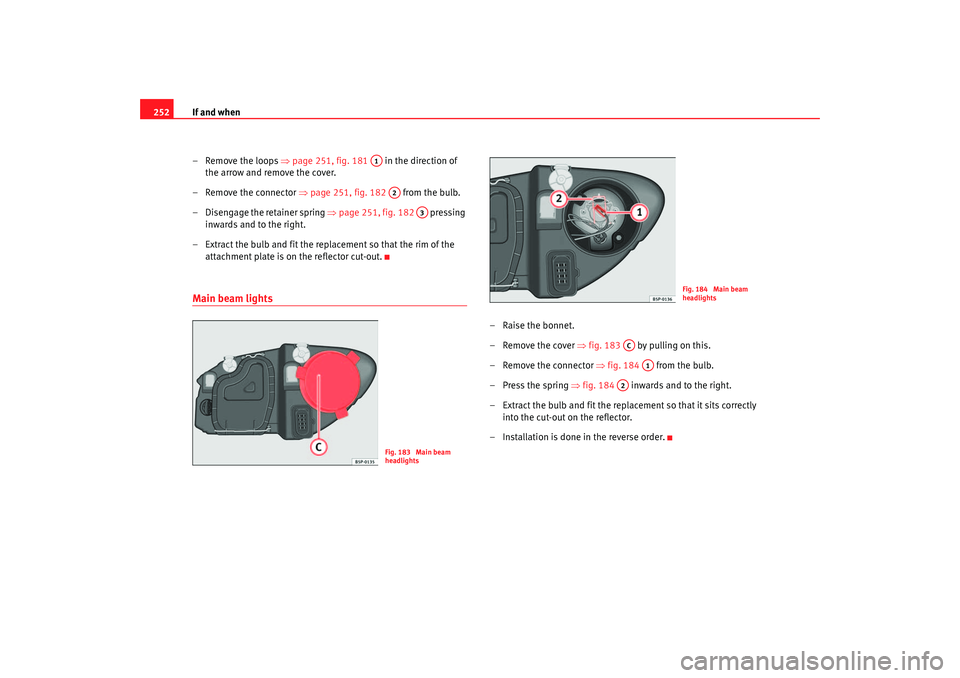

– Extract the bulb and fit the replacement so that the rim of the attachment plate is on the reflector cut-out.Main beam lights
