2007 Seat Altea XL Owner's Manual

Seats and stowage143
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Electrical sockets
Electrical equipment can be connected to any of the 12 volt
sockets.
Electrical accessories may be connected to the 12 volt socket in the front
centre console ⇒fig. 115 or to that of the luggage compartment* ⇒fig. 116 .
The appliances connected to each socket must not exceed a power rating of
120 Watt.
WARNING
The electrical sockets and any appliances connected to them are also func-
tional with the ignition switched off and the key removed. Improper use of
the sockets or electrical accessories can lead to serious injuries or cause a
fire. To avoid the risk of injury, never leave children unsupervised in the
vehicle.
Note
•
Using electrical appliances with the engine switched off will drain the
battery.
•
Before using any electrical accessories, see the instructions on
⇒ page 201.
Fig. 115 Socket in the
front centre consoleFig. 116 Luggage
compartment socket
AlteaXL_DEF_ingles Seite 143 Freitag, 25. August 2006 2:19 14

Seats and stowage
144Auxiliary audio connection (AUX-IN)–Lift the AUX. cover ⇒ fig. 117.
– Insert the pin fully (See the radio manual).
Conector for the Apple* iPod
®
The iPod connector
® is in the central armrest compartment
Consult the radio manual for information on how this equipment works.
Fig. 117 Auxiliary audio
connection
Fig. 118 iPod connection
in the central armrest
AlteaXL_DEF_ingles Seite 144 Freitag, 25. August 2006 2:19 14

Seats and stowage145
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

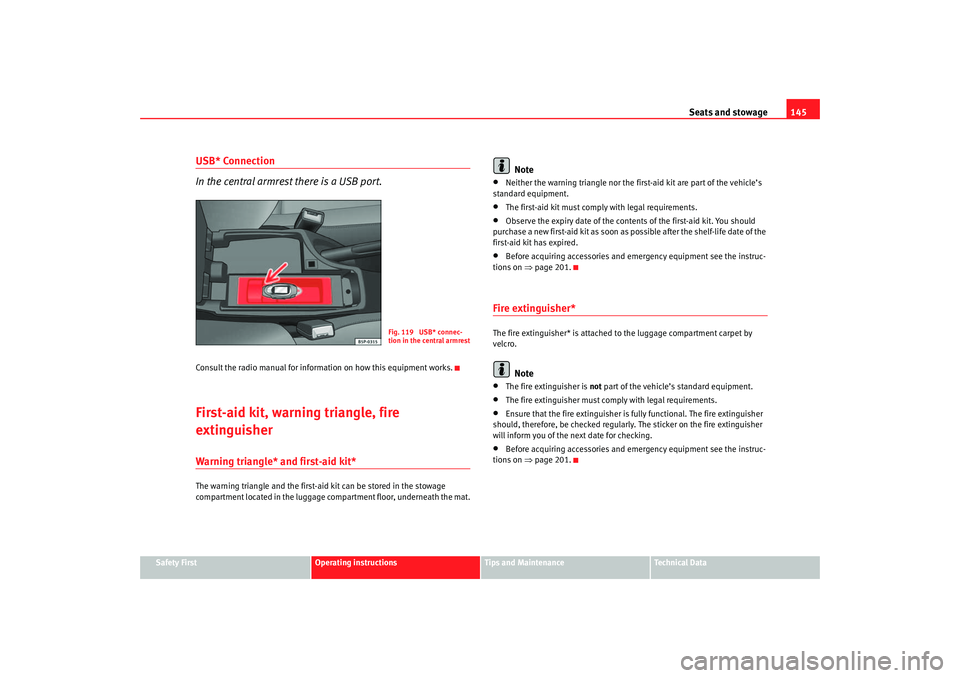

USB* Connection
In the central armrest there is a USB port.Consult the radio manual for information on how this equipment works.First-aid kit, warning triangle, fire
extinguisherWarning triangle* and first-aid kit*The warning triangle and the first-aid kit can be stored in the stowage
compartment located in the luggage compartment floor, underneath the mat.
Note
•
Neither the warning triangle nor the first-aid kit are part of the vehicle’s
standard equipment.
•
The first-aid kit must comply with legal requirements.
•
Observe the expiry date of the contents of the first-aid kit. You should
purchase a new first-aid kit as soon as possible after the shelf-life date of the
first-aid kit has expired.
•
Before acquiring accessories and em ergency equipment see the instruc-
tions on ⇒page 201.
Fire extinguisher* The fire extinguisher* is attached to the luggage compartment carpet by
velcro.
Note
•
The fire extinguisher is not part of the vehicle’s standard equipment.
•
The fire extinguisher must comp ly with legal requirements.
•
Ensure that the fire extinguisher is fully functional. The fire extinguisher
should, therefore, be checked regularly. The sticker on the fire extinguisher
will inform you of the next date for checking.
•
Before acquiring accessories and em ergency equipment see the instruc-
tions on ⇒page 201.
Fig. 119 USB* connec-
tion in the central armrest
AlteaXL_DEF_ingles Seite 145 Freitag, 25. August 2006 2:19 14

Seats and stowage

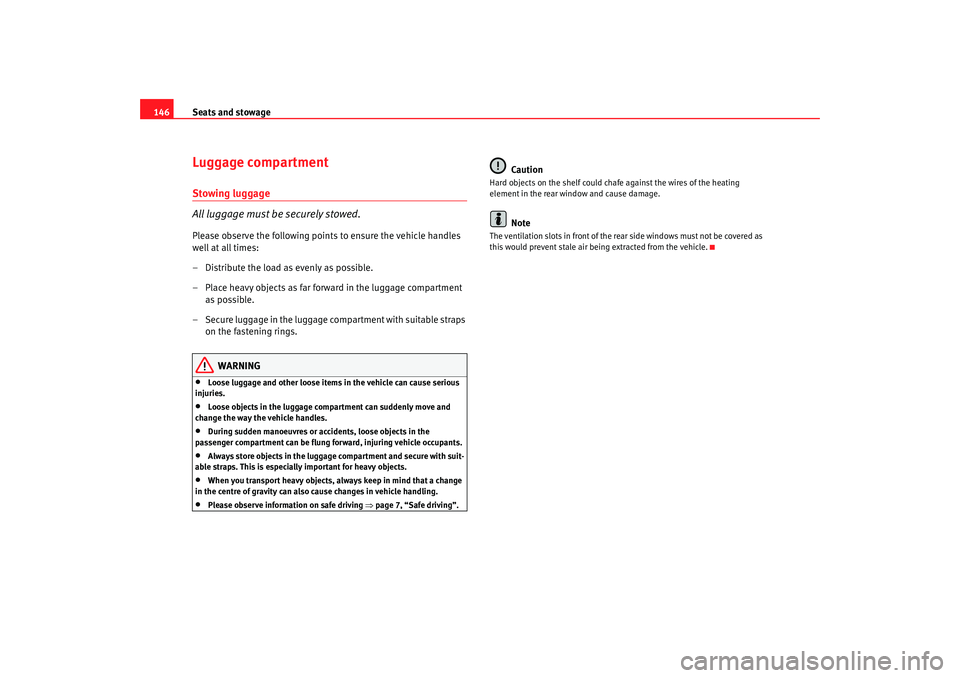

146Luggage compartmentStowing luggage
All luggage must be securely stowed.Please observe the following points to ensure the vehicle handles
well at all times:
– Distribute the load as evenly as possible.
– Place heavy objects as far forward in the luggage compartment
as possible.
– Secure luggage in the luggage compartment with suitable straps on the fastening rings.
WARNING
•
Loose luggage and other loose items in the vehicle can cause serious
injuries.
•
Loose objects in the luggage compartment can suddenly move and
change the way the vehicle handles.
•
During sudden manoeuvres or accidents, loose objects in the
passenger compartment can be flung forward, injuring vehicle occupants.
•
Always store objects in the luggage compartment and secure with suit-
able straps. This is especially important for heavy objects.
•
When you transport heavy objects, always keep in mind that a change
in the centre of gravity can also cause changes in vehicle handling.
•
Please observe information on safe driving ⇒page 7, “Safe driving”.
Caution
Hard objects on the shelf could chafe against the wires of the heating
element in the rear window and cause damage.
Note
The ventilation slots in front of the rear side windows must not be covered as
this would prevent stale air being extracted from the vehicle.
AlteaXL_DEF_ingles Seite 146 Freitag, 25. August 2006 2:19 14

Seats and stowage147
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Sliding stowage compartment tray
Operating the stowage compartment tray
– Pull the tray backwards using the lever until you hear a “click”
⇒fig. 120.
– Press the area marked “PRESS” and the tray automatically slides in.
To remove the storage compartment
– Push the side pin in the direction of the arrow, lift the tray and remove it ⇒fig. 121.
– Installation is done in the reverse order.
WARNING
Do not place heavy or hard objects on the luggage compartment tray, this
will endanger the vehicle occupants in case of sudden braking.
Note
•
Ensure that, when placing items of clothing on the luggage compartment
tray, rear visibility is not reduced.
Roof carrier*Please observe the following points if you intend to carry loads on the roof:•
For safety reasons, only luggage racks and accessories approved by SEAT
should be used.
•
You must adhere strictly to the installation instructions that come with the
racks. Be especially careful when positioning the front and back luggage
racks in the space provided in the roof racks, while making sure to maintain
Fig. 120 Operating the
stowage compartment
trayFig. 121 Removing the
stowage compartment
tray
AA
AlteaXL_DEF_ingles Seite 147 Freitag, 25. August 2006 2:19 14

Seats and stowage
148them in the direction of travel position as indicated in the installation
manual. Not following these instructions may lead to marks on the roof racks.•
Distribute the load evenly. A maximum load of 40 kg only is permitted for
each roof carrier system support bar, the load must be distributed evenly over
the entire length. However, the maximu m load permitted for the entire roof
(including the support system) of 75 kg must not be exceeded nor should the
total weight of the vehicle be exceeded. See the chapter on “Technical Data”.
•
When transporting heavy or large objects on the roof, any change in the
normal vehicle behaviour due to a change in the centre of gravity or an
increased wind resistance must be taken into account. For this reason, a suit-
able speed and driving style must be used.
•
For those vehicles fitted with a sunroof*, ensure that it does not interfere
with the load on the roof carrier system when opened.
AlteaXL_DEF_ingles Seite 148 Freitag, 25. August 2006 2:19 14

Air conditioning149
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Air conditioningHeating Operating instructions– Using the controls ⇒fig. 122 and and the control you
can set the temperature, air distribution and the turbine speed.
– To switch a function on or off, press the appropriate button or . When the function is activated, the display window in the
lower left of the button is lit.Temperature
With the regulator the heating level is determined. The required tempera-
ture inside the vehicle cannot be lower than the ambient temperature. Maximum heat output, which is needed to defrost the windows quickly, is
only available when the engine has reached its operating temperature.
Rear window heating

This function will be switched off automatically approximately
20 minutes
after being switched on. It can also be switched off beforehand by pushing
the button
Air recirculation mode

Air recirculation mode prevents st rong odours in the outside air from
entering the vehicle interior, for example when passing through a tunnel or in
queuing traffic ⇒.
Fig. 122 On the dash panel: Heater controls
A1
A4
A5A2
A3
A1
A2
A3
AlteaXL_DEF_ingles Seite 149 Freitag, 25. August 2006 2:19 14

Air conditioning
150With low ambient temperatures, the air recirculation increases the effective-
ness of the heating system by heating the air inside the passenger compart-
ment rather than the ambient air.
Air distribution
Control for setting the flow of air in the required direction. – Air distribution towards the windsc reen. Air recirculation is, for safety
reasons, not possible in this position. – Air distribution to the upper body. – Air distribution to foot well – Air distribution to the windscreen and the foot well.
Blower
The airflow can be set at four speeds with the control . The airflow should
always be set at the lowest speed when driving slowly.
WARNING
•
For road safety all windows must be clear of ice, snow, and condensa-
tion. This is essential to ensure good visibility. Please familiarise yourself
with the correct operation of the heat ing and ventilation system, including
the anti-fog/defrost functions for the windows.
•
In air recirculation mode, no ambient air enters the vehicle interior. The
windows can quickly fog over if the heating is switched off. Therefore, you
should never leave the air recirculation mode switched on for longer
periods, as this increases the risk of an accident.Note
Please observe the general notes ⇒page 158.
A4
A5
