Seats and stowageThe importance of correct seat adjustmentProper seat adjustment optimi ses the level of protection
offered by seat belts and airbags.Your vehicle has five passenger places, two individual front seats and three
places on the rear seat. Each seat is equipped with a three-point seat belt.
The driver seat and front passenger seat can be adjusted in many ways to suit
the physical requirements of the vehicle occupants. The correct seat position
is very important for:•
fast and easy operation of all controls on the instrument panel,
•
relaxed posture that does not cause drowsiness,
•
safe driving ⇒ page 7,
•
and to ensure that the seat belts and airbag system provide maximum
protection ⇒page 19.
WARNING
•
If the driver and passengers assume improper sitting positions, they
may sustain critical injuries.
•
Never transport more people than there are seats available in the
vehicle.
•
Every occupant in the vehicle must properly fasten and wear the seat
belt belonging to his or her seat. Children must be protected with an appro-
priate child restraint system ⇒page 46, “Child safety”.
•
The front seats and all headrests must always be adjusted to body size
and the seat belt must always be properly adjusted to provide you and your
passengers with optimum protection.
•
Always keep your feet in the foot well when the vehicle is moving; never
rest them on the dash panel, out of the window or on the seat. This also
applies to passengers. An incorrect sitting position exposes you to an
increased risk of injury in the event of a braking manoeuvre or an accident.
If the airbag is triggered, you could sustain severe injuries due to an incor-
rect sitting position.
•
It is important for the driver and front passenger to maintain a distance
of at least 25 cm from the steering wheel or dash panel. Failure to respect
the minimum distance means that the airbag will not protect you. Risk of
fatal injury. The distance between the driver and the steering wheel or
between the front passenger and the dash panel should always be as great
as possible.
•
Adjust the driver or front passenger seat only when the vehicle is
stationary. This also applies to the forwards/backwards adjustment of the
rear seats. Otherwise your seat coul d move unexpectedly while the vehicle
is moving. This could increase the risk of an accident and therefore injury.
In addition, while adjusting your seat, you will assume an incorrect sitting
position. Risk of fatal accidents.
•
Special guidelines apply to installing a child seat on the front
passenger seat. When installing a child seat, observe the warning note in
the ⇒page 46, “Child safety”.WARNING (continued)
AlteaXL_DEF_ingles Seite 127 Freitag, 25. August 2006 2:19 14

Seats and stowage
128HeadrestsCorrect adjustment of headrests
Properly adjusted headrests ar e an important part of occu-
pant protection and can reduce the risk of injuries in most
accident situations.
– Adjust the headrest so that its upper edge is at the same level as
the top of your head, or as close as possible to the same level as
the top of your head and, at a very minimum at eye level
⇒fig. 90 and ⇒fig. 91 .Adjusting the headrests ⇒page 129.
WARNING
•
Travelling with the headrests removed or improperly adjusted
increases the risk of severe injuries.
•
Improperly adjusted headrests could lead to death in the event of a
collision or accident.
•
Incorrectly adjusted headrests also increase the risk of injury during
sudden or unexpected driving or braking manoeuvres.
•
The headrests must always be adjusted according to the occupant’s
size.
Fig. 90 Viewed from in
front: Properly adjusted
headrests and proper belt
adjustment
Fig. 91 Viewed from side:
Properly adjusted head-
rests and proper belt
adjustment
AlteaXL_DEF_ingles Seite 128 Freitag, 25. August 2006 2:19 14

Seats and stowage129
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Removing or adjusting headrests
The headrests can be adjusted by moving them up and down.Adjusting height (front seats)
– Press the button on the side and pull upwards to the desired
position.
– To lower the headrest, press the button and push headrest down- wards.
– Make sure that it engages securely into position.
Adjusting height (rear seats)
– Press the button on the side and pull upwards to the desired
position.
– To lower the headrest, press the button and push headrest down- wards. – Make sure that the headrest engages securely in one of its posi-
tions ⇒page 14.
Angle adjustment (front seats)
– Press the head rest forward or back to the required position.
Removing the headrests
– Push the head rest up as far as it will go.
– Press the button ⇒fig. 92 (arrow).
– Pull head rest out of fitting without releasing the button.
Fitting the head rests
– Insert the headrest into the guides on the rear backrest.
– Push headrest down.
– Adjust the headrest to suit body size ⇒page 14 and ⇒ page 13.
WARNING
•
Never drive if the headrest have been removed. Risk of injury.
•
Never drive if the headrests are in an unsuitable position, there is a risk
of serious injury.
•
After refitting the headrests, you must always adjust it properly for
height to achieve optimal protection.
•
Please observe the safety warnings ⇒page 128, “Correct adjustment
of headrests”.
Fig. 92 Adjusting and
removing the headrests
AlteaXL_DEF_ingles Seite 129 Freitag, 25. August 2006 2:19 14

Seats and stowage
130Front seatsAdjustment of the front seatsThe control elements in ⇒fig. 93 are mirrored for the front right-
hand seat.
Adjusting the seat forwards and backwards
– Pull up the lever and move the seat forwards or backwards.
– Then release the lever and move the seat further until the catch engages.
Adjusting the seat height*
– Pull the lever up or push down (s everal times if necessary) from
its home position. This adjusts the seat height in stages. Adjusting the backrest angle
– Take your weight off the backrest and turn the hand wheel.
Adjusting the lumbar support*
– Take your weight off the backrest and turn the hand wheel to adjust the lumbar support.
The backrest curvature of the cushioned area is determined by the settings
made in the lumbar region. This supports the natural curvature of the spine
very effectively.
WARNING
•
Never adjust the driver or front passenger seat while the vehicle is in
motion. While adjusting your seat, you will assume an incorrect sitting
position. Risk of fatal accidents. Adju st the driver or front passenger seat
only when the vehicle is stationary.
•
To reduce the risk of injury to th e driver and front passenger during
sudden braking manoeuvres or an acci dent, never drive with the backrest
tilted far to the rear. The maximum protection of the seat belt can be
achieved only when the backrests are in an upright position and the driver
and front passenger have properly adjusted their seat belts. The further
the backrests are tilted to the rear, the greater the risk of injury due to
improper positioning of the belt web!
•
Exercise caution when adjusting the seat height or forwards/back-
wards position. Injuries can be caused if the backrest is tilted without due
care and attention.

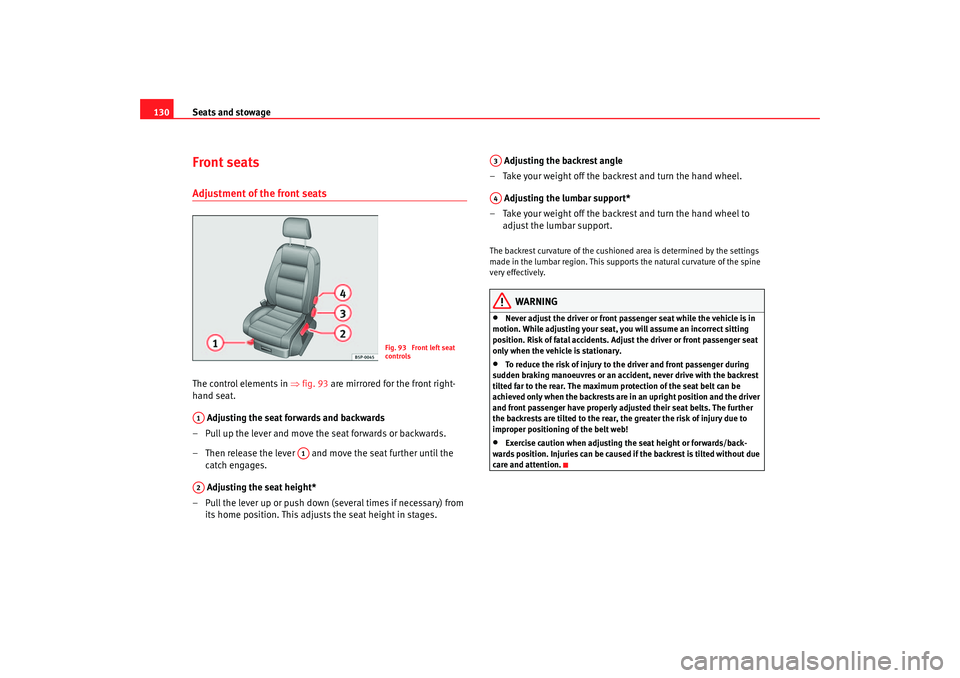

Fig. 93 Front left seat
controls
A1
A1
A2
A3A4
AlteaXL_DEF_ingles Seite 130 Freitag, 25. August 2006 2:19 14

Seats and stowage131
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Heated seats*

The front seat cushions and backrests can be heated electri-
cally.
– Turn the appropriate thumb wheel ⇒fig. 94 to switch on the seat
heating. The seat heating is switched off in the 0 position.The seat heating only works when the ignition is switched on. The left thumb
wheel controls the left seat and the right thumb wheel the right seat.
Caution
To avoid damaging the heating elements, please do not kneel on the seat or
apply sharp pressure at a single poin t to the seat cushion and backrest.
Rear seat benchSeat adjustment
Fig. 94 Thumb wheel for
the front seat heating
Fig. 95 Unlocking bar for
the rear seatFig. 96 Rear seat back-
rest angle adjustment
AlteaXL_DEF_ingles Seite 131 Freitag, 25. August 2006 2:19 14

Seats and stowage
132
The seats may be moved forwards or backwards independently. The
movement can be 1/3 or 2/3 of the seat. There are various possible
positions.
Adjusting reach
– In the seated position, unlock the lever in the direction of the arrow ⇒page 131, fig. 95 .
– Move the seat forwards or backwards to the desired position.
Backrest angle adjustment
– Hold the backrest at the top. Pull the loop on the side of the seat
⇒ page 131, fig. 96 in the direction of the arrow and hold the
loop in this position. Push the backrest to the required position
and release the loop.
WARNING
•
Adjust the seat only when the vehicle is stationary. Otherwise your seat
could move unexpectedly while the vehicle is moving. This could increase
the risk of an accident and therefore injury.
•
Do not push the seatbacks down until the seat is moved, this is to avoid
damage to the centre console.
•
Ensure that the seat, once mo ved, is fixed in position.Note
•
In order to maintain the maximum luggage compartment space, put the
seatbacks in normal position, without moving.
•
In order to maintain the maximum space without putting the seatbacks
down, move the seats forward to the desired position.
Folding the seat backrests down – Pull the loop on the side of the seat ⇒ fig. 97 In this position the back rest is locked. This is the reason why the loop located
on the side of the seat must be pulled in the direction of the arrow to open the
backrest.
WARNING
•
You should check that the backrest has engaged properly in position
after the loop is released.
•
The locking system loops on the seat s may not, for safety reasons, be
used to secure any items.
A1
Fig. 97 Folding or
opening the rear seat
backrestsA1
AlteaXL_DEF_ingles Seite 132 Freitag, 25. August 2006 2:19 14

Seats and stowage133
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Folding the rear seat backrests down– Pull the loop on the side of the seat ⇒fig. 98 in the direction
of the arrow and lift the seat backrest into position.
WARNING
•
You should check that the backrest has engaged properly in position
after the loop is released.
•
The locking system loops on the seats may not, for safety reasons, be
used to secure any items.
•
After locking the seat backrest into position ensure that the seat belts
protrude from the seat.
Stowage compartmentsStowage compartment on the front passenger sideThe compartment can be opened by pulling the lever ⇒fig. 99 .
WARNING
Always keep the stowage compartment cover closed while the vehicle is in
motion to reduce the risk of injury during a sudden braking manoeuvre or
in the event of an accident.
Fig. 98 Folding or
opening the front seat
backrestsA1
Fig. 99 Passenger side:
Stowage compartment
AlteaXL_DEF_ingles Seite 133 Freitag, 25. August 2006 2:19 14

Seats and stowage
134Centre arm rest at front with stowage area
There is a stowage area in the armrest.– To open the stowage area, lift the armrest up in the direction of
the arrow ⇒fig. 100 and then lift the cover.
– To access the CD loader* or the lower stowage area, pull on the armrest cover without pressing on the button.
– To close the stowage area, push the armrest down.
WARNING
Always keep the stowage area closed while the vehicle is in motion to
reduce the risk of injury from the armrest during a sudden braking
manoeuvre or in the event of an accident.
Note
The CD changer is located in this compartment.Stowage areas under the front seats
There is a stowage locker with a cover under each front seat.The drawer* ⇒fig. 101 is opened by pushing the button and putting the
cover back.
There are two open positions of 15 and 60 degrees depending on the pres-
sure applied to the cover. In the 60 degree position, the cover will collapse if
too much pressure is applied.
To close the drawer, press the cover until it locks into position.
Fig. 100 Front armrest
with stowage area
Fig. 101 Stowage area
under the front seats
AA
AlteaXL_DEF_ingles Seite 134 Freitag, 25. August 2006 2:19 14
