2007 SATURN SKY fuses

If the engine still does not start, and the key does
not appear to be damaged, try another ignition key.
At this time, you may also want to check the fuse,
seeFuses and Circuit Breakers on page 325.
If the engine still does not start with the other key,
your vehicle needs service. If your vehicle does
start, the rst key may be faulty. See your retailer
who can service the PASS-Key
®III+ to have a new
key made. In an emergency, contact Roadside
Assistance. SeeRoadside Assistance Program
on page 359.
It may be possible for the PASS-Key
®III+ decoder
to “learn” the transponder value of a new or
replacement key. Up to 10 keys may be
programmed for the vehicle. The following
procedure is for programming additional keys
only. If all the currently programmed keys are lost
or do not operate, you must see your retailer or
a locksmith who can service PASS-Key
®III+ to
have keys made and programmed to the system.
See your retailer or a locksmith who can service
PASS-Key
®III+ to get a new key blank that is
cut exactly as the ignition key that operates
the system.To program the new key do the following:
1. Verify that the new key has a
1stamped on it.
2. Insert the already programmed key in the
ignition and start the engine. If the engine
will not start, see your retailer for service.
3. After the engine has started, turn the key to
LOCK, and remove the key.
4. Insert the key to be programmed and turn it to
the RUN position within ve seconds of the
original key being turned to LOCK.
5. The security light will turn off once the key
has been programmed.
6. Repeat Steps 1 through 5 if additional keys
are to be programmed.
If you are ever driving and the security light comes
on and stays on, you may be able to restart
your engine if you turn it off. Your PASS-Key
®III+
system, however, is not working properly and
must be serviced by your retailer. Your vehicle is
not protected by the PASS-Key
®III+ system
at this time.
If you lose or damage your PASS-Key
®III+ key,
see your retailer or a locksmith who can service
PASS-Key
®III+ to have a new key made.
76
ProCarManuals.com

Turn and Lane-Change Signals
The turn signal has two upward (for right) and
two downward (for left) positions. These positions
allow you to signal a turn or a lane change.
To signal a turn, move the lever all the way up or
down. When the turn is nished, the lever will
return automatically.
An arrow on the
instrument panel cluster
will ash in the
direction of the turn or
lane change.
To signal a lane change, raise or lower the lever
until the arrow starts to ash. Hold it there until you
complete your lane change. The lever will return
by itself when you release it.
As you signal a turn or a lane change, if the arrows
ash rapidly, a signal bulb may be burned out and
other drivers will not see your turn signal. If a bulb is
burned out, replace it to help avoid an accident.
If the arrows do not go on at all when you signal a
turn, check the fuse. SeeFuses and Circuit
Breakers on page 325.
Headlamp High/Low-Beam Changer
To change the headlamps from low beam to high
beam, push the turn signal lever away from you.
When the high beams
are on, this light on the
instrument panel
cluster will also be on.
To change the headlamps from high beam to low
beam, pull the turn signal lever toward you.
Flash-to-Pass
This feature lets you use your high-beam
headlamps to signal a driver in front of you that
you want to pass.
To use it, pull the turn signal/multifunction lever
toward you until the high-beam headlamps
come on, then release the lever to turn them off.
112
ProCarManuals.com

Battery Run-Down Protection
Your vehicle has a battery saver feature designed
to protect your vehicle’s battery.
When any interior lamp is left on and the ignition
is turned off, the battery rundown protection
system will automatically turn the lamp off after
20 minutes. This will avoid draining the battery.
Accessory Power Outlet(s)
The accessory power outlet can be used to
connect electrical equipment such as a cellular
phone or CB radio.
The accessory power outlet is located on the
instrument panel, to the right of the radio.
To use the outlet, remove the cover. When not in
use, always cover the outlet with the protective cap.
Notice:Leaving electrical equipment plugged
in for an extended period of time while the
vehicle is off will drain the battery. Power is
always supplied to the outlets. Always unplug
electrical equipment when not in use and
do not plug in equipment that exceeds
the maximum 20 ampere rating.Certain electrical accessories may not be
compatible with the accessory power outlet and
could result in blown vehicle or adapter fuses.
If you experience a problem, see your retailer for
additional information on the accessory power
outlet.
Notice:Adding any electrical equipment to
your vehicle may damage it or keep other
components from working as they should.
The repairs would not be covered by your
warranty. Do not use equipment exceeding
maximum amperage rating of 20 amperes.
Check with your retailer before adding
electrical equipment.
When adding electrical equipment, be sure to
follow the installation instructions included with
the equipment.
Notice:Improper use of the power outlet can
cause damage not covered by your warranty.
Do not hang any type of accessory or
accessory bracket from the plug because the
power outlets are designed for accessory
power plugs only.
121
ProCarManuals.com

Tires............................................................ 284
Winter Tires.............................................. 286
Tire Sidewall Labeling............................... 287
Tire Terminology and Denitions............... 289
Ination - Tire Pressure............................. 292
Tire Inspection and Rotation...................... 294
When It Is Time for New Tires.................. 296
Buying New Tires...................................... 296
Different Size Tires and Wheels................ 298
Uniform Tire Quality Grading..................... 299
Wheel Alignment and Tire Balance............ 300
Wheel Replacement.................................. 300
Tire Chains............................................... 303
If a Tire Goes Flat.................................... 303
Tire Inator Kit.......................................... 304
Appearance Care........................................ 315
Cleaning the Inside of Your Vehicle.......... 315
Fabric/Carpet............................................. 316
Leather...................................................... 317
Instrument Panel, Vinyl, and
Other Plastic Surfaces........................... 317
Care of Safety Belts.................................. 318
Weatherstrips............................................ 318
Washing Your Vehicle............................... 318Cleaning Exterior Lamps/Lenses................ 319
Finish Care............................................... 319
Windshield and Wiper Blades.................... 319
Convertible Top......................................... 320
Aluminum or Chrome-Plated Wheels......... 320
Tires......................................................... 321
Sheet Metal Damage................................. 321
Finish Damage.......................................... 322
Underbody Maintenance............................ 322
Chemical Paint Spotting............................ 322
Vehicle Care/Appearance Materials............ 323
Vehicle Identication.................................. 324
Vehicle Identication Number (VIN)........... 324
Service Parts Identication Label............... 324
Electrical System........................................ 325
Add-On Electrical Equipment..................... 325
Headlamp Wiring....................................... 325
Power Windows and Other
Power Options....................................... 325
Fuses and Circuit Breakers....................... 325
Floor Console Fuse Block......................... 326
Underhood Fuse Block.............................. 328
Capacities and Specications.................... 331
Section 5 Service and Appearance Care
232
ProCarManuals.com

Electrical System
Add-On Electrical Equipment
Notice:Do not add anything electrical to your
vehicle unless you check with your retailer
rst. Some electrical equipment can damage
your vehicle and the damage would not
be covered by your warranty. Some add-on
electrical equipment can keep other
components from working as they should.
Your vehicle has an airbag system. Before
attempting to add anything electrical to your
vehicle, seeServicing Your Airbag-Equipped
Vehicle on page 54.
Headlamp Wiring
The headlamp wiring is protected by fuses.
An electrical overload will cause the lamps to
remain off. If this happens, have your headlamp
wiring checked right away.
Power Windows and Other
Power Options
Circuit breakers protect the power windows and
other power accessories. When the current load is
too heavy, the circuit breaker opens and closes,
protecting the circuit until the problem is xed
or goes away.
Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected from
short circuits by a combination of J-Case fuses,
mini-fuses and circuit breakers. This greatly reduces
the chance of res caused by electrical problems.
Look at the silver-colored band inside the fuse.
If the band is broken or melted, replace the
fuse. Be sure you replace a bad fuse with a new
one of the identical size and rating.
If you ever have a problem on the road and do
not have a spare fuse, you can borrow one that has
the same amperage. Just pick some feature of your
vehicle that you can get along without – like the
radio or cigarette lighter – and use its fuse, if it is the
correct amperage. Replace it as soon as you can.
325
ProCarManuals.com

Floor Console Fuse Block
The oor console fuse block is located on the
passenger’s side of the vehicle under the carpet.
Remove the fuse block cover to access the
fuses. Use the fuse puller to remove fuses.
After re-installing the fuse block cover, be sure to
tuck the carpet under the heater oor outlets.
Fuses Usage
1 Fuse Puller
2 Empty
3 Empty
4 Empty
5 Empty
326
ProCarManuals.com

Fuses Usage
6 Amplier
7 Cluster
8 Ignition Switch, PassKey III+
9 Stoplamp
10Climate Control System,
PassKey III+
11 Empty
12 Spare
13 Airbag
14 Spare
15 Wiper
16Climate Control System,
Automatic Occupant Sensing
Module, Clutch Switch, Crank
Relay, Instrument Panel Cluster
17 Empty
18 EmptyFuses Usage
19Electric Power Steering,
Steering Wheel Controls
20 Spare
21 Spare
22 Empty
23 Radio
24 Sensing and Diagnostic Module
25Engine Control Module,
Transmission Control Module
26 Door Locks
27 Interior Lamps
28 Steering Wheel Control Backlighting
29 Power Windows
30 Climate Control System
31 Empty
32 Retained Accessory Power
327
ProCarManuals.com

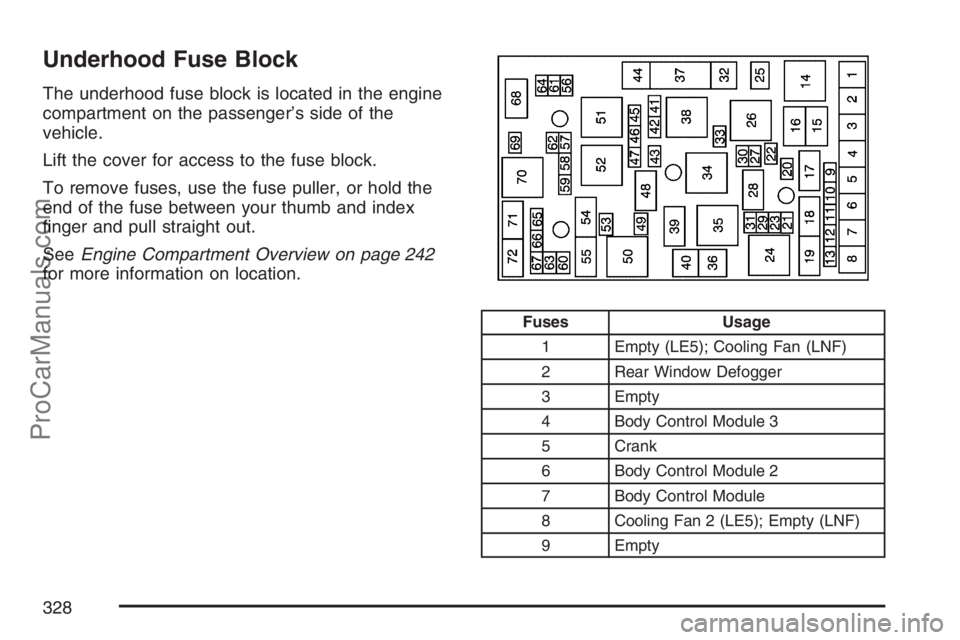

Underhood Fuse Block
The underhood fuse block is located in the engine
compartment on the passenger’s side of the
vehicle.
Lift the cover for access to the fuse block.
To remove fuses, use the fuse puller, or hold the
end of the fuse between your thumb and index
nger and pull straight out.
SeeEngine Compartment Overview on page 242
for more information on location.
Fuses Usage
1 Empty (LE5); Cooling Fan (LNF)
2 Rear Window Defogger
3 Empty
4 Body Control Module 3
5 Crank
6 Body Control Module 2
7 Body Control Module
8 Cooling Fan 2 (LE5); Empty (LNF)
9 Empty
328
ProCarManuals.com
