ANTI-LOCK BRAKING SYSTEM
Fault finding - Interpretation of faults
38C
38C - 17V2 MR-372-J84-38C000$396_eng.mif
BOSCH ABS 8.0
Vdiag No.: 0C, 0D
DF007
PRESENT
OR
STOREDLEFT-HAND REAR WHEEL SPEED SENSOR CIRCUIT
CO.0 : Open circuit or short circuit to earth
1.DEF : Magnetic/mechanical target fault
Vdiag No.: 0C, 0D
NOTESSpecial notes:
The wheel speed sensors are fed with + 12 V APC but this feed cannot be measured
on Vdiag 0C and 0D (feed cut off when the sensor is faulty).
Conditions for applying the fault finding procedure to stored faults:
The fault is declared present following a road test at a speed of > 36 mph (60 km/h).
CO.0
NOTESNone
Check the connection and the condition of the sensor connectors.
Swap the two rear wheel speed sensors over.
Clear the computer's fault memory.
Carry out a road test followed by another check with the diagnostic tool.
If the fault initially declared DF007 "Rear left-hand wheel speed sensor circuit" becomes DF027 "Rear
right-hand wheel speed sensor circuit", replace the wheel speed sensor.
If the fault remains on the same side, the wiring between the computer and the sensor is faulty.
Check the connection and the condition of the computer connectors. Repair if necessary.
Check the connections (Track 31 and 32) at the R2 black 52-track intermediate connection beneath the front
left-hand seat. Repair if necessary.
Check and ensure the continuity of the following connections:
Sensor connector one of the 2 tracks Track 6 computer connector
Sensor connector the other track Track 17 computer connector
Also check the insulation between these two connections.
If the connections are faulty, carry out the following checks:
Check the insulation, continuity and absence of interference resistance between:
Computer connector track 6 Track 32 on the intermediate connector
Computer connector track 17 Track 31 on the intermediate connector
AFTER REPAIRClear the computer fault memory.
Carry out a road test followed by another check with the diagnostic tool.
ABS8.0_V0C_DF007 /ABS8.0_V0D_DF007ABS 8.0X84 4.0

ANTI-LOCK BRAKING SYSTEM
Fault finding - Interpretation of faults
38C
38C - 18V2 MR-372-J84-38C000$396_eng.mif
BOSCH ABS 8.0
Vdiag No.: 0C, 0D
DF007
CONTINUED
Vdiag No.: 0C, 0D
Also check the insulation between the following two connections. Repair or replace the wiring if necessary.
Check the insulation, continuity and absence of interference resistance between:
Sensor connector one of the 2 tracks Track 31 on the intermediate connector
Sensor connector the other track Track 32 on the intermediate connector
Also check the insulation between these two connections. Repair or replace the wiring if necessary.

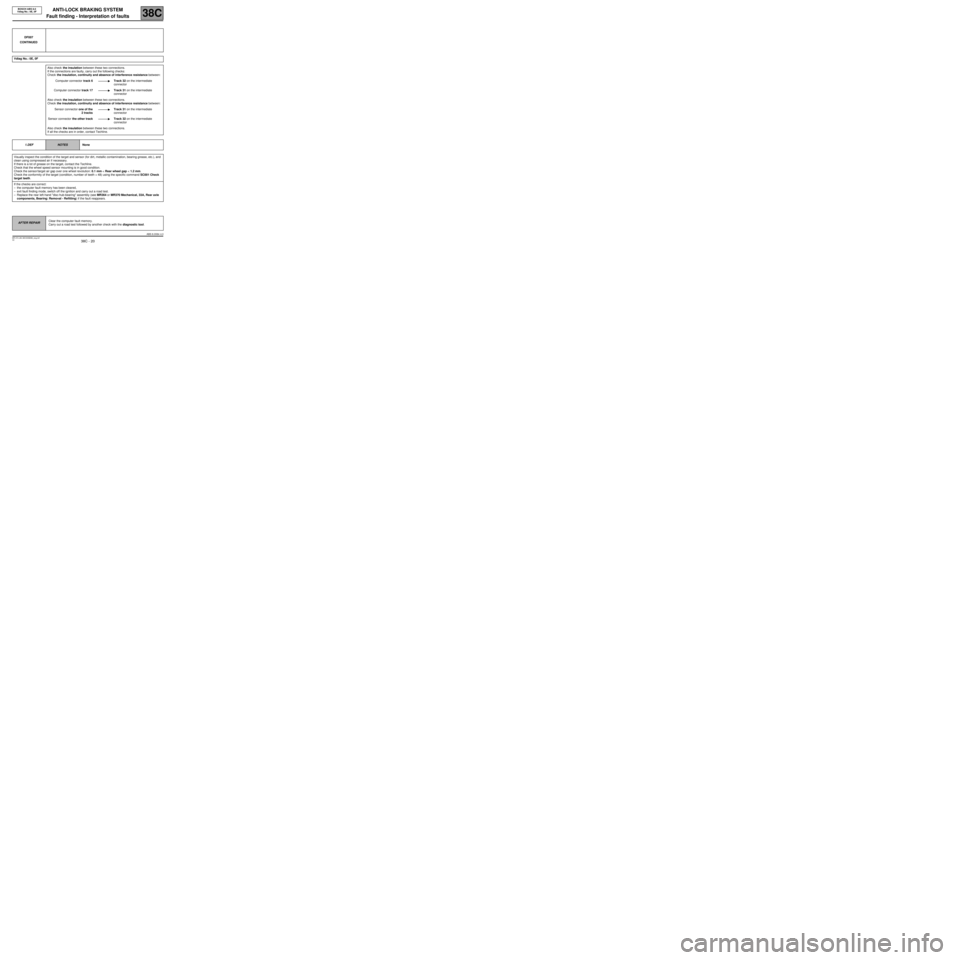

1.DEF
NOTESNone
Visually inspect the condition of the target and sensor (for dirt, metallic contamination, bearing grease, etc.), and
clean using compressed air if necessary.
If there is a lot of grease on the target, contact the Techline.
Check that the wheel speed sensor mounting is in good condition.
Check the sensor/target air gap through one wheel revolution: 0.1 mm < Rear wheel air gap < 1.2 mm.
Check the conformity of the target (condition, number of teeth = 48) using the specific command SC001 Check
target teeth.
If the checks are correct:
–the computer fault memory has been cleared,
–exit fault finding mode, switch off the ignition and carry out a road test.
–Replace the rear left-hand "disc-hub-bearing" assembly (see MR364 or MR370 Mechanical, 33A, Rear axle
components, Bearing: Removal - Refitting) if the fault reappears.
AFTER REPAIRClear the computer fault memory.
Carry out a road test followed by another check with the diagnostic tool.
ABS 8.0X84 4.0

ANTI-LOCK BRAKING SYSTEM
Fault finding - Interpretation of faults
38C
38C - 19V2 MR-372-J84-38C000$396_eng.mif
BOSCH ABS 8.0
Vdiag No.: 0E, 0F
DF007
PRESENT
OR
STOREDLEFT-HAND REAR WHEEL SPEED SENSOR CIRCUIT
CO.0 : Open circuit or short circuit to earth
1.DEF : Magnetic/mechanical target fault
2.DEF : Open circuit or short circuit
Vdiag No.: 0E, 0F
NOTESNone
Conditions for applying the fault finding procedure to stored faults:
The fault is declared present following a road test at a speed of > 36 mph (60 km/h).
CO.0
2.DEF
NOTESSpecial notes:
You must use command AC013 once only.
Check the connection and the condition of the sensor connectors.
Disconnect the sensor, use command AC013 "Test wheel speed sensor supply" and check that pulses of
voltage of about 12 V are detected by a multimeter at the sensor connector terminals on the computer side.
Have you found voltage pulses?
YES
The wiring between the computer and the sensor, as well the supply via the computer,
is OK. Rear left-hand wheel speed sensor fault - replace the sensor.
Check the connection and the condition of the computer connectors. Repair if necessary.
Check the connections (Track 31 and 32) at the R2 black 52-track intermediate
connection beneath the front left-hand seat. Repair if necessary.
Check and ensure the continuity of the following connections:
Sensor connector one of the
2 tracksTrack 6 computer connector
Sensor connector the other track Track 17 computer connector
NO
AFTER REPAIRClear the computer fault memory.
Carry out a road test followed by another check with the diagnostic tool.
ABS8.0_V0E_DF007/ ABS8.0_V0F_DF007ABS 8.0X84 4.0

ANTI-LOCK BRAKING SYSTEM
Fault finding - Interpretation of faults
38C
38C - 20V2 MR-372-J84-38C000$396_eng.mif
BOSCH ABS 8.0
Vdiag No.: 0E, 0F
DF007
CONTINUED
Vdiag No.: 0E, 0F
Also check the insulation between these two connections.
If the connections are faulty, carry out the following checks:
Check the insulation, continuity and absence of interference resistance between:
Computer connector track 6 Track 32 on the intermediate
connector
Computer connector track 17 Track 31 on the intermediate
connector
Also check the insulation between these two connections.
Check the insulation, continuity and absence of interference resistance between:
Sensor connector one of the
2 tracksTrack 31 on the intermediate
connector
Sensor connector the other track Track 32 on the intermediate
connector
Also check the insulation between these two connections.
If all the checks are in order, contact Techline.
1.DEFNOTESNone
Visually inspect the condition of the target and sensor (for dirt, metallic contamination, bearing grease, etc.), and
clean using compressed air if necessary.
If there is a lot of grease on the target, contact the Techline.
Check that the wheel speed sensor mounting is in good condition.
Check the sensor/target air gap over one wheel revolution: 0.1 mm < Rear wheel gap < 1.2 mm.
Check the conformity of the target (condition, number of teeth = 48) using the specific command SC001 Check
target teeth.
If the checks are correct:
–the computer fault memory has been cleared,
–exit fault finding mode, switch off the ignition and carry out a road test.
–Replace the rear left-hand "disc-hub-bearing" assembly (see MR364 or MR370 Mechanical, 33A, Rear axle
components, Bearing: Removal - Refitting) if the fault reappears.
AFTER REPAIRClear the computer fault memory.
Carry out a road test followed by another check with the diagnostic tool.
ABS 8.0X84 4.0

ANTI-LOCK BRAKING SYSTEM
Fault finding - Interpretation of faults
38C
38C - 21V2 MR-372-J84-38C000$396_eng.mif
BOSCH ABS 8.0
Vdiag No.: 0C, 0D, 0E, 0F
DF017
PRESENT
OR
STOREDCOMPUTER
1.DEF : Feed fault or internal electronic fault
2.DEF : Programming / initialisation invalid
NOTESSpecial notes:
The voltage displayed in the parameter (PR005) is the + after ignition feed voltage of
the computer and not the hydraulic unit power feed.
Conditions for applying the fault finding procedure to stored faults:
The fault is declared present following a road test at a speed of > 36 mph (60 km/h).
Check the connections and the condition of the battery terminals.
Check the condition and position of the ABS fuses in the engine fuse and relay box.
Check the 50A power fuse in position 5 on the power fuse board.
Check the 25A fuse F13 on the UPC and the correct locking of the grey 4-track PPHI connector (Vdiag 44) or
test the 25A fuse F8 on the UPC and the correct locking of the black 6-track CM connector (Vdiag 48).
Check the connection and condition of the tab 1 red wire of the grey connector.
Check the connections on the 26-track connector of the ABS computer.
Check the ABS earths on tracks 1 and 4 (attached under the ABS unit) and carry out an inspection of the entire
ABS wiring.
Check the continuity between the fuses and tracks 2 and 3 of the computer connector (+ Before ignition present
on the tracks) and between the UCH and track 18 of the computer (+ After ignition present on the track).
Clear the computer fault memory. Switch off the ignition.
Switch on the ignition again and carry out another check using the diagnostic tool.
If the fault is still present, contact the Techline.
2.DEF
NOTESSpecial notes:
No programming for PR020 Vehicle speed at initialisation.
ABS warning light flashing at 8 Hz outside fault finding
conditions.
Run command VP032 and select "Type 1" or "Type 2" according to the information supplied by the diagnostic tool.
Clear the computer fault memory, switch the ignition off and carry out a road test. If the fault is still present, contact
the Techline.
AFTER REPAIRClear the computer fault memory.
Carry out a road test followed by another check with the diagnostic tool.
ABS8.0_V0C_DF017 /ABS8.0_V0D_DF017/ABS8.0_V0E_DF017/ABS8.0_V0F_DF017 ABS 8.0X84 4.0

ANTI-LOCK BRAKING SYSTEM
Fault finding - Interpretation of faults
38C
38C - 22V2 MR-372-J84-38C000$396_eng.mif
BOSCH ABS 8.0
Vdiag No.: 0C, 0D, 0E, 0F
DF020
PRESENT
TACHOMETRIC INDEX PROGRAMMING
NOTESSpecial notes:
ABS warning light flashing at 8 Hz outside fault finding conditions.
The BOSCH ABS 8.0 computer supplies the vehicle speed signal to all vehicle systems that use this information
(instrument panel, engine management, etc.).
This vehicle speed signal replaces the one supplied by the speed sensor located on the gearbox. The ABS
computer calculates the vehicle speed from the speed of the wheels and the circumference of the tyres fitted on
the vehicle.
Note:
The vehicle speed is sent by wire (track 23) to the xenon bulb computer, radio and electric sunroof, and via the
multiplex network to the other computers.
The tyre circumference must be programmed into the memory of a new computer. This consists of
entering a number X using the VP007 "Tachometric index" command on the diagnostic tool.
Once the index has been entered using the VP007 command, clear the computer fault memory and then switch
off the ignition.
Use the parameter PR030 to check that the index entered has been stored correctly.
If the fault is still present, contact the Techline.
AFTER REPAIRClear the computer fault memory.
Carry out a road test followed by another check with the diagnostic tool.
ABS8.0_V0C_DF020 /ABS8.0_V0D_DF020/ABS8.0_V0E_DF020/ABS8.0_V0F_DF020 ABS 8.0X84 4.0

ANTI-LOCK BRAKING SYSTEM
Fault finding - Interpretation of faults
38C
38C - 23V2 MR-372-J84-38C000$396_eng.mif
BOSCH ABS 8.0
Vdiag No.: 0C, 0D
DF026
PRESENT
OR
STOREDRIGHT-HAND FRONT WHEEL SPEED SENSOR CIRCUIT
CO.0 : Open circuit or short circuit to earth
1.DEF : Magnetic/mechanical target fault
Vdiag No.: 0C, 0D
NOTESSpecial notes:
The wheel speed sensors are fed with + 12 V APC but this feed cannot be measured
on Vdiag 0C and 0D (feed cut off when the sensor is faulty).
Conditions for applying the fault finding procedure to stored faults:
The fault is declared present following a road test at a speed of > 36 mph (60 km/h).
CO.0
NOTESNone
Check the connection and the condition of the sensor connectors.
Swap the two front wheel speed sensors over.
Clear the computer fault memory.
Carry out a road test followed by another check with the diagnostic tool.
If the DF026 Front right-hand wheel speed sensor circuit fault initially declared changes to DF006 Front
left- hand wheel speed sensor circuit present, replace the wheel speed sensor.
If the fault remains on the same side, the wiring between the computer and the sensor is faulty.
Check the connection and the condition of the computer connectors. Repair if necessary.
Check and ensure the continuity of the following connections:
Sensor connector one of the 2 tracks Track 9 computer connector
Sensor connector the other track Track 10 computer connector
Also check the insulation between these two connections.
Repair if necessary.
AFTER REPAIRClear the computer fault memory.
Carry out a road test followed by another check with the diagnostic tool.
ABS8.0_V0C_DF026 /ABS8.0_V0D_DF026ABS 8.0X84 4.0

ANTI-LOCK BRAKING SYSTEM
Fault finding - Interpretation of faults
38C
38C - 24V2 MR-372-J84-38C000$396_eng.mif
BOSCH ABS 8.0
Vdiag No.: 0C, 0D
DF026
CONTINUED
Vdiag No.: 0C, 0D
1.DEF
NOTESNone
Visually inspect the condition of the target and sensor (for dirt, metallic contamination, bearing grease, etc.), and
clean using compressed air if necessary.
If there is a lot of grease on the target, contact the Techline.
Check the quality of the mounting of the wheel speed sensor (correct clipping without excessive play).
Check the sensor/target air gap over one wheel revolution: 0.1 mm < front wheel air gap < 1.2 mm.
Check the conformity of the target (condition, number of teeth = 48) using the specific command SC001 Check
target teeth.
If the checks are correct:
–the computer fault memory has been cleared,
–exit fault finding mode, switch off the ignition and carry out a road test.
Replace the instrumented bearing if the fault recurs.
AFTER REPAIRClear the computer fault memory.
Carry out a road test followed by another check with the diagnostic tool.
ABS 8.0X84 4.0
