2007 PONTIAC VIBE engine

How to Add Coolant to the Radiator
1. You can remove the radiator pressure cap
when the cooling system, including the radiator
pressure cap and upper radiator hose, is no
longer hot. Turn the pressure cap slowly
counterclockwise until it rst stops. Do not
press down while turning the pressure cap.
If you hear a hiss, wait for that to stop. A hiss
means there is still some pressure left.
2. Then keep turning the pressure cap, but now
push down as you turn it. Remove the
pressure cap.3. Fill the radiator with the proper coolant
mixture, up to the base of the ller neck.
SeeEngine Coolant on page 294for more
information about the proper coolant mixture.
302

4. Then ll the coolant recovery tank to the
FULL mark.
5. Put the cap back on the coolant recovery tank,
but leave the radiator pressure cap off.6. Start the engine and let it run until you can
feel the upper radiator hose getting hot.
Watch out for the engine cooling fan.
7. By this time, the coolant level inside the
radiator ller neck may be lower. If the level is
lower, add more of the proper coolant
mixture through the ller neck until the level
reaches the base of the ller neck.
8. Then replace the pressure cap. At any time
during this procedure if coolant begins to ow
out of the ller neck, reinstall the pressure
cap. Be sure the ears on the pressure cap are
in line with the vent tube.
303

Power Steering Fluid
The power steering uid
reservoir is located in
the engine compartment
on the passenger’s
side of the vehicle. See
Engine Compartment
Overview on page 282
for reservoir location.
When to Check Power Steering Fluid
It is not necessary to regularly check power
steering uid unless you suspect there is a leak in
the system or you hear an unusual noise. A
uid loss in this system could indicate a problem.
Have the system inspected and repaired.
How to Check Power Steering Fluid
You can check your uid without taking the cap off.
Just look at the reservoir.
When the engine compartment is hot, the
level should be between the HOT marks.
When the engine compartment is cool, the
level should be between the COLD marks.
What to Use
To determine what kind of uid to use, see
Part D: Recommended Fluids and Lubricants on
page 394.
Notice:When adding power steering uid or
making a complete uid change, always
use the proper uid. Failure to use the proper
uid can cause leaks and damage hoses
and seals.
304

Windshield Washer Fluid
What to Use
When you need windshield washer uid, be sure
to read the manufacturer’s instructions before
use. If you will be operating your vehicle in an area
where the temperature may fall below freezing,
use a uid that has sufficient protection against
freezing.
Adding Washer Fluid
If your vehicle has the low windshield washer uid
level warning light, it will come on when the
uid level is too low. SeeLow Washer Fluid
Warning Light on page 175.
Open the cap with the
washer symbol on it.
Add washer uid
until the tank is full. See
Engine Compartment
Overview on page 282
for reservoir location.Notice:
When using concentrated washer uid,
follow the manufacturer’s instructions
for adding water.
Do not mix water with ready-to-use washer
uid. Water can cause the solution to
freeze and damage your washer uid tank
and other parts of the washer system.
Also, water does not clean as well
as washer uid.
Fill your washer uid tank only
three-quarters full when it is very cold.
This allows for expansion if freezing
occurs, which could damage the tank if it
is completely full.
Do not use engine coolant (antifreeze) in
your windshield washer. It can damage
your washer system and paint.
305

Brakes
Brake Fluid
The hydraulic clutch and
brake master cylinder
use the same reservoir.
It is lled with DOT-3
brake uid. SeeEngine
Compartment
Overview on page 282
for the location of
the reservoir.
There are only two reasons why the brake uid
level in the reservoir might go down. The rst
is that the brake uid goes down to an acceptable
level during normal brake lining wear. When
new linings are put in, the uid level goes back
up. The other reason is that uid is leaking out of
the brake system or the hydraulic clutch system.
If it is, have that system xed immediately, since a
leak means that the brakes will not work well, or
will not work at all.So, it is not a good idea to top off the brake uid.
Adding brake uid will not correct a leak. If
you add uid when the linings are worn, then you
will have too much uid when you get new
brake linings. You should add or remove brake
uid, as necessary, only when work is done on the
brake hydraulic system.
{CAUTION:
If your vehicle has too much brake uid, it
can spill on the engine. The uid will burn
if the engine is hot enough. You or others
could be burned, and your vehicle could
be damaged. Add brake uid only when
work is done on the brake and/or clutch
hydraulic system.
When the brake uid falls to a low level, the brake
warning light will come on. SeeBrake System
Warning Light on page 166.
306

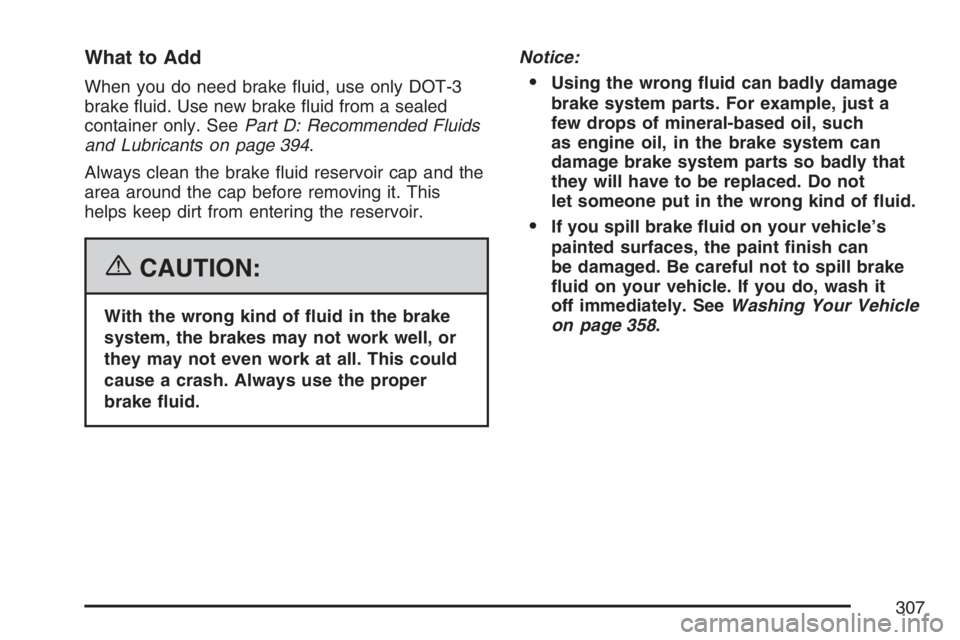

What to Add
When you do need brake uid, use only DOT-3
brake uid. Use new brake uid from a sealed
container only. SeePart D: Recommended Fluids
and Lubricants on page 394.
Always clean the brake uid reservoir cap and the
area around the cap before removing it. This
helps keep dirt from entering the reservoir.
{CAUTION:
With the wrong kind of uid in the brake
system, the brakes may not work well, or
they may not even work at all. This could
cause a crash. Always use the proper
brake uid.Notice:
Using the wrong uid can badly damage
brake system parts. For example, just a
few drops of mineral-based oil, such
as engine oil, in the brake system can
damage brake system parts so badly that
they will have to be replaced. Do not
let someone put in the wrong kind of uid.
If you spill brake uid on your vehicle’s
painted surfaces, the paint nish can
be damaged. Be careful not to spill brake
uid on your vehicle. If you do, wash it
off immediately. SeeWashing Your Vehicle
on page 358.
307

Brake Pedal Travel
See your dealer if the brake pedal does not return
to normal height, or if there is a rapid increase in
pedal travel. This could be a sign of brake trouble.
Brake Adjustment
Every time you make a moderate brake stop,
the disc brakes adjust for wear. If you rarely
make a moderate or heavier stop, the brakes
might not adjust correctly. If you drive in that way,
then — very carefully — make a few moderate
brake stops about every 1,000 miles (1 600 km),
so the brakes will adjust properly.
Replacing Brake System Parts
The braking system on a vehicle is complex. Its
many parts have to be of top quality and work well
together if the vehicle is to have really good
braking. Your vehicle was designed and tested
with top-quality GM brake parts. When you replace
parts of the braking system — for example,
when the brake linings wear down and you need
new ones put in — be sure you get newapproved GM replacement parts. If you do not, the
brakes might not work properly. For example, if
someone puts in brake linings that are wrong
for your vehicle, the balance between the front and
rear brakes can change — for the worse. The
braking performance you have come to expect can
change in many other ways if someone puts in
the wrong replacement brake parts.
Battery
Your vehicle has a maintenance free battery.
When it is time for a new battery, get one that has
the replacement number shown on the original
battery’s label. We recommend an ACDelco
®
replacement battery. SeeEngine Compartment
Overview on page 282for battery location.
Warning:Battery posts, terminals, and related
accessories contain lead and lead compounds,
chemicals known to the State of California
to cause cancer and reproductive harm. Wash
hands after handling.
309

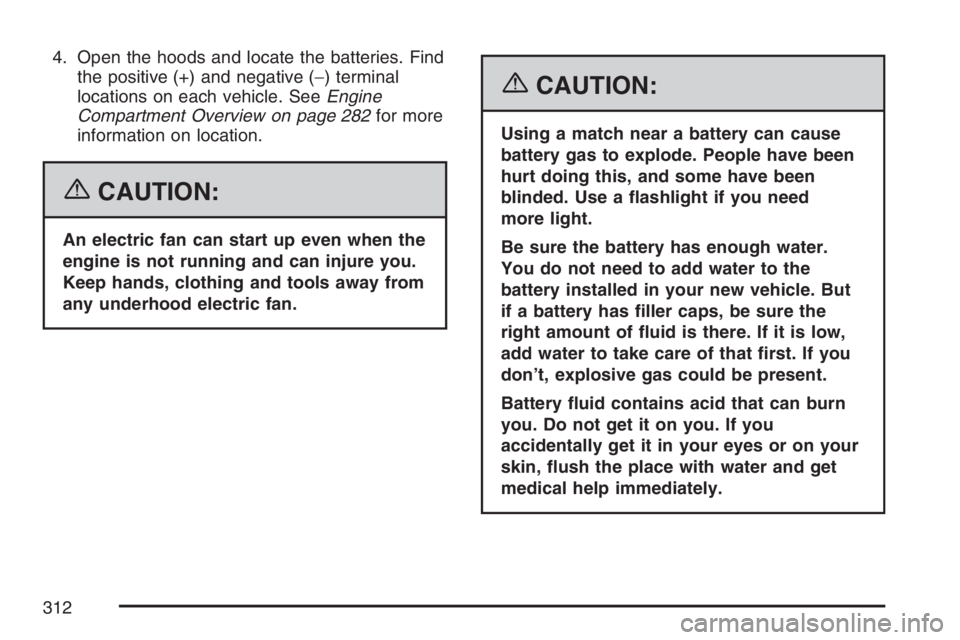

4. Open the hoods and locate the batteries. Find
the positive (+) and negative (−) terminal
locations on each vehicle. SeeEngine
Compartment Overview on page 282for more
information on location.
{CAUTION:
An electric fan can start up even when the
engine is not running and can injure you.
Keep hands, clothing and tools away from
any underhood electric fan.
{CAUTION:
Using a match near a battery can cause
battery gas to explode. People have been
hurt doing this, and some have been
blinded. Use a ashlight if you need
more light.
Be sure the battery has enough water.
You do not need to add water to the
battery installed in your new vehicle. But
if a battery has ller caps, be sure the
right amount of uid is there. If it is low,
add water to take care of that rst. If you
don’t, explosive gas could be present.
Battery uid contains acid that can burn
you. Do not get it on you. If you
accidentally get it in your eyes or on your
skin, ush the place with water and get
medical help immediately.
312
