Dinghy Towing
If your vehicle has an automatic transaxle, it
cannot be dinghy towed. See “Dolly Towing” for
more information regarding towing your vehicle.
If your vehicle has a manual transaxle, it can
be dinghy towed.
When dinghy towing, be sure to follow the posted
legal speed limit.
1. Put the shift lever in NEUTRAL.2. Turn the ignition to ACC to avoid locking the
steering wheel. Make sure the audio system
is turned off and that nothing is plugged
into the power outlets.
3. Release the parking brake.
After dinghy towing, let the engine idle for more
than three minutes before driving the vehicle.
Do not tow your vehicle from the rear. Your
vehicle could be badly damaged and the repairs
would not be covered by your warranty.
260

Trailering is different than just driving your vehicle
by itself. Trailering means changes in handling,
acceleration, braking, durability and fuel economy.
Successful, safe trailering takes correct
equipment, and it has to be used properly.
That’s the reason for this part. In it are many
time-tested, important trailering tips and safety
rules. Many of these are important for your safety
and that of your passengers. So please read
this section carefully before you pull a trailer.
Load-pulling components such as the engine,
transaxle, wheel assemblies and tires are forced
to work harder against the drag of the added
weight. The engine is required to operate
at relatively higher speeds and under greater
loads, generating extra heat. What’s more,
the trailer adds considerably to wind resistance,
increasing the pulling requirements.If You Do Decide To Pull A Trailer
If you do, here are some important points:
There are many different laws, including speed
limit restrictions, having to do with trailering.
Make sure your rig will be legal, not only where
you live but also where you’ll be driving. A
good source for this information can be state
or provincial police.
Consider using a sway control. You can ask a
hitch dealer about sway controls.
Don’t tow a trailer at all during the rst
1,000 miles (1 600 km) your new vehicle is
driven. Your engine, axle or other parts could
be damaged.
Then, during the rst 500 miles (800 km) that
you tow a trailer, don’t drive over 50 mph
(80 km/h) and don’t make starts at full throttle.
This helps your engine and other parts of
your vehicle wear in at the heavier loads.
Obey speed limit restrictions when towing a
trailer. Don’t drive faster than the maximum
posted speed for trailers, or no more than
55 mph (90 km/h), to save wear on your
vehicle’s parts.
262

If you’re using a weight-carrying hitch or a
weight-distributing hitch, the trailer tongue (A)
should weigh 10 to 15 percent of the total loaded
trailer weight (B).
After you have loaded your trailer, weigh the trailer
and then the tongue, separately, to see if the
weights are proper. If they are not, you may be
able to get them right simply by moving some
items around in the trailer.
Total Weight on Your Vehicle’s Tires
Be sure your vehicle’s tires are inated to the
upper limit for cold tires. You’ll nd these numbers
on the Tire and Loading Information label
located on the vehicle’s center pillar (B-pillar).SeeLoading Your Vehicle on page 253. Then be
sure you do not go over the GVW limit for
your vehicle, including the weight of the trailer
tongue.
Hitches
It’s important to have the correct hitch equipment.
Crosswinds, large trucks going by and rough
roads are a few reasons why you’ll need the right
hitch. Here are some rules to follow:
Don’t let the steel in a hitch contact the
aluminum on your bumper. If you do, the
two will corrode. You can use something like
paint or plastic tape to separate the steel
and aluminum. The same steel to aluminum
problem can happen with fasteners too.
Will you have to make any holes in the body
of your vehicle when you install a trailer
hitch? If you do, then be sure to seal the holes
later when you remove the hitch. If you
don’t seal them, deadly carbon monoxide (CO)
from your exhaust can get into your vehicle.
SeeEngine Exhaust on page 119. Dirt
and water can too.
264

Driving On Grades
Reduce speed and shift to a lower gearbefore
you start down a long or steep downgrade. If you
don’t shift down, you might have to use your
brakes so much that they would get hot and no
longer work well.
On a long uphill grade, shift down and reduce
your speed to around 45 mph (70 km/h) to reduce
the possibility of the engine and the transaxle
overheating.
Parking on Hills
{CAUTION:
You really should not park your vehicle,
with a trailer attached, on a hill. If
something goes wrong, your rig could
start to move. People can be injured, and
both your vehicle and the trailer can be
damaged.But if you ever have to park your rig on a hill,
here’s how to do it:
1. Apply your regular brakes, but don’t shift into
PARK (P) for an automatic transaxle or into
gear for a manual transaxle, yet. When
parking uphill, turn your wheels away from the
curb. When parking downhill, turn your
wheels into the curb.
2. Have someone place chocks under the trailer
wheels.
3. When the chocks are in place, release the
regular brakes until the chocks absorb the load.
4. Reapply the regular brakes. Then apply your
parking brake and shift into PARK (P) for an
automatic transaxle or REVERSE (R) for
a manual transaxle.
5. Release the regular brakes.
267

When You Are Ready to Leave After
Parking on a Hill
1. Apply your regular brakes and hold the pedal
down while you:
start your engine
shift into a gear, and
release the parking brake
2. Let up on the brake pedal.
3. Drive slowly until the trailer is clear of the
chocks.
4. Stop and have someone pick up and store the
chocks.
Maintenance When Trailer Towing
Your vehicle will need service more often when
you’re pulling a trailer. See the Maintenance
Schedule for more on this. Things that are
especially important in trailer operation are
automatic transaxle uid (don’t overll), engine oil,
drive belt, cooling system and brake system.
Each of these is covered in this manual, and the
Index will help you nd them quickly. If you’re
trailering, it’s a good idea to review this information
before you start your trip.
Check periodically to see that all hitch nuts and
bolts are tight.
Engine Cooling When Trailer Towing
Your cooling system may temporarily overheat
during severe operating conditions. SeeEngine
Overheating on page 297.
268

Service........................................................ 272
Accessories and Modications................... 272
California Proposition 65 Warning.............. 273
Doing Your Own Service Work.................. 273
Adding Equipment to the Outside of
Your Vehicle.......................................... 274
Fuel............................................................. 274
Gasoline Octane........................................ 274
Gasoline Specications.............................. 274
California Fuel........................................... 275
Additives................................................... 275
Fuels in Foreign Countries........................ 276
Filling the Tank......................................... 277
Filling a Portable Fuel Container............... 279
Checking Things Under the Hood.............. 280
Hood Release........................................... 280
Engine Compartment Overview.................. 282
Engine Oil................................................. 284
Engine Air Cleaner/Filter............................ 288
Automatic Transaxle Fluid......................... 290Manual Transaxle Fluid............................. 292
Hydraulic Clutch........................................ 293
Engine Coolant.......................................... 294
Radiator Pressure Cap.............................. 297
Engine Overheating................................... 297
Cooling System......................................... 299
Power Steering Fluid ................................. 304
Windshield Washer Fluid........................... 305
Brakes...................................................... 306
Battery...................................................... 309
Jump Starting............................................ 310
Bulb Replacement....................................... 315
Halogen Bulbs........................................... 315
Headlamps, Front Turn Signal, and
Parking Lamps....................................... 316
Center High-Mounted
Stoplamp (CHMSL)................................ 317
Taillamps, Turn Signal, and Stoplamps...... 318
Back-Up Lamps......................................... 320
Replacement Bulbs................................... 320
Section 5 Service and Appearance Care
269

Vehicle Identication.................................. 363
Vehicle Identication Number (VIN)........... 363
Service Parts Identication Label............... 363
Electrical System........................................ 364
Add-On Electrical Equipment..................... 364
Headlamp Wiring....................................... 364
Windshield Wiper Fuses............................ 364
Power Windows and Other Power
Options.................................................. 364Fuses and Circuit Breakers....................... 365
Instrument Panel Fuse Block..................... 365
Engine Compartment Fuse Block............... 367
Capacities and Specications.................... 369
Normal Maintenance Replacement Parts... 370
Engine Drive Belt Routing......................... 371
Section 5 Service and Appearance Care
271

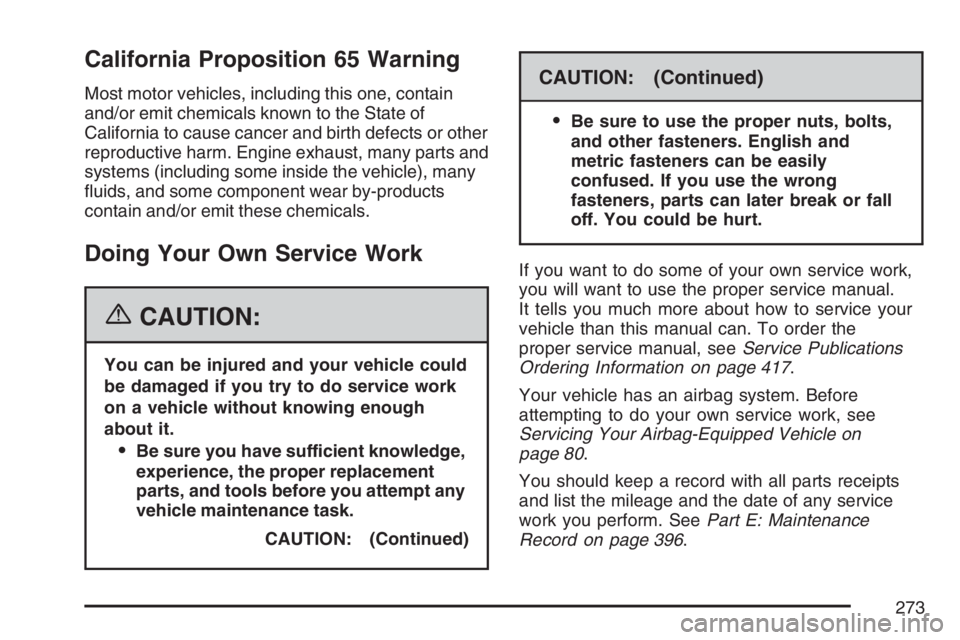

California Proposition 65 Warning
Most motor vehicles, including this one, contain
and/or emit chemicals known to the State of
California to cause cancer and birth defects or other
reproductive harm. Engine exhaust, many parts and
systems (including some inside the vehicle), many
uids, and some component wear by-products
contain and/or emit these chemicals.
Doing Your Own Service Work
{CAUTION:
You can be injured and your vehicle could
be damaged if you try to do service work
on a vehicle without knowing enough
about it.
Be sure you have sufficient knowledge,
experience, the proper replacement
parts, and tools before you attempt any
vehicle maintenance task.
CAUTION: (Continued)
CAUTION: (Continued)

Be sure to use the proper nuts, bolts,
and other fasteners. English and
metric fasteners can be easily
confused. If you use the wrong
fasteners, parts can later break or fall
off. You could be hurt.
If you want to do some of your own service work,
you will want to use the proper service manual.
It tells you much more about how to service your
vehicle than this manual can. To order the
proper service manual, seeService Publications
Ordering Information on page 417.
Your vehicle has an airbag system. Before
attempting to do your own service work, see
Servicing Your Airbag-Equipped Vehicle on
page 80.
You should keep a record with all parts receipts
and list the mileage and the date of any service
work you perform. SeePart E: Maintenance
Record on page 396.
