2007 PONTIAC G6 Owners Manual

Driver Information Center (DIC)
The Driver Information Center (DIC) provides
the following:
A way to personalize your vehicle
Trip information
Warning messages
The buttons used to activate the DIC are located
on the left side of the vehicle’s audio system.
INFO/
4(Information):Press this button to scroll
through the vehicle information mode displays.
MENU:Press this button to enter and scroll
through the menu mode.ENTER/
r(Enter):Press this button to select a
menu option or to acknowledge a warning
message.
The DIC messages will be read through your
audio system display.
DIC Operation and Displays
The DIC comes on when the ignition is ON. If your
vehicle has the uplevel audio system, the time
and outside temperature is shown on the rst line
of the display and the DIC information is shown
on the second line of the display.
The DIC has different modes which can be
accessed by pressing the DIC buttons. The button
functions are detailed in the following section.
United StatesCanada
209

Information Mode
INFO/4(Information):Press this button to scroll
through the vehicle information mode displays
in the following order:
TRIP A
TRIP B
FUEL RANGE (Fuel Range Until Empty)
ECON (Average Fuel Economy)
AV SPEED (Average Vehicle Speed)
OIL LIFE (Engine Oil Life System)
TRIP A or TRIP B:Press the information button
until TRIP A or TRIP B is displayed. This
shows the current distance traveled since the last
reset for each trip odometer in either miles (mi)
or kilometers (km). Both odometers can be used at
the same time. Each trip odometer can be reset
to zero separately by pressing and holding
the enter button for a few seconds while the
desired trip odometer is displayed.FUEL RANGE:Press the information button until
FUEL RANGE is displayed. This shows the
remaining distance you can drive without refueling.
It is based on fuel economy and the fuel
remaining in the tank.
When the fuel level is low, FUEL RANGE LOW
displays.
The fuel economy data used to determine fuel
range is an average of recent driving conditions.
As your driving conditions change, this data is
gradually updated. Fuel range cannot be reset.
ECON (Economy):Press the information button
until ECON is displayed. Average fuel economy is
how many miles per gallon (mpg) or liters per
100 kilometers (L/100 km) your vehicle is getting
based on current and past driving conditions.
Press and hold the enter button while ECON is
displayed to reset the average fuel economy.
Average fuel economy will then be calculated
starting from that point. If the average fuel economy
is not reset, it will be continually updated each time
you drive.
210

AV (Average) SPEED:Press the information
button until AV SPEED is displayed. This shows the
vehicle’s average speed in miles per hour (mph) or
kilometers per hour (km/h).
Press and hold the enter button while AV SPEED is
displayed to reset the average vehicle speed.
OIL LIFE:Press the information button until
OIL LIFE is displayed. The engine oil life system
shows an estimate of the oil’s remaining useful life.
It shows 100% when the system is reset after
an oil change. It will alert you to change the oil on
a schedule consistent with your driving conditions.
Always reset the engine oil life system after an oil
change. SeeEngine Oil Life System on page 328.
In addition to the engine oil life system monitoring
the oil life, additional maintenance is recommended
in the Maintenance Schedule in this manual. See
Scheduled Maintenance on page 431andEngine
Oil on page 325.Personalization
MENU:Press this button while the ignition is ON to
scroll through each of the personalization options in
the following order. To avoid excessive drain on the
battery, it is recommended that the headlamps are
turned off. If the vehicle is moving faster than 2 mph
(3 km/h), the personalization menu options are not
available, except for the UNITS option. All of the
personalization options may not be available on
your vehicle. Only the options available display on
the DIC.
Oil Life Reset
Units Selection (English/Metric)
Remote Start Capability
Horn Chirp During Remote Keyless Entry
Locking
Horn Chirp During Remote Keyless Entry
Unlocking
Exterior Light Flash During Remote Keyless
Entry Locking or Unlocking
Delayed Locking
Automatic Vehicle Unlocking: Specic Doors
211

Automatic Vehicle Unlocking: When Key is Off
or When Shift To Park
Exterior Perimeter Lighting During Remote
Keyless Entry Unlock
Select Language: (English, French, Spanish or
German)
When the desired option is reached, press the
enter button to toggle between the modes of that
option. To make a selection, press the MENU
button again.
If no selection is made within 10 seconds, the
display reverts back to the previous information
displayed.
The MENU mode is exited when the information
button is pressed, a 10 second time period
has elapsed, the ignition is turned to OFF, or the
end of the MENU list is reached.
SeeDIC Vehicle Personalization on page 216for
more information on the personalization options.
Enter
ENTER/r(Enter):Press this button to reset
certain functions and to turn off or acknowledge
messages on the DIC display. This button
also toggles through the options available in each
personalization menu.
DIC Warnings and Messages
These messages appear if there is a problem
detected in one of your vehicle’s systems.
A message will clear when that condition is no
longer present on the vehicle. To acknowledge a
message and clear it from the display, press
any of the three DIC buttons. If the condition is
still present, the warning message will come back
on the next time the vehicle is turned off and
back on. With most messages, a warning chime
sounds when the message displays. Your
vehicle may have other warning messages.
AUTO (Automatic) LIGHTS OFF:This message
displays if the automatic headlamp system is
disabled with the headlamp switch.
AUTO (Automatic) LIGHTS ON:This message
displays if the automatic headlamp system is
enabled with the headlamp switch.
212

BRAKE FLUID:This message displays to inform
the driver that the brake uid level is low while the
ignition is in ON. The brake system warning light on
the instrument panel cluster also comes on. See
Brake System Warning Light on page 199for more
information. Have the brake system serviced by
your dealer as soon as possible.
CHANGE OIL SOON:This message displays
when the life of the engine oil has expired and it
should be changed.
When you acknowledge the CHANGE OIL SOON
message by clearing it from the display, you
still must reset the engine oil life system
separately. SeeEngine Oil Life System on
page 328,Engine Oil on page 325, andScheduled
Maintenance on page 431for more information.
CHECK CARGO TOP:If your vehicle has a
retractable hardtop, this message displays if the
cargo divider is not in place when operating
the retractable hardtop. Open the trunk and make
sure the cargo divider is secure and no objects
are on the divider. SeeTrunk on page 113,
Lowering the Retractable Hardtop on page 154,
andRaising the Retractable Hardtop on page 157
for more information.CHECK GAS CAP:This message displays if the
fuel cap has not been fully tightened. Recheck
the fuel cap to make sure that it is on properly.
A few driving trips with the cap properly installed
should turn the message off.
DOOR AJAR:This message displays if one or
more of the vehicle’s doors are not closed
properly. When this message displays, make sure
that the door is closed completely.
ENGINE DISABLED:This message displays if
the starting of the engine is disabled. Have
your vehicle serviced immediately by your dealer.
ENG (Engine) PWR (Power) REDUCED:This
message displays to inform you that the vehicle
has reduced engine power to avoid damaging the
engine. Reduced engine power can affect the
vehicle’s ability to accelerate. If this message is on,
but there is no reduction in performance, proceed
to your destination. The performance may be
reduced the next time the vehicle is driven. The
vehicle may be driven at a reduced speed
while this message is on, but acceleration and
speed may be reduced. Anytime this message
stays on, the vehicle should be taken to your
dealer for service as soon as possible.
213

ICE POSSIBLE:This message displays when the
outside air temperature is cold enough to create
icy road conditions. Adjust your driving accordingly.
KEY FOB BATT (Battery) LOW:This message
displays if the Remote Keyless Entry (RKE)
transmitter battery is low. Replace the battery in
the transmitter. See “Battery Replacement”
underRemote Keyless Entry System Operation on
page 101.
LOW FUEL:This message displays along with a
low fuel warning light on the instrument panel
cluster when your vehicle is low on fuel. Rell the
fuel tank as soon as possible. SeeLow Fuel
Warning Light on page 208,Fuel on page 310,
andFilling the Tank on page 313.
LOW OIL LEVEL:This message may display on
some vehicles. For correct operation of the low oil
sensing system, your vehicle should be on a level
surface. A false LOW OIL LEVEL message may
appear if the vehicle is parked on a grade. The oil
level sensing system does not check for actual oil
level if the engine has been off for a short period of
time. The oil level is never checked while the
engine is running. If the LOW OIL LEVEL message
appears, and your vehicle has been parked on levelground with the engine off for at least 30 minutes,
the oil level should be checked by looking at the oil
dipstick. Prior to checking the oil level, be sure the
engine has been off for a few minutes and your
vehicle is on a level surface. Then check the
dipstick and add oil if necessary. SeeEngine Oil on
page 325.
LOW WASHER FLUID:This message displays
when your vehicle is low on windshield washer
uid. Rell the windshield washer uid reservoir as
soon as possible. See “Adding Washer Fluid”
underWindshield Washer Fluid on page 350.
PARKING BRAKE:This message displays if the
parking brake is left engaged and you try to
drive away. SeeParking Brake on page 135for
more information.
POWER STEERING:This message displays if a
problem has been detected with the electric
power steering, if your vehicle has this feature.
Have your vehicle serviced immediately by
your dealer.
SERVICE AIR BAG:This message displays if
there is a problem with the airbag system.
Have your vehicle serviced immediately by your
dealer.
214

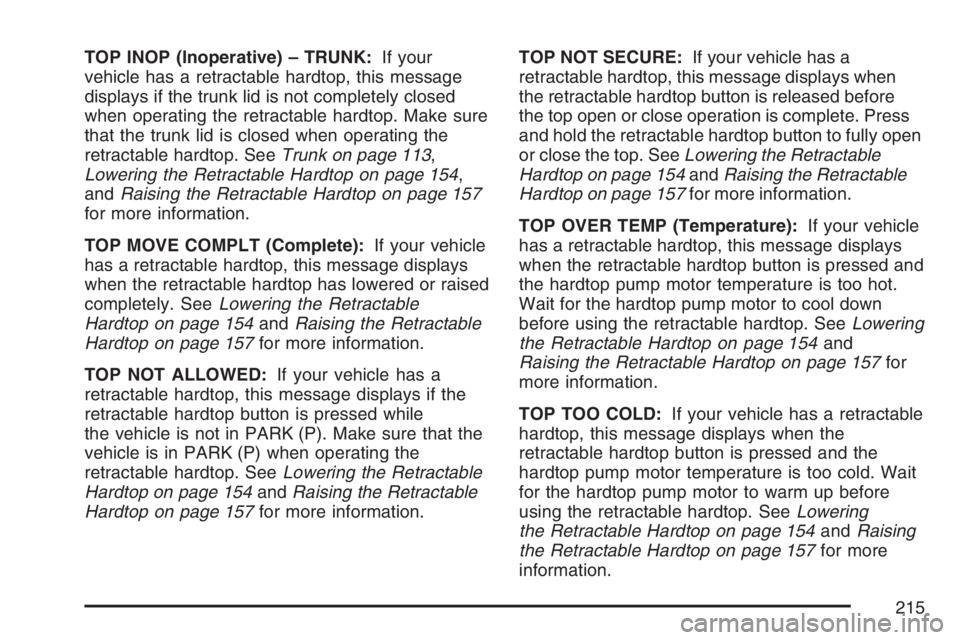

TOP INOP (Inoperative) – TRUNK:If your
vehicle has a retractable hardtop, this message
displays if the trunk lid is not completely closed
when operating the retractable hardtop. Make sure
that the trunk lid is closed when operating the
retractable hardtop. SeeTrunk on page 113,
Lowering the Retractable Hardtop on page 154,
andRaising the Retractable Hardtop on page 157
for more information.
TOP MOVE COMPLT (Complete):If your vehicle
has a retractable hardtop, this message displays
when the retractable hardtop has lowered or raised
completely. SeeLowering the Retractable
Hardtop on page 154andRaising the Retractable
Hardtop on page 157for more information.
TOP NOT ALLOWED:If your vehicle has a
retractable hardtop, this message displays if the
retractable hardtop button is pressed while
the vehicle is not in PARK (P). Make sure that the
vehicle is in PARK (P) when operating the
retractable hardtop. SeeLowering the Retractable
Hardtop on page 154andRaising the Retractable
Hardtop on page 157for more information.TOP NOT SECURE:If your vehicle has a
retractable hardtop, this message displays when
the retractable hardtop button is released before
the top open or close operation is complete. Press
and hold the retractable hardtop button to fully open
or close the top. SeeLowering the Retractable
Hardtop on page 154andRaising the Retractable
Hardtop on page 157for more information.
TOP OVER TEMP (Temperature):If your vehicle
has a retractable hardtop, this message displays
when the retractable hardtop button is pressed and
the hardtop pump motor temperature is too hot.
Wait for the hardtop pump motor to cool down
before using the retractable hardtop. SeeLowering
the Retractable Hardtop on page 154and
Raising the Retractable Hardtop on page 157for
more information.
TOP TOO COLD:If your vehicle has a retractable
hardtop, this message displays when the
retractable hardtop button is pressed and the
hardtop pump motor temperature is too cold. Wait
for the hardtop pump motor to warm up before
using the retractable hardtop. SeeLowering
the Retractable Hardtop on page 154andRaising
the Retractable Hardtop on page 157for more
information.
215

TRUNK AJAR:This message displays when the
trunk lid is not closed completely. Make sure
that the trunk lid is closed completely. SeeTrunk
on page 113for more information.
DIC Vehicle Personalization
The following personalization options may appear
on your vehicle’s audio display by pressing the
MENU button:
OIL LIFE RESET:When this option is displayed,
you can reset the engine oil life system. To
reset the system, seeEngine Oil Life System on
page 328.
UNITS:When UNITS appears on the display,
press the enter button to move between METRIC
or ENGLISH. When you have made your
choice, press the MENU button to record your
selection. The initial setting from the factory
is English for the United States and metric for
Canada.
If you choose English, all information will be
displayed in English units. For example, distance
in miles and fuel economy in miles per gallon
is displayed.If you choose metric, all information will be
displayed in metric units. For example, distance in
kilometers and fuel economy in liters per
100 kilometers is displayed.
The unit measurement will also change the trip
odometer, temperature, and average fuel economy
displays.
REMOTE START:If your vehicle has this feature,
the remote start option can be enabled or
disabled. When REMOTE START appears on the
display, press the enter button to move between
OFF and ON. When you have made your
choice, press the MENU button to record your
selection. The initial setting from the factory is ON.
LOCK HORN:If your vehicle has Remote
Keyless Entry (RKE), this option which allows the
vehicle’s horn to chirp every time the lock
button on the RKE transmitter is pressed, can be
enabled or disabled. When LOCK HORN
appears on the display, press the enter button to
move between ON and OFF. When you have
made your choice, press the MENU button
to record your selection. The initial setting from
the factory is OFF.
216
