Description Usage
Cleaner WaxRemoves light scratches
and protects nish.
Foaming Tire Shine Low
GlossCleans, shines and
protects in one easy step,
no wiping necessary.
Wash Wax ConcentrateMedium foaming
shampoo. Cleans and
lightly waxes.
Biodegradable and
phosphate free.
Spot LifterQuickly and easily
removes spots and stains
from carpets, vinyl and
cloth upholstery.
Odor EliminatorOdorless spray odor
eliminator used on fabrics,
vinyl, leather and carpet.Vehicle Identication
Vehicle Identication Number (VIN)
This is the legal identier for your vehicle. It
appears on a plate in the front corner of the
instrument panel, on the driver’s side. You can see
it if you look through the windshield from outside
your vehicle. The VIN also appears on the Vehicle
Certication and Service Parts labels and the
certicates of title and registration.
Engine Identication
The eighth character in the VIN is the engine
code. This code will help you identify your vehicle’s
engine, specications, and replacement parts.
361

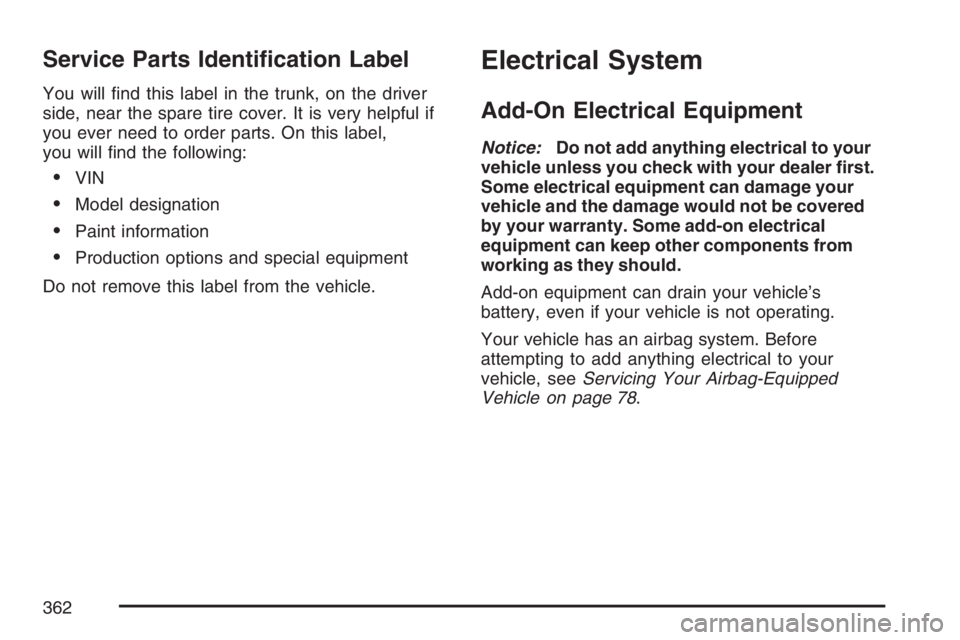

Service Parts Identication Label
You will nd this label in the trunk, on the driver
side, near the spare tire cover. It is very helpful if
you ever need to order parts. On this label,
you will nd the following:
VIN
Model designation
Paint information
Production options and special equipment
Do not remove this label from the vehicle.
Electrical System
Add-On Electrical Equipment
Notice:Do not add anything electrical to your
vehicle unless you check with your dealer rst.
Some electrical equipment can damage your
vehicle and the damage would not be covered
by your warranty. Some add-on electrical
equipment can keep other components from
working as they should.
Add-on equipment can drain your vehicle’s
battery, even if your vehicle is not operating.
Your vehicle has an airbag system. Before
attempting to add anything electrical to your
vehicle, seeServicing Your Airbag-Equipped
Vehicle on page 78.
362

Headlamp Wiring
The headlamp wiring is protected by fuses.
Should your headlamps fail to function, have
your headlamp system checked right away.
Windshield Wiper Fuses
The windshield wiper motor is protected by a circuit
breaker and a fuse. If the motor overheats due to
heavy snow or ice, the wiper will stop until the motor
cools. If the overload is caused by some electrical
problem, have it xed.
Power Windows and Other Power
Options
Fuses in the fuse block protect the power windows.
When the current load is too heavy, the fuse opens
protecting the circuit until the problem is xed.
Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected
from short circuits by a combination of fuses,
circuit breakers and fusible thermal links.
This greatly reduces the chance of damage
caused by electrical problems.
Look at the silver-colored band inside the fuse. If
the band is broken or melted, replace the fuse. Be
sure you replace a bad fuse with a new one of the
identical size and rating.
If you ever have a problem on the road and do not
have a spare fuse, you can “borrow” one that has
the same amperage. Just pick some feature of your
vehicle that you can get along without — like the
radio or cigarette lighter — and use its fuse if it is
the correct amperage. Replace it as soon as
you can.
There are two fuse blocks in your vehicle: the oor
console fuse block and the engine compartment
fuse block.
There is one additional fuse located in the back of
the vehicle near the battery.
363

Floor Console Fuse Block
The oor console fuse block is located on the
passenger’s side of the oor console behind the
forward panel. The panel has three clips. Pull
the panel to disconnect the three clips, and access
the fuses. Use the fuse puller to remove fuses.
Fuses Usage
1 Fuse Puller
2 Empty
3 Empty
4 Empty
5 Empty
6 Amplier
7 Cluster
364

Fuses Usage
8 Ignition Switch, PASS-Key
®III+
9 Stoplamp
10Heating, Ventilation, Air
Conditioning, PASS-Key
®III+
11 Empty
12 Spare
13 Airbag
14 Spare
15 Windshield Wiper
16 Climate Control System, Ignition
17 Empty
18 Empty
19Electric Power Steering,
Steering Wheel Control
20 Sunroof
21 Spare
22 Empty
23 Audio System
24Sensing and Diagnostic
Module (Airbag)
Fuses Usage
25Engine Control Module,
Transaxle Control Module
26 Door Locks
27 Interior Lights
28 Steering Wheel Control Illumination
29 Power Windows
Relays Usage
30 Climate Control System
31 Empty
32 Retained Accessory Power (RAP)
Engine Compartment Fuse Block
The engine compartment fuse block is located on
the driver’s side of the vehicle. Lift off the cover
to check the fuses. SeeEngine Compartment
Overview on page 278for more information
on location.
365

Fuses Usage
SPARES Spares
Blank Not UsedFuses Usage
Blank Not Used
REAR DEFOG Rear Defogger
366

Fuses Usage
COOL FAN2 Engine Cooling Fan High Speed
CRNK Starter
COOL FAN 1 Engine Cooling Fan Low Speed
BCM3 Body Control Module 3
BCM2 Body Control Module 2
FOG LAMP Fog Lamps
HORN Horn
RT HI BEAM Passenger’s Side High Beam
LT HI BEAM Driver’s Side High Beam
RT LO BEAM Passenger’s Side Low Beam
LT LO BEAM Driver’s Side Low Beam
DRL Daytime Running Lamps
FUEL PUMP Fuel Pump
EXH Exhaust Emissions
Blank Not Used
INJ Injectors
Blank Not UsedFuses Usage
ABS Anti-lock Brake System
PCM/ECMPowertrain Control Module/Engine
Control Module
EPS Electric Power Steering
AIR PUMP AIR Pump
PRK LAMP Park Lamps
WPR Windshield Wiper
IP IGN Ignition
A/C CLTCH Air Conditioning Clutch
AIR SOL/
AFTERCOOLAIR Solenoid (L61, LE5),
Aftercooler (L4)
ABS2 Anti-lock Brake System 2
PRK/NEUT Park, Neutral
ECM/TRANS Engine Control Module, Transaxle
BCK UP Back-Up Lamps
TRUNK/OUTLET Trunk, Accessory Power Outlet
Blank Not Used
Blank Not Used
367

Fuses Usage
S BAND/
ONSTARAudio, OnStar
®
ABS3 Anti-lock Brake System 3
LTR Cigarette Lighter
MIR Mirrors
HTD SEATS Heated Seats
CNSTR VENT Canister Vent
Relays Usage
REAR DEFOG Rear Defogger
COOL FAN2 Engine Cooling Fan 2
WPR HI/LO Windshield Wiper High/Low Speed
CRNK Starter
Relays Usage
COOL FAN1 Engine Cooling Fan 1
FUEL PUMP Fuel Pump
WPR ON/OFF Windshield Wiper On/Off
COOL FANS Engine Cooling Fans
PWR/TRN Powertrain
AIR PUMP AIR Pump
A/C CLTCH Air Conditioning Clutch
AIR SOL/
AFTERCOOLAIR Solenoid (L61, LE5),
Aftercooler (L4)
RUN/CRNK Run, Crank
Misc. Usage
PLR Fuse Puller
