2007 PONTIAC G5 Owners Manual

Service........................................................ 268
Accessories and Modications................... 268
California Proposition 65 Warning.............. 269
Doing Your Own Service Work.................. 269
Adding Equipment to the Outside of
Your Vehicle.......................................... 270
Fuel............................................................. 270
Gasoline Octane........................................ 270
Gasoline Specications.............................. 271
California Fuel........................................... 271
Additives................................................... 272
Fuels in Foreign Countries........................ 273
Filling the Tank......................................... 274
Filling a Portable Fuel Container............... 276
Checking Things Under the Hood.............. 276
Hood Release........................................... 277
Engine Compartment Overview.................. 278
Engine Oil................................................. 279
Engine Oil Life System.............................. 282
Engine Air Cleaner/Filter............................ 284
Automatic Transaxle Fluid......................... 286
Manual Transaxle Fluid............................. 286
Hydraulic Clutch........................................ 286Engine Coolant.......................................... 287
Coolant Surge Tank Pressure Cap............ 290
Engine Overheating................................... 290
Cooling System......................................... 292
Windshield Washer Fluid........................... 297
Brakes...................................................... 298
Battery...................................................... 303
Jump Starting............................................ 304
Headlamp Aiming........................................ 309
Bulb Replacement....................................... 312
Halogen Bulbs........................................... 312
Headlamps, Front Turn Signal,
Sidemarker, and Parking Lamps............. 313
Center High-Mounted Stoplamp
(CHMSL)................................................ 315
Taillamps and Turn Signal Lamps
(Coupe)................................................. 316
Taillamps, Turn Signal, Stoplamps and
Back-up Lamps (Sedan)......................... 316
Back-Up Lamps (Coupe)........................... 317
License Plate Lamp................................... 318
Replacement Bulbs................................... 318
Section 5 Service and Appearance Care
265

Windshield Wiper Blade Replacement....... 319
Tires............................................................ 320
Tire Sidewall Labeling............................... 321
Tire Terminology and Denitions............... 324
Ination - Tire Pressure............................. 327
Tire Inspection and Rotation...................... 328
When It Is Time for New Tires.................. 330
Buying New Tires...................................... 330
Different Size Tires and Wheels................ 332
Uniform Tire Quality Grading..................... 333
Wheel Alignment and Tire Balance............ 334
Wheel Replacement.................................. 335
Tire Chains............................................... 336
If a Tire Goes Flat.................................... 337
Changing a Flat Tire................................. 338
Removing the Spare Tire and Tools.......... 339
Removing the Flat Tire and Installing
the Spare Tire....................................... 344
Storing a Flat or Spare Tire and Tools...... 349
Compact Spare Tire.................................. 352Appearance Care........................................ 353
Cleaning the Inside of Your Vehicle.......... 353
Fabric/Carpet............................................. 354
Instrument Panel, Vinyl, and Other
Plastic Surfaces..................................... 355
Care of Safety Belts.................................. 356
Weatherstrips............................................ 356
Washing Your Vehicle............................... 356
Cleaning Exterior Lamps/Lenses................ 357
Finish Care............................................... 357
Windshield and Wiper Blades.................... 358
Aluminum or Chrome-Plated Wheels......... 358
Tires......................................................... 359
Sheet Metal Damage................................. 359
Finish Damage.......................................... 359
Underbody Maintenance............................ 360
Chemical Paint Spotting............................ 360
Vehicle Care/Appearance Materials............ 360
Section 5 Service and Appearance Care
266

Vehicle Identication.................................. 361
Vehicle Identication Number (VIN)........... 361
Service Parts Identication Label............... 362
Electrical System........................................ 362
Add-On Electrical Equipment..................... 362
Headlamp Wiring....................................... 363
Windshield Wiper Fuses............................ 363Power Windows and Other Power
Options.................................................. 363
Fuses and Circuit Breakers....................... 363
Floor Console Fuse Block......................... 364
Engine Compartment Fuse Block............... 365
Capacities and Specications.................... 369
Section 5 Service and Appearance Care
267

Service
Your dealer knows your vehicle best and wants you
to be happy with it. We hope you will go to your
dealer for all your service needs. You will get
genuine GM parts and GM-trained and supported
service people.
We hope you will want to keep your GM vehicle all
GM. Genuine GM parts have one of these marks:
Accessories and Modications
When you add non-GM accessories to your vehicle
they can affect your vehicle’s performance and
safety, including such things as, airbags, braking,
stability, ride and handling, emissions systems,
aerodynamics, durability, and electronic systems
like anti-lock brakes, traction control and stability
control. Some of these accessories may even
cause malfunction or damage not covered by
warranty.
GM Accessories are designed to complement and
function with other systems on your vehicle. Your
GM dealer can accessorize your vehicle using
genuine GM Accessories. When you go to your
GM dealer and ask for GM Accessories, you will
know that GM-trained and supported service
technicians will perform the work using genuine
GM Accessories.
268

California Proposition 65 Warning
Most motor vehicles, including this one, contain
and/or emit chemicals known to the State of
California to cause cancer and birth defects
or other reproductive harm. Engine exhaust, many
parts and systems (including some inside the
vehicle), many uids, and some component wear
by-products contain and/or emit these chemicals.
Doing Your Own Service Work
{CAUTION:
You can be injured and your vehicle could
be damaged if you try to do service work
on a vehicle without knowing enough
about it.
Be sure you have sufficient knowledge,
experience, the proper replacement
parts, and tools before you attempt any
vehicle maintenance task.
CAUTION: (Continued)
CAUTION: (Continued)

Be sure to use the proper nuts, bolts,
and other fasteners. English and
metric fasteners can be easily
confused. If you use the wrong
fasteners, parts can later break or fall
off. You could be hurt.
If you want to do some of your own service work,
you will want to use the proper service manual.
It tells you much more about how to service your
vehicle than this manual can. To order the proper
service manual, seeService Publications Ordering
Information on page 410.
Your vehicle has an airbag system. Before
attempting to do your own service work, see
Servicing Your Airbag-Equipped Vehicle on
page 78.
You should keep a record with all parts receipts
and list the mileage and the date of any service
work you perform. SeeMaintenance Record
on page 389.
269

Adding Equipment to the Outside of
Your Vehicle
Things you might add to the outside of your
vehicle can affect the airow around it. This may
cause wind noise and affect windshield washer
performance. Check with your dealer before
adding equipment to the outside of your vehicle.
Fuel
Use of the recommended fuel is an important part
of the proper maintenance of your vehicle. To
help keep your engine clean and maintain optimum
vehicle performance, GM recommends the use
of gasoline advertised as TOP TIER Detergent
Gasoline.
The 8th digit of your Vehicle Identication
Number (VIN) shows the code letter or number
that identies your engine. You will nd the VIN at
the top left of the instrument panel. SeeVehicle
Identication Number (VIN) on page 361.
Gasoline Octane
If your vehicle has the 2.2L L4 engine (VIN Code F),
use regular unleaded gasoline with a posted octane
rating of 87 or higher. If the octane rating is less
than 87, you may notice an audible knocking noise
when you drive, commonly referred to as spark
knock. If this occurs, use a gasoline rated at
87 octane or higher as soon as possible. If you are
using gasoline rated at 87 octane or higher and you
hear heavy knocking, your engine needs service.
If your vehicle has the 2.4L L4 engine
(VIN Code B), use premium unleaded gasoline
with a posted octane rating of 91 or higher. You
may also use regular unleaded gasoline rated at
87 octane or higher, but your vehicle’s acceleration
may be slightly reduced, and you may notice a
slight audible knocking noise, commonly referred to
as spark knock. If the octane is less than 87, you
may notice a heavy knocking noise when you drive.
If this occurs, use a gasoline rated at 87 octane or
higher as soon as possible. Otherwise, you might
damage your engine. If you are using gasoline
rated at 87 octane or higher and you hear heavy
knocking, your engine needs service.
270

Gasoline Specications
At a minimum, gasoline should meet ASTM
specication D 4814 in the United States or
CAN/CGSB-3.5 in Canada. Some gasolines
may contain an octane-enhancing additive called
methylcyclopentadienyl manganese tricarbonyl
(MMT). General Motors recommends against the
use of gasolines containing MMT. SeeAdditives on
page 272for additional information.
California Fuel
If your vehicle is certied to meet California
Emissions Standards, it is designed to operate on
fuels that meet California specications. See the
underhood emission control label. If this fuel is not
available in states adopting California emissions
standards, your vehicle will operate satisfactorily on
fuels meeting federal specications, but emission
control system performance may be affected. The
malfunction indicator lamp may turn on and your
vehicle may fail a smog-check test. SeeMalfunction
Indicator Lamp on page 168. If this occurs, return to
your authorized GM dealer for diagnosis. If it is
determined that the condition is caused by the type
of fuel used, repairs may not be covered by your
warranty.
271

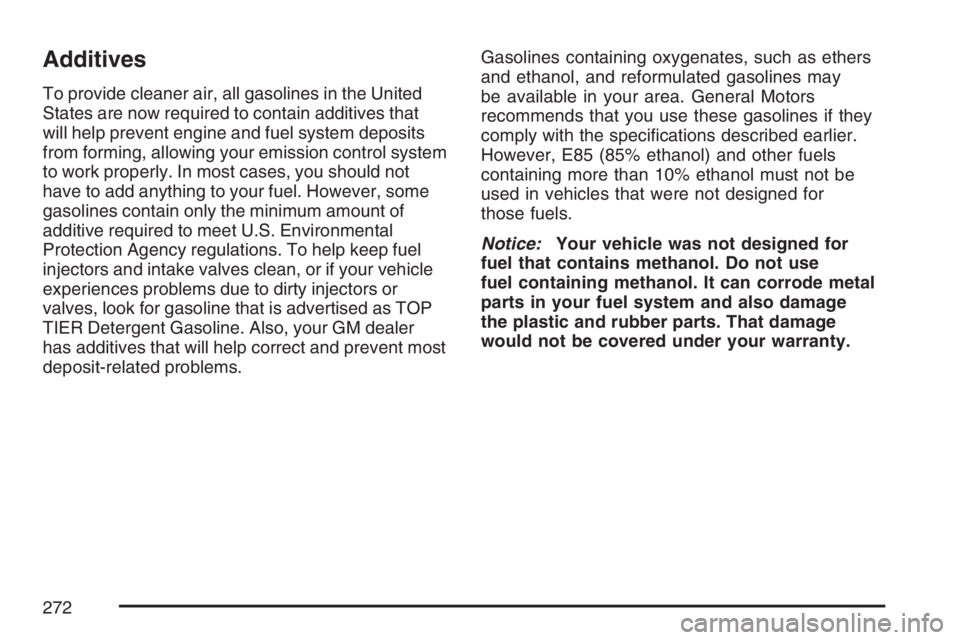

Additives
To provide cleaner air, all gasolines in the United
States are now required to contain additives that
will help prevent engine and fuel system deposits
from forming, allowing your emission control system
to work properly. In most cases, you should not
have to add anything to your fuel. However, some
gasolines contain only the minimum amount of
additive required to meet U.S. Environmental
Protection Agency regulations. To help keep fuel
injectors and intake valves clean, or if your vehicle
experiences problems due to dirty injectors or
valves, look for gasoline that is advertised as TOP
TIER Detergent Gasoline. Also, your GM dealer
has additives that will help correct and prevent most
deposit-related problems.Gasolines containing oxygenates, such as ethers
and ethanol, and reformulated gasolines may
be available in your area. General Motors
recommends that you use these gasolines if they
comply with the specications described earlier.
However, E85 (85% ethanol) and other fuels
containing more than 10% ethanol must not be
used in vehicles that were not designed for
those fuels.
Notice:Your vehicle was not designed for
fuel that contains methanol. Do not use
fuel containing methanol. It can corrode metal
parts in your fuel system and also damage
the plastic and rubber parts. That damage
would not be covered under your warranty.
272
