2007 Peugeot Partner VU Owner's Manual

Technical data110 -
DIESEL WEIGHTS AND TOWING LOADS (IN KG)
The GTW and towing load values indicated are valid up to a maximum altitude of 1 000 metres; the towing load mentio ned
must be reduced by 10 % for each additional 1 000 metres.
The speed of a towing vehicle must not exceed 60 mph (100 km/h ) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the perfo rmance of the vehicle in order to protect the engine; when
the exterior temperature is above 37 °C, limit the towed loa d.
* The weight of the braked trailer may be increased, within the GTW limit, on condition that the GVW of the towing vehicle is
reduced by the same amount; warning, towing with a lightly loaded towing vehicle may have an adverse effect on its road
holding ability.
Engine
1.6 litre Turbo HDI 1.9 litre 2 litre Turbo HDI
Model600 kg 800 kg 600 kg 800 kg 600 kg 800 kg
GearboxManual Manual Manual Manual Manual Manual
Model codes GB9HWC
GB9HXC GC9HWC
GC9HXCGBWJYBGCWJYBGBRHYB GCRHYB
•
Kerb weight1 130 1 130 1 206 1 206 1 206 1 206
•
Gross vehicle weight1 730 1 930 1 805 1 955 1 805 1 990
•
Gross train weight2 830 3 030 2 855 3 055 2 905 3 090
•
Unbraked trailer500 500 500 500 500 500
•
Braked trailer (within GTW)1 100 1 100 1 050 1 100 1 100 1 100
•
Braked trailer
(with load transfer within GTW) - - - - - -
• Recommended nose weight70 70 70 70 70 70
• Recommended weight on roof rack100 100 100 100 100 100

111Technical data-

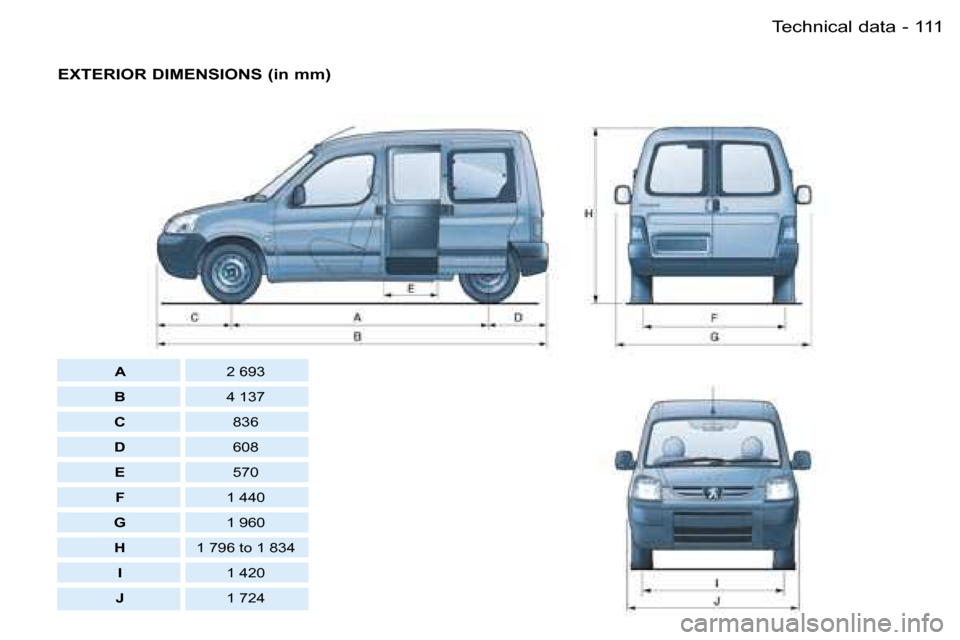

EXTERIOR DIMENSIONS (in mm)
A2 693
B 4 137
C 836
D 608
E 570
F 1 440
G 1 960
H 1 796 to 1 834
I 1 420
J 1 724

Technical data112 -

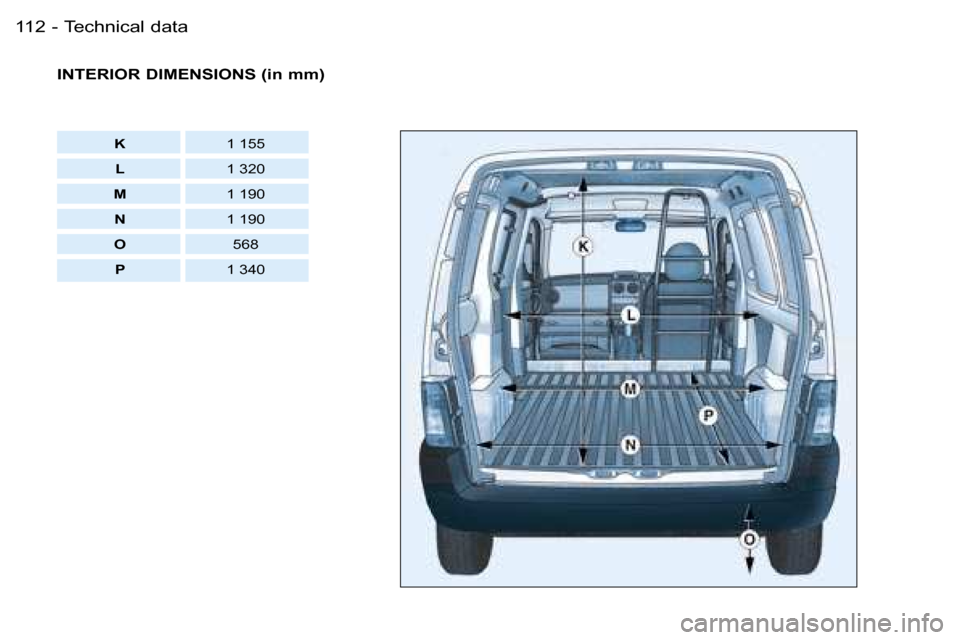

INTERIOR DIMENSIONS (in mm)
K1 155
L 1 320
M 1 190
N 1 190
O 568
P 1 340

113Technical data-

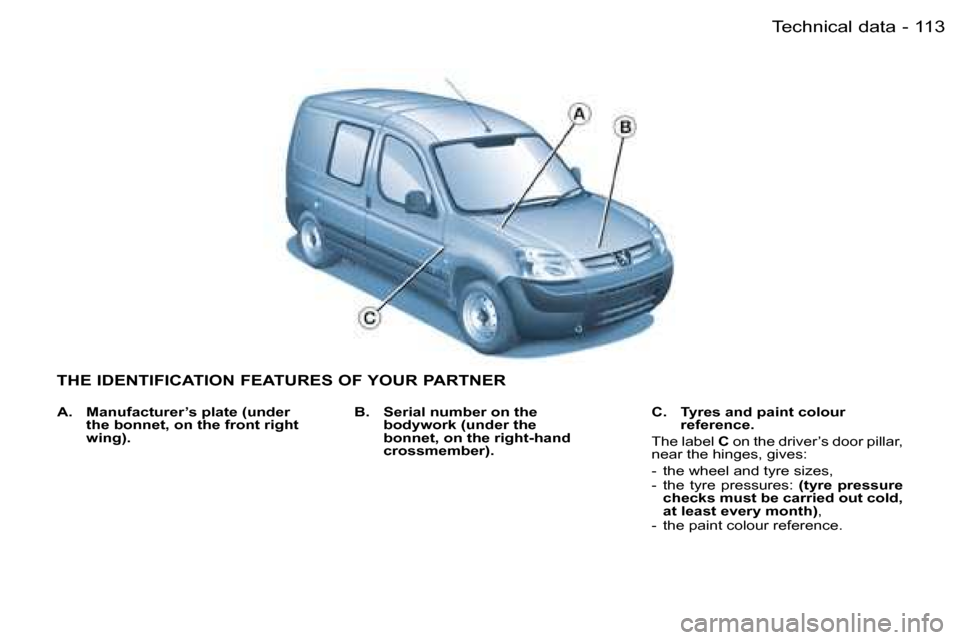

THE IDENTIFICATION FEATURES OF YOUR PARTNER
B. Serial number on the bodywork (under the
bonnet, on the right-hand
crossmember). C. Tyres and paint colour
reference.
The label C on the driver’s door pillar,
near the hinges, gives:
- the wheel and tyre sizes,
- the tyre pressures: (tyre pressure
checks must be carried out cold,
at least every month) ,
- the paint colour reference.
A. Manufacturer’s plate (under
the bonnet, on the front right
wing).
