Practical information86 -
1. Power steering reservoir
2. Windscreen and headlamp*
wash reservoir
3. Coolant reservoir 4.
Brake fluid reservoir
5. Battery
6. Air filter 7.
Dipstick
8. Engine oil reservoir
2 LITRE TURBO DIESEL HDI ENGINE
* According to country.

Practical information88 -
CHECKING THE LEVELS
Oil level
Check the level regularly and top up
between changes. The maximum
consumption is 0.5 l per 600 miles
(1 000 km).
Check the level with the vehicle level,
engine cold, using the oil level gauge
on the instrument panel or the dip-
stick.
Dipstick
Oil change
According to the information given in
the servicing booklet.
Note: avoid used oil coming into pro-
longed contact with the skin. Emp-
ty the used oil into the containers
intended for this purpose in the
PEUGEOT network. Viscosity selection
In all cases, the oil selected must
meet the manufacturer’s require-
ments.
Note:
the coolant does not need to
be changed.
On vehicles fitted with a particle
emission filter, the fan may operate
after the engine has been switched
off, even when the engine is cold.
* According to country.
There are two marks
on the dipstick:
A
= maximum
Never fill past this
mark.
B = minimum
To maintain the reli-
ability of engines and
emission control sys-
tems, the use of ad-
ditives in engine oil is
prohibited.
Brake fluid change:
- must be carried out according to the manufacturer’s servicing schedule.
- use fluids recommended by the manufacturer, which fulfil DOT4
standards.
Note: brake fluid is harmful to health
and very corrosive. Avoid all contact
with the skin.
Cooling system
Use the fluid recommended by the
manufacturer.
When the engine is warm, the tem-
perature of the coolant is controlled
by the engine fan. As this fan can op-
erate with the ignition key removed
and because the cooling system is
pressurised, wait for at least one hour
after the engine has stopped before
carrying out any work.
Slacken the cap by two turns to re-
lease the pressure to prevent any
risk of scalding. When the pressure
has dropped, remove the cap and
top up the level.
Used oil
Do not dispose of used oil, brake flu-
id or coolant into drains or onto the
ground.
Power steering reservoir
Open the reservoir, with the engine
at ambient temperature. The level
should always be above the MIN.
mark and close to the MAX. mark.
Windscreen and headlamp*
wash level
For best quality cleaning and for your
safety, we would advise that you use
products recommended by PEUGEOT.

89Practical information-
CHECKS
Battery
At the start of winter, have your bat-
tery checked by a PEUGEOT dealer.
Oil filter
Change the filter regularly, in accord-
ance with the servicing schedule.Only use products recom-
mended by PEUGEOT or
products of equivalent qual-
ity and specifications.
To ensure best performance
from components as important as the
power steering and the braking sys-
tem, PEUGEOT selects and offers
quite specific products.
To prevent damage to the electrical
units, high pressure washing to clean
the engine compartment is strictly
prohibited .
RUNNING OUT OF FUEL
(DIESEL)
If you should run out of fuel, it is nec-
essary to re-prime the circuit:
- fill the fuel tank with at least five li-
tres of diesel,
- squeeze and release the manual re-priming pump, under the bonnet
under the protective cover, until fuel
appears in the transparent pipe,
- operate the starter until the engine starts.
FUEL SUPPLY CUT-OFF
(PETROL)
In a serious collision, a mechanism
prevents fuel from reaching the en-
gine.
To re-establish the fuel supply, press
the switch on the corner of the front
right-hand suspension assembly, un-
der the bonnet.
Air filter and passenger
compartment filter
Have the filter elements replaced regu-
larly. If you drive in dusty conditions,
change them twice as often.
Brake pads
Brake pad wear depends on the style
of driving, in particular for vehicles
which are used in town, over short
distances.
It may be necessary to check the
thickness of the pads, even between
services.
Disc and drum wear
For information relating to the wear of
the surfaces of the discs and drums,
contact a PEUGEOT dealer.
Manual gearbox
This does not require an oil change.
Check the level in accordance with the
manufacturer’s servicing schedule.
To check the main levels and cer-
tain components, in accordance
with the manufacturer’s servicing
schedule, refer to the pages of
the servicing booklet which corre-
spond to your vehicle’s engine.
Handbrake
Where the handbrake travel is too
great or there is a reduction in the
performance of the system, the
handbrake should be adjusted, even
between services.
Have the system checked by a
PEUGEOT dealer.

Practical information90 -
CHANGING A WHEEL
Parking the vehicle
- If possible, park the vehicle on lev-el, stable and non-slippery ground.
- Apply the handbrake, switch off the ignition and engage first or reverse
gear. Access to the spare wheel and
the jack
The wheel is located outside the ve-
hicle, under the rear floor, supported
by a metal carrier.
- Remove the jack and the wheel-
brace 1, secured behind the driv-
er’s seat.
- Using the wheelbrace 1, slacken
the spare wheel carrier retaining
bolt, located on the inside near the
closing system.
- Lift the carrier to release the hook rearwards, then lower it.
- Remove the chock 2 located in the
spare wheel.
Removing a wheel
- Chock the rear of the wheel di- agonally opposite the wheel to be
changed, using the chock 2.
- Remove the wheel trim using the wheelbrace 1, by pulling at the
valve passage hole.
- Slacken the wheel bolts.
- Place the jack under the locating point on the sub-frame A that is
closest to the wheel to be changed.
Ensure that the entire surface of
the jack base plate is in contact
with the ground.
- Extend the jack, completely un- screw the bolts and remove the
wheel.

91Practical information-
For your safety, always
change a wheel:
- on level, stable and non slippery ground,
- with the handbrake applied,
- with first or reverse gear engaged,
- with the vehicle chocked,
- never go underneath a vehicle raised using a jack (use an axle
stand).
Refitting the wheel
- After positioning the wheel, light-ly pre-tighten the bolts using the
wheelbrace.
- Compress the jack and release it.
- Fully tighten the bolts using the wheelbrace.
- Replace the trim, starting at the valve passage hole, and press it on
using the palm of the hand.

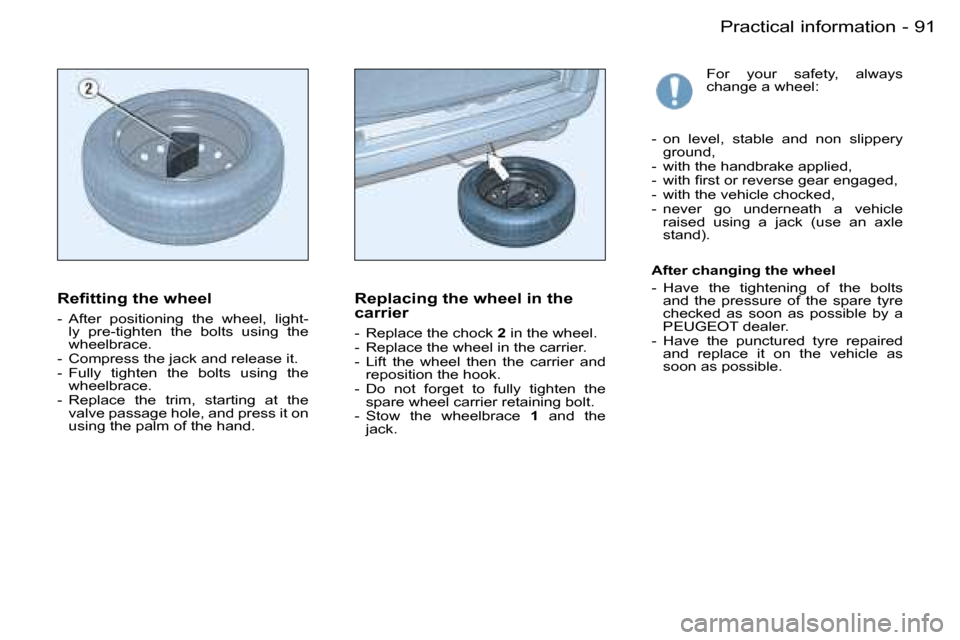

Replacing the wheel in the
carrier
- Replace the chock 2 in the wheel.
- Replace the wheel in the carrier.
- Lift the wheel then the carrier and reposition the hook.
- Do not forget to fully tighten the spare wheel carrier retaining bolt.
- Stow the wheelbrace 1 and the
jack. After changing the wheel
- Have the tightening of the bolts
and the pressure of the spare tyre
checked as soon as possible by a
PEUGEOT dealer.
- Have the punctured tyre repaired and replace it on the vehicle as
soon as possible.

Practical information92 -
CHANGING A BULB
Front lights

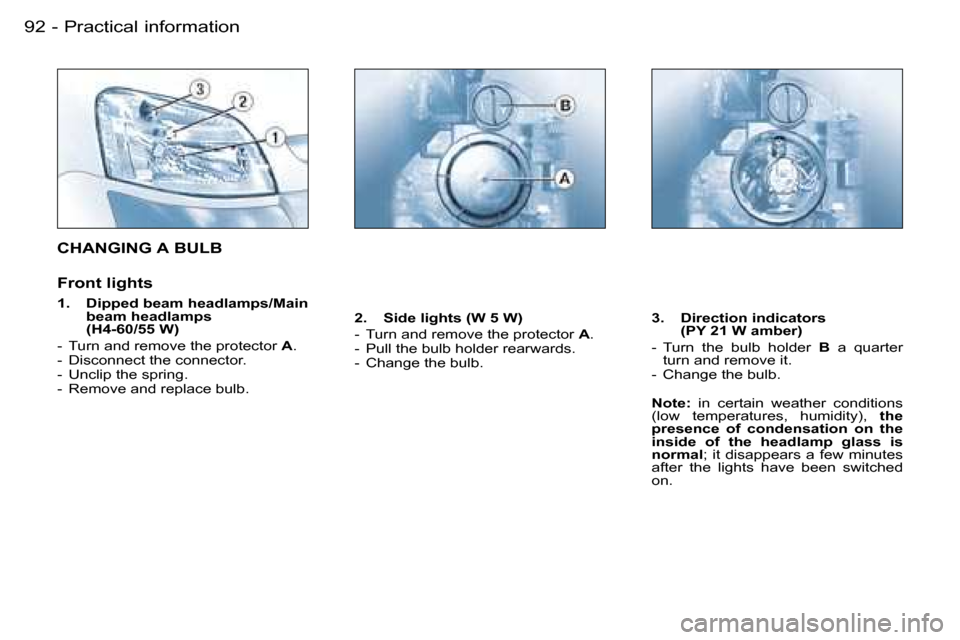

1. Dipped beam headlamps/Main beam headlamps
(H4-60/55 W)
- Turn and remove the protector A.
- Disconnect the connector.
- Unclip the spring.
- Remove and replace bulb. 2. Side lights (W 5 W)
- Turn and remove the protector
A.
- Pull the bulb holder rearwards.
- Change the bulb. 3. Direction indicators
(PY 21 W amber)
- Turn the bulb holder B a quarter
turn and remove it.
- Change the bulb.
Note: in certain weather conditions
(low temperatures, humidity), the
presence of condensation on the
inside of the headlamp glass is
normal ; it disappears a few minutes
after the lights have been switched
on.

93Practical information-
Only use H4 bulbs manufac-
tured by:
- GE/TUNGSRAM,
- PHILIPS,
- OSRAM,
to avoid damaging the headlamps.
These meet the anti-UV (ultra-violet)
specifications necessary for the cor-
rect operation and reliability of the
headlamps.
The headlamps are fitted with a poly-
carbonate lens coated with a protec-
tive varnish. You are strongly advised
to avoid cleaning them using a dry or
abrasive cloth and using detergent
products or solvents.
Use a soft, damp cloth. Direction indicator side repeaters
(WY 5 W amber)
- Push the transparent cover for-
wards or rearwards and release it.
- Turn the bulb holder a quarter turn.
- Change the bulb.
Amber coloured bulbs (di-
rection indicators and side
repeaters) must be replaced
by bulbs of identical specifi-
cation and colour.

Practical information94 -
Rear lights

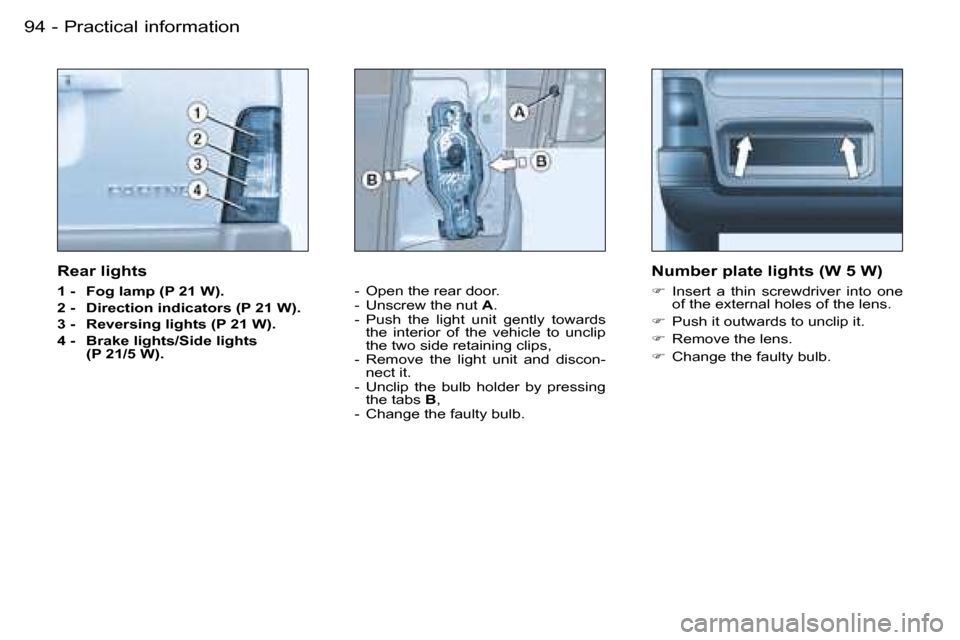

1 - Fog lamp (P 21 W).
2 - Direction indicators (P 21 W).
3 - Reversing lights (P 21 W).
4 - Brake lights/Side lights (P 21/5 W). -
Open the rear door.
- Unscrew the nut A.
- Push the light unit gently towards
the interior of the vehicle to unclip
the two side retaining clips,
- Remove the light unit and discon-
nect it.
- Unclip the bulb holder by pressing
the tabs B,
- Change the faulty bulb.
Number plate lights (W 5 W)
 Insert a thin screwdriver into one
of the external holes of the lens.
 Push it outwards to unclip it.
 Remove the lens.
 Change the faulty bulb.
