2007 Peugeot 307 CC Owner's Manual

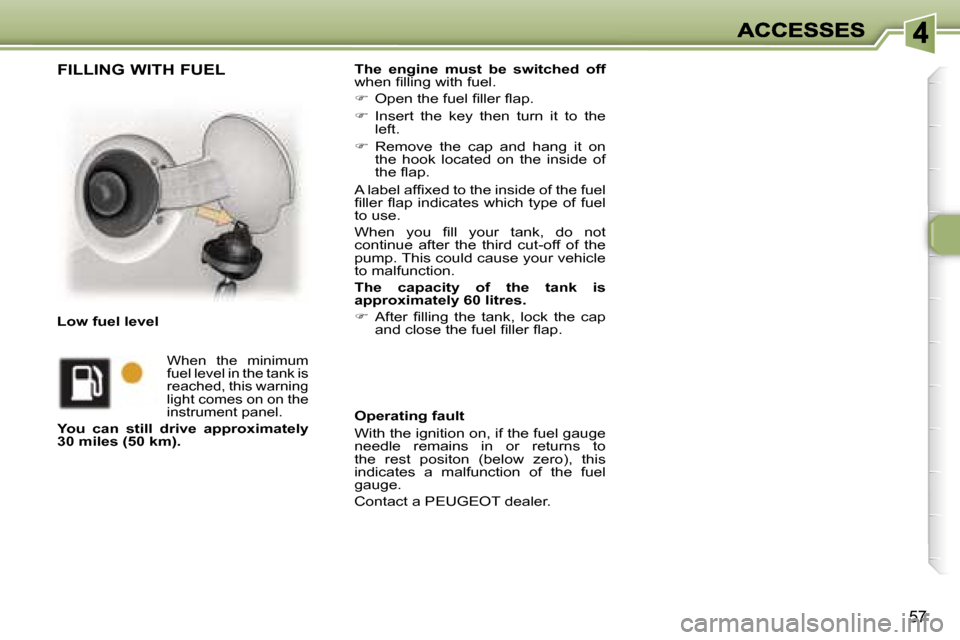

57
The engine must be switched offwhen filling with fuel.
 Open the fuel filler flap.
 Insert the key then turn it to the left.
 Remove the cap and hang it on the hook located on the inside of the flap.
A label affixed to the inside of the fuel filler flap indicates which type of fuel to use.
When you fill your tank, do not continue after the third cut-off of the pump. This could cause your vehicle to malfunction.
The capacity of the tank is approximately 60 litres.
 After filling the tank, lock the cap and close the fuel filler flap.Low fuel level
When the minimum fuel level in the tank is reached, this warning light comes on on the instrument panel.
You can still drive approximately 30 miles (50 km).
Operating fault
With the ignition on, if the fuel gauge needle remains in or returns to the rest positon (below zero), this indicates a malfunction of the fuel gauge.
Contact a PEUGEOT dealer.
FILLING WITH FUEL

i
!

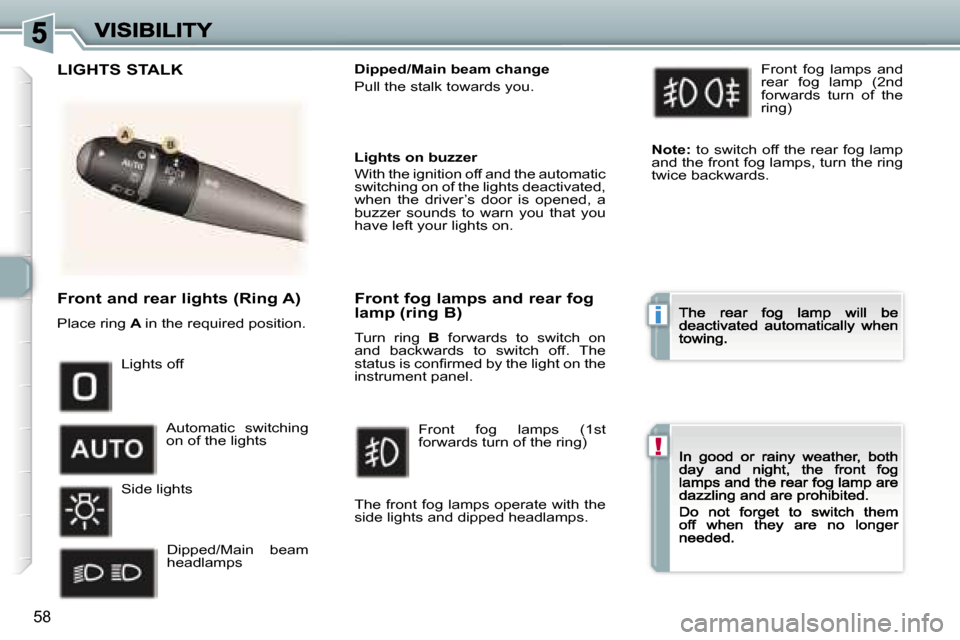

58
Front and rear lights (Ring A)
Place ring A in the required position.
Dipped/Main beam change
Pull the stalk towards you.
Lights off
Side lights
Dipped/Main beam headlamps
Front fog lamps (1st forwards turn of the ring)
The front fog lamps operate with the side lights and dipped headlamps.
Front fog lamps and rear fog lamp (2nd forwards turn of the ring)
Note: to switch off the rear fog lamp and the front fog lamps, turn the ring twice backwards.
Front fog lamps and rear fog
lamp (ring B)
Turn ring B forwards to switch on and backwards to switch off. The status is confirmed by the light on the instrument panel.
Lights on buzzer
With the ignition off and the automatic switching on of the lights deactivated, when the driver’s door is opened, a buzzer sounds to warn you that you have left your lights on.
LIGHTS STALK
Automatic switching on of the lights

i

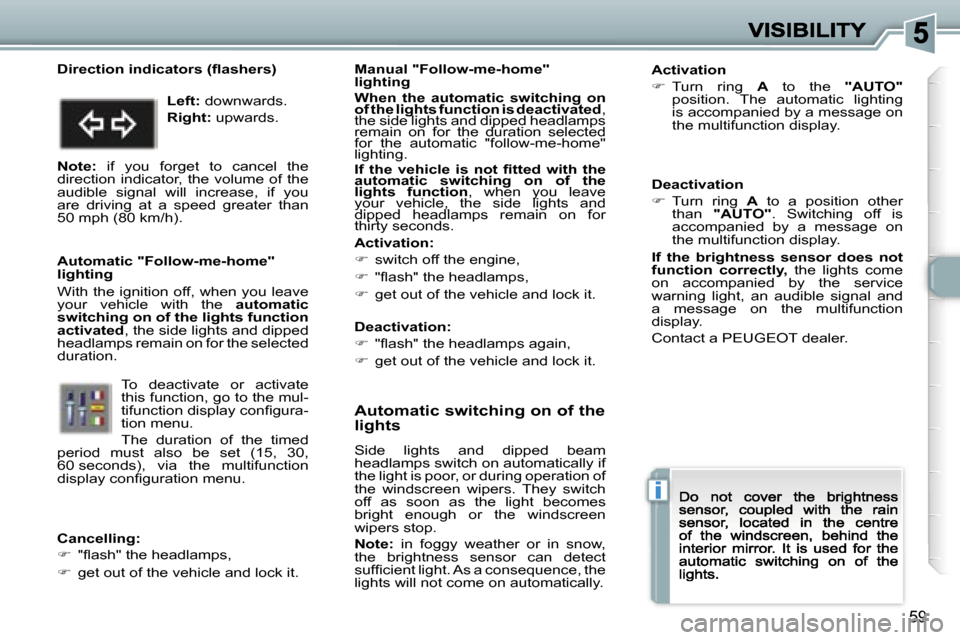

59
Automatic switching on of the
lights
Side lights and dipped beam headlamps switch on automatically if the light is poor, or during operation of the windscreen wipers. They switch off as soon as the light becomes bright enough or the windscreen wipers stop.
Note: in foggy weather or in snow, the brightness sensor can detect sufficient light. As a consequence, the lights will not come on automatically.
Manual "Follow-me-home" lightingWhen the automatic switching on of the lights function is deactivatedWhen the automatic switching on When the automatic switching on , the side lights and dipped headlamps of the lights function is deactivatedof the lights function is deactivated
remain on for the duration selected the side lights and dipped headlamps the side lights and dipped headlamps
for the automatic "follow-me-home" lighting.If the vehicle is not fitted with the automatic switching on of the lights functionautomatic switching on of the automatic switching on of the , when you leave automatic switching on of the automatic switching on of the
your vehicle, the side lights and lights functionlights function, when you leave , when you leave
dipped headlamps remain on for your vehicle, the side lights and your vehicle, the side lights and
thirty seconds.dipped headlamps remain on for dipped headlamps remain on for
Direction indicators (flashers)
Left: downwards.
Right: upwards.
Note: if you forget to cancel the direction indicator, the volume of the audible signal will increase, if you are driving at a speed greater than 50 mph (80 km/h).
Automatic "Follow-me-home" lighting
With the ignition off, when you leave your vehicle with the automatic switching on of the lights function activated, the side lights and dipped headlamps remain on for the selected duration.
Activation:
 switch off the engine,
 "flash" the headlamps,
 get out of the vehicle and lock it.
Deactivation:
 "flash" the headlamps again,
 get out of the vehicle and lock it.
To deactivate or activate this function, go to the mul-tifunction display configura-tion menu.
The duration of the timed period must also be set (15, 30, 60 seconds), via the multifunction display configuration menu.
Cancelling:
 "flash" the headlamps,
 get out of the vehicle and lock it.
Activation
 Turn ring A to the "AUTO"position. The automatic lighting is accompanied by a message on the multifunction display.
Deactivation
 Turn ring A to a position other than "AUTO". Switching off is accompanied by a message on the multifunction display.
If the brightness sensor does not function correctly, the lights come on accompanied by the service warning light, an audible signal and a message on the multifunction display.
Contact a PEUGEOT dealer.

i
59
Automatic switching on of the
lights
Side lights and dipped beam headlamps switch on automatically if the light is poor, or during operation of the windscreen wipers. They switch off as soon as the light becomes bright enough or the windscreen wipers stop.
Note: in foggy weather or in snow, the brightness sensor can detect sufficient light. As a consequence, the lights will not come on automatically.
Manual "Follow-me-home" lightingWhen the automatic switching on of the lights function is deactivatedWhen the automatic switching on When the automatic switching on , the side lights and dipped headlamps of the lights function is deactivatedof the lights function is deactivated
remain on for the duration selected the side lights and dipped headlamps the side lights and dipped headlamps
for the automatic "follow-me-home" lighting.If the vehicle is not fitted with the automatic switching on of the lights functionautomatic switching on of the automatic switching on of the , when you leave automatic switching on of the automatic switching on of the
your vehicle, the side lights and lights functionlights function, when you leave , when you leave
dipped headlamps remain on for your vehicle, the side lights and your vehicle, the side lights and
thirty seconds.dipped headlamps remain on for dipped headlamps remain on for
Direction indicators (flashers)
Left: downwards.
Right: upwards.
Note: if you forget to cancel the direction indicator, the volume of the audible signal will increase, if you are driving at a speed greater than 50 mph (80 km/h).
Automatic "Follow-me-home" lighting
With the ignition off, when you leave your vehicle with the automatic switching on of the lights function activated, the side lights and dipped headlamps remain on for the selected duration.
Activation:
 switch off the engine,
 "flash" the headlamps,
 get out of the vehicle and lock it.
Deactivation:
 "flash" the headlamps again,
 get out of the vehicle and lock it.
To deactivate or activate this function, go to the mul-tifunction display configura-tion menu.
The duration of the timed period must also be set (15, 30, 60 seconds), via the multifunction display configuration menu.
Cancelling:
 "flash" the headlamps,
 get out of the vehicle and lock it.
Activation
 Turn ring A to the "AUTO"position. The automatic lighting is accompanied by a message on the multifunction display.
Deactivation
 Turn ring A to a position other than "AUTO". Switching off is accompanied by a message on the multifunction display.
If the brightness sensor does not function correctly, the lights come on accompanied by the service warning light, an audible signal and a message on the multifunction display.
Contact a PEUGEOT dealer.

i

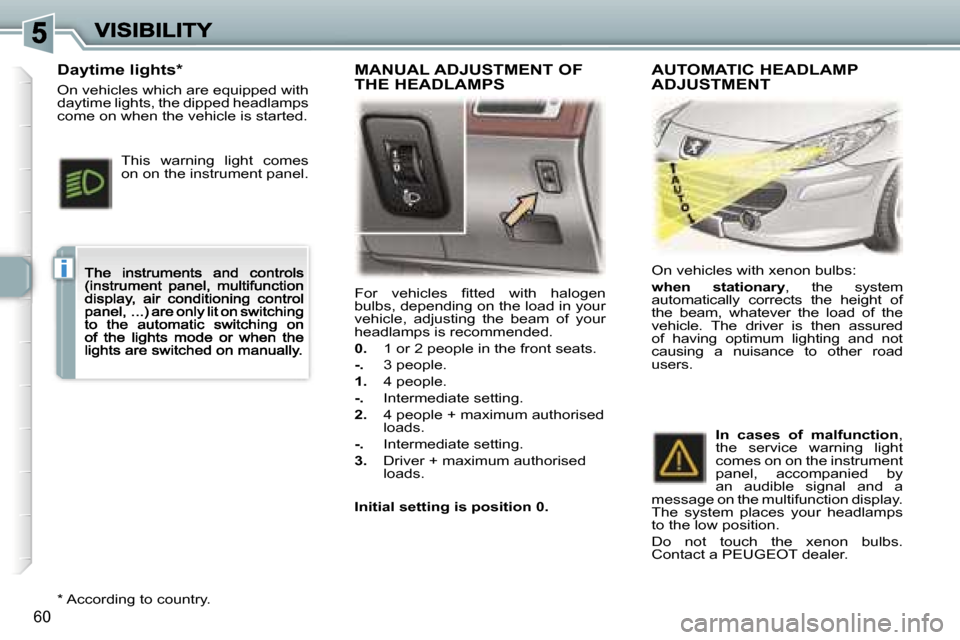

60
For vehicles fitted with halogen bulbs, depending on the load in your vehicle, adjusting the beam of your headlamps is recommended.
0. 1 or 2 people in the front seats.
-. 3 people.
1. 4 people.
-. Intermediate setting.
2. 4 people + maximum authorised loads.
-. Intermediate setting.
3. Driver + maximum authorised loads.
Initial setting is position 0.
On vehicles with xenon bulbs:
when stationary,the system automatically corrects the height of the beam, whatever the load of the vehicle. The driver is then assured of having optimum lighting and not causing a nuisance to other road users.
In cases of malfunction, the service warning light comes on on the instrument panel, accompanied by an audible signal and a message on the multifunction display. The system places your headlamps to the low position.
Do not touch the xenon bulbs. Contact a PEUGEOT dealer.
Daytime lights*
On vehicles which are equipped with daytime lights, the dipped headlamps come on when the vehicle is started.
* According to country.
This warning light comes on on the instrument panel.
MANUAL ADJUSTMENT OF
THE HEADLAMPSAUTOMATIC HEADLAMP
ADJUSTMENT

i
60
For vehicles fitted with halogen bulbs, depending on the load in your vehicle, adjusting the beam of your headlamps is recommended.
0. 1 or 2 people in the front seats.
-. 3 people.
1. 4 people.
-. Intermediate setting.
2. 4 people + maximum authorised loads.
-. Intermediate setting.
3. Driver + maximum authorised loads.
Initial setting is position 0.
On vehicles with xenon bulbs:
when stationary,the system automatically corrects the height of the beam, whatever the load of the vehicle. The driver is then assured of having optimum lighting and not causing a nuisance to other road users.
In cases of malfunction, the service warning light comes on on the instrument panel, accompanied by an audible signal and a message on the multifunction display. The system places your headlamps to the low position.
Do not touch the xenon bulbs. Contact a PEUGEOT dealer.
Daytime lights*
On vehicles which are equipped with daytime lights, the dipped headlamps come on when the vehicle is started.
* According to country.
This warning light comes on on the instrument panel.
MANUAL ADJUSTMENT OF
THE HEADLAMPSAUTOMATIC HEADLAMP
ADJUSTMENT

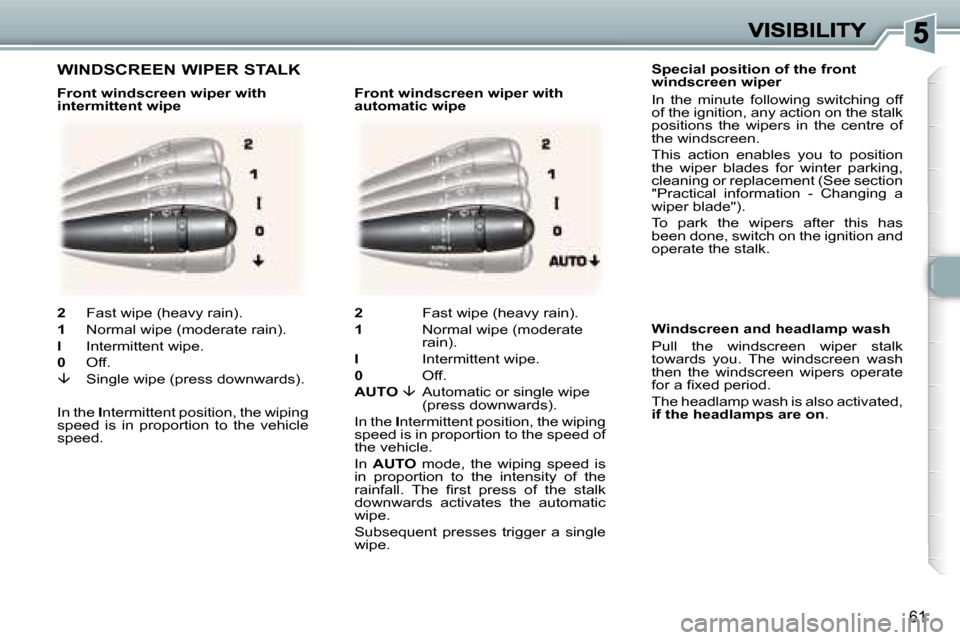

61
Special position of the front windscreen wiper
In the minute following switching off of the ignition, any action on the stalk positions the wipers in the centre of the windscreen.
This action enables you to position the wiper blades for winter parking, cleaning or replacement (See section "Practical information - Changing a wiper blade").
To park the wipers after this has been done, switch on the ignition and operate the stalk.
Windscreen and headlamp wash
Pull the windscreen wiper stalk towards you. The windscreen wash then the windscreen wipers operate for a fixed period.
The headlamp wash is also activated, if the headlamps are on.
2 Fast wipe (heavy rain).
1 Normal wipe (moderate rain).
l Intermittent wipe.
0 Off.
 Single wipe (press downwards).
In the Intermittent position, the wiping speed is in proportion to the vehicle speed.
2 Fast wipe (heavy rain).
1 Normal wipe (moderate rain).
I Intermittent wipe.
0 Off.
AUTO  Automatic or single wipe (press downwards).
In the Intermittent position, the wiping speed is in proportion to the speed of the vehicle.
In AUTO mode, the wiping speed is in proportion to the intensity of the rainfall. The first press of the stalk downwards activates the automatic wipe.
Subsequent presses trigger a single wipe.
WINDSCREEN WIPER STALK
Front windscreen wiper with intermittent wipe Front windscreen wiper with automatic wipe

i
i

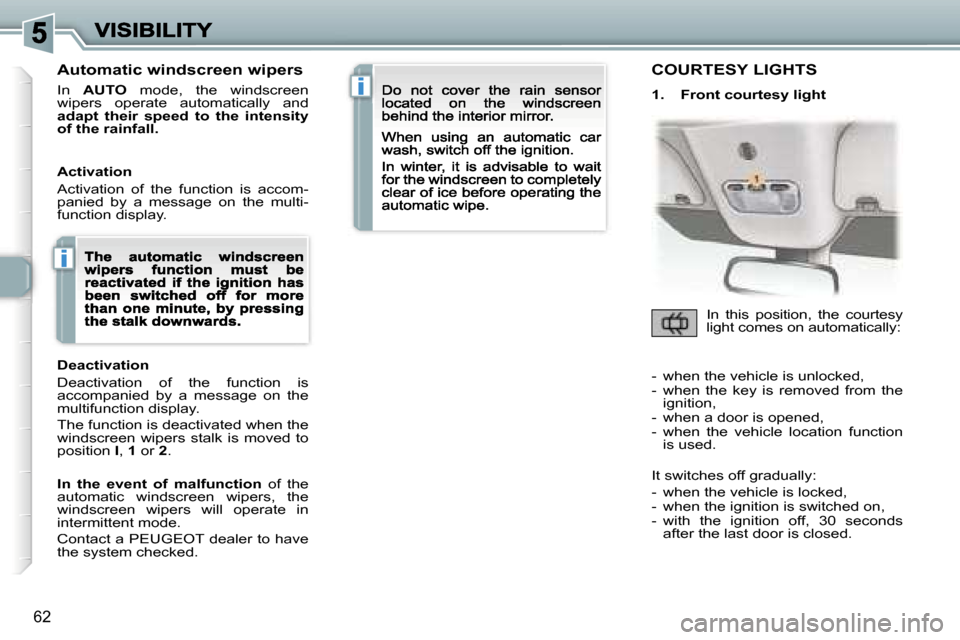

62
Automatic windscreen wipers
In AUTO mode, the windscreen wipers operate automatically and adapt their speed to the intensity of the rainfall.
Activation
Activation of the function is accom-panied by a message on the multi-function display.
Deactivation
Deactivation of the function is accompanied by a message on the multifunction display.
The function is deactivated when the windscreen wipers stalk is moved to position I, 1 or 2.
In the event of malfunction of the automatic windscreen wipers, the windscreen wipers will operate in intermittent mode.
Contact a PEUGEOT dealer to have the system checked.
In this position, the courtesy light comes on automatically:
- when the vehicle is unlocked,- when the key is removed from the ignition,- when a door is opened,- when the vehicle location function is used.
It switches off gradually:
- when the vehicle is locked,- when the ignition is switched on,- with the ignition off, 30 seconds after the last door is closed.
COURTESY LIGHTS
1. Front courtesy light
