2007 Peugeot 307 CC Owner's Manual

i

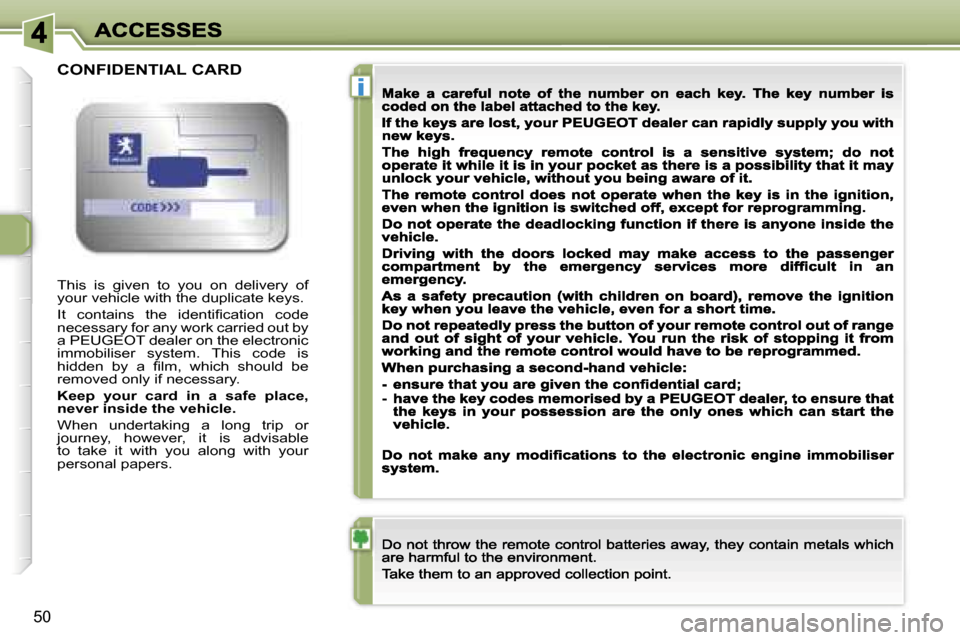

50
This is given to you on delivery of your vehicle with the duplicate keys.
It contains the identification code necessary for any work carried out by a PEUGEOT dealer on the electronic immobiliser system. This code is hidden by a film, which should be removed only if necessary.
Keep your card in a safe place, never inside the vehicle.
When undertaking a long trip or journey, however, it is advisable to take it with you along with your personal papers.
CONFIDENTIAL CARD

i

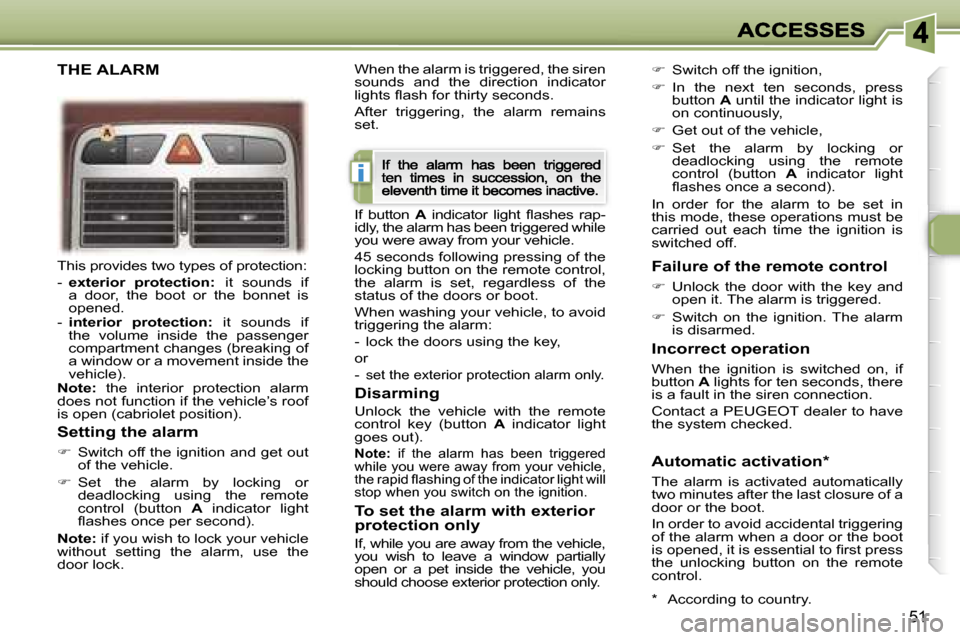

51
This provides two types of protection:
- exterior protection:it sounds if a door, the boot or the bonnet is opened.-interior protection: it sounds if the volume inside the passenger compartment changes (breaking of a window or a movement inside the vehicle).Note: the interior protection alarm does not function if the vehicle’s roof is open (cabriolet position).
When the alarm is triggered, the siren sounds and the direction indicator lights flash for thirty seconds.
After triggering, the alarm remains set.
 Switch off the ignition,
 In the next ten seconds, press button A until the indicator light is on continuously,
 Get out of the vehicle,
 Set the alarm by locking or deadlocking using the remote control (button A indicator light flashes once a second).
In order for the alarm to be set in this mode, these operations must be carried out each time the ignition is switched off.
Setting the alarm
 Switch off the ignition and get out of the vehicle.
 Set the alarm by locking or deadlocking using the remote control (button A indicator light flashes once per second).
Note: if you wish to lock your vehicle without setting the alarm, use the door lock.
Disarming
Unlock the vehicle with the remote control key (button A indicator light goes out).
Note: if the alarm has been triggered while you were away from your vehicle, the rapid flashing of the indicator light will stop when you switch on the ignition.
To set the alarm with exterior protection only
If, while you are away from the vehicle, you wish to leave a window partially open or a pet inside the vehicle, you should choose exterior protection only.
Incorrect operation
When the ignition is switched on, if button A lights for ten seconds, there is a fault in the siren connection.
Contact a PEUGEOT dealer to have the system checked.
Automatic activation*
The alarm is activated automatically two minutes after the last closure of a door or the boot.
In order to avoid accidental triggering of the alarm when a door or the boot is opened, it is essential to first press the unlocking button on the remote control.
* According to country.
Failure of the remote control
 Unlock the door with the key and open it. The alarm is triggered.
 Switch on the ignition. The alarm is disarmed.
THE ALARM
If button A indicator light flashes rap-AAidly, the alarm has been triggered while you were away from your vehicle.
45 seconds following pressing of the locking button on the remote control, the alarm is set, regardless of the status of the doors or boot.
When washing your vehicle, to avoid triggering the alarm:
- lock the doors using the key,
or
- set the exterior protection alarm only.

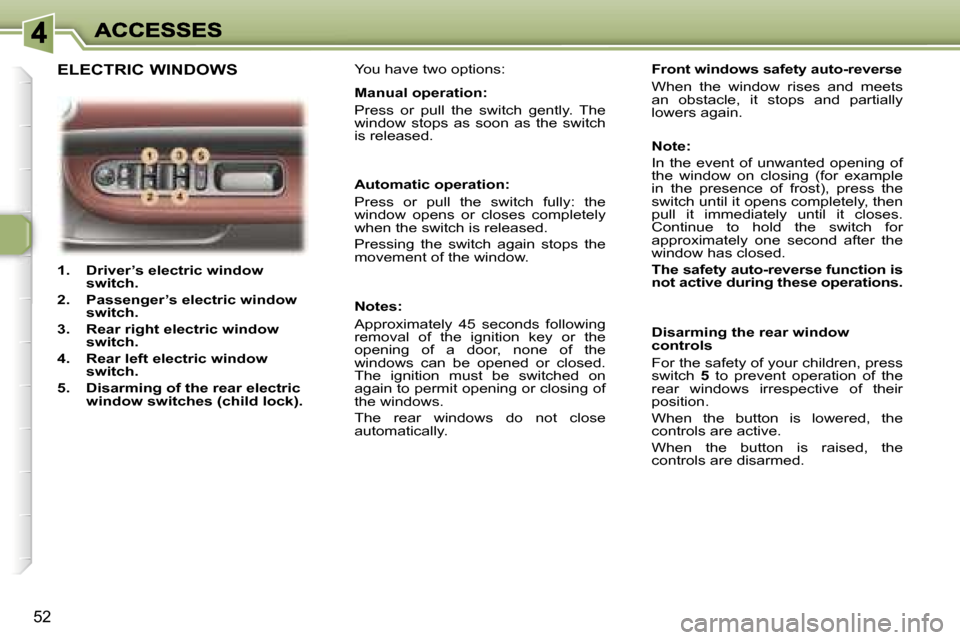

52
1. Driver’s electric window switch.
2. Passenger’selectric window switch.
3.Rear right electric window switch.
4. Rear leftelectric window switch.
5. Disarming of the rear electric window switches (child lock).
You have two options:
Manual operation:
Press or pull the switch gently. The window stops as soon as the switch is released.
Automatic operation:
Press or pull the switch fully: the window opens or closes completely when the switch is released.
Pressing the switch again stops the movement of the window.
Front windows safety auto-reverse
When the window rises and meets an obstacle, it stops and partially lowers again.
Disarming the rear window controls
For the safety of your children, press switch 5 to prevent operation of the rear windows irrespective of their position.
When the button is lowered, the controls are active.
When the button is raised, the controls are disarmed.
Notes:
Approximately 45 seconds following removal of the ignition key or the opening of a door, none of the windows can be opened or closed. The ignition must be switched on again to permit opening or closing of the windows.
The rear windows do not close automatically.
Note:
In the event of unwanted opening of the window on closing (for example in the presence of frost), press the switch until it opens completely, then pull it immediately until it closes. Continue to hold the switch for approximately one second after the window has closed.
The safety auto-reverse function is not active during these operations.
ELECTRIC WINDOWS

!
!

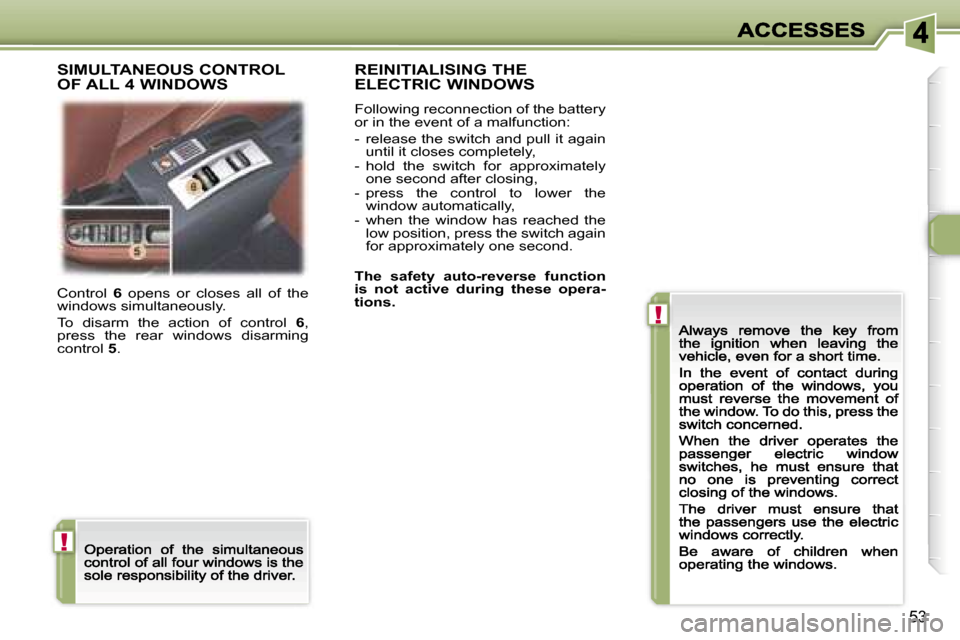

53
Control 6 opens or closes all of the windows simultaneously.
To disarm the action of control 6, press the rear windows disarming control 5.
REINITIALISING THE
ELECTRIC WINDOWS
Following reconnection of the battery or in the event of a malfunction:
- release the switch and pull it again until it closes completely,- hold the switch for approximately one second after closing,- press the control to lower the window automatically,- when the window has reached the low position, press the switch again for approximately one second.
The safety auto-reverse function is not active during these opera-tions.
SIMULTANEOUS CONTROL
OF ALL 4 WINDOWS

!
!

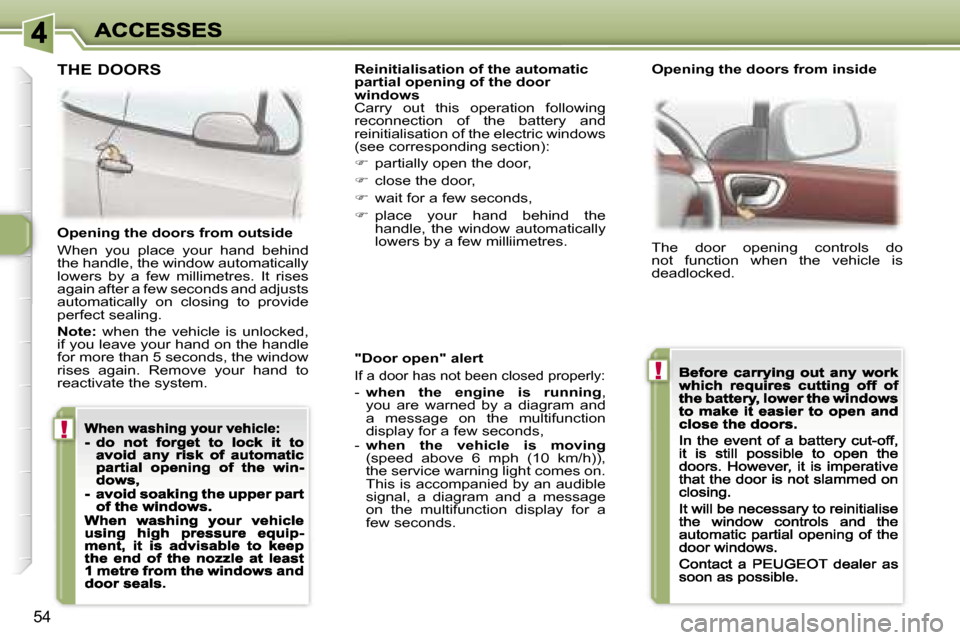

54
"Door open" alert
If a door has not been closed properly:
- when the engine is running, you are warned by a diagram and a message on the multifunction display for a few seconds,- when the vehicle is moving(speed above 6 mph (10 km/h)), the service warning light comes on. This is accompanied by an audible signal, a diagram and a message on the multifunction display for a few seconds.
The door opening controls do not function when the vehicle is deadlocked.
Opening the doors from outside
When you place your hand behind the handle, the window automatically lowers by a few millimetres. It rises again after a few seconds and adjusts automatically on closing to provide perfect sealing.
Note: when the vehicle is unlocked, if you leave your hand on the handle for more than 5 seconds, the window rises again. Remove your hand to reactivate the system.
Reinitialisation of the automatic partial opening of the door windowsCarry out this operation following reconnection of the battery and reinitialisation of the electric windows (see corresponding section):
 partially open the door,
 close the door,
 wait for a few seconds,
 place your hand behind the handle, the window automatically lowers by a few milliimetres.
THE DOORSOpening the doors from inside

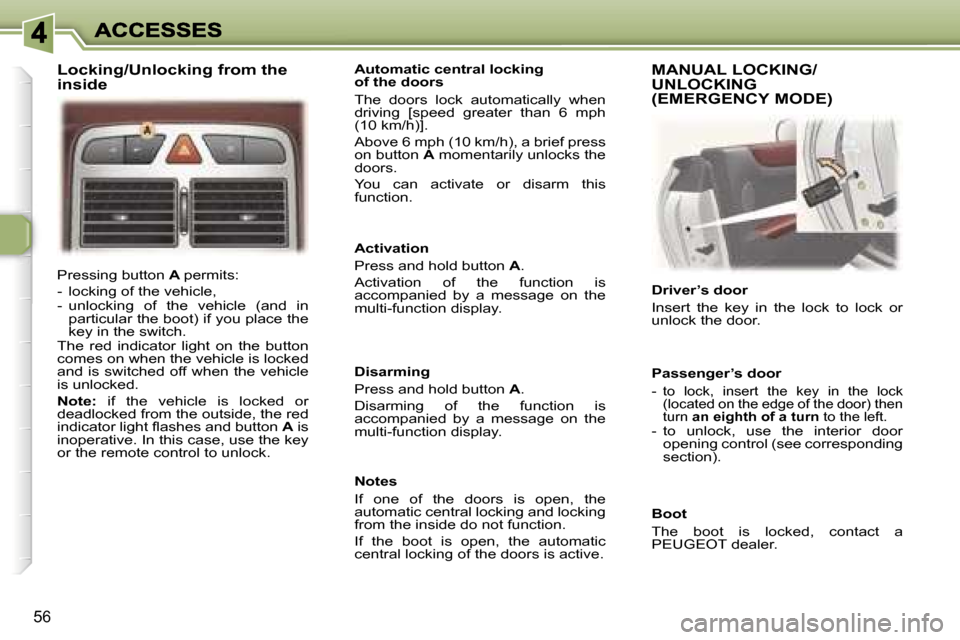

56
Pressing button A permits:
- locking of the vehicle,- unlocking of the vehicle (and in particular the boot) if you place the key in the switch.The red indicator light on the button comes on when the vehicle is locked and is switched off when the vehicle is unlocked.
Note: if the vehicle is locked or deadlocked from the outside, the red indicator light flashes and button A is inoperative. In this case, use the key or the remote control to unlock.
Automatic central locking of the doors
The doors lock automatically when driving [speed greater than 6 mph (10 km/h)].
Above 6 mph (10 km/h), a brief press on button A momentarily unlocks the doors.
You can activate or disarm this function.
Activation
Press and hold button A.
Activation of the function is accompanied by a message on the multi-function display.
Disarming
Press and hold button A.
Disarming of the function is accompanied by a message on the multi-function display.
Notes
If one of the doors is open, the automatic central locking and locking from the inside do not function.
If the boot is open, the automatic central locking of the doors is active.
Driver’s door
Insert the key in the lock to lock or unlock the door.
Passenger’s door
- to lock, insert the key in the lock (located on the edge of the door) then turn an eighth of a turn to the left.- to unlock, use the interior door opening control (see corresponding section).
Boot
The boot is locked, contact a PEUGEOT dealer.
MANUAL LOCKING/
UNLOCKING
(EMERGENCY MODE)Locking/Unlocking from the inside

!

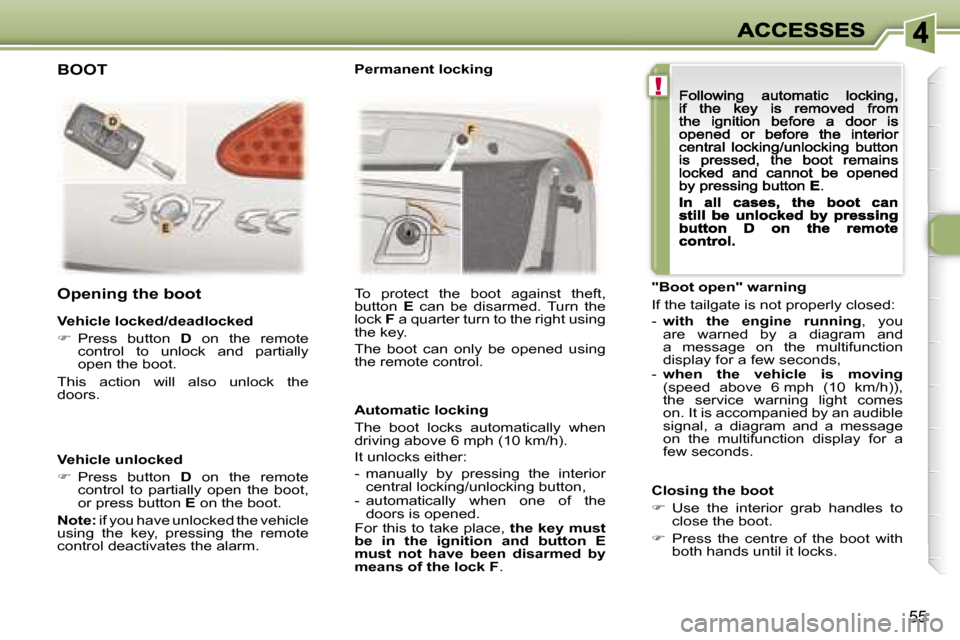

55
Vehicle unlocked
 Press button D on the remote control to partially open the boot, or press button E on the boot.
Note: if you have unlocked the vehicle using the key, pressing the remote control deactivates the alarm.
To protect the boot against theft, button E can be disarmed. Turn the lock F a quarter turn to the right using the key.
The boot can only be opened using the remote control.
Opening the boot
Vehicle locked/deadlocked
 Press button D on the remote control to unlock and partially open the boot.
This action will also unlock the doors.
"Boot open" warning
If the tailgate is not properly closed:
- with the engine running, you are warned by a diagram and a message on the multifunction display for a few seconds,- when the vehicle is moving(speed above 6 mph (10 km/h)), the service warning light comes on. It is accompanied by an audible signal, a diagram and a message on the multifunction display for a few seconds.
Closing the boot
 Use the interior grab handles to close the boot.
Press the centre of the boot with both hands until it locks.
BOOTPermanent locking
Automatic locking
The boot locks automatically when driving above 6 mph (10 km/h).
It unlocks either:
- manually by pressing the interior central locking/unlocking button,- automatically when one of the doors is opened.For this to take place, the key must be in the ignition and button E must not have been disarmed by means of the lock F.

56
Pressing button A permits:
- locking of the vehicle,- unlocking of the vehicle (and in particular the boot) if you place the key in the switch.The red indicator light on the button comes on when the vehicle is locked and is switched off when the vehicle is unlocked.
Note: if the vehicle is locked or deadlocked from the outside, the red indicator light flashes and button A is inoperative. In this case, use the key or the remote control to unlock.
Automatic central locking of the doors
The doors lock automatically when driving [speed greater than 6 mph (10 km/h)].
Above 6 mph (10 km/h), a brief press on button A momentarily unlocks the doors.
You can activate or disarm this function.
Activation
Press and hold button A.
Activation of the function is accompanied by a message on the multi-function display.
Disarming
Press and hold button A.
Disarming of the function is accompanied by a message on the multi-function display.
Notes
If one of the doors is open, the automatic central locking and locking from the inside do not function.
If the boot is open, the automatic central locking of the doors is active.
Driver’s door
Insert the key in the lock to lock or unlock the door.
Passenger’s door
- to lock, insert the key in the lock (located on the edge of the door) then turn an eighth of a turn to the left.- to unlock, use the interior door opening control (see corresponding section).
Boot
The boot is locked, contact a PEUGEOT dealer.
MANUAL LOCKING/
UNLOCKING
(EMERGENCY MODE)Locking/Unlocking from the inside
