2007 Peugeot 307 CC Owner's Manual

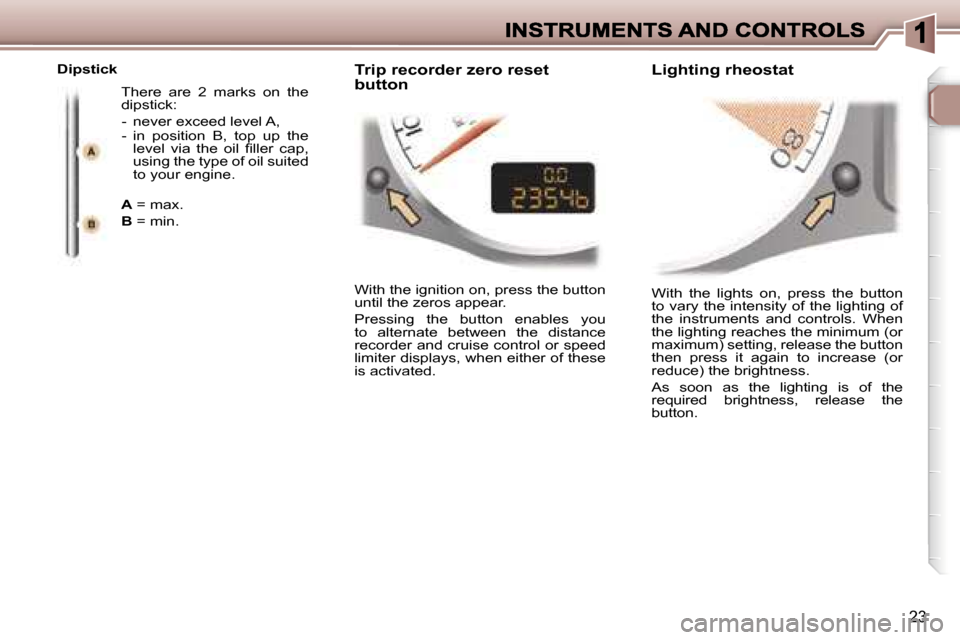

23
With the lights on, press the button to vary the intensity of the lighting of the instruments and controls. When the lighting reaches the minimum (or maximum) setting, release the button then press it again to increase (or reduce) the brightness.
As soon as the lighting is of the required brightness, release the button.
With the ignition on, press the button until the zeros appear.
Pressing the button enables you to alternate between the distance recorder and cruise control or speed limiter displays, when either of these is activated.
Dipstick
There are 2 marks on the dipstick:
- never exceed level A,- in position B, top up the level via the oil filler cap, using the type of oil suited to your engine.
A = max.
B = min.
Lighting rheostatTrip recorder zero reset button

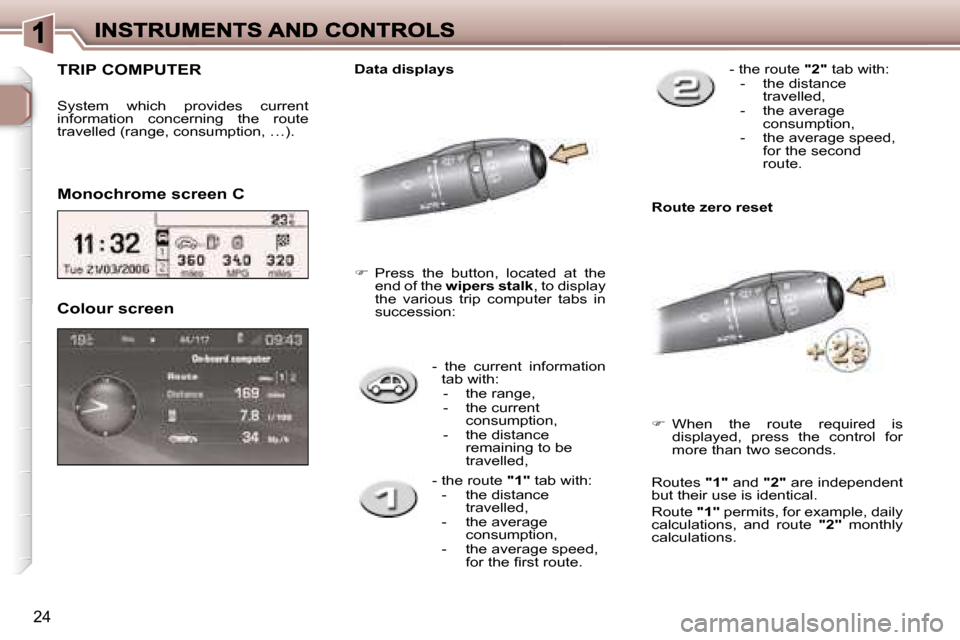

24
- the current information tab with: - the range, - the current consumption, - the distance remaining to be travelled,
Colour screen
Route zero resetMonochrome screen C
 Press the button, located at the end of the wipers stalk, to display the various trip computer tabs in succession:
Data displays
 When the route required is displayed, press the control for more than two seconds.
Routes "1" and "2" are independent but their use is identical.
Route "1" permits, for example, daily calculations, and route "2" monthly calculations.
- the route "1" tab with: - the distance travelled, - the average consumption, - the average speed,for the first route.
- the route "2" tab with: - the distance travelled, - the average consumption, - the average speed, for the second route.
TRIP COMPUTER
System which provides current information concerning the route travelled (range, consumption, …).

ii
!

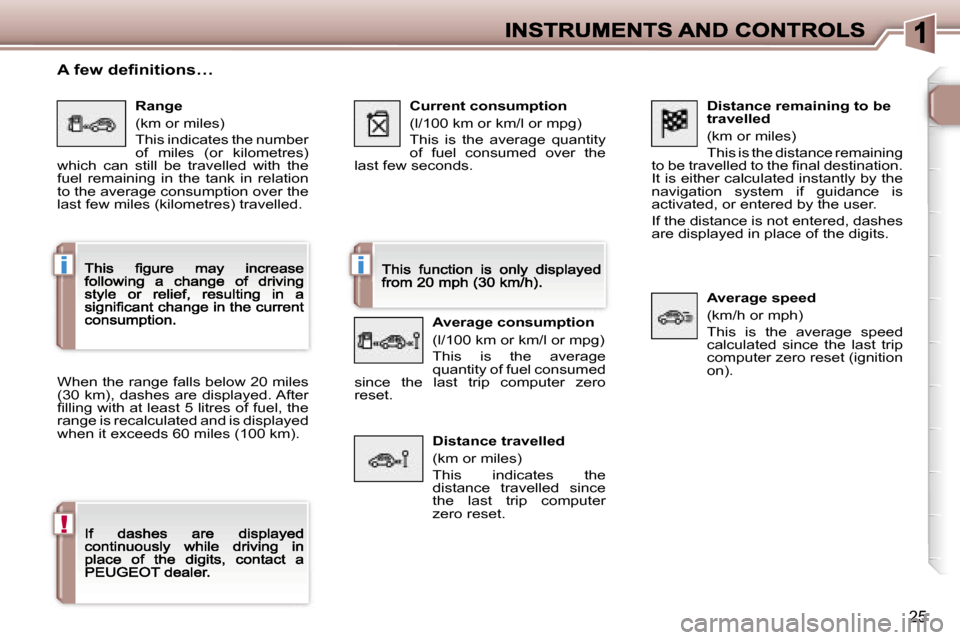

25
Distance remaining to be travelled
(km or miles)
This is the distance remaining to be travelled to the final destination. It is either calculated instantly by the navigation system if guidance is activated, or entered by the user.
If the distance is not entered, dashes are displayed in place of the digits.
Average speed
(km/h or mph)
This is the average speed calculated since the last trip computer zero reset (ignition on).
Range
(km or miles)
This indicates the number of miles (or kilometres) which can still be travelled with the fuel remaining in the tank in relation to the average consumption over the last few miles (kilometres) travelled.
Current consumption
(l/100 km or km/l or mpg)
This is the average quantity of fuel consumed over the last few seconds.
Average consumption
(l/100 km or km/l or mpg)
This is the average quantity of fuel consumed since the last trip computer zero reset.
Distance travelled
(km or miles)
This indicates the distance travelled since the last trip computer zero reset.
A few definitions…
When the range falls below 20 miles (30 km), dashes are displayed. After filling with at least 5 litres of fuel, the range is recalculated and is displayed when it exceeds 60 miles (100 km).

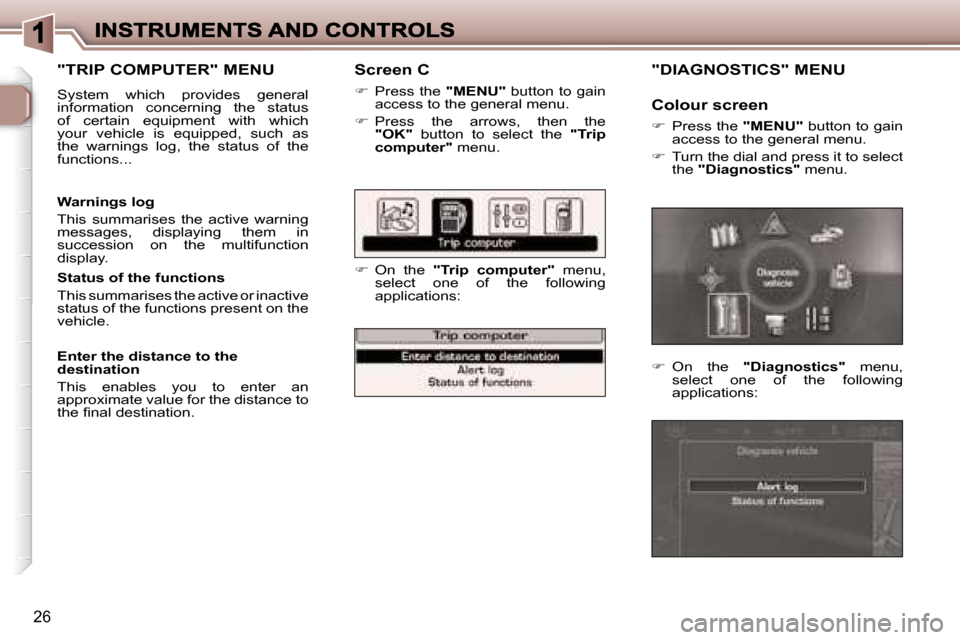

26
Screen C
 Press the "MENU" button to gain access to the general menu.
 Press the arrows, then the "OK" button to select the "Trip computer" menu.
 On the "Trip computer" menu, select one of the following applications:
Warnings log
This summarises the active warning messages, displaying them in succession on the multifunction display.
Status of the functions
This summarises the active or inactive status of the functions present on the vehicle.
Enter the distance to the destination
This enables you to enter an approximate value for the distance to the final destination.
"TRIP COMPUTER" MENU
System which provides general information concerning the status of certain equipment with which your vehicle is equipped, such as the warnings log, the status of the functions...
"DIAGNOSTICS" MENU
Colour screen
 Press the "MENU" button to gain access to the general menu.
 Turn the dial and press it to select the "Diagnostics" menu.
 On the "Diagnostics" menu, select one of the following applications:

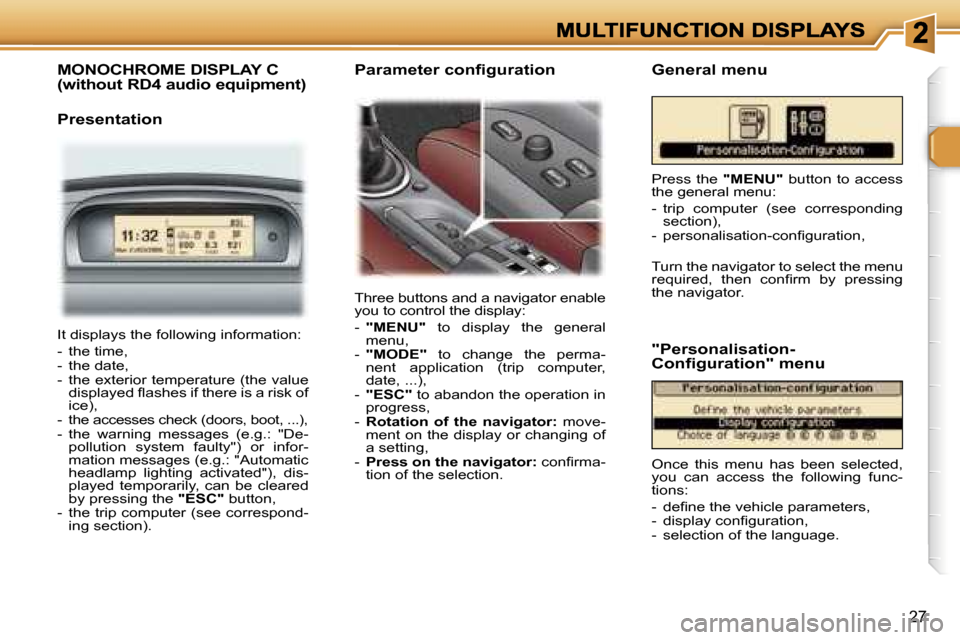

27
MONOCHROME DISPLAY C
(without RD4 audio equipment)
Presentation
Three buttons and a navigator enable you to control the display:
- "MENU" to display the general menu, - "MODE" to change the perma-nent application (trip computer, date, ...),- "ESC" to abandon the operation in progress,- Rotation of the navigator: move-ment on the display or changing of a setting,- Press on the navigator: confirma-tion of the selection.
It displays the following information:
- the time,- the date,- the exterior temperature (the value displayed flashes if there is a risk of ice),- the accesses check (doors, boot, ...),- the warning messages (e.g.: "De-pollution system faulty") or infor-mation messages (e.g.: "Automatic headlamp lighting activated"), dis-played temporarily, can be cleared by pressing the "ESC" button,- the trip computer (see correspond-ing section).
Press the "MENU" button to access the general menu:
- trip computer (see corresponding section),- personalisation-configuration,
Turn the navigator to select the menu required, then confirm by pressing the navigator.
Once this menu has been selected, you can access the following func-tions:
- define the vehicle parameters,- display configuration,- selection of the language.
Parameter configurationGeneral menu
"Personalisation-Configuration" menu

!

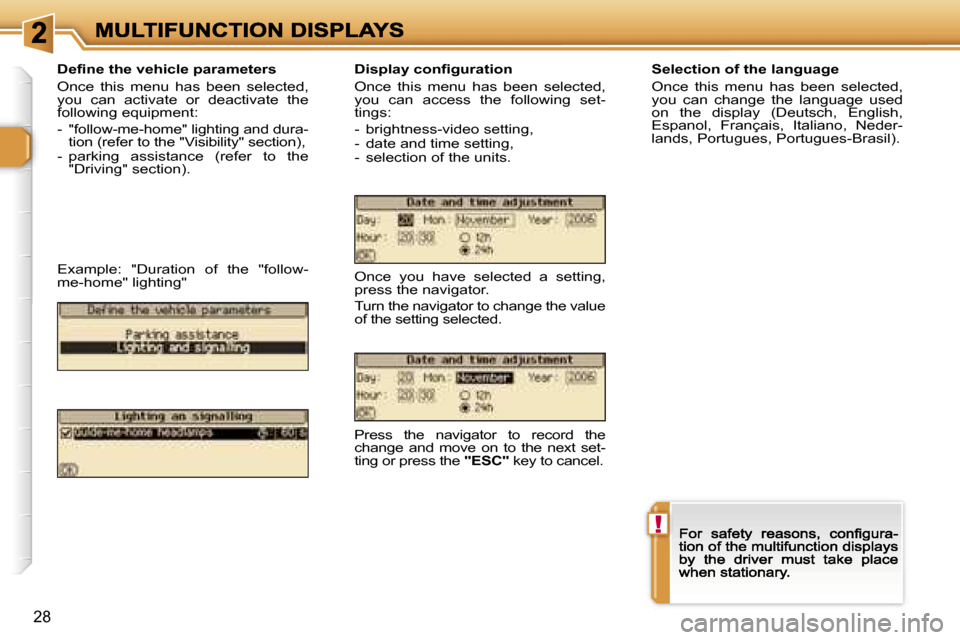

28
Define the vehicle parameters
Once this menu has been selected, you can activate or deactivate the following equipment:
- "follow-me-home" lighting and dura-tion (refer to the "Visibility" section),- parking assistance (refer to the "Driving" section).
Selection of the language
Once this menu has been selected, you can change the language used on the display (Deutsch, English, Espanol, Français, Italiano, Neder-lands, Portugues, Portugues-Brasil).
Display configuration
Once this menu has been selected, you can access the following set-tings:
- brightness-video setting,- date and time setting,- selection of the units.
Once you have selected a setting, press the navigator.
Turn the navigator to change the value of the setting selected.
Press the navigator to record the change and move on to the next set-ting or press the "ESC" key to cancel.
Example: "Duration of the "follow-me-home" lighting"

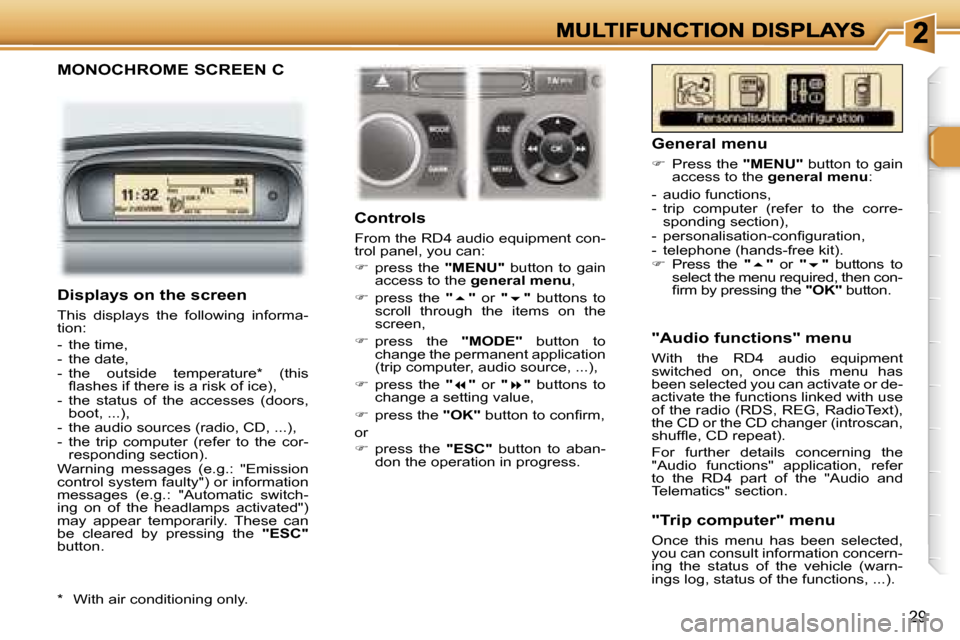

29
MONOCHROME SCREEN C
Controls
From the RD4 audio equipment con-trol panel, you can:
 press the "MENU" button to gain access to the general menu,
 press the "" or "" buttons to scroll through the items on the screen,
 press the "MODE" button to change the permanent application (trip computer, audio source, ...),
 press the "" or "" buttons to change a setting value,
 press the "OK" button to confirm,
or
 press the "ESC" button to aban-don the operation in progress.
Displays on the screen
This displays the following informa-tion:
- the time,- the date,- the outside temperature* (this flashes if there is a risk of ice),- the status of the accesses (doors, boot, ...),- the audio sources (radio, CD, ...),- the trip computer (refer to the cor-responding section).Warning messages (e.g.: "Emission control system faulty") or information messages (e.g.: "Automatic switch-ing on of the headlamps activated") may appear temporarily. These can be cleared by pressing the "ESC"button.
General menu
 Press the "MENU" button to gain access to the general menu:
- audio functions,- trip computer (refer to the corre-sponding section),- personalisation-configuration,- telephone (hands-free kit). Press the "" or "" buttons to select the menu required, then con-firm by pressing the "OK" button.
* With air conditioning only.
"Audio functions" menu
With the RD4 audio equipment switched on, once this menu has been selected you can activate or de-activate the functions linked with use of the radio (RDS, REG, RadioText), the CD or the CD changer (introscan, shuffle, CD repeat).
For further details concerning the "Audio functions" application, refer to the RD4 part of the "Audio and Telematics" section.
"Trip computer" menu
Once this menu has been selected, you can consult information concern-ing the status of the vehicle (warn-ings log, status of the functions, ...).

!

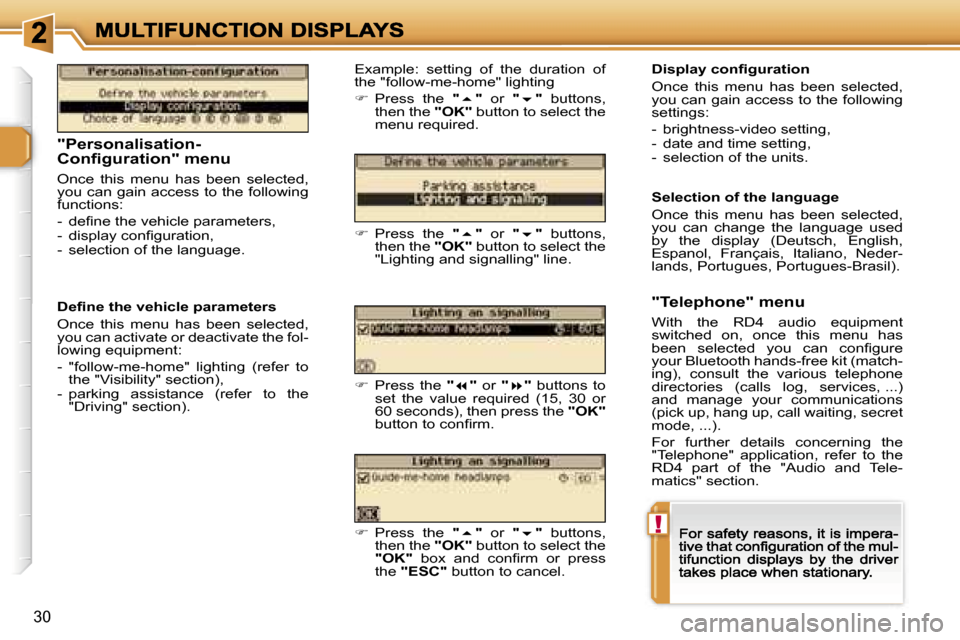

30
"Personalisation-Configuration" menu
Once this menu has been selected, you can gain access to the following functions:
- define the vehicle parameters,- display configuration,- selection of the language.
Display configuration
Once this menu has been selected, you can gain access to the following settings:
- brightness-video setting,- date and time setting,- selection of the units.
Example: setting of the duration of the "follow-me-home" lighting
 Press the "" or "" buttons, then the "OK" button to select the menu required.
 Press the "" or "" buttons, then the "OK" button to select the "Lighting and signalling" line.
 Press the "" or "" buttons to set the value required (15, 30 or 60 seconds), then press the "OK"button to confirm.
Define the vehicle parameters
Once this menu has been selected, you can activate or deactivate the fol-lowing equipment:
- "follow-me-home" lighting (refer to the "Visibility" section),- parking assistance (refer to the "Driving" section).
 Press the "" or "" buttons, then the "OK" button to select the "OK" box and confirm or press the "ESC" button to cancel.
Selection of the language
Once this menu has been selected, you can change the language used by the display (Deutsch, English, Espanol, Français, Italiano, Neder-lands, Portugues, Portugues-Brasil).
"Telephone" menu
With the RD4 audio equipment switched on, once this menu has been selected you can configure your Bluetooth hands-free kit (match-ing), consult the various telephone directories (calls log, services, ...) and manage your communications (pick up, hang up, call waiting, secret mode, ...).
For further details concerning the "Telephone" application, refer to the RD4 part of the "Audio and Tele-matics" section.
