2007 NISSAN TIIDA EC Engine Control System

EC-748
< FUNCTION DIAGNOSIS >[MR18DE]
EVAPORATIVE EMISSION SYSTEM

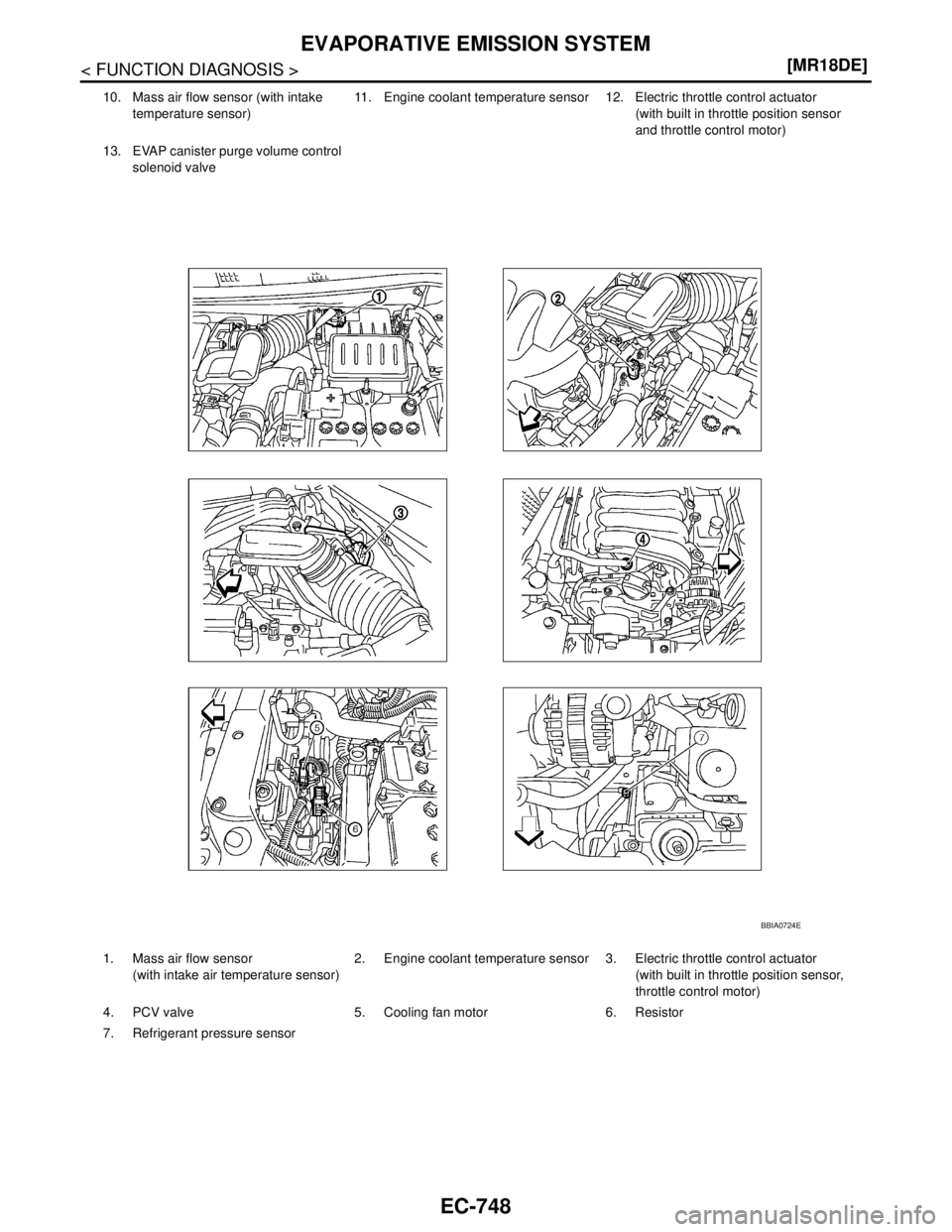

10. Mass air flow sensor (with intake
temperature sensor)11. Engine coolant temperature sensor 12. Electric throttle control actuator
(with built in throttle position sensor
and throttle control motor)
13. EVAP canister purge volume control
solenoid valve
1. Mass air flow sensor
(with intake air temperature sensor)2. Engine coolant temperature sensor 3. Electric throttle control actuator
(with built in throttle position sensor,
throttle control motor)
4. PCV valve 5. Cooling fan motor 6. Resistor
7. Refrigerant pressure sensor
BBIA0724E

EC-752
< FUNCTION DIAGNOSIS >[MR18DE]
EVAPORATIVE EMISSION SYSTEM
Component Description
INFOID:0000000001161747

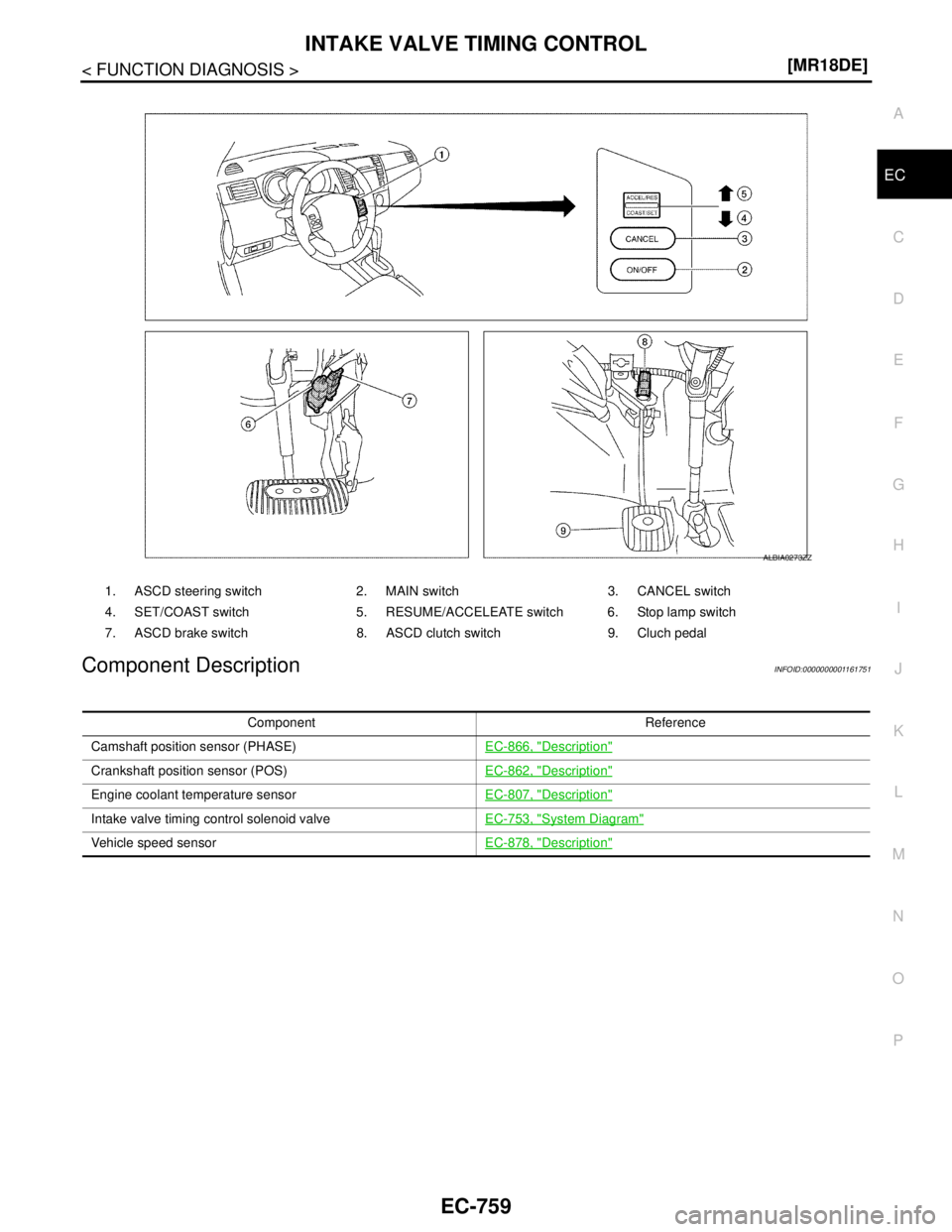

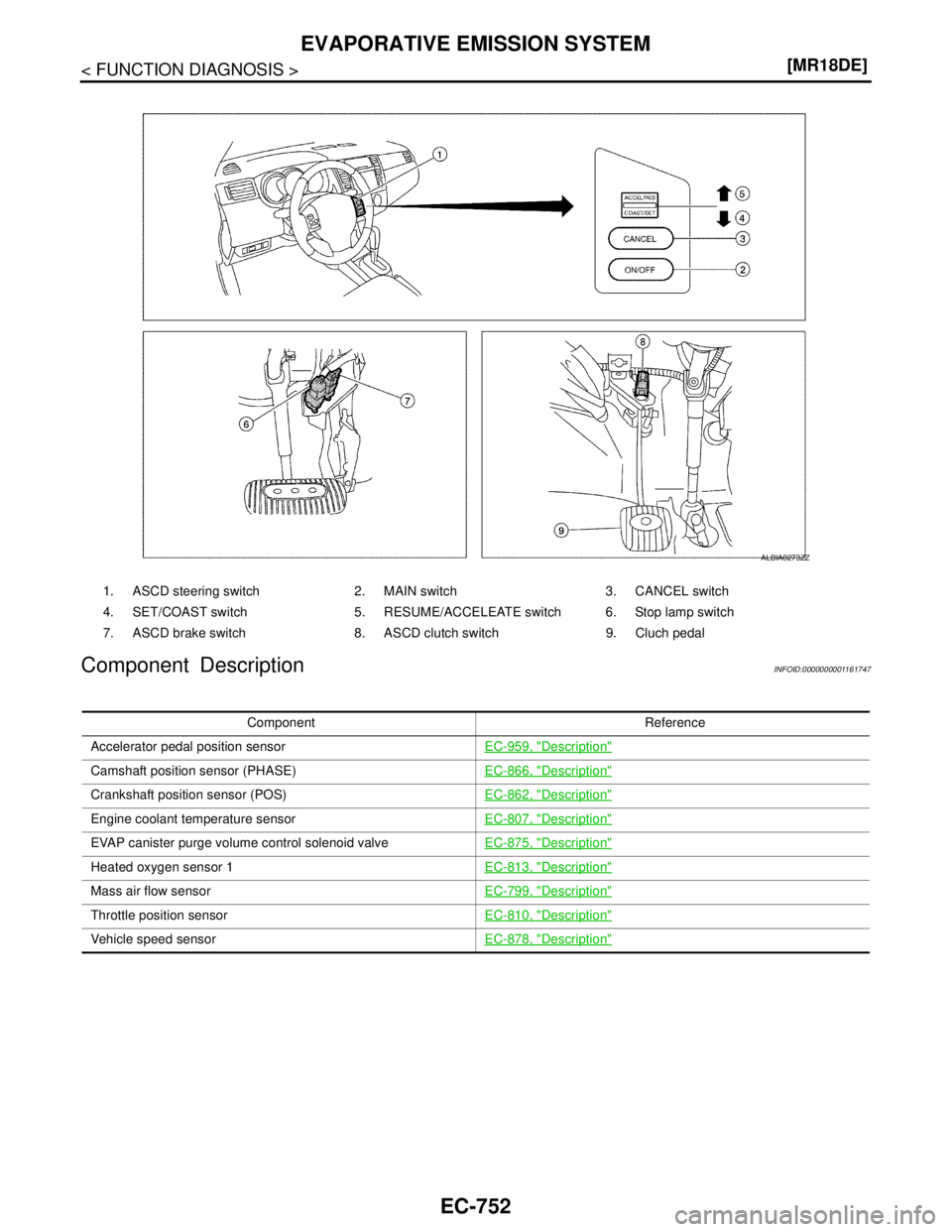

1. ASCD steering switch 2. MAIN switch 3. CANCEL switch
4. SET/COAST switch 5. RESUME/ACCELEATE switch 6. Stop lamp switch
7. ASCD brake switch 8. ASCD clutch switch 9. Cluch pedal
ALBIA0273ZZ
Component Reference
Accelerator pedal position sensorEC-959, "
Description"
Camshaft position sensor (PHASE)EC-866, "Description"
Crankshaft position sensor (POS)EC-862, "Description"
Engine coolant temperature sensorEC-807, "Description"
EVAP canister purge volume control solenoid valveEC-875, "Description"
Heated oxygen sensor 1EC-813, "Description"
Mass air flow sensorEC-799, "Description"
Throttle position sensorEC-810, "Description"
Vehicle speed sensorEC-878, "Description"

INTAKE VALVE TIMING CONTROL
EC-753
< FUNCTION DIAGNOSIS >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
INTAKE VALVE TIMING CONTROL
System DiagramINFOID:0000000001161748
System DescriptionINFOID:0000000001161749
INPUT/OUTPUT SIGNAL CHART
*: This signal is sent to the ECM through CAN communication line
SYSTEM DESCRIPTION

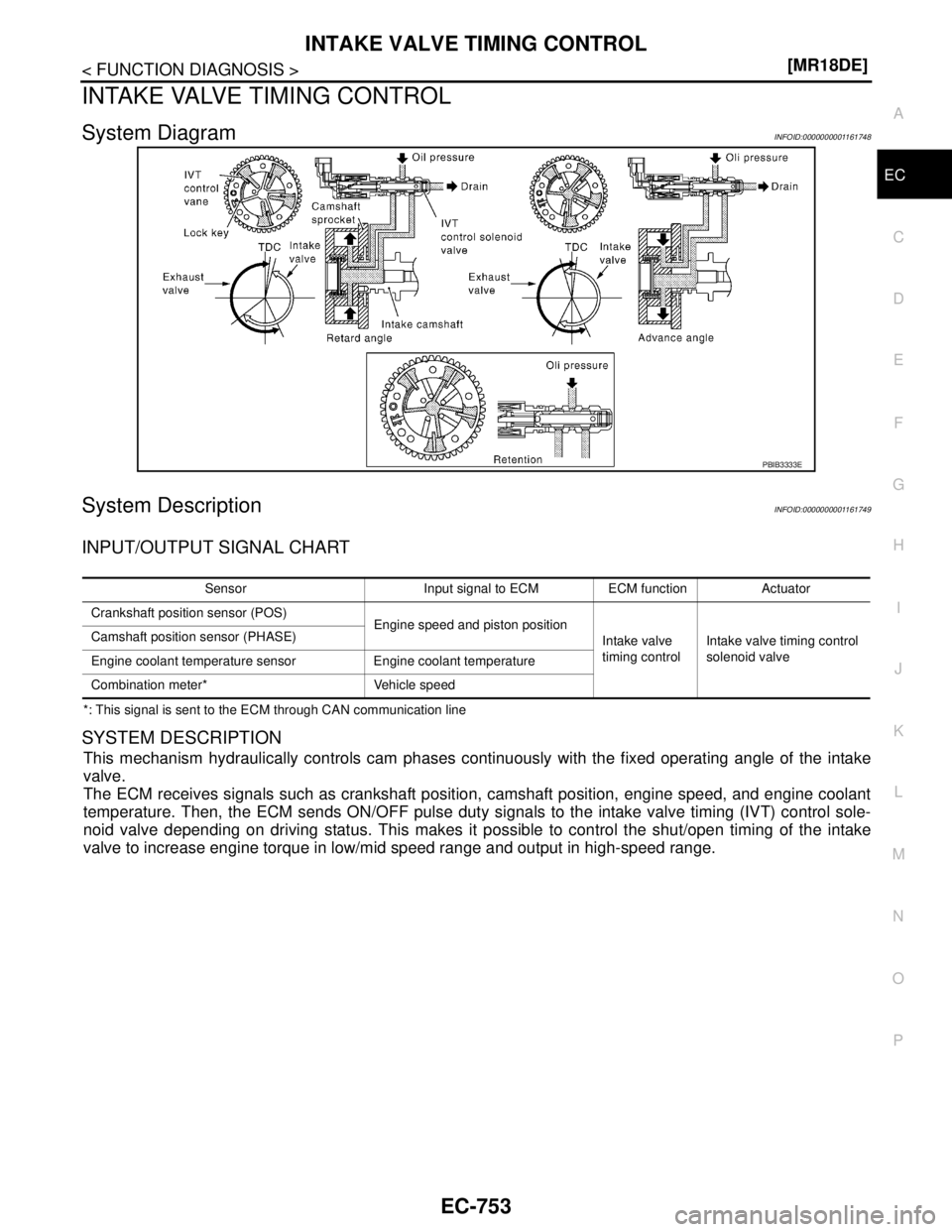

This mechanism hydraulically controls cam phases continuously with the fixed operating angle of the intake
valve.
The ECM receives signals such as crankshaft position, camshaft position, engine speed, and engine coolant
temperature. Then, the ECM sends ON/OFF pulse duty signals to the intake valve timing (IVT) control sole-
noid valve depending on driving status. This makes it possible to control the shut/open timing of the intake
valve to increase engine torque in low/mid speed range and output in high-speed range.
PBIB3333E
Sensor Input signal to ECM ECM function Actuator
Crankshaft position sensor (POS)
Engine speed and piston position
Intake valve
timing controlIntake valve timing control
solenoid valve Camshaft position sensor (PHASE)
Engine coolant temperature sensor Engine coolant temperature
Combination meter* Vehicle speed

INTAKE VALVE TIMING CONTROL
EC-759
< FUNCTION DIAGNOSIS >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
Component DescriptionINFOID:0000000001161751
1. ASCD steering switch 2. MAIN switch 3. CANCEL switch
4. SET/COAST switch 5. RESUME/ACCELEATE switch 6. Stop lamp switch
7. ASCD brake switch 8. ASCD clutch switch 9. Cluch pedal
ALBIA0273ZZ
Component Reference
Camshaft position sensor (PHASE)EC-866, "
Description"
Crankshaft position sensor (POS)EC-862, "Description"
Engine coolant temperature sensorEC-807, "Description"
Intake valve timing control solenoid valveEC-753, "System Diagram"
Vehicle speed sensorEC-878, "Description"

EC-762
< FUNCTION DIAGNOSIS >[MR18DE]
ON BOARD DIAGNOSTIC (OBD) SYSTEM
(CONSULT-III also displays the malfunctioning component or system.)
No Tools
The number of blinks of the MI in the Diagnostic Test Mode II (Self-Diagnostic Results) indicates the DTC.
Example: 0340, 1148, 1706, etc.
These DTCs are controlled by NISSAN.
1st trip DTC No. is the same as DTC No.
Output of a DTC indicates a malfunction. However, GST or the Diagnostic Test Mode II do not indi-
cate whether the malfunction is still occurring or has occurred in the past and has returned to nor-
mal. CONSULT-III can identify malfunction status as shown below. Therefore, using CONSULT-III (if
available) is recommended.
DTC or 1st trip DTC of a malfunction is displayed in “SELF-DIAGNOSTIC RESULTS” mode of CONSULT-III.
Time data indicates how many times the vehicle was driven after the last detection of a DTC.
If the DTC is being detected currently, the time data will be [0].
If a 1st trip DTC is stored in the ECM, the time data will be [1t].
How to Erase DTC and 1st Trip DTC
With CONSULT-III
The emission related diagnostic information in the ECM can be erased by selecting “All Erase” in the “Descrip-
tion” of “FINAL CHECK” mode with CONSULT-III.
With GST
The emission related diagnostic information in the ECM can be erased by selecting Service $04 with GST.
1. If the ignition switch stays ON after repair work, be sure to turn ignition switch OFF once. Wait at least 10
seconds and then turn it ON (engine stopped) again.
2. Select Service $04 with GST (Generic Scan Tool).
No Tools
1. If the ignition switch stays ON after repair work, be sure to turn ignition switch OFF once.
Wait at least 10 seconds and then turn it ON (engine stopped) again.
2. Change the diagnostic test mode from Mode II to Mode I by depressing the accelerator pedal.
If the battery is disconnected, the emission-related diagnostic information will be lost within 24
hours.
The following data are cleared when the ECM memory is erased.
- Diagnostic trouble codes
- 1st trip diagnostic trouble codes
- Freeze frame data
- 1st trip freeze frame data
- System readiness test (SRT) codes
- Test values
Actual work procedures are explained using a DTC as an example. Be careful so that not only the DTC, but all
of the data listed above, are cleared from the ECM memory during work procedures.
SYSTEM READINESS TEST (SRT) CODE
System Readiness Test (SRT) code is specified in Service $01 of ISO 15031-5.
As part of an enhanced emissions test for Inspection & Maintenance (I/M), certain states require the status of
SRT be used to indicate whether the ECM has completed self-diagnosis of major emission systems and com-
ponents. Completion must be verified in order for the emissions inspection to proceed.
If a vehicle is rejected for a State emissions inspection due to one or more SRT items indicating “INCMP”, use
the information in this Service Manual to set the SRT to “CMPLT”.
In most cases the ECM will automatically complete its self-diagnosis cycle during normal usage, and the SRT
status will indicate “CMPLT” for each application system. Once set as “CMPLT”, the SRT status remains
“CMPLT” until the self-diagnosis memory is erased.
Occasionally, certain portions of the self-diagnostic test may not be completed as a result of the customer's
normal driving pattern; the SRT will indicate “INCMP” for these items.
NOTE:
The SRT will also indicate “INCMP” if the self-diagnosis memory is erased for any reason or if the ECM mem-
ory power supply is interrupted for several hours.
If, during the state emissions inspection, the SRT indicates “CMPLT” for all test items, the inspector will con-
tinue with the emissions test. However, if the SRT indicates “INCMP” for one or more of the SRT items the
vehicle is returned to the customer untested.
NOTE:

ON BOARD DIAGNOSTIC (OBD) SYSTEM
EC-773
< FUNCTION DIAGNOSIS >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
 System readiness test (SRT) codes
Test values
ENGINE CONTROL COMPONENT PARTS/CONTROL SYSTEMS APPLICATION
ItemDIAGNOSTIC TEST MODE
WORK
SUPPORTSELF-DIAGNOSTIC
RESULTS
DATA
MONI-
TORACTIVE
TESTDTC & SRT
CONFIRMATION
DTC*
1FREEZE
FRAME
DATA*
2
SRT STA-
TUSDTC
WORK
SUP-
PORT
ENGINE CONTROL COMPONENT PARTS
INPUT
Crankshaft position sensor (POS)×××
Camshaft position sensor (PHASE)×××
Mass air flow sensor××
Engine coolant temperature sensor××××
Heated oxygen sensor 1××××
Heated oxygen sensor 2××××
Wheel sensor×××
Accelerator pedal position sensor××
Throttle position sensor××
Intake air temperature sensor×××
Knock sensor×
EPS control unit×
Refrigerant pressure sensor×
Closed throttle position switch (accel-
erator pedal position sensor signal)×
Air conditioner switch×
Park/neutral position (PNP) switch××
Stop lamp switch××
Battery voltage×
Load signal×
ASCD steering switch××
ASCD break switch××
ASCD cluch switch××
ENGINE CONTROL COMPONENT PARTS
OUTPUT
Fuel injector××
Power transistor (Ignition timing)××
Throttle control motor relay××
Throttle control motor×
EVAP canister purge volume control
solenoid valve××××
Air conditioner relay×
Fuel pump relay×××
Cooling fan relay×××
Heated oxygen sensor 1 heater×××
Heated oxygen sensor 2 heater×××
Intake valve timing control solenoid
valve×××
Calculated load value××

EC-774
< FUNCTION DIAGNOSIS >[MR18DE]
ON BOARD DIAGNOSTIC (OBD) SYSTEM
X: Applicable
*1: This item includes 1st trip DTCs.
*2: This mode includes 1st trip freeze frame data or freeze frame data. The items appear on CONSULT-II screen in freeze frame data
mode only if a 1st trip DTC or DTC is detected. For details, refer to EC-760, "
Diagnosis Description".
WORK SUPPORT MODE
Work Item
*: This function is not necessary in the usual service procedure.
SELF-DIAG RESULTS MODE
Self Diagnostic Item
Regarding items of DTC and 1st trip DTC, refer to EC-1020, "DTCIndex".)
Freeze Frame Data and 1st Trip Freeze Frame Data
WORK ITEM CONDITION USAGE
FUEL PRESSURE RELEASE  FUEL PUMP WILL STOP BY TOUCHING “START” DUR-
ING IDLING.
CRANK A FEW TIMES AFTER ENGINE STALLS.When releasing fuel pressure from
fuel line
IDLE AIR VOL LEARN  THE IDLE AIR VOLUME THAT KEEPS THE ENGINE
WITHIN THE SPECIFIED RANGE IS MEMORIZED IN
ECM.When learning the idle air volume
SELF-LEARNING CONT  THE COEFFICIENT OF SELF-LEARNING CONTROL
MIXTURE RATIO RETURNS TO THE ORIGINAL COEF-
FICIENT.When clearing mixture ratio self-
learning value
TARGET IDLE RPM ADJ*  IDLE CONDITION When setting target idle speed
TARGET IGN TIM ADJ*  IDLE CONDITION When adjusting target ignition tim-
ing
Freeze frame data
item*Description
DIAG TROUBLE
CODE
[PXXXX] The engine control component part/control system has a trouble code, it is displayed as PXXXX. (Refer to
EC-1020, "
DTCIndex".)
FUEL SYS-B1 “Fuel injection system status” at the moment a malfunction is detected is displayed.
 One mode in the following is displayed.
Mode2: Open loop due to detected system malfunction
Mode3: Open loop due to driving conditions (power enrichment, deceleration enleanment)
Mode4: Closed loop - using oxygen sensor(s) as feedback for fuel control
Mode5: Open loop - has not yet satisfied condition to go to closed loop
CAL/LD VALUE [%]  The calculated load value atathe moment a malfunction is detected is displayed.
COOLANT TEMP [°C]
or [°F] The engine coolant temperature at the moment a malfunction is detected is displayed.
L-FUEL TRM-B1 [%] “Long-term fuel trim” at the moment a malfunction is detected is displayed.
 The long-term fuel trim indicates much more gradual feedback compensation to the base fuel schedule than
short-term fuel trim.
S-FUEL TRM-B1 [%] “Short-term fuel trim” at the moment a malfunction is detected is displayed.
 The short-term fuel trim indicates dynamic or instantaneous feedback compensation to the base fuel sched-
ule.
ENGINE SPEED [rpm]  The engine speed at the moment a malfunction is detected is displayed.
VEHICL SPEED
[km/h] or [mph] The vehicle speed at the moment a malfunction is detected is displayed.
ABSOL TH·P/S [%]  The throttle valve opening angle at the moment a malfunction is detected is displayed.
B/FUEL SCHDL
[msec] The base fuel schedule at the moment a malfunction is detected is displayed.
INT/A TEMP SE [°C]
or [°F] The intake air temperature at the moment a malfunction is detected is displayed.

ON BOARD DIAGNOSTIC (OBD) SYSTEM
EC-775
< FUNCTION DIAGNOSIS >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
*: The items are the same as those of 1st trip freeze frame data.
DATA MONITOR MODE
Monitored Item
×: Applicable
Monitored item Unit Description Remarks
ENG SPEED rpm Indicates the engine speed computed from the
signal of the crankshaft position sensor (POS)
and camshaft position sensor (PHASE). Accuracy becomes poor if engine
speed drops below the idle rpm.
 If the signal is interrupted while the
engine is running, an abnormal value
may be indicated.
MAS A/F SE-B1 V The signal voltage of the mass air flow sensor is
displayed. When the engine is stopped, a certain
value is indicated.
 When engine is running specification
range is indicated in “SPEC”.
B/FUEL SCHDL msec “Base fuel schedule” indicates the fuel injection
pulse width programmed into ECM, prior to any
learned on board correction. When engine is running specification
range is indicated in “SPEC”.
A/F ALPHA-B1 % The mean value of the air-fuel ratio feedback cor-
rection factor per cycle is indicated. When the engine is stopped, a certain
value is indicated.
 When engine is running specification
range is indicated in “SPEC”.
 This data also includes the data for
the air-fuel ratio learning control.
COOLAN TEMP/S°C or °F The engine coolant temperature (determined by
the signal voltage of the engine coolant tempera-
ture sensor) is displayed. When the engine coolant temperature
sensor is open or short-circuited,
ECM enters fail-safe mode. The en-
gine coolant temperature determined
by the ECM is displayed.
HO2S1 (B1) V The signal voltage of the heated oxygen sensor 1
is displayed.
HO2S2 (B1) V The signal voltage of the heated oxygen sensor 2
is displayed.
HO2S1 MNTR (B1) RICH/LEAN Display of heated oxygen sensor 1 signal during
air-fuel ratio feedback control:
RICH: means the mixture became “rich”, and
control is being affected toward a leaner mixture.
LEAN: means the mixture became “lean”, and
control is being affected toward a rich mixture. After turning ON the ignition switch,
“RICH” is displayed until air-fuel mix-
ture ratio feedback control begins.
 When the air-fuel ratio feedback is
clamped, the value just before the
clamping is displayed continuously.
HO2S2 MNTR(B1) RICH/LEAN Display of heated oxygen sensor 2 signal:
RICH: means the amount of oxygen after three
way catalyst is relatively small.
LEAN: means the amount of oxygen after three
way catalyst is relatively large. When the engine is stopped, a certain
value is indicated.
VHCL SPEED SE km/h or mph The vehicle speed computed from the vehicle
speed signal sent from combination meter is dis-
played.
BATTERY VOLT V  The power supply voltage of ECM is displayed.
ACCEL SEN 1
V The accelerator pedal position sensor signal volt-
age is displayed. ACCEL SEN 2 signal is converted by
ECM internally. Thus, it differs from
ECM terminal voltage signal. ACCEL SEN 2
MAIN SW ON/OFF Indicates [ON/OFF] condition from MAIN switch
signal.
CANCEL SW ON/OFF Indicates [ON/OFF] condition from CANCEL
switch signal.
THRTL SEN 1-B1
V The throttle position sensor signal voltage is dis-
played. THRTL SEN 2-B1 signal is converted
by ECM internally. Thus, it differs from
ECM terminal voltage signal. THRTL SEN 2-B1
