2007 NISSAN MURANO light

tem may not operate properly and the
“VDC OFF” indicator or “SLIP” indi-
cator or both indicator lights may
illuminate.

The VDC system is not a substitute
for winter tires or tire chains on a
snow-covered road.
FREEING A FROZEN DOOR LOCKTo prevent a door lock from freezing, apply
deicer or glycerin to it through the key hole. If the
lock becomes frozen, heat the key before insert-
ing it into the key hole.ANTIFREEZEIn the winter when it is anticipated that the
temperature will drop below 32°F (0°C), check
antifreeze to assure proper winter protection. For
additional information, see “Engine cooling sys-
tem” in the “8. Maintenance and do-it-yourself”
section.BATTERYIf the battery is not fully charged during extremely
cold weather conditions, the battery fluid may
freeze and damage the battery. To maintain
maximum efficiency, the battery should be
checked regularly. For additional information,
see “Battery” in the “8. Maintenance and do-it-
yourself” section.DRAINING OF COOLANT WATERIf the vehicle is to be left outside without anti-
freeze, drain the cooling system by opening the
drain plug located under the radiator. Refill
before operating the vehicle. See “Engine cool-
ing system” in the “8. Maintenance and do-it-
yourself” section for changing engine coolant.
TIRE EQUIPMENT1. SUMMER tires are of a tread design to
provide superior performance on dry pave-
ment. However, the performance of these
tires will be substantially reduced in snowy
and icy conditions. If you operate your vehicle
on snowy or icy roads, NISSAN recommends
the use of MUD & SNOW or ALL SEASON
tires on all four wheels. Please consult a
NISSAN dealer for the tire type, size, speed
rating and availability information.
2. For additional traction on icy roads, studded
tires may be used. However, some provinces
and states prohibit their use. Check local,
state and provincial laws before installing
studded tires.
Skid and traction capabilities of studded
snow tires, on wet or dry surfaces, may be
poorer than that of non-studded snow
tires.
3. Tire chains may be used. For details, see
“Tire chains” in the “Maintenance and do-it-
yourself” section of this manual.
4. For all-wheel drive:
If you install snow tires, they must also be the
same size, brand, construction and tread
pattern on all four wheels.
COLD WEATHER DRIVING
5-34
Starting and driving


06.7.5/Z50-D/V5.0


TIRE PRESSURE MONITORING
SYSTEMThis vehicle is equipped with the tire pressure
monitoring system (TPMS). It monitors tire pres-
sure of all tires except the spare. When the low
tire pressure warning light is lit, one or more of
your tires is significantly under-inflated. If
equipped, the system also displays pressure of
all tires (except the spare tire) on the display
screen by sending a signal from a sensor that is
installed in each wheel. If the vehicle is being
driven with low tire pressure, the TPMS will
activate and warn you of it by the low tire
pressure warning light. This system will activate
only when the vehicle is driven at speeds above
16 MPH (25 km/h). For more details, refer to
“Warning/indicator lights and audible remind-
ers” in the “2. Instruments and controls” section,
“Tire pressure information” in the “4. Display
screen, heater, air conditioner and audio sys-
tems” section and “Tire pressure monitoring
system (TPMS)” in the “5. Starting and driving”
section.
WARNING

If the low tire pressure warning light
illuminates while driving, avoid sud-den steering maneuvers or abrupt
braking, reduce vehicle speed, pull
off the road to a safe location and
stop the vehicle as soon as possible.
Serious vehicle damage could occur
and may lead to an accident and
could result in serious personal in-
jury. Check the tire pressure for all
four tires. Adjust the tire pressure to
the recommended COLD tire pres-
sure shown on the Tire and Loading
Information label to turn the low tire
pressure warning light OFF. If the
light still illuminates while driving af-
ter adjusting the tire pressure, a tire
may be flat. If you have a flat tire,
replace it with a spare tire as soon as
possible.

When a spare tire is mounted or a
wheel is replaced, tire pressure will
not be indicated, the TPMS will not
function and the low tire pressure
warning light will flash for approxi-
mately 1 minute and remain on after
the 1 minute. Contact your NISSAN
dealer as soon as possible for tirereplacement and/or system reset-
ting.

Replacing tires with those not origi-
nally specified by NISSAN could af-
fect the proper operation of the
TPMS.

Do not inject any tire liquid or aerosol
tire sealant into the tires, as this may
cause a malfunction of the tire pres-
sure sensors.
CHANGING A FLAT TIREIf you have a flat tire, follow the instructions
below.Stopping the vehicle1. Safely move the vehicle off the road away
from traffic.
2. Turn on the hazard warning flashers.
3. Park on a level surface and apply the parking
brake. Shift the selector lever into P (Park).
4. Turn off the engine.
5. Raise the hood to warn other traffic, and to
signal professional road assistance person-
FLAT TIRE6-2
In case of emergency


06.7.5/Z50-D/V5.0


nel that you need assistance.
6. Have all passengers get out of the vehicle
and stand in a safe place, away from traffic
and clear of the vehicle.
WARNING

Make sure the parking brake is se-
curely applied and the selector lever
is shifted into P (Park).

Never change tires when the vehicle
is on a slope, ice or slippery areas.
This is hazardous.

Never change tires if oncoming traffic
is close to your vehicle. Wait for pro-
fessional road assistance.

When a spare tire is mounted or a
wheel is replaced, tire pressure will
not be indicated, the TPMS will not
function and the low tire pressure
warning light will flash for approxi-
mately 1 minute and remain on after
the 1 minute. Contact your NISSAN
dealer as soon as possible for tire
replacement and/or system reset-ting.
Blocking wheelsPlace suitable blocks
1
at both the front and
back of the wheel diagonally opposite the flat tire
to prevent the vehicle from moving when it is
jacked up.
WARNING
Be sure to block the wheel as the ve-
hicle may move and result in personal
injury.
MCE0001A
In case of emergency
6-3


06.7.5/Z50-D/V5.0


WARNING
Always follow the instructions below.
Failure to do so could result in damage
to the charging system and cause per-
sonal injury.
1. If the booster battery is in another vehicle,
position the two vehicles to bring their bat-
teries into close proximity to each other.
Do not allow the two vehicles to touch.
2. Apply parking brake. Move the selector leverto the P (Park) position. Switch off all unnec-
essary electrical systems (light, heater, air
conditioner, etc.).
3. Remove vent caps on the battery (if so
equipped). Cover the battery with an old
cloth as illustrated to reduce explosion haz-
ard.
4. Connect jumper cables in the sequence as
illustrated (
A
→
B
→
C
→
D).
CAUTION

Always connect positive (+) to posi-
tive (+) and negative (−) to body
ground (for example, strut mounting
bolt, engine lift bracket, etc. — not to
the battery).

Make sure that jumper cables do not
touch moving parts in the engine
compartment and that the cable
clamps do not contact any other
metal.
5. Start the engine of the other vehicle and let it
run for a few minutes.
6. Keep the engine speed of the other vehicle at
about 2,000 rpm, and start your engine in the
normal manner.
CAUTION
Do not keep the starter motor engaged
for more than 10 seconds. If the engine
does not start right away, turn the key
off and wait 3 to 4 seconds before trying
SCE0479
6-10
In case of emergency


06.7.5/Z50-D/V5.0


In order to maintain the appearance of your
vehicle, it is important to take proper care of it.
In the following cases, please wash your vehicle
as soon as possible to protect the paint surface.

After a rainfall to prevent possible damage
from acid rain

After driving on coastal roads

When contaminants such as soot, bird drop-
pings, tree sap, metal particles or bugs get on
the paint surface

When dust or mud builds up on the surface
Whenever possible, store or park your vehicle
inside a garage or in a covered area.
When it is necessary to park outside, park in a
shady area or protect the vehicle with a body
cover.
Be careful not to scratch the paint surface
when putting on or removing the body
cover.WASHINGWash dirt off the vehicle with a wet sponge and
plenty of water. Clean the vehicle thoroughly
using a mild soap, a special vehicle soap or a
general purpose dishwashing liquid mixed with
clean, lukewarm (never hot) water.

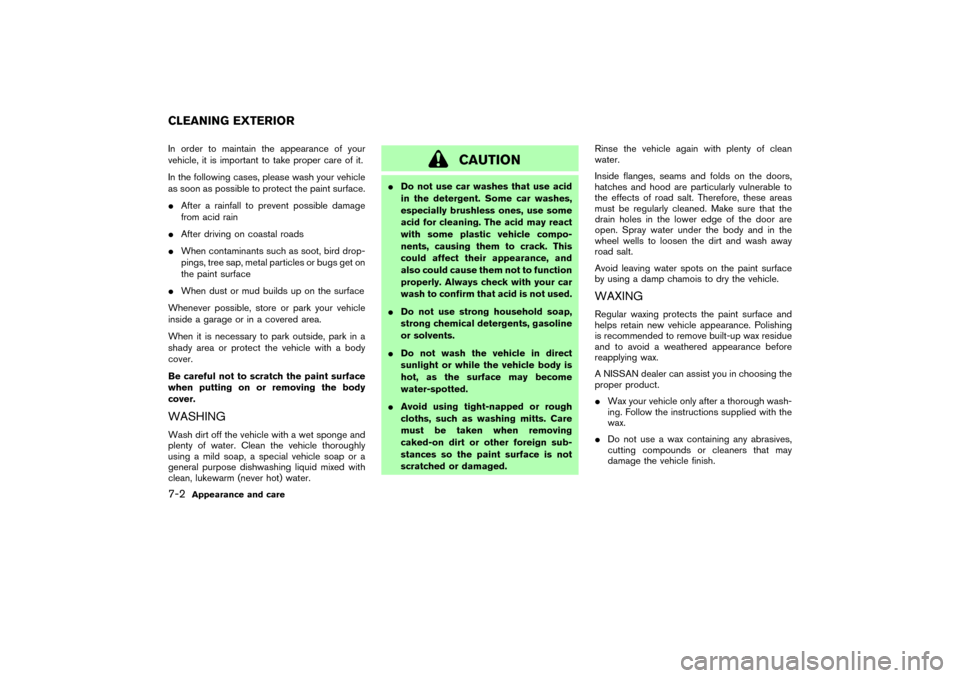

CAUTION

Do not use car washes that use acid
in the detergent. Some car washes,
especially brushless ones, use some
acid for cleaning. The acid may react
with some plastic vehicle compo-
nents, causing them to crack. This
could affect their appearance, and
also could cause them not to function
properly. Always check with your car
wash to confirm that acid is not used.

Do not use strong household soap,
strong chemical detergents, gasoline
or solvents.

Do not wash the vehicle in direct
sunlight or while the vehicle body is
hot, as the surface may become
water-spotted.

Avoid using tight-napped or rough
cloths, such as washing mitts. Care
must be taken when removing
caked-on dirt or other foreign sub-
stances so the paint surface is not
scratched or damaged.Rinse the vehicle again with plenty of clean
water.
Inside flanges, seams and folds on the doors,
hatches and hood are particularly vulnerable to
the effects of road salt. Therefore, these areas
must be regularly cleaned. Make sure that the
drain holes in the lower edge of the door are
open. Spray water under the body and in the
wheel wells to loosen the dirt and wash away
road salt.
Avoid leaving water spots on the paint surface
by using a damp chamois to dry the vehicle.
WAXINGRegular waxing protects the paint surface and
helps retain new vehicle appearance. Polishing
is recommended to remove built-up wax residue
and to avoid a weathered appearance before
reapplying wax.
A NISSAN dealer can assist you in choosing the
proper product.

Wax your vehicle only after a thorough wash-
ing. Follow the instructions supplied with the
wax.

Do not use a wax containing any abrasives,
cutting compounds or cleaners that may
damage the vehicle finish.
CLEANING EXTERIOR7-2
Appearance and care


06.7.5/Z50-D/V5.0


Machine compounding or aggressive pol-
ishing on a base coat/clear coat paint
finish may dull the finish or leave swirl
marks.REMOVING SPOTSRemove tar and oil spots, industrial dust, insects,
and tree sap as quickly as possible from the
surface of the paint to avoid lasting damage or
staining. Special cleaning products are available
at a NISSAN dealer or any automotive accessory
store.UNDERBODYIn areas where road salt is used in winter, the
underbody must be cleaned regularly. This will
prevent dirt and salt from building up and caus-
ing underbody and suspension corrosion. Be-
fore the winter period and again in the spring, the
underseal must be checked and, if necessary,
re-treated.GLASSUse glass cleaner to remove smoke and dust film
from the glass surfaces. It is normal for glass to
become coated with a film after the vehicle is
parked in the hot sun. Glass cleaner and a soft
cloth will easily remove this film.

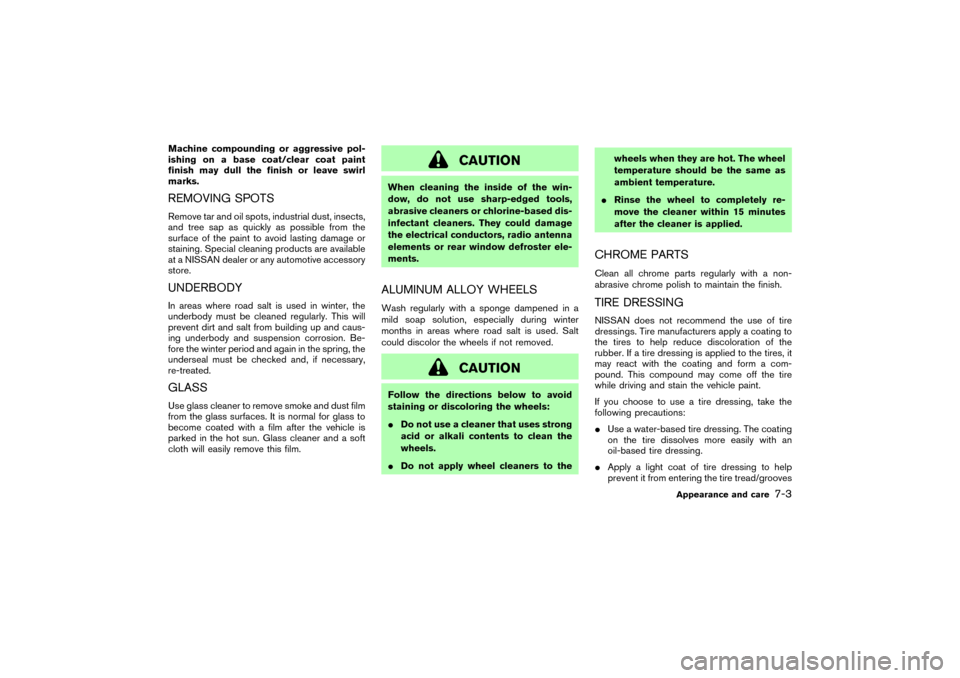

CAUTION
When cleaning the inside of the win-
dow, do not use sharp-edged tools,
abrasive cleaners or chlorine-based dis-
infectant cleaners. They could damage
the electrical conductors, radio antenna
elements or rear window defroster ele-
ments.ALUMINUM ALLOY WHEELSWash regularly with a sponge dampened in a
mild soap solution, especially during winter
months in areas where road salt is used. Salt
could discolor the wheels if not removed.
CAUTION
Follow the directions below to avoid
staining or discoloring the wheels:

Do not use a cleaner that uses strong
acid or alkali contents to clean the
wheels.

Do not apply wheel cleaners to thewheels when they are hot. The wheel
temperature should be the same as
ambient temperature.

Rinse the wheel to completely re-
move the cleaner within 15 minutes
after the cleaner is applied.
CHROME PARTSClean all chrome parts regularly with a non-
abrasive chrome polish to maintain the finish.TIRE DRESSINGNISSAN does not recommend the use of tire
dressings. Tire manufacturers apply a coating to
the tires to help reduce discoloration of the
rubber. If a tire dressing is applied to the tires, it
may react with the coating and form a com-
pound. This compound may come off the tire
while driving and stain the vehicle paint.
If you choose to use a tire dressing, take the
following precautions:

Use a water-based tire dressing. The coating
on the tire dissolves more easily with an
oil-based tire dressing.

Apply a light coat of tire dressing to help
prevent it from entering the tire tread/grooves
Appearance and care
7-3


06.7.5/Z50-D/V5.0


8 Maintenance and do-it-yourselfMaintenance requirements .................................................. 8-2
General maintenance ............................................................ 8-2
Explanation of general maintenance items ................ 8-2
Maintenance precautions ..................................................... 8-5
Engine compartment check locations ............................. 8-7
Engine cooling system.......................................................... 8-8
Checking engine coolant level...................................... 8-8
Changing engine coolant ............................................... 8-9
Engine oil ................................................................................. 8-9
Checking engine oil level ............................................... 8-9
Changing engine oil ...................................................... 8-10
Changing engine oil filter ............................................ 8-11
CVT fluid ................................................................................ 8-12
Power steering fluid ............................................................ 8-12
Brake fluid ............................................................................. 8-13
Window washer fluid.......................................................... 8-14
Battery .................................................................................... 8-14
Jump starting .................................................................. 8-15
Drive belts ............................................................................. 8-16
Spark plugs ........................................................................... 8-16
Replacing spark plugs.................................................. 8-17
Air cleaner ............................................................................. 8-17Windshield wiper blades ................................................... 8-18
Cleaning ........................................................................... 8-18
Replacing ......................................................................... 8-18
Rear window wiper blade ................................................. 8-20
Brakes .................................................................................... 8-20
Self-adjusting brakes .................................................... 8-20
Brake pad wear indicators .......................................... 8-20
Fuses ...................................................................................... 8-21
Engine compartment ..................................................... 8-21
Passenger compartment .............................................. 8-23
Battery replacement............................................................ 8-23
Keyfob............................................................................. 8-23
Intelligent Key ................................................................. 8-25
Lights ..................................................................................... 8-26
Headlights ...................................................................... 8-27
Exterior and interior lights............................................ 8-28
Wheels and tires ................................................................. 8-29
Tire pressure ................................................................... 8-29
Tire labeling ..................................................................... 8-34
Types of tires .................................................................. 8-36
Tire chains ....................................................................... 8-37
Changing wheels and tires ......................................... 8-38


06.7.5/Z50-D/V5.0


Lights*:Clean the headlights on a regular basis.
Make sure that the headlights, stop lights, tail
lights, turn signal lights, and other lights are all
operating properly and installed securely. Also
check headlight aim.
Road wheel nuts (lug nuts)*:When checking
the tires, make sure no wheel nuts are missing,
and check for any loose wheel nuts. Tighten if
necessary.
Tire rotation*:Tires should be rotated every
7,500 miles (12,000 km). However, the timing
for tire rotation may vary according to your
driving habits and road surface conditions.
Tires*:Check the pressure with a gauge often
and always prior to long distance trips. If neces-
sary, adjust the pressure in all tires, including the
spare, to the pressure specified. Check carefully
for damage, cuts or excessive wear.
Tire, wheel alignment and balance:If the
vehicle should pull to either side while driving on
a straight and level road, or if you detect uneven
or abnormal tire wear, there may be a need for
wheel alignment.
If the steering wheel or seat vibrates at normal
highway speeds, wheel balancing may be
needed.
For additional information regarding tires, refer to
“Important Tire Safety Information” (US) or “TireSafety Information” (Canada) in the Warranty
Information Booklet.
Windshield:Clean the windshield on a regular
basis. Check the windshield at least every six
months for cracks or other damage. Have a
damaged windshield repaired by a qualified re-
pair facility.
Windshield wiper blades*:Check for cracks
or wear if they do not wipe properly.
Inside the vehicleThe maintenance items listed here should be
checked on a regular basis, such as when
performing periodic maintenance, cleaning the
vehicle, etc.
Accelerator pedal:Check the pedal for
smooth operation and make sure the pedal does
not catch or require uneven effort. Keep the floor
mats away from the pedal.
Brake pedal:Check the pedal for smooth
operation. If the brake pedal suddenly goes
down further than normal, the pedal feels spongy
or the vehicle seems to take longer to stop, see
a NISSAN dealer immediately. Keep the floor
mat away from the pedal.
Brakes:Check that the brakes do not pull the
vehicle to one side when applied.Continuously Variable Transmission (CVT)
P (Park) position mechanism:On a fairly
steep hill check that the vehicle is held securely
with the selector lever in the P (Park) position
without applying any brakes.
Parking brake:Check the parking brake op-
eration regularly. The vehicle should be securely
held on a fairly steep hill with only the parking
brake applied. If the parking brake needs to be
adjusted, see a NISSAN dealer.
Seat belts:Check that all parts of the seat belt
system (for example, buckles, anchors, adjusters
and retractors) operate properly and smoothly,
and are installed securely. Check the belt web-
bing for cuts, fraying, wear or damage.
Seats:Check seat position controls such as
seat adjusters, seatback recliner, etc. to ensure
they operate smoothly and that all latches lock
securely in every position. Check that the head
restraints move up and down smoothly and that
the locks hold securely in all latched positions.
Steering wheel:Check for changes in the
steering conditions, such as excessive free play,
hard steering or strange noises.
Warning lights and chimes:Make sure that all
warning lights and chimes are operating prop-
erly.
Maintenance and do-it-yourself
8-3


06.7.5/Z50-D/V5.0
