2007 NISSAN MURANO light

stick. Add engine oil if necessary.
11. Dispose of waste oil properly.

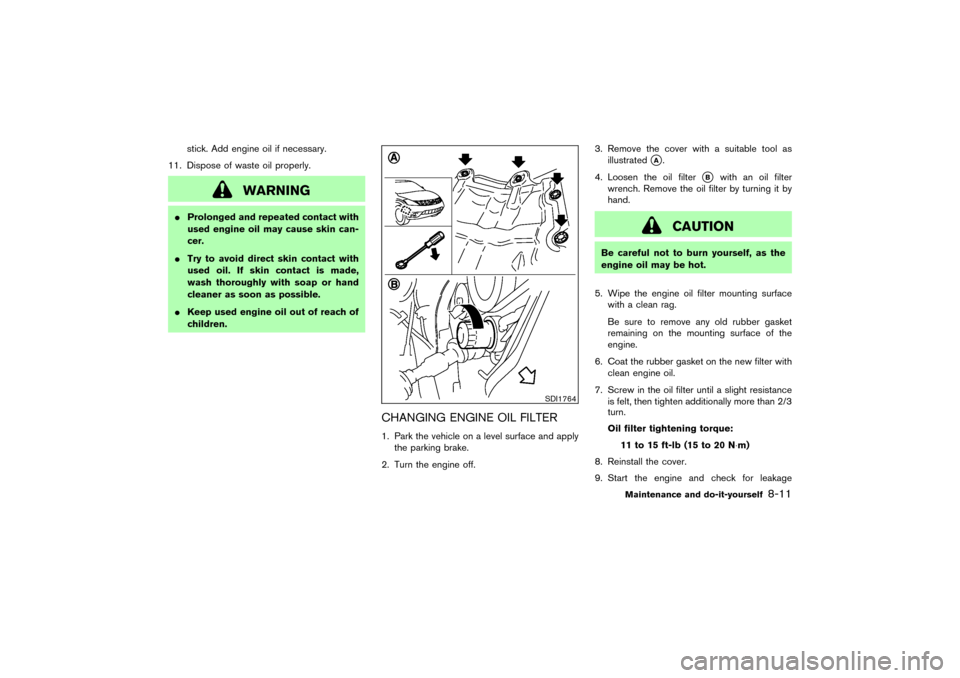

WARNING

Prolonged and repeated contact with
used engine oil may cause skin can-
cer.

Try to avoid direct skin contact with
used oil. If skin contact is made,
wash thoroughly with soap or hand
cleaner as soon as possible.

Keep used engine oil out of reach of
children.
CHANGING ENGINE OIL FILTER1. Park the vehicle on a level surface and apply
the parking brake.
2. Turn the engine off.3. Remove the cover with a suitable tool as
illustrated
A.
4. Loosen the oil filter
B
with an oil filter
wrench. Remove the oil filter by turning it by
hand.
CAUTION
Be careful not to burn yourself, as the
engine oil may be hot.
5. Wipe the engine oil filter mounting surface
with a clean rag.
Be sure to remove any old rubber gasket
remaining on the mounting surface of the
engine.
6. Coat the rubber gasket on the new filter with
clean engine oil.
7. Screw in the oil filter until a slight resistance
is felt, then tighten additionally more than 2/3
turn.
Oil filter tightening torque:
11 to 15 ft-lb (15 to 20 N⋅m)
8. Reinstall the cover.
9. Start the engine and check for leakage
SDI1764
Maintenance and do-it-yourself
8-11


06.7.5/Z50-D/V5.0


lent.For additional brake fluid specification informa-
tion, refer to “Capacities and recommended
fuel/lubricants” in the “9. Technical and con-
sumer information” section of this manual.
WARNING
Old, inferior or contaminated fluid may
damage the brake system. The use of
improper fluids can damage the brake
system and affect the vehicle’s stopping
ability.
CAUTION
Do not spill the fluid on any painted
surfaces. This will damage the paint. If
fluid is spilled, immediately wash the
surface with water.Check the fluid level in the reservoir. If the fluid is
below the MIN line
2or the brake warning light
comes on, add Genuine NISSAN Super Heavy
Duty Brake Fluid or equivalentDOT 3fluid up to
the MAX line
1. If fluid must be added fre-
quently, the system should be thoroughly
checked by a NISSAN dealer.
SDI1766
BRAKE FLUID
Maintenance and do-it-yourself
8-13


06.7.5/Z50-D/V5.0


Add fluid when the low washer fluid warning light
comes on. Add a washer solvent to the water for
better cleaning. In the winter season, add a
windshield washer antifreeze. Follow the manu-
facturer’s instructions for the mixture ratio.
Recommended fluid is Genuine NISSAN Wind-
shield Washer Concentrate Cleaner & Anti-
freeze Fluid or equivalent.

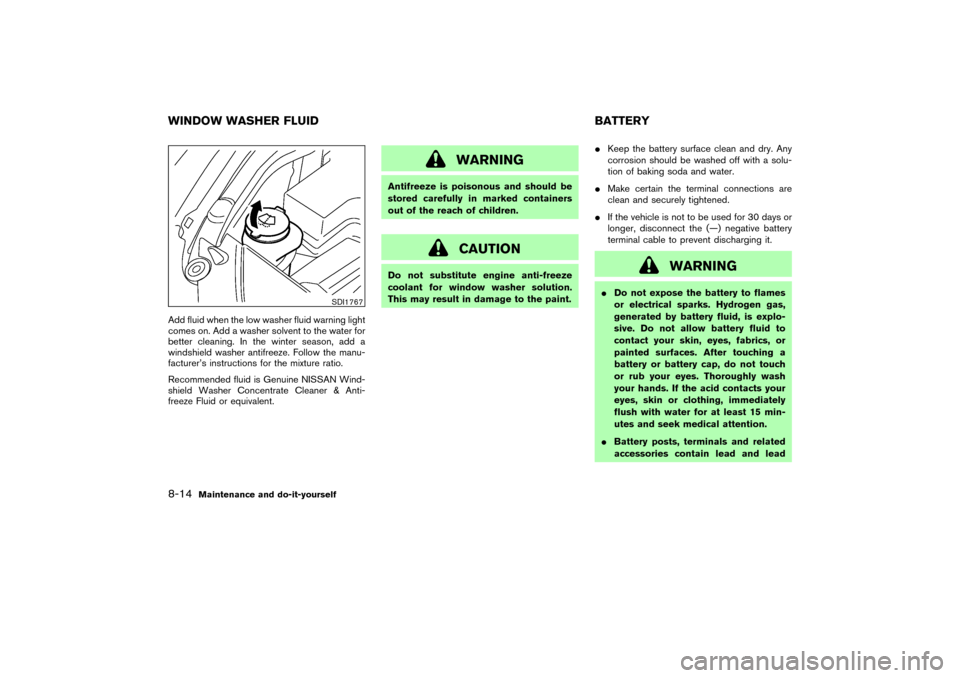

WARNING
Antifreeze is poisonous and should be
stored carefully in marked containers
out of the reach of children.
CAUTION
Do not substitute engine anti-freeze
coolant for window washer solution.
This may result in damage to the paint.
Keep the battery surface clean and dry. Any
corrosion should be washed off with a solu-
tion of baking soda and water.

Make certain the terminal connections are
clean and securely tightened.

If the vehicle is not to be used for 30 days or
longer, disconnect the (—) negative battery
terminal cable to prevent discharging it.
WARNING

Do not expose the battery to flames
or electrical sparks. Hydrogen gas,
generated by battery fluid, is explo-
sive. Do not allow battery fluid to
contact your skin, eyes, fabrics, or
painted surfaces. After touching a
battery or battery cap, do not touch
or rub your eyes. Thoroughly wash
your hands. If the acid contacts your
eyes, skin or clothing, immediately
flush with water for at least 15 min-
utes and seek medical attention.

Battery posts, terminals and related
accessories contain lead and lead
SDI1767
WINDOW WASHER FLUID BATTERY8-14
Maintenance and do-it-yourself


06.7.5/Z50-D/V5.0


Contact a NISSAN dealer if checking or replace-
ment is required.
SELF-ADJUSTING BRAKESYour vehicle is equipped with self-adjusting
brakes.
The disc-type brakes self-adjust every time the
brake pedal is applied.
WARNING
See a NISSAN dealer and have it
checked if the brake pedal height does
not return to normal.BRAKE PAD WEAR INDICATORSThe disc brake pads on your vehicle have au-
dible wear indicators. When a brake pad re-
quires replacement, it will make a high pitched
scraping or screeching sound when the vehicle
is in motion whether or not the brake pedal is
depressed. Have the brakes checked as soon as
possible if the wear indicator sound is heard.
Under some driving or climate conditions, occa-
sional brake squeak, squeal or other noise may
be heard. Occasional brake noise during light to
moderate stops is normal and does not affect
the function or performance of the brake system.
Proper brake inspection intervals shouldbe followed.For additional information, see the
separate Service and Maintenance Guide.
REAR WINDOW WIPER BLADE BRAKES8-20
Maintenance and do-it-yourself


06.7.5/Z50-D/V5.0


If any electrical equipment does not operate,
check for an open fuse.
1. Be sure the ignition switch and headlight
switch are OFF.
2. Open the engine hood.
3. Remove the fusible link cover.
4. Remove the fuse with the fuse puller.
5. If the fuse is open
A, replace it with a new
fuse
B.
6. If a new fuse also opens, have the electrical
system checked and repaired by a NISSAN
dealer.
Fusible linksIf any electrical equipment does not operate and
fuses are in good condition, check the fusible
links. If any of these fusible links are melted,
replace only with genuine NISSAN parts.
SDI1753
Type A
SDI1754
Type B
8-22
Maintenance and do-it-yourself


06.7.5/Z50-D/V5.0


PASSENGER COMPARTMENT
CAUTION
Never use a fuse of a higher or lower
amperage rating than that specified on
the fuse box cover. This could damage
the electrical system or cause a fire.
If any electrical equipment does not operate,
check for an open fuse.
1. Be sure the ignition switch and the headlight
switch are OFF.2. Pull to open the fuse box lid
1.
3. Pinch the fuse perpendicularly with the fuse
puller
A
and pull it out.
4. If the fuse is open, replace it with a new fuse
B.
5. If a new fuse also opens, have the electrical
system checked and repaired by a NISSAN
dealer.
KEYFOBReplace the battery as follows:
1. Open the lid using a suitable tool.
2. Replace the battery with a new one.
SDI1505
SPA1374
BATTERY REPLACEMENT
Maintenance and do-it-yourself
8-23


06.7.5/Z50-D/V5.0


1. Front turn signal light or front park light
2. Headlight (low-beam, high-beam)
3. Front park light or front turn signal light
4. Map light
5. Ceiling light
6. Rear personal light
7. Front fog light (if so equipped)/Daytime, run-
ning light (for Canada)
8. Front side marker light
9. Step light
10. High-mounted stop light
11. Rear combination light
— Turn signal/Stop/Tail light
— Side marker light
12. License plate lights
13. Back-up light
14. Luggage light
SDI1960
LIGHTS8-26
Maintenance and do-it-yourself


06.7.5/Z50-D/V5.0


HEADLIGHTS
ReplacingIf replacement is required, see a NISSAN dealer.
Xenon headlight bulb:
WARNINGHIGH VOLTAGE
When xenon headlights are on, they
produce a high voltage. To prevent an
electric shock, never attempt to modify
or disassemble. Always have your xe-
non headlights replaced at a NISSAN
dealer. For additional information, see
“Headlight and turn signal switch” in
the “Instruments and controls” section.
Halogen headlight bulb:
The headlight is a semi-sealed beam type which
uses a replaceable headlight (halogen) bulb. If
replacement is required, see a NISSAN dealer.
CAUTION

High pressure halogen gas is sealed
inside the halogen bulb. The bulb
may break if the glass envelope is
scratched or the bulb is dropped.

When handling the bulb, do not touch
the glass envelope.

Do not touch the bulb.

Use the same number and wattage as
originally installed:
Bulb no. (Wattage)
D2S - Xenon low/high-beam
or
HB5 (65/55W) - Halogen low/high-
beam

Do not leave the bulb out of the
headlight reflector for a long period
of time as dust, moisture and smoke
may enter the headlight body and
affect the performance of the head-
light.Fog may temporarily form inside the lens of the
exterior lights in the rain or in a car wash. A
temperature difference between the inside and
the outside of the lens causes the fog. This is not
a malfunction. If large drops of water collect
inside the lens, contact a NISSAN dealer.
