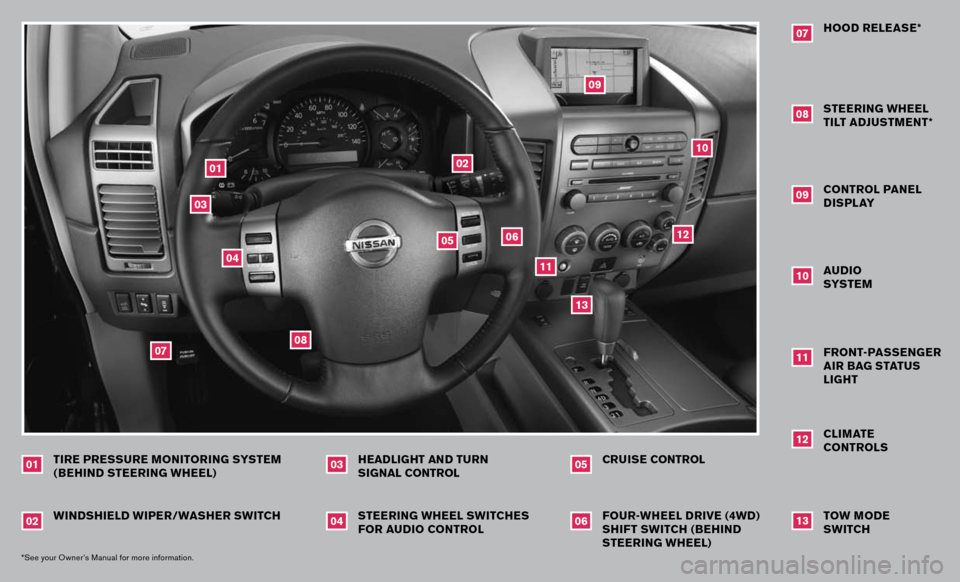

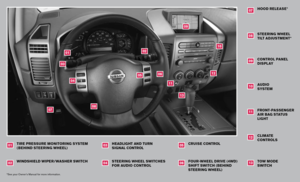

2007 NISSAN ARMADA Quick Reference Guide

2007
AR MADA

Q U I C K R E F E R E N C E G U I D E

Sh ift_scale

WINDSHIELD WIPER/ WASHER SWITCH
0102*See your Owner’s Manual for more information.
STEERING WHEEL SWITCHES FOR AUDIO CONTROLHEADLIGHT AND TURN SIGNAL CONTROL
0304
FOUR-WHEEL DRIVE (4WD)

SHIFT SWITCH ( BEHIND STEERING WHEEL)CRUISE CONTROL
0506
STEERING WHEEL TILT ADJUSTMENT*HOOD RELEASE*
0708
CONTROL PANEL DISPL AY
09

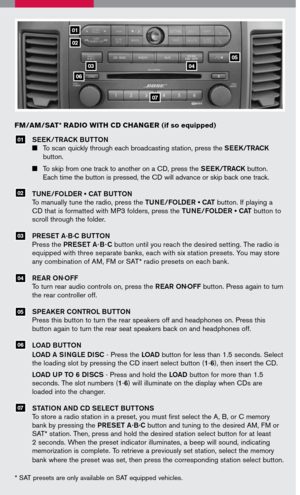

AUDIO SYSTEM
10
FRONT-PASSENGER

AIR BAG STATUS

LIGHT
11
TIRE PRESSURE MONITORING SYSTEM ( BEHIND STEERING WHEEL)
07
0301
04
08
0205
06
09
11
13
12
10
CLIMATE

CONTROLS
12
TOW MODE SWITCH
13

HEADLIGHT AND TURN SIGNAL CONTROL
HEADLIGHT SWITCH
 Turn the headlight switch to the position to turn
on the front parking, tail, license plate and instrument
panel lights.
 Turn the headlight switch to the position to turn on
the headlights. All other lights remain on.
HIGH BEAM
 Push the headlight switch forward to select the high beam function. The blue
indicator light illuminates. Pull the headlight switch back to the original position to
select the low beam. The blue indicator light goes off.
 Pull and release the headlight switch to flash the headlight high beams on and off.
TURN SIGNAL SWITCH
 Move the headlight control switch up or down to signal the turning direction. When
the turn is completed, the turn signals cancel automatically.
 To signal a lane change, move the headlight control switch up or down to the point
where the indicator light begins to flash, but the headlight control switch does not
latch.

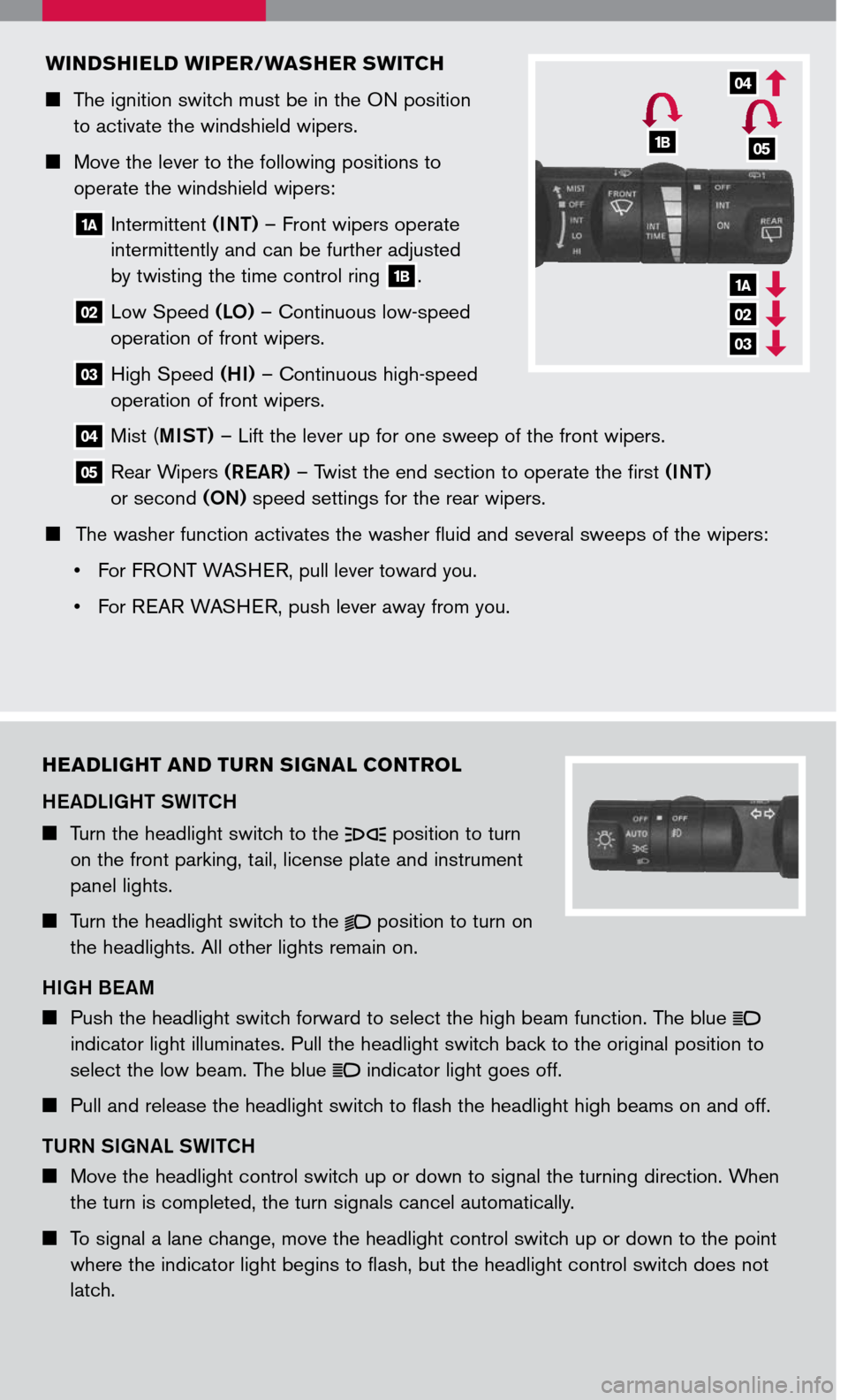

WINDSHIELD WIPER/WASHER SWITCH
 The ignition switch must be in the ON position
to activate the windshield wipers.
 Move the lever to the following positions to
operate the windshield wipers:
1A Intermittent (INT) – Front wipers operate
intermittently and can be further adjusted
by twisting the time control ring 1B.
02 Low Speed (LO) – Continuous low-speed
operation of front wipers.
03 High Speed (HI) – Continuous high-speed
operation of front wipers.
04 Mist (MIST) – Lift the lever up for one sweep of the front wipers.
05 Rear Wipers (REAR) – Twist the end section to operate the first (INT)
or second (ON) speed settings for the rear wipers.
 The washer function activates the washer fluid and several sweeps of the wipers:
• For F
RONT WASHER, pull lever toward you.
• For REAR WASHER, push lever away from you.

1A
02
03
04
1B05

FOUR-WHEEL DRIVE (4WD) SHIFT SWITCH (if so
equipped)
 This system provides 4 positions so the driver can
select the desired drive mode according to driving
conditions.
 2WD – Dry, paved roads.
 AUTO – Torque distribution to front and rear wheels will change automatically
depending on road conditions.
 4H – Rocky, sandy or snow-covered roads.
 4LO – When maximum power and traction are required (steep grades, rocky, sandy or
muddy roads).
REAR SONAR SYSTEM OFF SWITCH
When backing up, this system will beep to alert you to obstacles
within 6 ft. of the rear bumper. The system beeps faster as the
vehicle gets closer to the obstacle. A continuous tone sounds when
an obstacle is less than 10 inches away from the bumper. Turn the
system off by pushing the rear sonar system OFF switch. Push the
switch again to enable the system. The system will automatically reset
the next time the ignition switch is turned on.

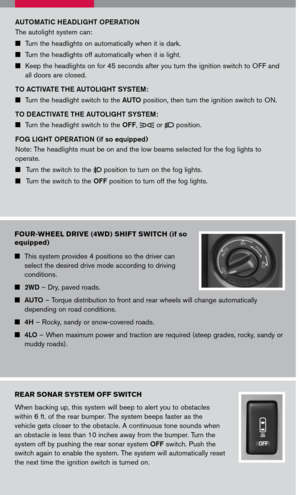

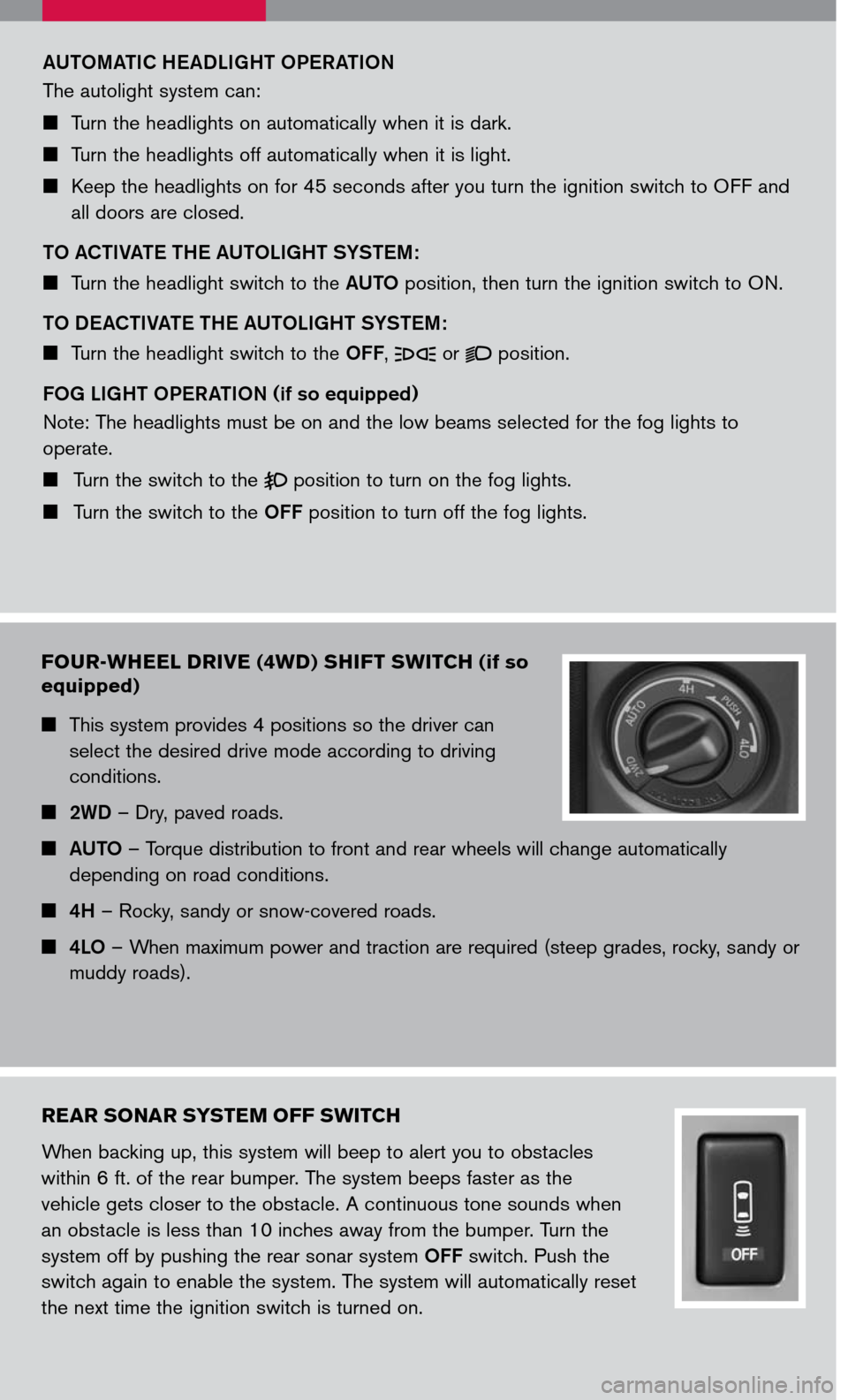

AUTOMATIC HEADLIGHT OPERATION
The autolight system can:
 Turn the headlights on automatically when it is dark.
 Turn the headlights off automatically when it is light.
 Keep the headlights on for 45 seconds after you turn the ignition switch to OFF and
all doors are closed.
TO ACTIVATE THE AUTOLIGHT SYSTEM :
 Turn the headlight switch to the AUTO position, then turn the ignition switch to ON.
TO DEACTIVATE THE AUTOLIGHT SYSTEM :
 Turn the headlight switch to the OFF, or position.
FOG LIGHT OPERATION (if so equipped)
Note: The headlights must be on and the low beams selected for the fog lights to
operate.
 Turn the switch to the position to turn on the fog lights.
 Turn the switch to the OFF position to turn off the fog lights.

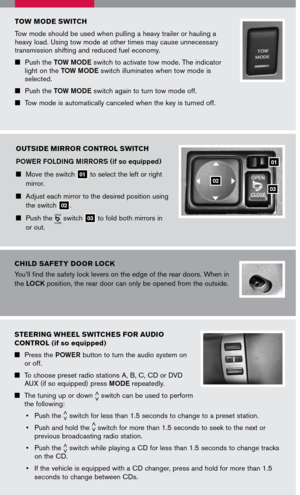

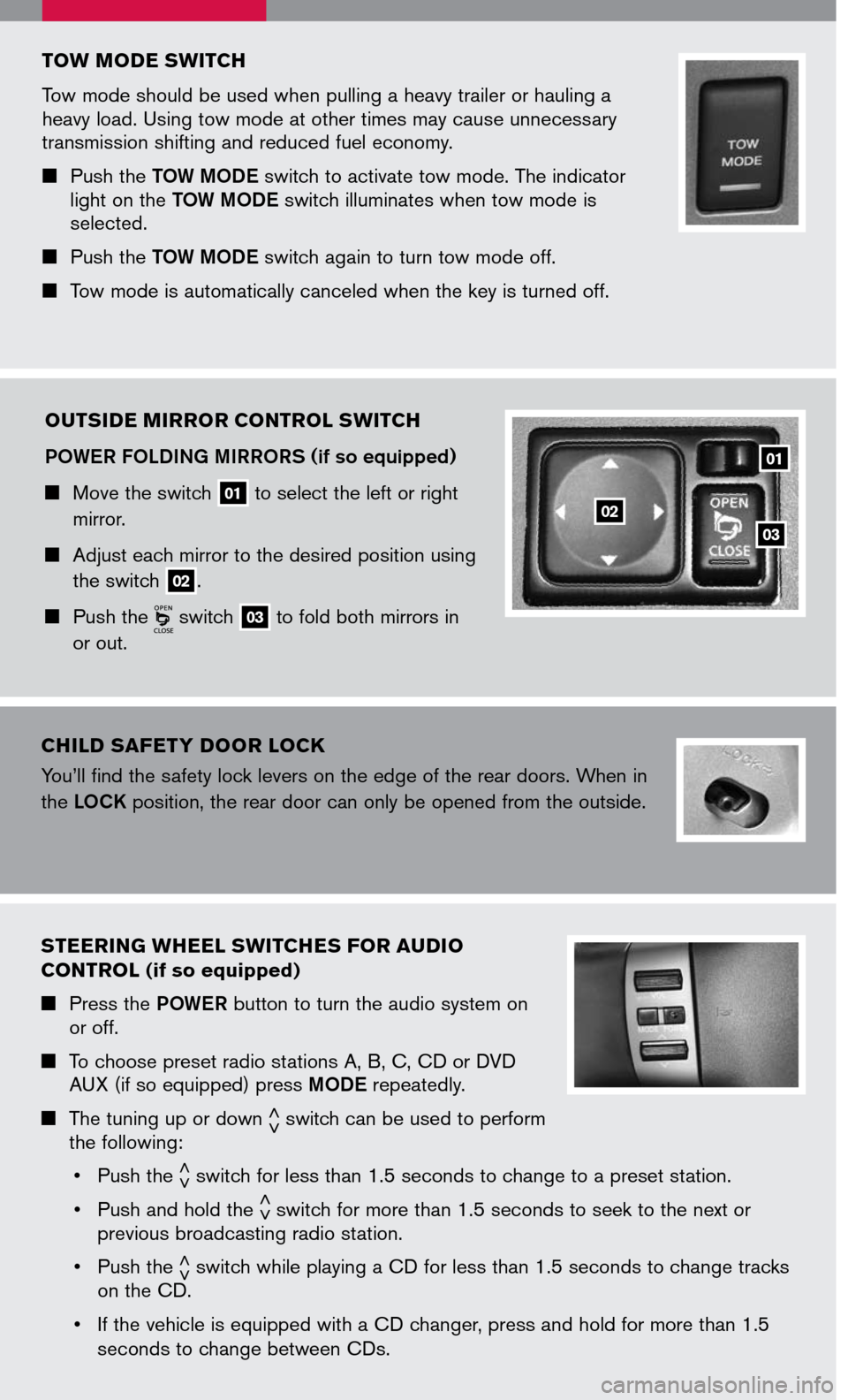

TOW MODE SWITCH
Tow mode should be used when pulling a heavy trailer or hauling a heavy load. Using tow mode at other times may cause unnecessary transmission shifting and reduced fuel economy.
 Push the TOW MODE switch to activate tow mode. The indicator light on the TOW MODE switch illuminates when tow mode is selected.
 Push the TOW MODE switch again to turn tow mode off.
 Tow mode is automatically canceled when the key is turned off.
OUTSIDE MIRROR CONTROL SWITCH
POWER FOLDING MIRRORS (if so equipped)
 Move the switch 01 to select the left or right
mirror.
 Adjust each mirror to the desired position using
the switch 02.
 Push the switch 03 to fold both mirrors in
or out.
03
01
02
STEERING WHEEL SWITCHES FOR AUDIO
CONTROL (if so equipped)
 Press the POWER button to turn the audio system on or off.
 To choose preset radio stations A, B, C, CD or DVD AUX (if so equipped) press MODE repeatedly.
 The tuning up or down < >switch can be used to perform the following:
• Push the
< >switch for less than 1.5 seconds to change to a preset station.
• Push and hold the
< >switch for more than 1.5 seconds to seek to the next or previous broadcasting radio station.
• Push the
< >switch while playing a CD for less than 1.5 seconds to change tracks on the CD.
• If the vehicle is equipped with a CD changer, press and hold for more than 1.5
seconds to change between CDs.
CHILD SAFET Y DOOR LOCK
You’ll find the safety lock levers on the edge of the rear doors. When in
the LOCK position, the rear door can only be opened from the outside.

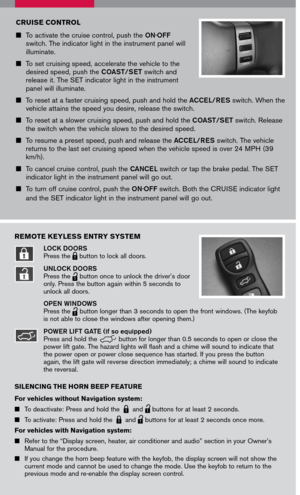

CRUISE CONTROL
 To activate the cruise control, push the ON.OFF switch. The indicator light in the instrument panel will illuminate.
 To set cruising speed, accelerate the vehicle to the desired speed, push the COAST/SET switch and release it. The SET indicator light in the instrument panel will illuminate.
 To reset at a faster cruising speed, push and hold the ACCEL/RES switch. When the vehicle attains the speed you desire, release the switch.
 To reset at a slower cruising speed, push and hold the COAST/SET switch. Release the switch when the vehicle slows to the desired speed.
 To resume a preset speed, push and release the ACCEL/RES switch. The vehicle returns to the last set cruising speed when the vehicle speed is over 24 MPH (39 km/h).
 To cancel cruise control, push the CANCEL switch or tap the brake pedal. The SET indicator light in the instrument panel will go out.
 To turn off cruise control, push the ON.OFF switch. Both the CRUISE indicator light
and the SET indicator light in the instrument panel will go out.
REMOTE KEYLESS ENTRY SYSTEM
LOCK DOORSPress the LPD0150 button to lock all doors.
UNLOCK DOORSPress the
lpd0151
button once to unlock the driver’s door only. Press the button again within 5 seconds to unlock all doors.
OPEN WINDOWS Press the
lpd0151
button longer than 3 seconds to open the front windows. (The keyfob is not able to close the windows after opening them.)
POWER LIFT GATE (if so equipped)Press and hold the
WPD0337
1A
button for longer than 0.5 seconds to open or close the power lift gate. The hazard lights will flash and a chime will sound to indicate that the power open or power close sequence has started. If you press the button again, the lift gate will reverse direction immediately; a chime will sound to indicate the reversal.
SILENCING THE HORN BEEP FEATURE
For vehicles without Navigation system:
 To deactivate: Press and hold the LPD0150 and
lpd0151
buttons for at least 2 seconds.
 To activate: Press and hold the LPD0150 and
lpd0151
buttons for at least 2 seconds once more.
For vehicles with Navigation system:
 Refer to the “Display screen, heater, air conditioner and audio” section in your Owner’s Manual for the procedure.
 If you change the horn beep feature with the keyfob, the display screen will not show the
current mode and cannot be used to change the mode. Use the keyfob to return to the
previous mode and re-enable the display screen control.

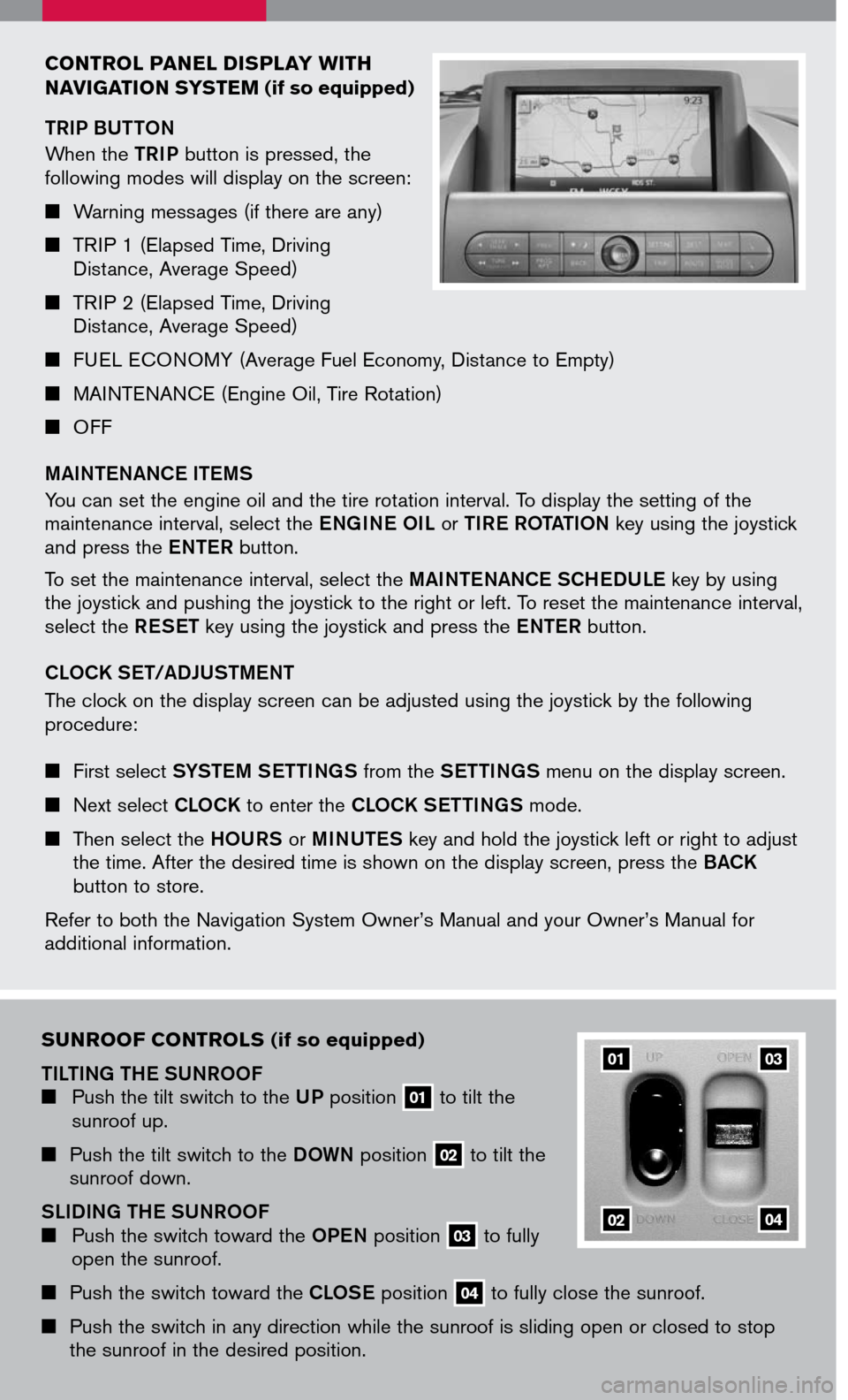

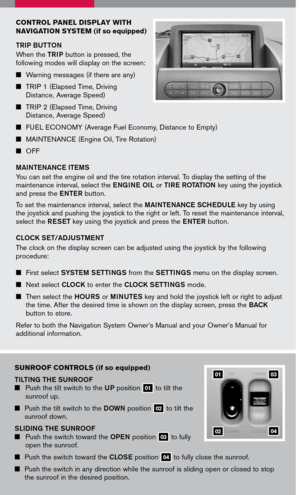

CONTROL PANEL DISPLAY WITH
N AVIGATION SYSTEM (if so equipped)
TRIP BUTTON
When the TRIP button is pressed, the following modes will display on the screen:
 Warning messages (if there are any)
 TRIP 1 (Elapsed Time, Driving
Distance, Average Speed)
 TRIP 2 (Elapsed Time, Driving
Distance, Average Speed)
 FUEL ECONOMY (Average Fuel Economy, Distance to Empty)
 MAINTENANCE (Engine Oil, Tire Rotation)
 OFF
MAINTENANCE ITEMS
You can set the engine oil and the tire rotation interval. To display the setting of the maintenance interval, select the ENGINE OIL or TIRE ROTATION key using the joystick and press the ENTER button.
To set the maintenance interval, select the MAINTENANCE SCHEDULE key by using the joystick and pushing the joystick to the right or left. To reset the maintenance interval, select the RESET key using the joystick and press the ENTER button.
CLOCK SET/ADJUSTMENT
The clock on the display screen can be adjusted using the joystick by the following procedure:  First select SYSTEM SETTINGS from the SETTINGS menu on the display screen.
 Next select CLOCK to enter the CLOCK SETTINGS mode.
 Then select the HOURS or MINUTES key and hold the joystick left or right to adjust
the time. After the desired time is shown on the display screen, press the BACK
button to store.
Refer to both the Navigation System Owner’s Manual and your Owner’s Manual for additional information.
SUNROOF CONTROLS (if so equipped)
TILTING THE SUNROOF  Push the tilt switch to the UP position 01 to tilt the

sunroof up.
 Push the tilt switch to the DOWN position 02 to tilt the sunroof down.
SLIDING THE SUNROOF  Push the switch toward the OPEN position 03 to fully

open the sunroof.
 Push the switch toward the CLOSE position 04 to fully close the sunroof.
 Push the switch in any direction while the sunroof is sliding open or closed to stop the sunroof in the desired position.
01
02
03
04

01
03
0508
04
02
06
0709
02
01

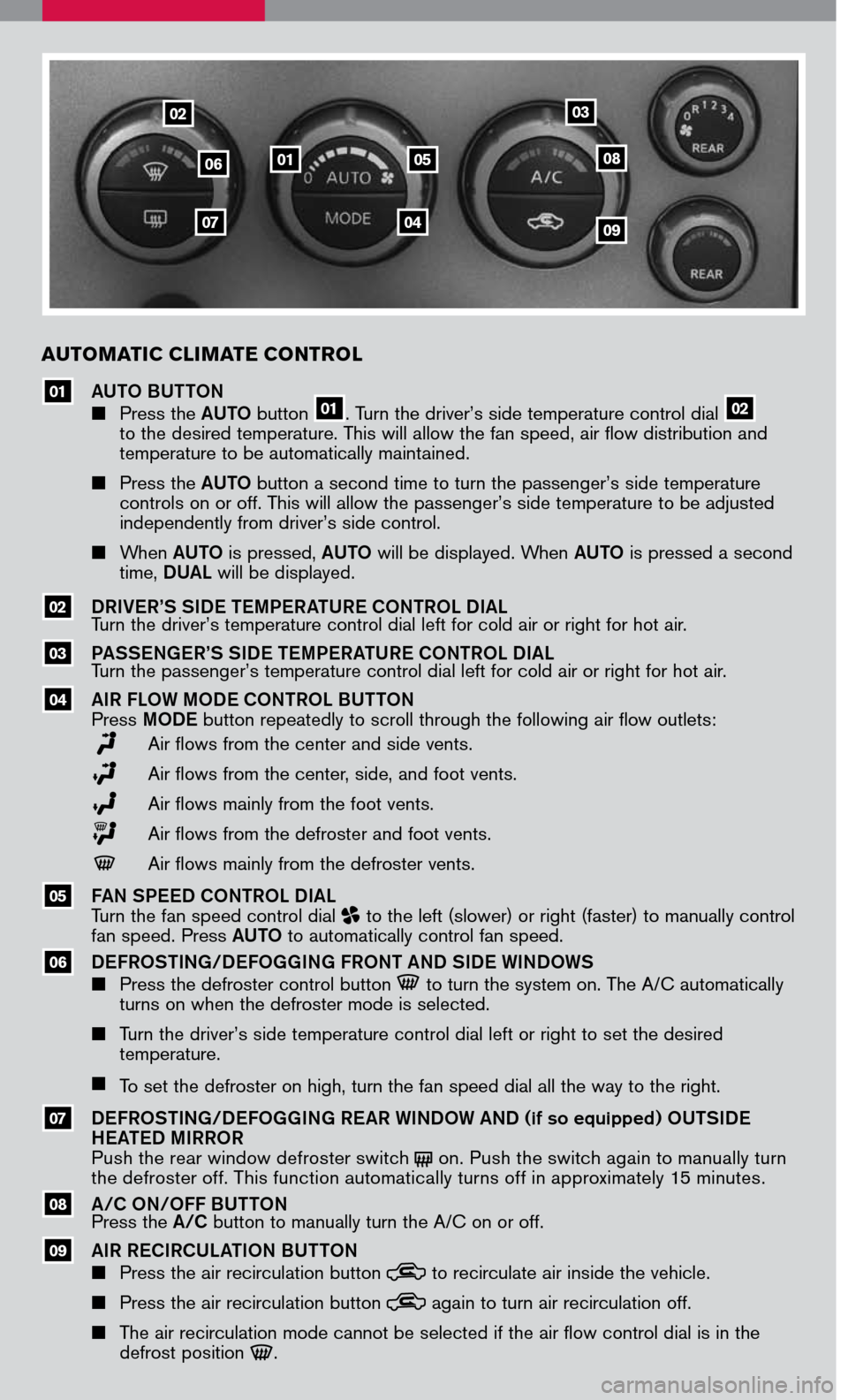

AUTOMATIC C LIMATE CONTROL
AUTO BUTTON Press the AUTO button 01. Turn the driver’s side temperature control dial 02
to the desired temperature. This will allow the fan speed, air flow distribution and temperature to be automatically maintained.
 Press the AUTO button a second time to turn the passenger’s side temperature controls on or off. This will allow the passenger’s side temperature to be adjusted independently from driver’s side control.
 When AUTO is pressed, AUTO will be displayed. When AUTO is pressed a second time, DUAL will be displayed.
DRIVER’S SIDE TEMPERATURE CONTROL DIALTurn the driver’s temperature control dial left for cold air or right for hot air.
PASSENGER’S SIDE TEMPERATURE CONTROL DIALTurn the passenger’s temperature control dial left for cold air or right for hot air.
AIR FLOW MODE CONTROL BUTTONPress MODE button repeatedly to scroll through the following air flow outlets:
Air flows from the center and side vents.
Air flows from the center, side, and foot vents.
Air flows mainly from the foot vents.
Air flows from the defroster and foot vents.
Air flows mainly from the defroster vents.
FAN SPEED CONTROL DIALTurn the fan speed control dial to the left (slower) or right (faster) to manually control fan speed. Press AUTO to automatically control fan speed.
DEFROSTING/DEFOGGING FRONT AND SIDE WINDOWS Press the defroster control button to turn the system on. The A/C automatically turns on when the defroster mode is selected.
 Turn the driver’s side temperature control dial left or right to set the desired temperature.
 To set the defroster on high, turn the fan speed dial all the way to the right.
DEFROSTING/DEFOGGING REAR WINDOW AND (if so equipped) OUTSIDE HEATED MIRROR Push the rear window defroster switch on. Push the switch again to manually turn the defroster off. This function automatically turns off in approximately 15 minutes.
A/C ON/OFF BUTTONPress the A/C button to manually turn the A/C on or off.
AIR RECIRCULATION BUTTON Press the air recirculation button to recirculate air inside the vehicle.
 Press the air recirculation button again to turn air recirculation off.
 The air recirculation mode cannot be selected if the air flow control dial is in the defrost position .
03
08
07
05
04
06
09
