Page 1 of 27
- 1-
Nissan Altima Hybrid
© 2006 NISSAN NORTH AMERICA, INC.
All rights reserved.This document may not be
altered without the written permission of NISSAN NORTH AMERICA, INC.
Pub. No. FR7E-1H32U0
Page 2 of 27
- 2-
Foreword..................................................................................................................................................- 3-
About theNissan Altima Hybrid..............................................................................................................- 4-
AltimaHybridIdentification.....................................................................................................................- 5-
VIN Location..............................................................................................................................................- 5-
Engine Compartment.................................................................................................................................- 6-
Exterior......................................................................................................................................................- 7-
Interior.......................................................................................................................................................- 7-
Hybrid System Locations and Descriptions...........................................................................................- 8-
Battery Information..................................................................................................................................- 9-
Low Voltage Battery...................................................................................................................................- 9-
High Voltage Battery..................................................................................................................................- 9-
High Voltage BatterySpecifications.........................................................................................................- 10-
High Voltage Battery Recycling................................................................................................................- 10-
High Voltage Safety System.....................................................................................................................- 11-
Supplemental Restraint System (SRS) and Seat Belt Pre-tensioners................................................- 13-
Emergency Response............................................................................................................................- 14-

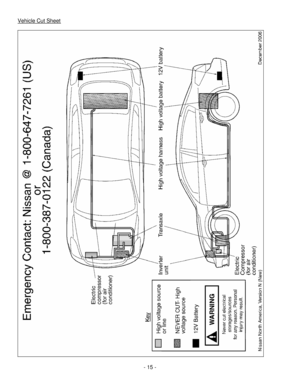

Vehicle Cut Sheet....................................................................................................................................- 15-
Extrication................................................................................................................................................- 16-
Alternative High Voltage System Shut Down Procedure..........................................................................- 19-
Fire..........................................................................................................................................................- 21-
Recovery/recyclingof the Ni-MH high voltage battery..............................................................................- 22-
Spills........................................................................................................................................................- 22-
First Aid....................................................................................................................................................- 23-
Submersion..............................................................................................................................................- 23-
Roadside Assistance.............................................................................................................................- 24-
Towing.....................................................................................................................................................- 24-
Fuel-Filler Door Opener...........................................................................................................................- 24-
Spare Tire................................................................................................................................................- 24-
Jump Starting...........................................................................................................................................- 25-
Page 3 of 27
- 3-
Foreword
Nissan released theNissan Altima Hybridin North America in January of 2007. The Nissan Altima Hybrid runs
onconventional gasolineand a traction motor. The basic vehicle systems and featuresof the Altima Hybrid are
the same as those of the conventionalAltima, except where noted in this guide. This First Responder’s Guide
was published to help educate and assist first responders inthe safe handling of the Altima Hybrid and its
technology.
A high voltage batteryis used to power thetractionmotor, generator, electricair conditioningcompressor,
voltage converter, and inverter unit. A separate 12volt battery is used to power other electrical devices such as
the radio, horn, headlamps, and instrument cluster gauges. A number of safeguards have beendesigned to
ensure that the high voltage Nickel Metal Hydride (Ni-MH)battery is kept safe and secure in the event of an
accident.
TheAltimaHybridutilizes both low and high voltagesystems:
Low voltage system
Page 4 of 27
- 4-
About theNissan Altima Hybrid
There are twopower sources stored on boardthat are used to drivethe vehicle:
Page 5 of 27
- 5-
AltimaHybridIdentification
In appearance, theNissan Altima Hybrid is nearly identical to the conventionalNissanAltima.
VIN Location
The VIN can be located on either the front windshield cowl (1) or on the driver’s side B-pillar (2).
Example VIN:1N4CL21E67C051138
An Altima Hybridis identified by the 4th alphanumeric character:C
Page 6 of 27
- 6-
Engine Compartment
The engine compartment of the Altima Hybrid houses an aluminum alloy 2.5 liter gasoline engine, the high
voltage harnesses, fuse/fusible link box, fuse block, inverter unit, transaxle and electricair conditioning
compressor.
Engine compartment components and locations
1.Fuse/Fusible link box2.Fuse block3.Inverter unit
4.High voltage harness (orange)5.Transaxle6.Electricair conditioning
compressor
7.Gasoline engineA.HV electrical connector:Vehicle front
Page 7 of 27
Page 8 of 27
- 8-
Hybrid SystemLocations and Descriptions
ComponentLocationDescription
1. ElectricAir
Conditioning
Compressor
Engine compartment, front
passenger side
Electric motor driven compressor supplied with 245 volts
DC.
2. Electric Power
Steering
Engine compartment, on
steering rack
A 42 volt DC assist motor is used for the electric power
steering (EPS) system.
3. EPS DC/DC
Converter
Trunk area, mounted to top
of high voltage battery
Converts 245 volts DC (high voltage) to 42 volts DC (low
voltage) for the EPS.
4. High Voltage
Battery
Trunk area, mounted to
cross member and behind
rear seat
245 volt DC Nickel Metal Hydride (Ni-MH) battery
consisting of34 low voltage (7.2 volt) modules connected
in series.
5. DC/DC
Converter
Trunk area, under front left
cover of the high voltage
battery
Converts 245 volts DC (high voltage) to 12 volts DC (low
voltage) for charging the 12 volt battery.
6. Service
Disconnect
Trunk area, on the
passenger side of the high
voltage battery
Used to disable the high voltage system.
7. High Voltage
Harnesses
