STARTING SYSTEM
SC-19
C
D
E
F
G
H
I
J
L
MA
B
SC
Revision: 2006 November2007 350Z
Disassembly and Assembly NKS0000D
TYPE: S114-928
INSPECTION AFTER DISASSEMBLY
Pinion/Clutch Check
1. Inspect pinion teeth.
Replace pinion if teeth are worn or damaged. (Also check condition of ring gear teeth.)
2. Inspect reduction gear teeth.
Replace reduction gear if teeth are worn or damaged. (Also check condition of armature shaft gear
teeth.)
3. Check to see if pinion locks in one direction and rotates smoothly in the opposite direction.
If it locks or rotates in both directions, or unusual resistance is evident, replace.

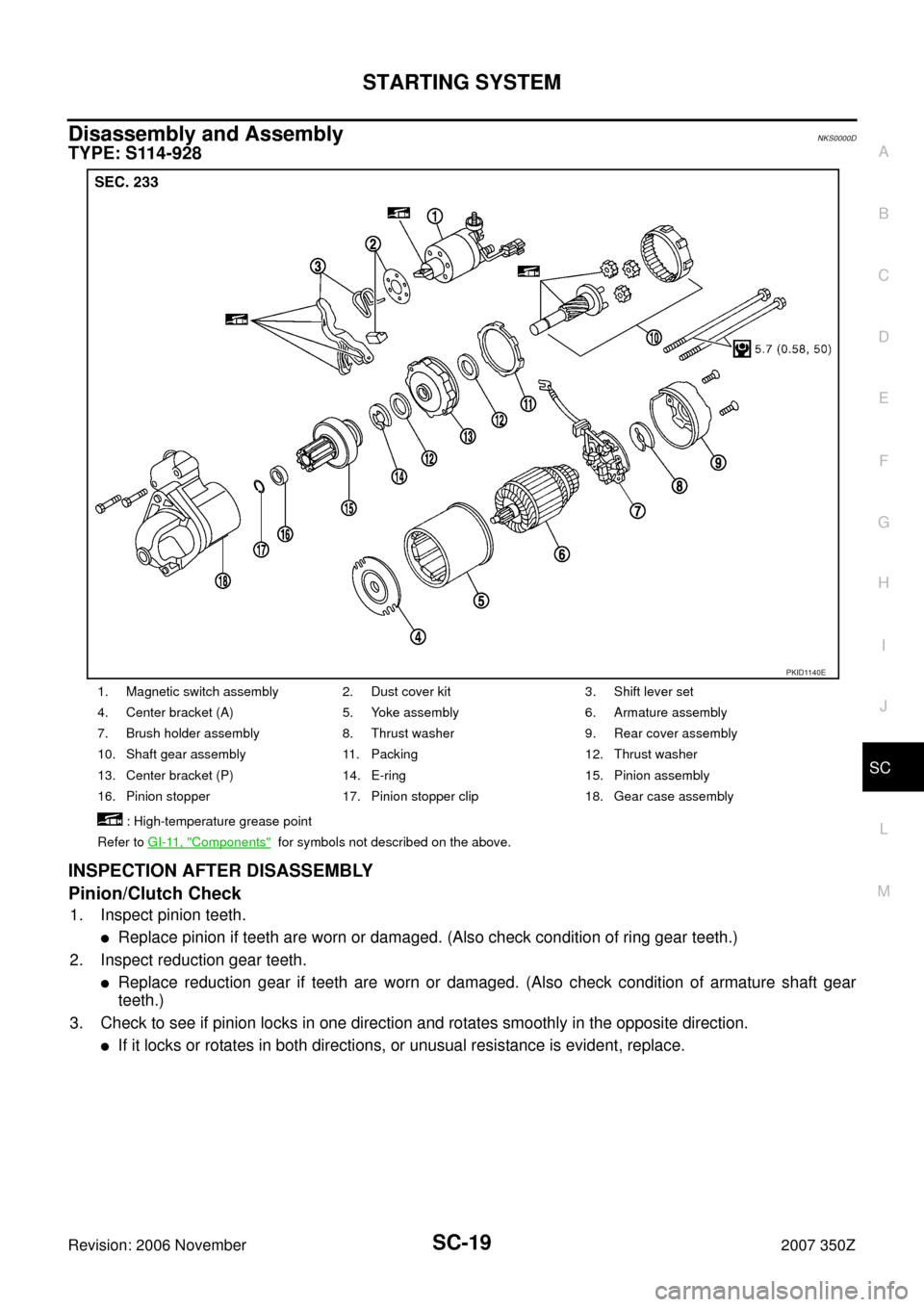

1. Magnetic switch assembly 2. Dust cover kit 3. Shift lever set
4. Center bracket (A) 5. Yoke assembly 6. Armature assembly
7. Brush holder assembly 8. Thrust washer 9. Rear cover assembly
10. Shaft gear assembly 11. Packing 12. Thrust washer
13. Center bracket (P) 14. E-ring 15. Pinion assembly
16. Pinion stopper 17. Pinion stopper clip 18. Gear case assembly
: High-temperature grease point
Refer to GI-11, "
Components" for symbols not described on the above.
PKID1140E
SERVICE DATA AND SPECIFICATIONS (SDS)
SC-29
C
D
E
F
G
H
I
J
L
MA
B
SC
Revision: 2006 November2007 350Z
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
BatteryNKS0054Z
StarterNKS00550
AlternatorNKS00551
Ty p e80D23L
20 hour rate capacity [V - Ah] 12 - 62
Cold cranking current (For reference value) [A] 589
Ty p eS114-928
HITACHI make
Reduction gear type
System voltage [V] 12
No-loadTerminal voltage [V] 11
Current [A] Less than 110
Revolution [rpm] More than 2,700
Minimum diameter of commutator [mm (in)] 28.0 (1.102)
Minimum length of brush [mm (in)] 10.5 (0.413)
Brush spring tension [N (kg, lb)] 16.2 (1.65, 3.6)
Clearance between bearing metal and armature shaft [mm (in)] Less than 0.2 (0.008)
Clearance between pinion front edge and pinion stopper [mm (in)] 0.3 - 2.5 (0.012 - 0.098)
Ty p eA3TJ1991
MITSUBISHI make
Nominal rating [V - A] 12 - 150
Ground polarityNegative
Minimum revolution under no-load (When 13.5 V is
applied)[rpm] Less than 1,300
Hot output current (When 13.5 V is applied) [A/rpm]More than 31/1,300
More than 122/2,500
More than 144/5,000
Regulated output voltage [V] 14.1 - 14.7
Minimum length of brush [mm (in)] More than 5.00 (0.1969)
Brush spring pressure [N (g, oz)] 4.1 - 5.3 (418 - 540, 14.8 - 19.1)
Slip ring minimum outer diameter [mm (in)] More than 22.1 (0.870)
Rotor (Field coil) resistance [Ω] 1.7 - 2.0
