2007 NISSAN 350Z diagram

SC-1
STARTING & CHARGING SYSTEM
K ELECTRICAL
CONTENTS
C
D
E
F
G
H
I
J
L
M
SECTION SC
A
B
SC
Revision: 2006 November2007 350Z
STARTING & CHARGING SYSTEM
PRECAUTIONS .......................................................... 2
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 2
Precautions for Battery Service ................................ 2
PREPARATION ........................................................... 3
Special Service Tools ............................................... 3
Commercial Service Tools ........................................ 3
BATTERY .................................................................... 4
How to Handle Battery ............................................. 4
METHODS OF PREVENTING OVER-DIS-
CHARGE ............................................................... 4
CHECKING ELECTROLYTE LEVEL .................... 5
SPECIFIC GRAVITY CHECK ............................... 5
CHARGING THE BATTERY ................................. 6
Trouble Diagnoses with Battery Service Center ....... 7
Removal and Installation .......................................... 7
REMOVAL ............................................................. 7
INSTALLATION ..................................................... 7
STARTING SYSTEM .................................................. 8
System Description .................................................. 8
M/T MODELS ........................................................ 8
A/T MODELS ........................................................ 9
Wiring Diagram — START — ................................. 10
M/T MODELS ...................................................... 10
A/T MODELS ...................................................... 12
Trouble Diagnoses with Starting/Charging System
Tester (Starting) ...................................................... 13
DIAGNOSTIC PROCEDURE 1 ........................... 14
DIAGNOSTIC PROCEDURE 2 ........................... 15MINIMUM SPECIFICATION OF CRANKING
VOLTAGE REFERENCING COOLANT TEM-
PERATURE ......................................................... 16
Removal and Installation ........................................ 17
REMOVAL ........................................................... 17
INSTALLATION ................................................... 18
Disassembly and Assembly .................................... 19
TYPE: S114-928 .................................................. 19
INSPECTION AFTER DISASSEMBLY ................ 19
CHARGING SYSTEM ............................................... 20
System Description ................................................. 20
MALFUNCTION INDICATOR .............................. 20
Wiring Diagram — CHARGE — ............................. 21
Trouble Diagnoses with Starting/Charging System
Tester (Charging) .................................................... 22
PRELIMINARY INSPECTION ............................. 23
DIAGNOSTIC PROCEDURE 1 ........................... 23
DIAGNOSTIC PROCEDURE 2 ........................... 24
DIAGNOSTIC PROCEDURE 3 ........................... 24
DIAGNOSTIC PROCEDURE 4 ........................... 24
Removal and Installation ........................................ 26
REMOVAL ........................................................... 26
ALTERNATOR PULLEY INSPECTION ............... 27
INSTALLATION ................................................... 27
Disassembly and Assembly .................................... 28
TYPE: A3TJ1991 ................................................. 28
SERVICE DATA AND SPECIFICATIONS (SDS) ...... 29
Battery .................................................................... 29
Starter ..................................................................... 29
Alternator ................................................................ 29

SC-10
STARTING SYSTEM
Revision: 2006 November2007 350Z

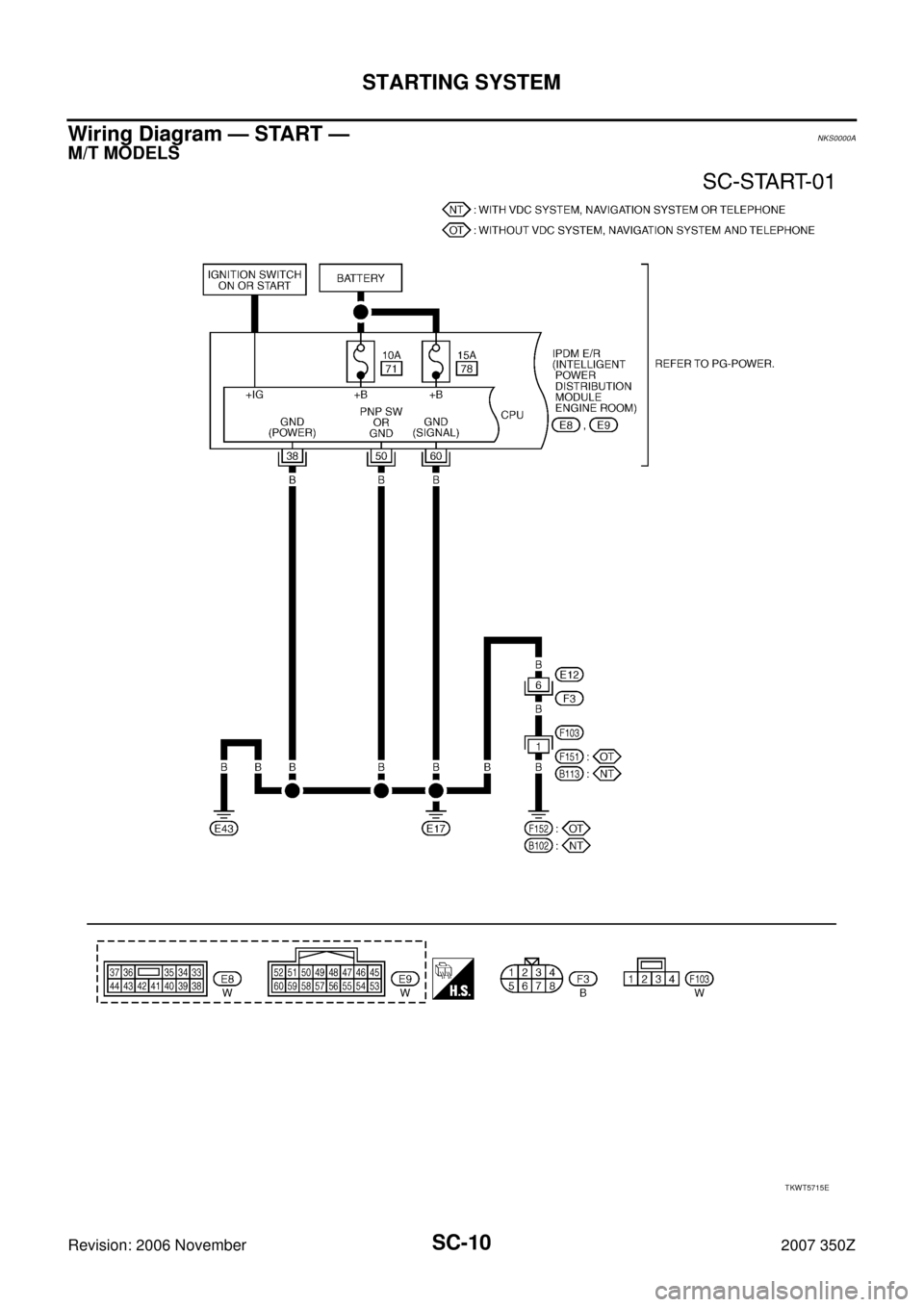

Wiring Diagram — START —NKS0000A
M/T MODELS
TKWT5715E

CHARGING SYSTEM
SC-21
C
D
E
F
G
H
I
J
L
MA
B
SC
Revision: 2006 November2007 350Z

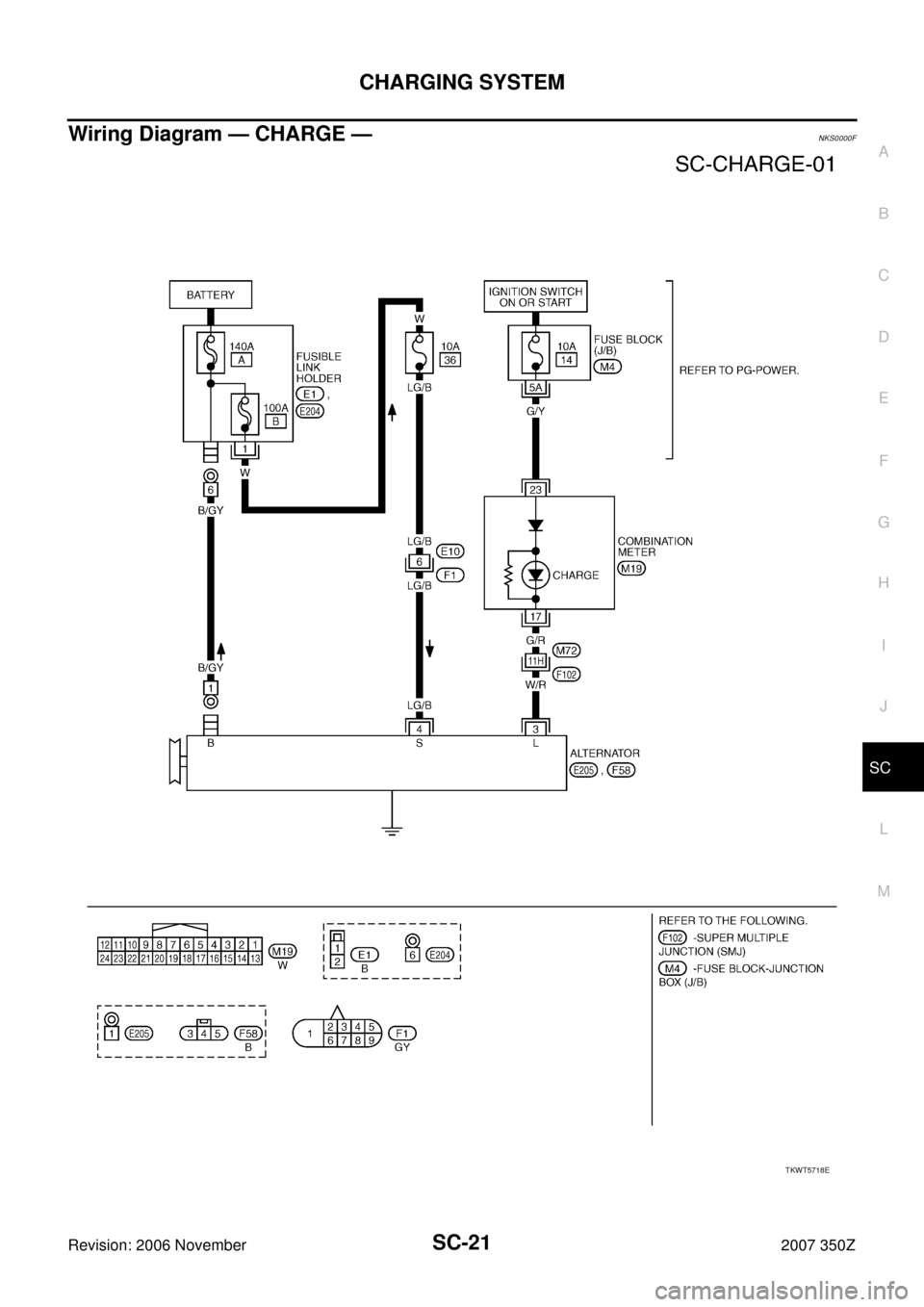

Wiring Diagram — CHARGE —NKS0000F
TKWT5718E
