M/T OILPFP:KLD20
Changing M/T OilNCS0000T
DRAINING
1. Start the engine and warm up the transmission unit sufficiently.
2. After stopping engine, remove filler plug and drain plug to drain oil.
3. Replace gasket on drain plug with new one. Screw drain plug into transmission case, and tighten to the
specified torque. Refer to MT-22, "
Case Components" .
CAUTION:
Do not reuse gasket.
FILLING
1. Fill new oil into the transmission to the level of the filler plug mounting hole.
2. Replace gasket on filler plug with new one. Screw filler plug into transmission case, and tighten to the
specified torque. Refer to MT-22, "
Case Components" .
CAUTION:
Do not reuse gasket.
Checking M/T OilNCS0000U
OIL LEAKAGE AND OIL LEVEL

Check if oil is leaking from transmission or around it.

Check oil level from filler plug mounting hole as shown in the fig-
ure.
CAUTION:
Never start engine while checking oil level.

When screwing in filler plug with a new gasket, first screw into
the transmission by hand, then tighten to the specified torque.
Refer to MT-22, "
Case Components" .
CAUTION:
Do not reuse gasket.Oil grade and viscosity : Refer to MA-11, "
Fluids and Lubricants" .
Oil capacity
: Approx. 2.93 (6-1/4 US pt, 5-1/8 lmp pt)
PCIB0268E

MT-18
TRANSMISSION ASSEMBLY
Revision: 2006 November2007 350Z
TRANSMISSION ASSEMBLYPFP:32010
Removal and InstallationNCS0000Z
CAUTION:
If transmission assembly is removed from the Vehicle, always replace CSC (Concentric Slave Cylin-
der) body and CSC tube. Return CSC body insert to original position to remove transmission assem-
bly. Dust on clutch disc sliding parts may damage seal of CSC body and may cause clutch fluid
leakage.
COMPONENTS
REMOVAL
1. Disconnect the battery cable from the negative terminal.
2. Remove tower bar. Refer to FSU-20, "
Removal and Installation" .
3. Remove front cross bar with power tool. Refer to FSU-9, "
REMOVAL" .
4. Remove exhaust mounting bracket. Refer to EX-3, "
Removal
and Installation" .
5. Remove nut connecting catalytic converter to exhaust manifold, and then remove three way catalyst and
exhaust front tube as one unit. Refer to EX-3, "
Removal and Installation" and EM-22, "Removal and
Installation" .
6. Remove propeller shaft. Refer to PR-6, "
Removal and Installation" .
CAUTION:
Do not impact or damage propeller shaft tube.

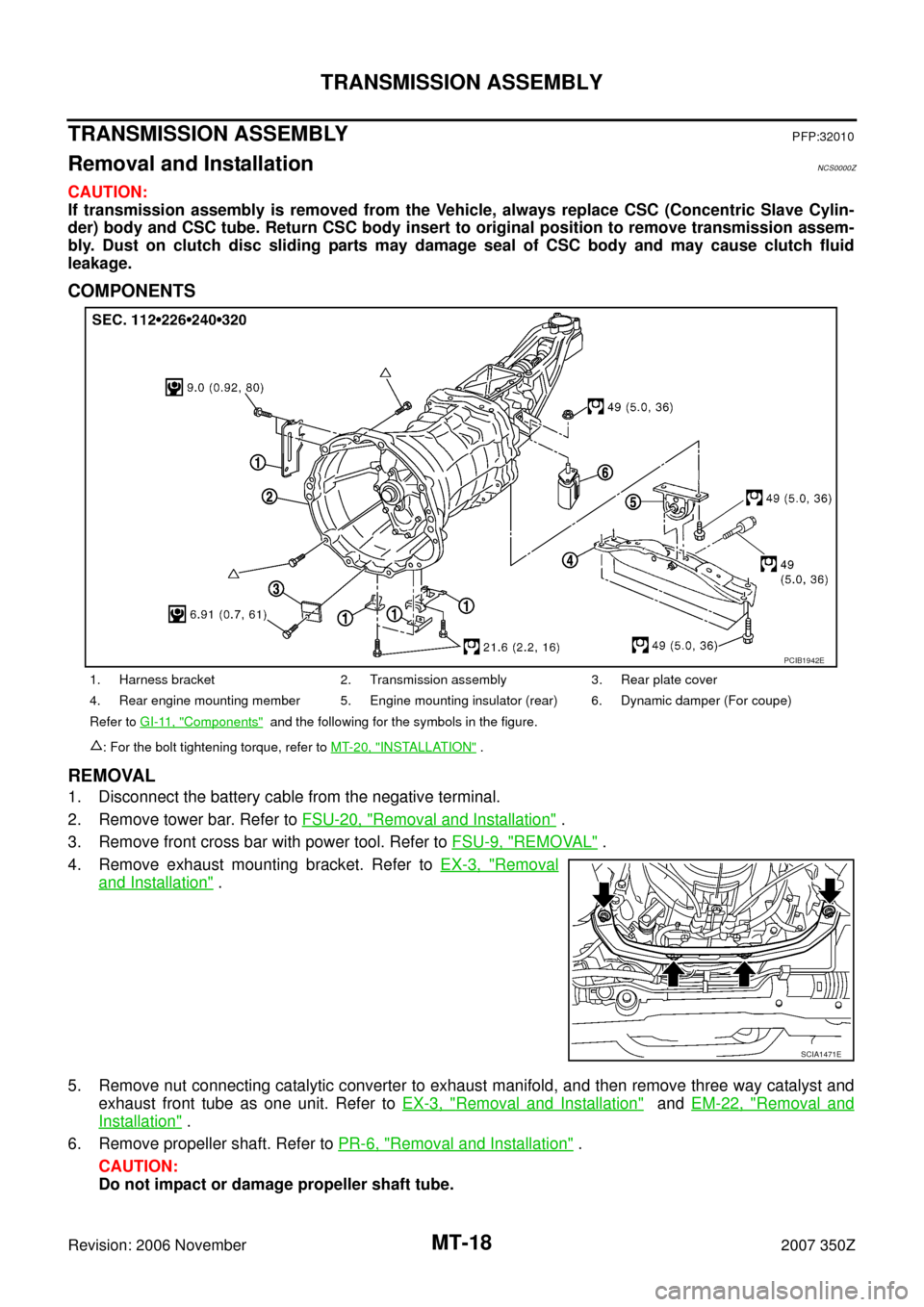

1. Harness bracket 2. Transmission assembly 3. Rear plate cover
4. Rear engine mounting member 5. Engine mounting insulator (rear) 6. Dynamic damper (For coupe)
Refer to GI-11, "
Components" and the following for the symbols in the figure.
: For the bolt tightening torque, refer to MT-20, "
INSTALLATION" .
PCIB1942E
SCIA1471E

MT-20
TRANSMISSION ASSEMBLY
Revision: 2006 November2007 350Z
14. Remove clutch tube (1), clutch hose (2), and lock plate (3).
Refer to CL-15, "
Removal and Installation" .
CAUTION:

Keep painted surface on the body or other parts free of
clutch fluid. If it spills, wipe up immediately and wash the
affected area with water.

Do not depress clutch pedal during removal procedure.
NOTE:
Insert a suitable plug into clutch hose and CSC (Concentric
Slave Cylinder) tube after removing clutch tube.
15. Remove crankshaft position sensor (POS). Refer to EM-107, "
Disassembly and Assembly" .
CAUTION:

Do not subject it to impact by dropping or hitting.

Do not disassemble.

Do not allow iron dust, etc., to get on the sensor's front edge magnetic area.

Do not place in an area affected by magnetism.
16. Remove starter motor. Refer to SC-17, "
Removal and Installation" .
17. Remove rear plate cover. Refer to EM-26, "
Removal and Installation" .
18. Disconnect Park/Neutral position (PNP) switch harness connector.
19. Remove harness brackets.
20. Separate heated oxygen sensor 2 wire harness, back-up lamp switch wire harness and Park/Neutral posi-
tion (PNP) switch wire harness from the transmission.
21. Set transmission jack to the transmission assembly.
CAUTION:
When setting transmission jack, be careful not to contact with the switch.
22. Remove rear engine mounting member. Refer to EM-101,
"Removal and Installation" .
23. Remove engine and transmission mounting bolts with power
tool.
24. Lower a suitable jack to the position where the back-up lamp
switch harness connector can be disconnect. Then disconnect
back-up lamp switch harness connector.
25. Remove transmission assembly from the vehicle.
CAUTION:

Secure transmission assembly to a suitable jack while
removing it.

The transmission assembly must not interfere with the wire harnesses and clutch hose.

Do not hold control lever housing to prevent bushing of control lever housing from deformation
when moving transmission assembly.
26. Remove dynamic damper.
27. Remove CSC (Concentric Slave Cylinder) body and tube. Refer to CL-11, "
COMPONENTS" .
CAUTION:
If transmission assembly is removed from the vehicle, always replace CSC (Concentric Slave Cyl-
inder) body and CSC tube. Return CSC body insert to original position to remove transmission
assembly. Dust on clutch disc sliding parts may damage seal of CSC body and may cause clutch
fluid leakage.
INSTALLATION
Note the following, and install in the reverse order of removal.
: Vehicle front
PCIB1915E
SCIA1531E

TRANSMISSION ASSEMBLY
MT-21
D
E
F
G
H
I
J
K
L
MA
B
MT
Revision: 2006 November2007 350Z

Tighten transmission assembly mounting bolts to the specified
torque. The figure is the view from the vehicle forward.

Install clutch tube (1), clutch hose (2), and lock plate (3) and
then tighten clutch tube flare nut to the specified torque. Refer to
CL-15, "
Removal and Installation" .
CAUTION:

The transmission assembly must not interfere with the wire
harnesses and clutch hose.

When installing, be careful to avoid interference between transmission main drive gear and clutch
cover.

If flywheel is removed, align dowel pin with the smallest hole of flywheel. Refer to EM-111,
"ASSEMBLY" .

Do not impact or damage propeller shaft tube.

Refer to MT-14, "INSTALLATION" and MT-16, "INSPECTION AFTER INSTALLATION" for control
lever installation information.

After installation, check oil level, and oil leaks and loose mechanisms. Refer to MT-9, "Checking M/
T Oil" .

Do not hold control lever housing to prevent bushing of control lever housing from deformation
when moving transmission assembly.
: Transmission to engine
: Engine to transmission
Bolt symbol A B
Quantity 8 4
“” mm (in)65
(2.56)35
(1.38)
Tightening torque
N·m (kg-m, ft-lb)75
(7.7,55)46.6
(4.8,34)
: Vehicle front
Clutch tube mounting bolt tightening torque
: 8.1 N·m (0.83 kg-m, 72 in-lb)
PCIB1946E
