Changing M/T OilNCS0000T
DRAINING
1. Start the engine and warm up the transmission unit sufficiently.
2. After stopping engine, remove filler plug and drain plug to drain oil.
3. Replace gasket on drain plug with new one. Screw drain plug into transmission case, and tighten to the
specified torque. Refer to MT-22, "
Case Components" .
CAUTION:
Do not reuse gasket.
FILLING
1. Fill new oil into the transmission to the level of the filler plug mounting hole.
2. Replace gasket on filler plug with new one. Screw filler plug into transmission case, and tighten to the
specified torque. Refer to MT-22, "
Case Components" .
CAUTION:
Do not reuse gasket.
Checking M/T OilNCS0000U
OIL LEAKAGE AND OIL LEVEL
Check if oil is leaking from transmission or around it.

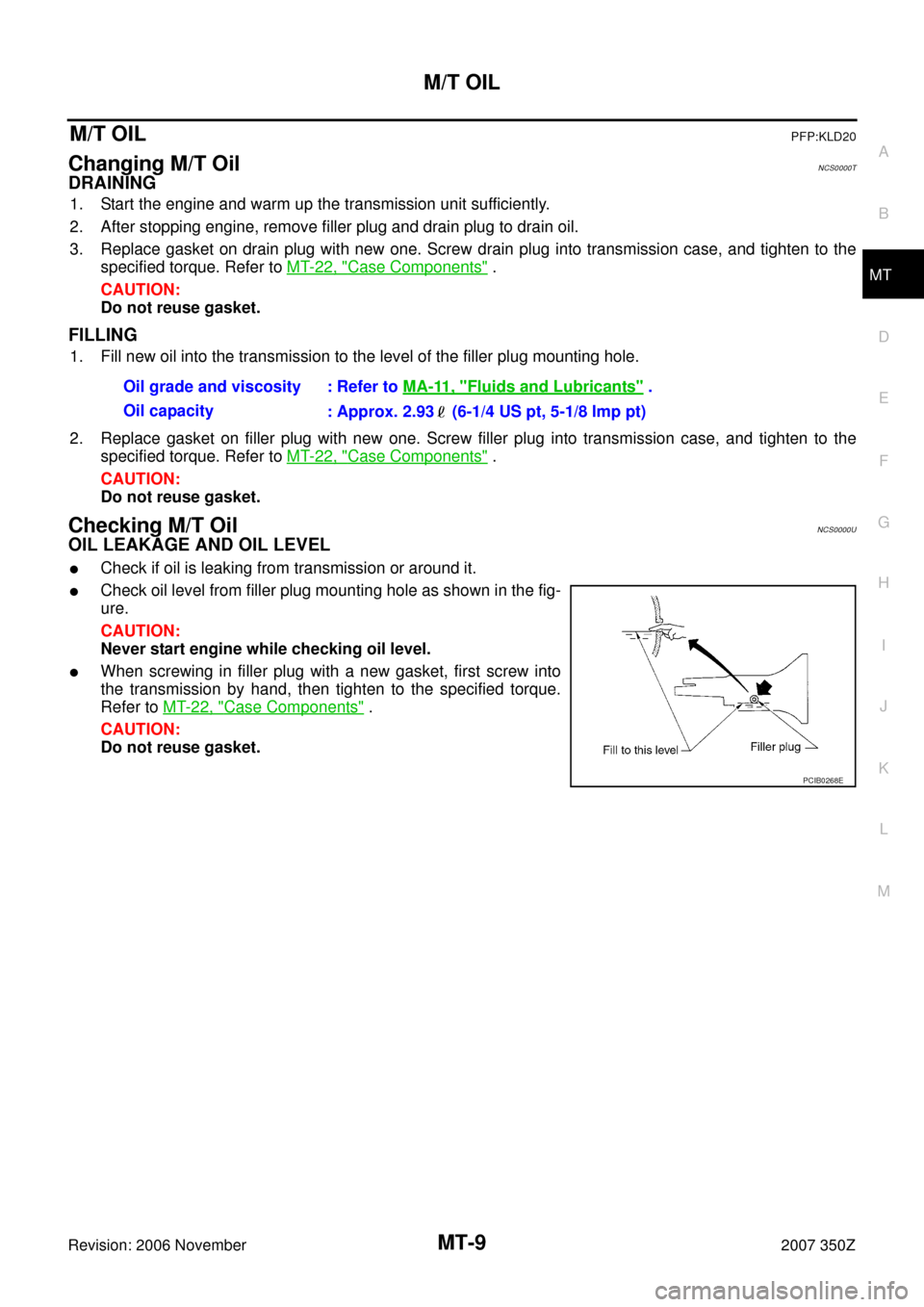

Check oil level from filler plug mounting hole as shown in the fig-
ure.
CAUTION:
Never start engine while checking oil level.
When screwing in filler plug with a new gasket, first screw into
the transmission by hand, then tighten to the specified torque.
Refer to MT-22, "
Case Components" .
CAUTION:
Do not reuse gasket.Oil grade and viscosity : Refer to MA-11, "
Fluids and Lubricants" .
Oil capacity
: Approx. 2.93 (6-1/4 US pt, 5-1/8 lmp pt)
PCIB0268E
TRANSMISSION ASSEMBLY
MT-21
D
E
F
G
H
I
J
K
L
MA
B
MT
Revision: 2006 November2007 350Z

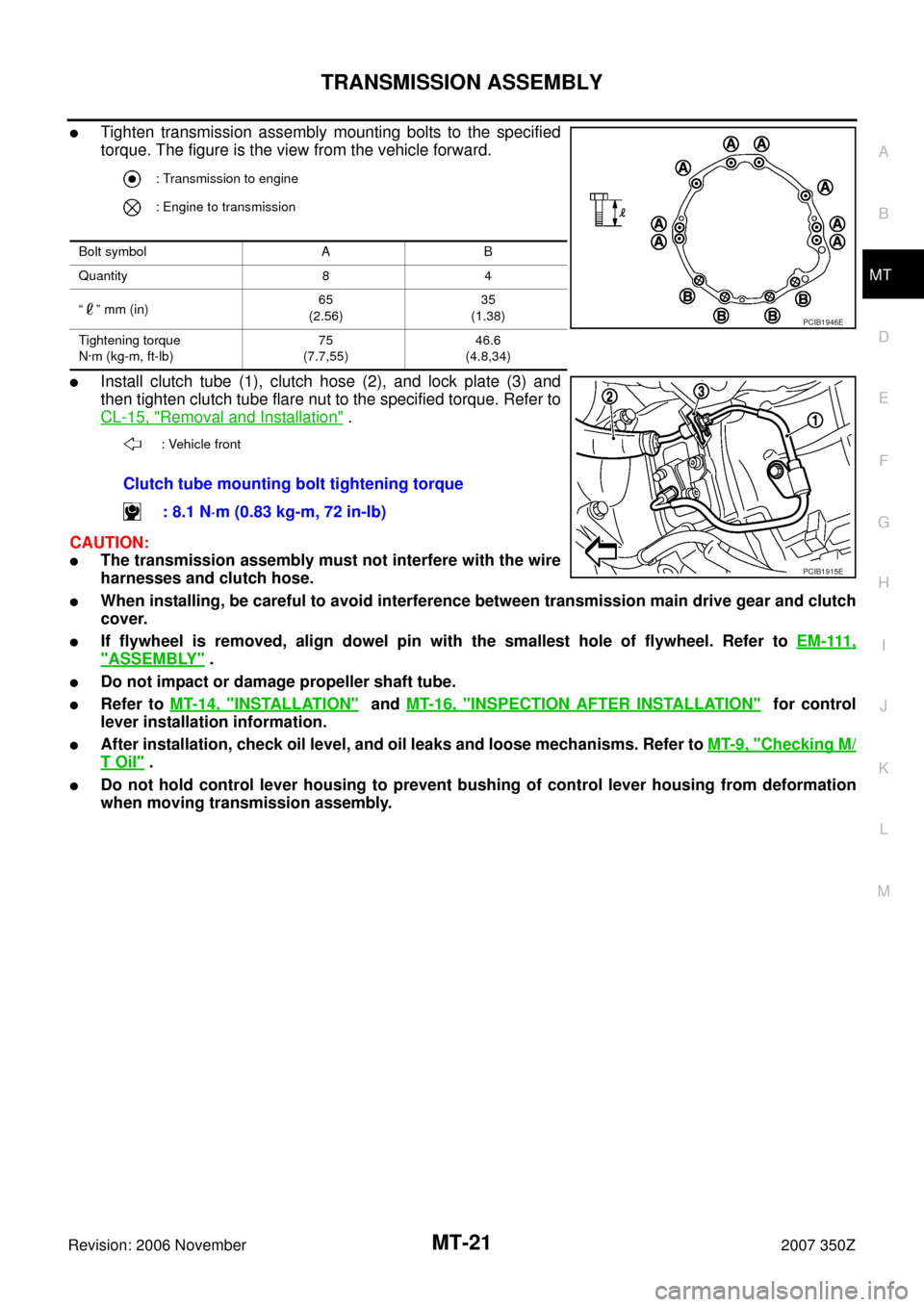

Tighten transmission assembly mounting bolts to the specified
torque. The figure is the view from the vehicle forward.
Install clutch tube (1), clutch hose (2), and lock plate (3) and
then tighten clutch tube flare nut to the specified torque. Refer to
CL-15, "
Removal and Installation" .
CAUTION:
The transmission assembly must not interfere with the wire
harnesses and clutch hose.
When installing, be careful to avoid interference between transmission main drive gear and clutch
cover.
If flywheel is removed, align dowel pin with the smallest hole of flywheel. Refer to EM-111,
"ASSEMBLY" .
Do not impact or damage propeller shaft tube.
Refer to MT-14, "INSTALLATION" and MT-16, "INSPECTION AFTER INSTALLATION" for control
lever installation information.
After installation, check oil level, and oil leaks and loose mechanisms. Refer to MT-9, "Checking M/
T Oil" .
Do not hold control lever housing to prevent bushing of control lever housing from deformation
when moving transmission assembly.
: Transmission to engine
: Engine to transmission
Bolt symbol A B
Quantity 8 4
“” mm (in)65
(2.56)35
(1.38)
Tightening torque
N·m (kg-m, ft-lb)75
(7.7,55)46.6
(4.8,34)
: Vehicle front
Clutch tube mounting bolt tightening torque
: 8.1 N·m (0.83 kg-m, 72 in-lb)
PCIB1946E
