HEADLAMP (FOR USA)PFP:26010

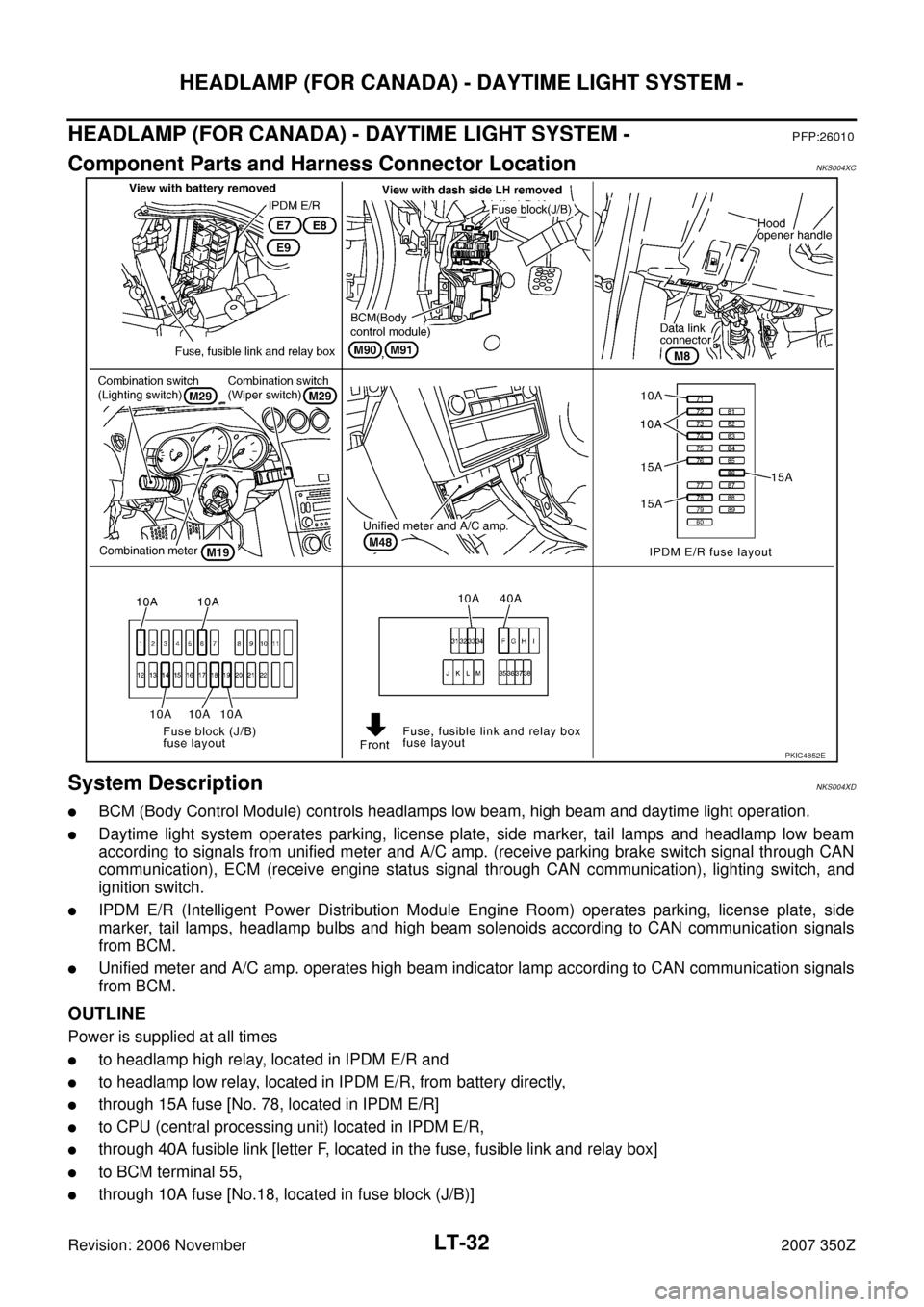

Component Parts and Harness Connector LocationNKS004WM
System DescriptionNKS004WN
Control of the headlamp system operation is dependent upon the position of the combination switch (lighting
switch). When the lighting switch is placed in the 2ND position, the BCM (body control module) receives input
signal requesting the headlamps (and tail lamps) illuminate. This input signal is communicated to the IPDM E/
R (intelligent power distribution module engine room) through the CAN communication lines. The CPU (central
processing unit) of the IPDM E/R controls the headlamp high and headlamp low relay coils. These relays,
when energized, direct power to the respective headlamps, which then illuminate.
OUTLINE
Power is supplied at all times

to headlamp high relay, located in IPDM E/R and

to headlamp low relay, located in IPDM E/R, from battery directly,

through 40A fusible link [letter F, located in fuse, fusible link and relay box]

to BCM terminal 55,

through 10A fuse [No.18, located in fuse block (J/B)]

to BCM terminal 42,

through 15A fuse [No.78 located in IPDM E/R]

to CPU located in IPDM E/R,

through 10A fuse [No.71,located in IPDM E/R]

to CPU located in IPDM E/R,

through 10A fuse [No.19, located in fuse block (J/B)]
SKIB7542E

LT-6
HEADLAMP (FOR USA)
Revision: 2006 November2007 350Z

to combination meter terminal 24.
With ignition switch in ON or START position, power is supplied

to CPU located in IPDM E/R,

through 10A fuse [No. 1, located in fuse block (J/B)]

to BCM terminal 38,

through 10A fuse [No.14, located in fuse block (J/B)]

to combination meter terminal 23.
With ignition switch in ACC or ON position, power is supplied

through 10A fuse [No. 6, located in fuse block (J/B)]

to BCM terminal 11.
Ground is supplied

to BCM terminal 52

through grounds M30 and M66,

to IPDM E/R terminals 38 and 60

through grounds E17, E43 and B102 (with VDC system, navigation system or telephone)

through grounds E17, E43 and F152 (without VDC system, navigation system and telephone),

to combination meter terminals 10, 11 and 12

through grounds M30 and M66.
HEADLAMP OPERATION
Low Beam Operation
With the lighting switch in 2ND position, the BCM receives input signal from combination switch reading func-
tion (Refer to BCS-3, "
COMBINATION SWITCH READING FUNCTION" ) the headlamp to illuminate. This
input signal is communicated to the IPDM E/R through the CAN communication lines. The CPU located in the
IPDM E/R controls the headlamp low relay coil, which when energized, supplies power,

through 15A fuse [No. 76, located in IPDM E/R]

through IPDM E/R terminal 20

to front combination lamp RH terminal 7,

through 15A fuse [No. 86, located in IPDM E/R]

through IPDM E/R terminal 30

to front combination lamp LH terminal 7.
Ground is supplied

to front combination lamp RH terminal 4, and

to front combination lamp LH terminal 4

through grounds E17, E43 and B102 (with VDC system, navigation system or telephone)

through grounds E17, E43 and F152 (without VDC system, navigation system and telephone).
With power and ground supplied, low beam headlamps illuminate.
High Beam Operation/Flash-to-Pass Operation
With the lighting switch in 2ND position and placed in HIGH or PASS position, the BCM receives input signal
requesting headlamp high beams to illuminate. High beam request signal and low beam request signal is com-
municated to the IPDM E/R through CAN communication. The CPU located in the IPDM E/R controls head-
lamp high relay and headlamp low relay turned ON, which when energized, supplies power,

through 15A fuse [No. 76, located in IPDM E/R]

through IPDM E/R terminal 20

to front combination lamp RH terminal 7,

through 15A fuse [No. 86, located in IPDM E/R]

through IPDM E/R terminal 30

to front combination lamp LH terminal 7,

through 10A fuse [No. 72, located in IPDM E/R]

through IPDM E/R terminal 27

LT-18
HEADLAMP (FOR USA)
Revision: 2006 November2007 350Z
ACTIVE TEST
Display Item List
NOTE:
This item is displayed, but cannot be tested.
CONSULT-III Function (IPDM E/R)NKS004WX
CONSULT-III can display each diagnostic item using the diagnostic test mode shown following.
DATA MONITOR
All Signals, Main Signals, Selection From Menu
NOTE:
Perform monitoring of IPDM E/R data with ignition switch ON. When ignition switch is at ACC, the display may
not be correct.
ACTIVE TEST
Display Item List
Test item Description
TAIL LAMP Allows tail lamp relay to operate by switching ON−OFF.
HEAD LAMP Allows headlamp relay to operate by switching ON−OFF.
FR FOG LAMP
NOTE—
CORNERING LAMP
NOTE—
Check Item, Diagnosis Mode Description
SELF-DIAGNOSTIC RESULTS Refer to PG-18, "
SELF-DIAG RESULTS" .
DATA MONITOR The input/output data of IPDM E/R is displayed in real time.
CAN DIAG SUPPORT MNTR The result of transmit/receive diagnosis of CAN communication can be read.
ACTIVE TEST IPDM E/R sends a drive signal to electronic components to check their operation.
Item nameCONSULT-III
screen displayDisplay
or unitMonitor item selection
Description
ALL
SIGNALSMAIN
SIGNALSSELECTION
FROM MENU
Position lights request TAIL & CLR REQ ON/OFF×× ×Signal status input from BCM
Headlamp low beam request HL LO REQ ON/OFF×× ×Signal status input from BCM
Headlamp high beam request HL HI REQ ON/OFF×× ×Signal status input from BCM
Te s t i t e mCONSULT-III
screen displayDescription
Tail lamp relay output TAIL LAMP Allows tail lamp relay to operate by switching operation ON−OFF at your option.
Headlamp relay (HI, LO) output LAMPSAllows headlamp relay (HI, LO) to operate by switching operation (OFF, HI ON, LO
ON) at your option (Headlamp high beam repeats ON−OFF every 1 second).

LT-32
HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM -
Revision: 2006 November2007 350Z
HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM -PFP:26010
Component Parts and Harness Connector LocationNKS004XC
System DescriptionNKS004XD

BCM (Body Control Module) controls headlamps low beam, high beam and daytime light operation.

Daytime light system operates parking, license plate, side marker, tail lamps and headlamp low beam
according to signals from unified meter and A/C amp. (receive parking brake switch signal through CAN
communication), ECM (receive engine status signal through CAN communication), lighting switch, and
ignition switch.

IPDM E/R (Intelligent Power Distribution Module Engine Room) operates parking, license plate, side
marker, tail lamps, headlamp bulbs and high beam solenoids according to CAN communication signals
from BCM.

Unified meter and A/C amp. operates high beam indicator lamp according to CAN communication signals
from BCM.
OUTLINE
Power is supplied at all times

to headlamp high relay, located in IPDM E/R and

to headlamp low relay, located in IPDM E/R, from battery directly,

through 15A fuse [No. 78, located in IPDM E/R]

to CPU (central processing unit) located in IPDM E/R,

through 40A fusible link [letter F, located in the fuse, fusible link and relay box]

to BCM terminal 55,

through 10A fuse [No.18, located in fuse block (J/B)]
PKIC4852E

HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM -
LT-33
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2006 November2007 350Z

to BCM terminal 42,

through 10A fuse [No. 71, located in IPDM E/R]

to CPU located in IPDM E/R,

through 10A fuse [No.19, located in fuse block (J/B)]

to combination meter terminal 24,

through 10A fuse [No.33, located in the fuse, fusible link and relay box]

to daytime light relay terminals 1 and 3.
With ignition switch in ON or START position, power is supplied

to CPU located in IPDM E/R,

through 10A fuse [No. 1, located in fuse block (J/B)]

to BCM terminal 38,

through 10A fuse [No.14, located in fuse block (J/B)]

to combination meter terminal 23.
With ignition switch in ACC or ON position, power is supplied

through 10A fuse [No. 6, located in fuse block (J/B)]

to BCM terminal 11.
Ground is supplied

to IPDM E/R terminals 38 and 60

through grounds E17, E43 and B102 (with VDC system, navigation system or telephone)

through grounds E17, E43 and F152 (without VDC system, navigation system and telephone),

to BCM terminal 52

through grounds M30 and M66,

to combination meter terminals 10, 11 and 12

through grounds M30 and M66.
HEADLAMP OPERATION
Low Beam Operation
With the lighting switch in 2ND position, the BCM receives input signal requesting the headlamps to illuminate.
This input signal is communicated to the IPDM E/R through CAN communication. The CPU located in the
IPDM E/R controls the headlamp low relay turned ON, which when energized, supplies power,

through 15A fuse [No. 76, located in IPDM E/R]

through IPDM E/R terminal 20

to front combination lamp RH terminal 7,

through 15A fuse [No. 86, located in IPDM E/R]

through IPDM E/R terminal 30

to front combination lamp LH terminal 7.
Ground is supplied

to front combination lamp RH terminal 4, and

to front combination lamp LH terminal 4

through grounds E17, E43 and B102 (with VDC system, navigation system or telephone)

through grounds E17, E43 and F152 (without VDC system, navigation system and telephone).
With power and ground supplied, headlamp bulbs illuminate.
High Beam Operation /Flash-to-Pass Operation
With the lighting switch in 2ND position and placed in HIGH or PASS position, the BCM receives input signal
requesting headlamp high beams to illuminate. High beam request signal and low beam request signal is com-
municated to the IPDM E/R through CAN communication. The CPU located in the IPDM E/R controls head-
lamp high relay and headlamp low relay turned ON, which when energized, supplies power,

through 15A fuse [No. 76, located in IPDM E/R]

through IPDM E/R terminal 20

to front combination lamp RH terminal 7,

LT-34
HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM -
Revision: 2006 November2007 350Z

through 15A fuse [No. 86, located in IPDM E/R]

through IPDM E/R terminal 30

to front combination lamp LH terminal 7,

through 10A fuse [No.72, located in IPDM E/R]

through IPDM E/R terminal 27

to front combination lamp RH terminal 3,

through 10A fuse [No.74, located in IPDM E/R]

through IPDM E/R terminal 28

to front combination lamp LH terminal 3.
Ground is supplied

to front combination lamp RH terminal 4, and

to front combination lamp LH terminal 4

through grounds E17, E43 and B102 (with VDC system, navigation system or telephone)

through grounds E17, E43 and F152 (without VDC system, navigation system and telephone).
With the power and ground supplied, headlamp bulbs illuminate. High beam solenoids move the bulb shades
in the front combination lamps, and the bulb shades change to high beam position.
Unified meter and A/C amp. receives signal from BCM through CAN communication, and then combination
meter indicator illuminates high beam,
DAYTIME LIGHT OPERATION
Once the parking brake is turned OFF after ignition switch ON, if the lighting switch is turned OFF while engine
is running, the BCM outputs the signal requesting parking, license plate, side marker, tail lamps and headlamp
low beam to illuminate. This output signal is communicated to the IPDM E/R through CAN communication.
The CPU located in the IPDM E/R controls headlamp low relay and daytime light relay turned ON, which when
energized, supplies power,

through 15A fuse [No.76, located in the IPDM E/R]

through IPDM E/R terminal 20

to front combination lamp RH terminal 7,

through 15A fuse [No.86, located in the IPDM E/R]

through IPDM E/R terminal 30

to front combination lamp LH terminal 7,

through 10A fuse [No.33, located in the fuse, fusible link and relay box]

through daytime light relay terminal 2

to IPDM E/R terminal 55,

through daytime light relay terminal 5

to front combination lamp RH terminal 6

to front combination lamp LH terminal 6

to rear combination lamp RH terminal 2

to rear combination lamp LH terminal 2

to license plate lamp RH terminal 2

to license plate lamp LH terminal 2.
Ground is supplied

to front combination lamp RH terminal 4

to front combination lamp LH terminal 4

to front combination lamp RH terminal 8

to front combination lamp LH terminal 8

through grounds E17, E43 and B102 (with VDC system, navigation system or telephone)

through grounds E17, E43 and F152 (without VDC system, navigation system and telephone),

to rear combination lamp RH terminal 3

to rear combination lamp LH terminal 3

to license plate lamp RH terminal 1

HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM -
LT-47
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2006 November2007 350Z
Terminals and Reference Values for IPDM E/RNKS004XJ
How to Proceed With Trouble DiagnosisNKS004XK
1. Confirm the symptom or customer complaint.
2. Understand operation description and function description. Refer to LT- 3 2 , "
System Description" .
3. Perform the preliminary check. Refer to LT- 4 7 , "
Preliminary Check" .
4. Check symptom and repair or replace the cause of malfunction.
5. Does headlamp operate normally? If YES, GO TO 6. If NO, GO TO 4.
6. INSPECTION END
Preliminary CheckNKS004XL
CHECK POWER SUPPLY AND GROUND CIRCUIT
1. CHECK FUSES AND FUSIBLE LINK
Check for blown fuses and fusible link.
39 L CAN − H— — —
40 P CAN − L— — —
42 GYBattery power
supplyOFF — Battery voltage
52 B Ground ON — Approx. 0 V
55 RBattery power
supplyOFF — Battery voltage Te r -
minal
No.Wire
colorSignal nameMeasuring condition
Reference value
Ignition
switchOperation or condition
Terminal
No.Wire
colorSignal nameMeasuring condition
Reference value
Ignition
switchOperation or condition
20 R/L Headlamp low (RH) ON Lighting switch 2ND positionOFF Approx. 0 V
ON Battery voltage
27 BR Headlamp high (RH) ON Lighting switch HIGH or PASS positionOFF Approx. 0 V
ON Battery voltage
28 R/Y Headlamp high (LH) ON Lighting switch HIGH or PASS positionOFF Approx. 0 V
ON Battery voltage
30 R/W Headlamp low (LH) ON Lighting switch 2ND positionOFF Approx. 0 V
ON Battery voltage
38 B Ground ON — Approx. 0 V
48 L CAN − H— — —
49 P CAN − L— — —
55 R/Y Daytime light relay signal ON Lighting switch 1ST positionOFF Approx. 0 V
ON Battery voltage
60 B Ground ON — Approx. 0 V
UNIT POWER SOURCE Fuse and fusible link No.
BCMBatteryF
18
Ignition switch ON or START position 1
Ignition switch ACC or ON position 6

LT-50
HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM -
Revision: 2006 November2007 350Z
ACTIVE TEST
Display Item List
NOTE:
This item is displayed, but cannot be tested.
CONSULT-III Function (IPDM E/R)NKS004XN
CONSULT-III can display each diagnostic item using the diagnostic test mode shown following.
DATA MONITOR
All Signals, Main Signals, Selection From Menu
NOTE:
Perform monitoring of IPDM E/R data with ignition switch ON. When ignition switch is at ACC, the display may
not be correct.
ACTIVE TEST
Display Item List
Test item Description
TAIL LAMP Allows tail lamp relay to operate by switching ON−OFF.
HEAD LAMP Allows headlamp relay to operate by switching ON−OFF.
FR FOG LAMP
NOTE—
CORNERING LAMP
NOTE—
DAYTIME RUNNING LIGHT Allows headlamp low relay and daytime light relay to operate switching ON−OFF.
Check Item, Diagnosis Mode Description
SELF-DIAG RESULTS Refer to PG-18, "
SELF-DIAG RESULTS" .
DATA MONITOR The input/output data of IPDM E/R is displayed in real time.
CAN DIAG SUPPORT MNTR The result of transmit/receive diagnosis of CAN communication can be read.
ACTIVE TEST IPDM E/R sends a drive signal to electronic components to check their operation.
Item nameCONSULT-III
screen displayDisplay
or unitMonitor item selection
Description ALL
SIG-
NALSMAIN
SIGNALSSELECTION
FROM
MENU
Position lights request TAIL&CLR REQ ON/OFF×× ×Signal status input from BCM
Headlamp low beam request HL LO REQ ON/OFF×× ×Signal status input from BCM
Headlamp high beam request HL HI REQ ON/OFF×× ×Signal status input from BCM
Daytime running light request DTRL REQ ON/OFF××Signal status input from BCM
Te s t i t e mCONSULT-III
screen displayDescription
Tail lamp relay output TAIL LAMP Allows tail lamp relay to operate by switching operation ON−OFF at your option.
Headlamp relay (HI, LO) output LAMPSAllows headlamp relay (HI, LO) to operate by switching operation (OFF, HI ON, LO
ON) at your option (Headlamp high beam repeats ON−OFF every 1 second).
