2007 NISSAN 350Z window

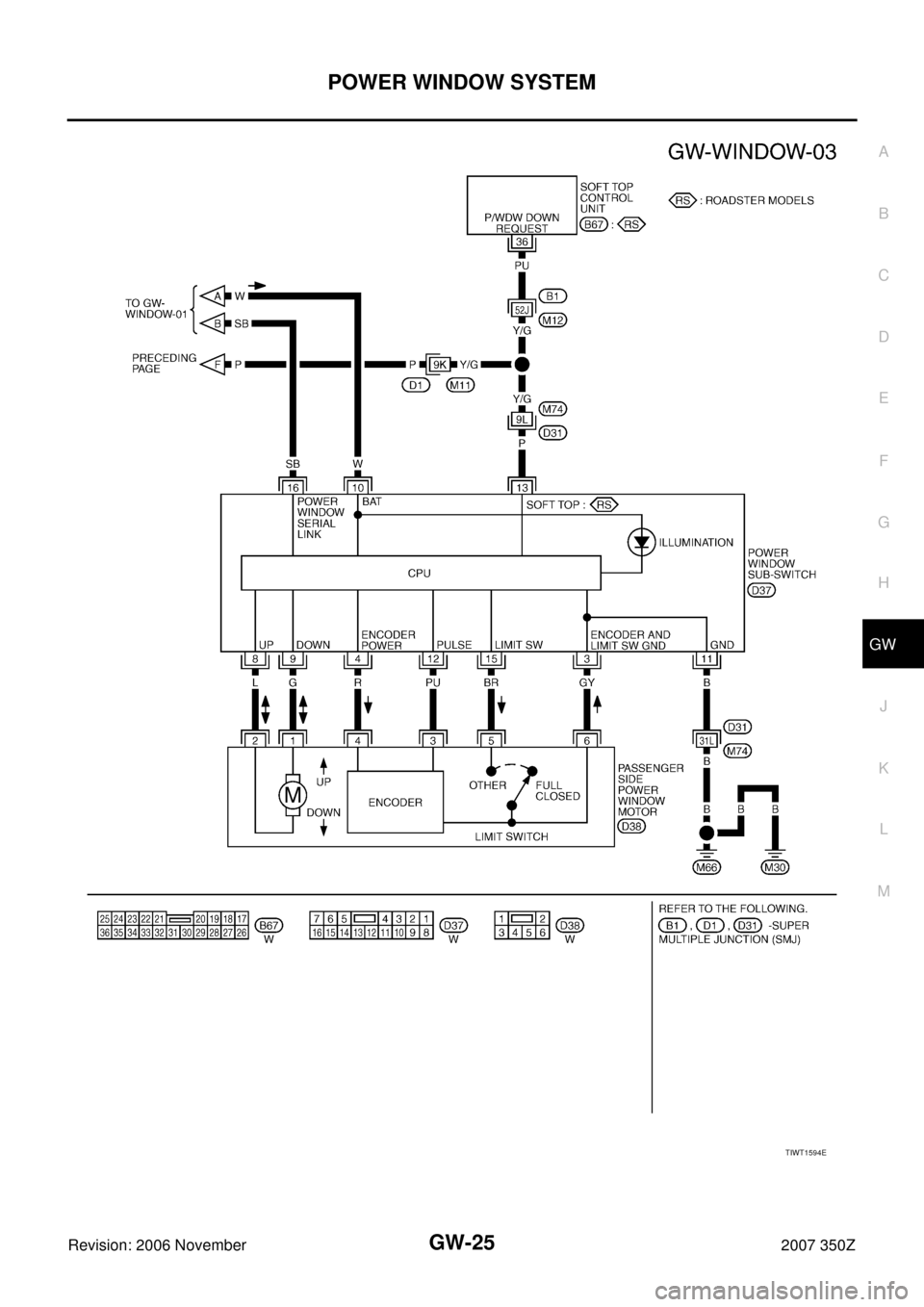

POWER WINDOW SYSTEM
GW-25
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: 2006 November2007 350Z
TIWT1594E

GW-26
POWER WINDOW SYSTEM
Revision: 2006 November2007 350Z
Terminal and Reference Value for BCMNIS0004P
Te r -
minalWire
colorItemSignal
input/out-
putConditionVoltage (V)
(Approx.)
11 L GIgnition switch ACC power sup-
ply (ACC or ON)InputIgnition switch
(ACC or ON position)Battery voltage
12 P Passenger side door switch InputON (open) 0
OFF (closed) Battery voltage
22 Y Power window serial link Input/Out-
put—
38 W/LIgnition switch ON power supply
(ON or START)InputIgnition switch
(ON or START position)Battery voltage
39 L CAN-HInput/Out-
put——
40 P CAN-LInput/Out-
put——
42 GY Power source (Fuse) Input — Battery voltage
52 B Ground — — 0
53 Y/B Rap signal OutputIGN SW ON Battery voltage
Within 45 second after ignition
switch is turned to OFFBattery voltage
When driver side or passenger
side door is open in power win-
dow timer operates0
54 WPower window switch power
supplyOutput — Battery voltage
55 R Power source (Fusible link) Input — Battery voltage
62 L Driver side door switch InputON (open) 0
OFF (closed) Battery voltage
PIIA2344J

POWER WINDOW SYSTEM
GW-27
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: 2006 November2007 350Z
Terminal and Reference Value for Power Window Main SwitchNIS0004Q
*: For RoadsterTe r -
minalWire
ColorItemSignal
input/outputConditionVoltage (V)
(Approx.)
1 W BAT power supply Input — Battery voltage
4* PPower window down request
signalInputWhen soft top open/close
function starts and window
down function is operating.0
Other than above 5
5 OR Encoder power supply Input — 10
6 B/R Key cylinder lock switch OutputKey position
(Neutral → Locked)5 → 0
7 SB Key cylinder unlock switch OutputKey position
(Neutral → Unlocked)5 → 0
8LDriver side
power window motor UP signalOutputWhen power window motor
UP operation.Battery voltage
9 Y Limit switch signal InputDriver side door window is
between fully-open and just
before fully-closed position
(ON).0
Driver side door window is
between just before fully-
closed position and fully-
closed position (OFF).5
10 BR Rap signal OutputIGN SW ON Battery voltage
Within 45 second after igni-
tion switch is turned to OFFBattery voltage
When driver side or passenger
side door is open in power
window timer is operates0
11 GDriver side
power window motor DOWN
signalOutputWhen power window motor
DOWN operation. Battery voltage
12 PU/W Power window serial linkInput/Out-
put—
13 GY Encoder pulse signalInput/Out-
putWhen power window motor
operates.
14 LGLimit switch and encoder
ground—— 0
15 B Ground — — 0
PIIA2344J
OCC3383D

GW-28
POWER WINDOW SYSTEM
Revision: 2006 November2007 350Z
Terminal and Reference Value for Power Window Sub-SwitchNIS0004R
*: For RoadsterTe r -
minalWire
ColorItemSignal
input/out-
putConditionVoltage (V)
(Approx)
3 GY Limit switch and encoder ground — — 0
4 R Encoder power supply Input — 10
8LPassenger side
power window motor UP signalOutputWhen power window motor
UP operation. Battery voltage
9GPassenger side
power window motor DOWN sig-
nalOutputWhen power window motor
DOWN operation. Battery voltage
10 W BAT power supply Input — Battery voltage
11 B Ground — — 0
12 PU Encoder pulse signalInput/Out-
putWhen power window motor
operates.
13* PPower window down request sig-
nalInputWhen soft top open/close
function starts and window
down function is operating. 0
Except the above 5
15 BR Limit switch signal InputPassenger side door win-
dow is between fully-open
and just before fully-closed
position (ON).0
Passenger side door win-
dow is between just before
fully-closed position and
fully-closed position (OFF).5
16 SB Power window serial linkInput/Out-
put—
OCC3383D
PIIA2344J

POWER WINDOW SYSTEM
GW-29
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: 2006 November2007 350Z
CONSULT-III Function (BCM)NIS0004S
CONSULT-III can display each diagnostic item using the diagnostic test modes shown following.
WORK SUPPORT
DATE MONITOR
ACTIVE TEST
BCM diagnostic test itemCheck item diagnostic
test modeContent
RETAINED PWRWork support Changes setting of each function.
Data monitor Displays the input data of BCM in real time.
Active test Gives a drive signal to a load to check the operation.
Work item Description
RETAINED PWRRap signal’s power supply period can be changed by mode setting. Selects rap signal’s power
supply period between three steps

MODE 1 (45 sec.) / MODE 2 (OFF) / MODE 3 (2 min.).
Monitor item Description
IGN ON SW Indicates [ON/OFF] condition of ignition switch.
DOOR SW–DR Indicates [ON/OFF] condition of driver side door switch.
DOOR SW–AS Indicates [ON/OFF] condition of passenger side door switch.
Test item Description
RETAINED PWRThis test is able to supply RAP signal (power) from BCM (body control module) to power window
system and power sunroof system (if equipped). Those systems can be operated when turning on
“RETAINED PWR” on CONSULT-III screen even if the ignition switch is turned OFF.
NOTE:
During this test, CONSULT-III can be operated with ignition switch in “OFF” position. “RETAINED
PWR” should be turned “ON” or “OFF” on CONSULT-III screen when ignition switch is ON. Then
turn ignition switch OFF to check retained power operation. CONSULT-III might be stuck if
“RETAINED PWR” is turned to “ON” or “OFF” on CONSULT-III screen when ignition switch is OFF
position.

GW-30
POWER WINDOW SYSTEM
Revision: 2006 November2007 350Z
Work FlowNIS0004T
1. Check the symptom and customer's requests.
2. Understand the outline of system. Refer to GW-19, "
System Description" .
3. According to the trouble diagnosis chart, repair or replace the cause of the malfunction. Refer to GW-30,
"Trouble Diagnoses Symptom Chart" .
4. Does power window system operate normally? If Yes, GO TO 5, If No, GO TO 3.
5. INSPECTION END
Trouble Diagnoses Symptom ChartNIS0004U

Make sure that other systems using the signal of the following check systems operate normally.
Symptom Diagnoses / service procedureReference
page
None of the power windows can be operated using any
switch.1. Check BCM power supply and ground circuitGW-32
2. Check power window main switch power supply and
ground circuitGW-46
3. Check power window serial linkGW-44
4. Replace BCM.BCS-17
Driver side power window cannot be operated1.Check driver side power window motor circuitGW-332. Replace the power window main switch.GW-46
Passenger side power window cannot be operated.1. Check power window sub-switch power supply and
ground circuitGW-472. Check power window serial linkGW-44
3. Check passenger side power window motor circuitGW-33
4. Replace BCM.BCS-17
Anti-pinch system does not operate normally (driver
side).1. Door window sliding part malfunction

A foreign material adheres to window glass or grass
run rubber.

Glass run rubber wear or deformation.

Sash is tilted too much, or not enough.—
2. Limit switch adjustingGW-52
3. Check limit switch circuit (driver side)GW-34
4. Check encoder circuit (driver side)GW-37
Anti-pinch system does not operate normally (passenger
side).1. Door window sliding part malfunction

A foreign material adheres to window glass or grass
run rubber.

Glass run rubber wear or deformation.

Sash is tilted too much, or not enough.—
2. Limit switch adjustingGW-52
3. Check limit switch circuit (passenger side)GW-36
4. Check encoder circuit (passenger side)GW-39
Power window retained power operation does not oper-
ate properly.1. Check the retained power operation mode setting.GW-292. Check door switchGW-42
3. Replace BCM.BCS-17

POWER WINDOW SYSTEM
GW-31
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: 2006 November2007 350Z
Automatic window adjusting function does not operate.1. Check door switchGW-42
2. Limit switch adjustingGW-52
3. Check limit switch circuit (driver side)GW-34
4. Check limit switch circuit (passenger side)GW-36
5. Check power window serial linkGW-44
6. Replace BCM.BCS-17
Does not operate by the key cylinder switch.1. Check door key cylinder switchGW-482. Replace the power window main switch.EI-33
Power window lock switch does not function.1. Check power window serial linkGW-442. Replace the power window main switch.EI-33
Auto operation does not operate but manual operate
normally (driver side)1. Check encoder circuit (driver side)GW-37
2. Replace power window main switchEI-33
Auto operation does not operate but manual operate
normally (passenger side)1. Check encoder circuit (passenger side)GW-39
2. Replace power window sub-switchEI-33
Symptom Diagnoses / service procedureReference
page

GW-32
POWER WINDOW SYSTEM
Revision: 2006 November2007 350Z
Check BCM Power Supply and Ground CircuitNIS0004V
1. CHECK FUSE

Check 10A fuse [No.1, located in fuse block (J/B)]

Check 10A fuse [No.18, located in fuse block (J/B)]

Check 40A fusible link (letter F , located in the fuse and fusible link box).
NOTE:
Refer to GW-18, "
Component Parts and Harness Connector Location" .
OK or NG
OK >> GO TO 2.
NG >> If fuse is blown out, be sure to eliminate cause of malfunction before installing new fuse. Refer to
PG-4, "
POWER SUPPLY ROUTING CIRCUIT" .
2. CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch ON.
2. Check voltage between BCM connector M90, M91 terminal 38,
42, 55 and ground.
OK or NG
OK >> GO TO 3.
NG >> Check BCM power supply circuit for open or short.
3. CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connector.
3. Check continuity between BCM connector M91 terminal 52 and
ground.
OK or NG
OK >> Power supply and ground circuit are OK.
NG >> Check BCM ground circuit for open or short.38 (W/L) – Ground : Battery voltage
42 (GY) – Ground : Battery voltage
55 (R) – Ground : Battery voltage
PIIA6160E
52 (B) – Ground :Continuity should exist.
PIIA9131E
