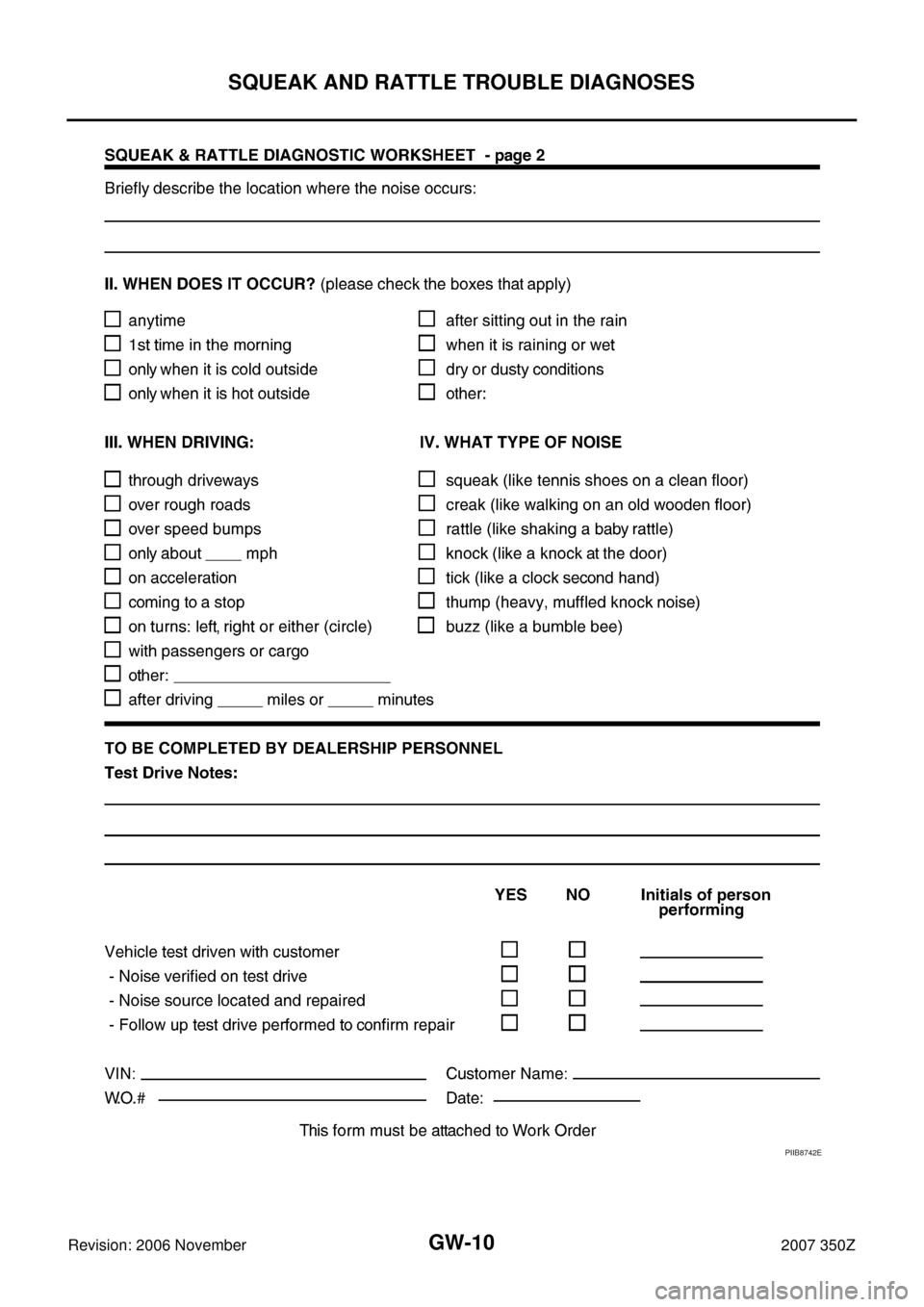

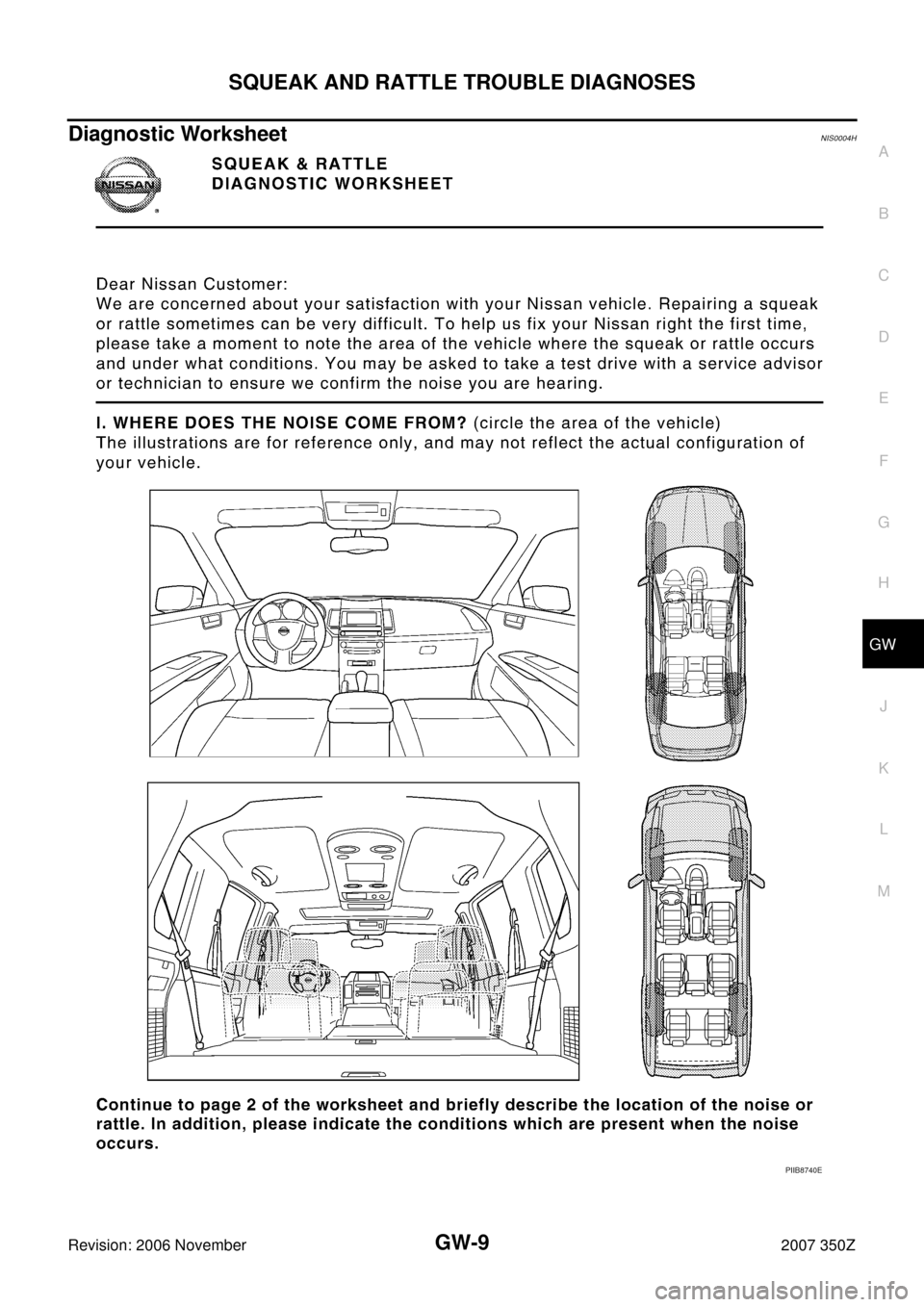

Diagnostic WorksheetNIS0004H
PIIB8740E

GW-10
SQUEAK AND RATTLE TROUBLE DIAGNOSES
Revision: 2006 November2007 350Z
PIIB8742E

WINDSHIELD GLASS
GW-11
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: 2006 November2007 350Z
WINDSHIELD GLASSPFP:72712
Removal and InstallationNIS0004I
REMOVAL (COUPE)
1. Remove the front pillar finisher. Refer to EI-31, "Removal and Installation (for Coupe Models)" .
2. Partially remove the headlining (front edge). Refer to EI-44, "
Removal and Installation (for Coupe Mod-
els)" .
3. Remove the front pillar garnish. Refer to EI-35, "
Removal and Installation (for Coupe Models)" .
4. Remove the front wiper arms. Refer to WW-30, "
Removal and Installation of Front Wiper Arms, Adjust-
ment of Wiper Arms Stop Location" .
5. Remove the cowl top cover. Refer to EI-20, "
COWL TOP" .
6. Apply a protective tape around the windshield glass to protect the painted surface from damage.
NOTE:

After removing moldings, remove glass using piano wire or power cutting tool and an inflatable pump bag.

If a windshield glass is to be reused, mark the body and the glass with mating marks.

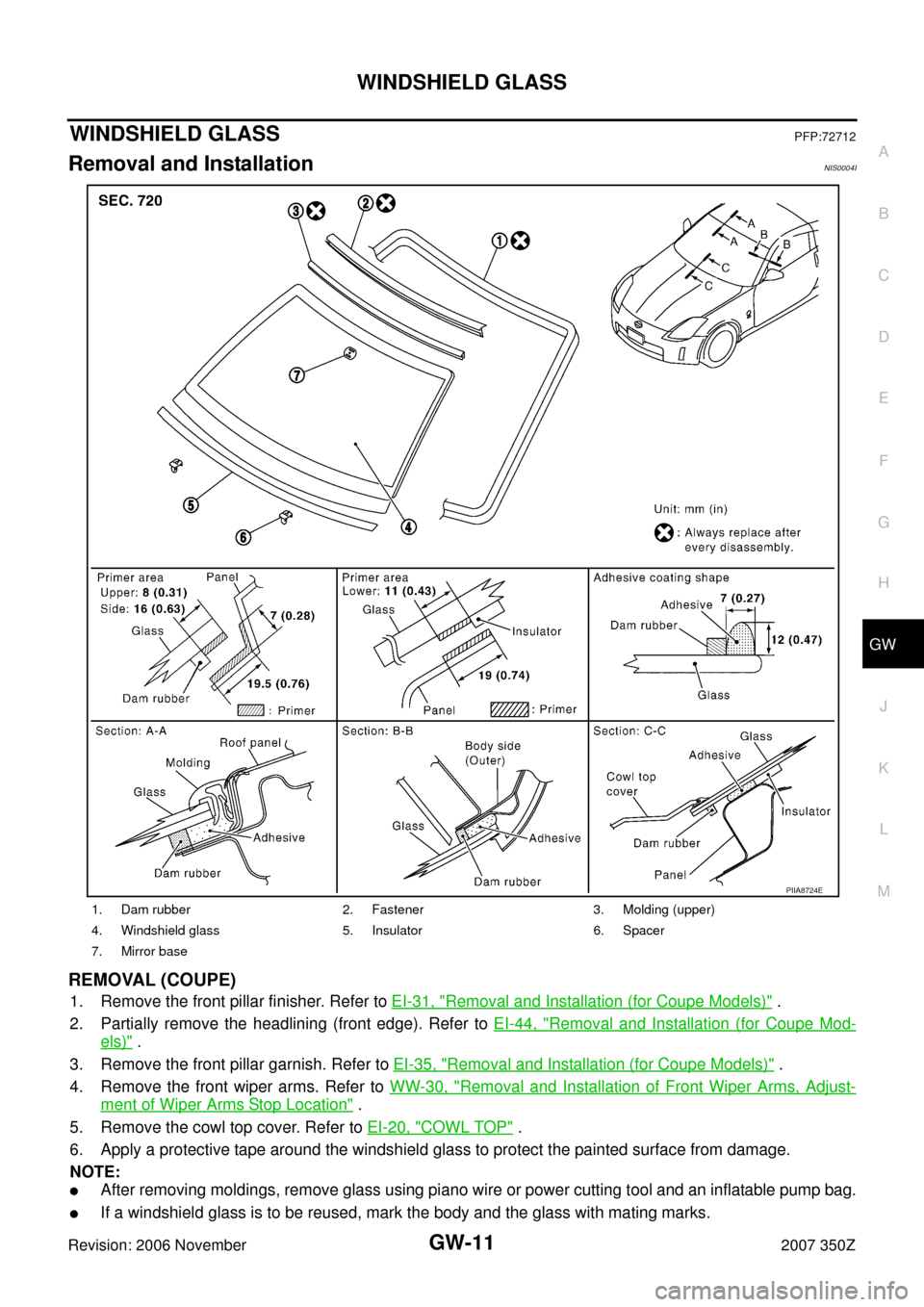

1. Dam rubber 2. Fastener 3. Molding (upper)
4. Windshield glass 5. Insulator 6. Spacer
7. Mirror base
PIIA8724E

GW-12
WINDSHIELD GLASS
Revision: 2006 November2007 350Z
WARNING:
When cutting the glass from the vehicle, always wear safety glasses and heavy gloves to help prevent
glass splinters from entering your eyes or cutting your hands.
CAUTION:

When a windshield glass is to be reused, do not use a cutting knife or power cutting tool.

Be careful not to scratch the glass when removing.
7. Remove the windshield glass, using suction lifter.
NOTE:
Do not set or stand the glass on its edge. Small chips may develop into cracks.
REMOVAL (ROADSTER)
1. Open the soft top.
2. Remove the front pillar finisher. Refer to EI-32, "
Removal and Installation (for Roadster Models)" .
3. Remove the roof front finisher. Refer to EI-46, "
Removal and Installation (for Roadster Models)" .
4. Remove the front pillar garnish. Refer to EI-37, "
Removal and Installation (for Roadster Models)" .
5. Remove the front wiper arms. Refer to WW-30, "
Removal and Installation of Front Wiper Arms, Adjust-
ment of Wiper Arms Stop Location" .
6. Remove the cowl top cover. Refer to EI-20, "
COWL TOP" .
7. Apply a protective tape around the windshield glass to protect the painted surface from damage.
NOTE:

After removing moldings, remove glass using piano wire or power cutting tool and an inflatable pump bag.

If a windshield glass is to be reused, mark the body and the glass with mating marks.
WARNING:
When cutting the glass from the vehicle, always wear safety glasses and heavy gloves to help prevent
glass splinters from entering your eyes or cutting your hands.
CAUTION:

When a windshield glass is to be reused, do not use a cutting knife or power cutting tool.

Be careful not to scratch the glass when removing.
8. Remove the windshield glass, using suction lifter.
NOTE:
Do not set or stand the glass on its edge. Small chips may develop into cracks.
INSTALLATION

Use a genuine Nissan Urethane Adhesive Kit (if available) or equivalent and follow the instructions fur-
nished with it.

While the urethane adhesive is curing, open a door window. This will prevent the glass from being forced
out by passenger compartment air pressure when a door is closed.

The molding must be installed securely so that it is in position and leaves no gap.

Inform the customer that the vehicle should remain stationary until the urethane adhesive has completely
cured (preferably 24 hours). Curing time varies with temperature and humidity.
WARNING:

Keep heat and open flames away as primers and adhesive are flammable.

The materials contained in the kit are harmful if swallowed, and may irritate skin and eyes. Avoid
contact with the skin and eyes.
PIIA0186E

WINDSHIELD GLASS
GW-13
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: 2006 November2007 350Z

Use in an open, well ventilated location. Avoid breathing the vapors. They can be harmful if
inhaled. If affected by vapor inhalation, immediately move to an area with fresh air.

Driving the vehicle before the urethane adhesive has completely cured may affect the perfor-
mance of the windshield in case of an accident.
CAUTION:

Do not use an adhesive which is past its usable term. Shelf life of this product is limited to six
months after the date of manufacture. Carefully adhere to the expiration or manufacture date
printed on the box.

Keep primers and adhesive in a cool, dry place. Ideally, they should be stored in a refrigerator.

Do not leave primers or adhesive cartridge unattended with their caps open or off.

The vehicle should not be driven for at least 24 hours or until the urethane adhesive has com-
pletely cured. Curing time varies depending on temperature and humidity. The curing time will
increase under lower temperature and lower humidity.
Repairing Water Leaks
Leaks can be repaired without removing and reinstalling glass.
If water is leaking between the urethane adhesive material and body or glass, determine the extent of leakage.
This can be done by applying water to the windshield area while pushing glass outward.
To stop the leak, apply primer (if necessary) and then urethane adhesive to the leak point.

GW-14
BACK DOOR WINDOW GLASS
Revision: 2006 November2007 350Z
BACK DOOR WINDOW GLASSPFP:90300
Removal and InstallationNIS0004J
REMOVAL
1. Remove back door finisher. Refer to EI-48, "BACK DOOR FINISHER" .
2. Remove rear wiper arm. Refer to WW-46, "
Removal and Installation of Rear Wiper Arm, Adjustment of
Wiper Arms Stop Location" .
3. Remove connectors and grounds for rear window defogger.
4. Apply a protective tape around the back door window glass to protect the painted surface from damage.
remove glass using piano wire or power cutting tool and an inflatable pump bag.
NOTE:
If a back door window glass is to be reused, mark the body and the glass with mating marks.
WARNING:
When cutting the glass from the vehicle, always wear safety glasses and heavy gloves to help prevent
glass splinters from entering your eyes or cutting your hands.
1. Back door window molding 2. Dual lock fastener 3. Back door
4. Back door window glass 5. Holder 6. Adhesive
7. Dam rubber
PIIB0822E

BACK DOOR WINDOW GLASS
GW-15
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: 2006 November2007 350Z
CAUTION:

When a back door window glass is to be reused, do not use a cutting knife or power cutting tool.

Be careful not to scratch the glass when removing.

Do not set or stand the glass on its edge. Small chips may develop into cracks.
5. Remove the back door window glass, using suction lifter.
INSTALLATION

Use a genuine Nissan Urethane Adhesive Kit (if available) or equivalent and follow the instructions fur-
nished with it.

While the urethane adhesive is curing, open a door window. This will prevent the glass from being forced
out by passenger compartment air pressure when a door is closed.

Inform the customer that the vehicle should remain stationary until the urethane adhesive has completely
cured (preferably 24 hours). Curing time varies with temperature and humidity.
WARNING:

Keep heat and open flames away as primers and adhesive are flammable.

The materials contained in the kit are harmful if swallowed, and may irritate skin and eyes. Avoid
contact with the skin and eyes.

Use in an open, well ventilated location. Avoid breathing the vapors. They can be harmful if
inhaled. If affected by vapor inhalation, immediately move to an area with fresh air.

Driving the vehicle before the urethane adhesive has completely cured may affect the perfor-
mance of the back door window in case of an accident.
CAUTION:

Do not use an adhesive which is past its usable term. Shelf life of this product is limited to six
months after the date of manufacture. Carefully adhere to the expiration or manufacture date
printed on the box.

Keep primers and adhesive in a cool, dry place. Ideally, they should be stored in a refrigerator.

Do not leave primers or adhesive cartridge unattended with their caps open or off.

The vehicle should not be driven for at least 24 hours or until the urethane adhesive has com-
pletely cured. Curing time varies depending on temperature and humidity. The curing time will
increase under lower temperature and lower humidity.
Repairing Water Leaks
Leaks can be repaired without removing and reinstalling glass.
If water is leaking between the urethane adhesive material and body or glass, determine the extent of leakage.
This can be done by applying water to the back door window area while pushing glass outward.
To stop the leak, apply primer (if necessary) and then urethane adhesive to the leak point.
PIIB0415E

GW-16
SIDE WINDOW GLASS
Revision: 2006 November2007 350Z
SIDE WINDOW GLASSPFP:83300
Removal and InstallationNIS0004K
REMOVAL
1. Remove rear side finisher. Refer to EI-35, "BODY SIDE TRIM" .
2. Remove rear pillar finisher. Refer to EI-35, "
BODY SIDE TRIM" .
3. Remove headlining. Refer to EI-44, "
HEADLINING" .
4. Remove lock pillar finisher. Refer to EI-31, "
ROOF SIDE MOLDING" .
NOTE:
If a side window glass is to be reused, mark the body and the glass with mating marks.
WARNING:
When cutting the glass from the vehicle, always wear safety glasses and heavy gloves to help prevent
glass splinters from entering your eyes or cutting your hands.
CAUTION:

Be careful not to scratch the glass when removing.
1. Side window glass molding (upper) 2. Side window glass 3. Grommet
4. Clip 5. Side window glass molding (lower) 6. Adhesive
7. Lock pillar finisher 8. Back door molding 9. Rear fender
PIIB1358E
